700C Road Gravel Bike Frameset 44cm 47cm 50cm 53cm Thru Axle 100/142mm Frame Aluminum Alloy Bike Frame with Fork BSA

Key features

• Gravel Road Bikes Frame: Height 44cm 47cm 50cm 53cm , for 700C wheelset, Recommended rider height 145-160cm/160-170cm/170-180cm/180-185cm.Frame weight 1638g±30g, Fork weight 1045g±20g.

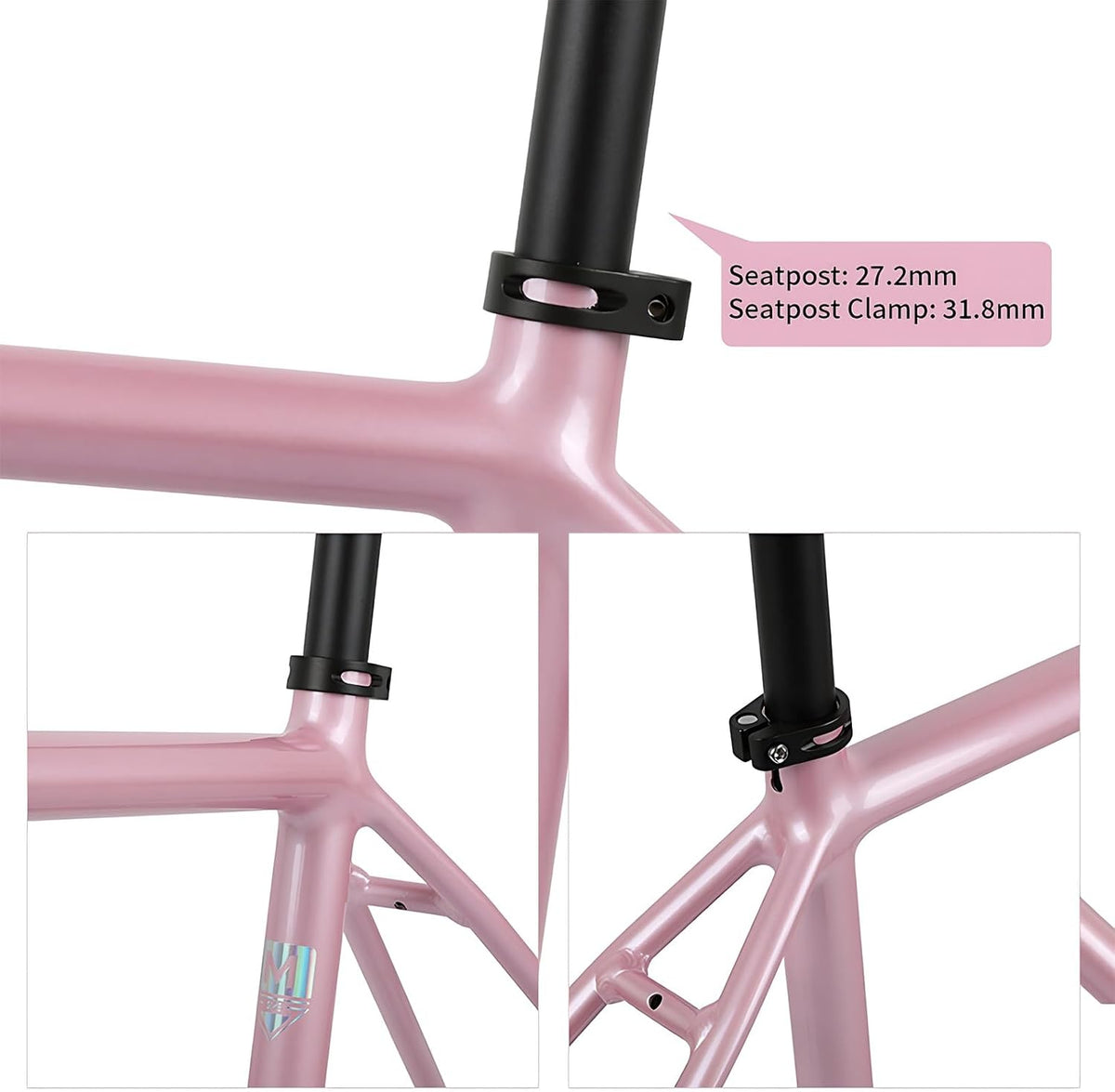

• Frame Size: Support Straight Head tube,Upper 1-1/4",Lower 1-1/4", 44-44mm headset, For seatpost 27.2mm and Seatpost Clamp 31.8mm,BSA BB68mm threaded bottom bracket, Support 42-46T chainring.
• Thru Axle Disc Brake Frames: Front disc brake, standard A-pillar PM75mm;Rear disc brake, standard A-pillar PM75mm. Thru Axle Frame, Front 12*100mm,L 128mm, P1.5mm, Rear Thru Axle 12*142mm,L 168mm, P1.5mm. For 700C*23-45C tires.
• Aluminum Alloy Bike Frame : Aluminum alloy Material with Aluminum Alloy fork. Lightweight aluminum alloy has good welding performance, The frame geometry is designed for flat handlebars Gravel Bike only, single disc mounting only,
• Package: Frame + fork + seatpost + headset + thru axle lever×2 + seatpost clamp + tail hook. The frame is semi-internal alignment, supports front rack, mudguard, double water bottle cage design. If you have any questions about the bike frame, please contact me and I will be happy to help you.

The frame geometry is designed for flat handlebars Gravel Bike only, single disc mounting only, the frame is semi-internal alignment, supports front rack, mudguard, double water bottle cage design.GRAVEL road bike framesetMaterial:6061 T4 T6 Aluminum Alloy frame/forkFrame higth：44cm/47cm/50cm/53cmHead tube: Straight Head tube, Upper 1-1/4", Lower 1-1/4"Headset: 44-44mm headsetSeatpost: 27.2mmSeatpost Clamp: 31.8mmBottom Brackets: BB68mm Threaded Bottom BracketThru Axle: F12*100mm R12*142mmBrake: disc brakeCable: Half-internal routingRecommended rider height: 145-160cm/160-170cm/170-180cm/180-185cmTire: 23-45CFor wheel：700C wheelsWeight:Frame: 1638g±30gFork: 1045g±20g.Package:FrameFork SeatpostHeadsetThru axle lever×2Seatpost clamp Tail hookNote:1. Please allow slight dimensional tolerances due to manual measurements, lighting in photography may cause color differences from real life.2. Please double check the size details in our list according to your actual situation to make sure you buy the right bikes frame.3. If you have any product and service questions, please contact us and we will get back to you within 24 hours.

Free shipping included. 30-day hassle-free returns.
