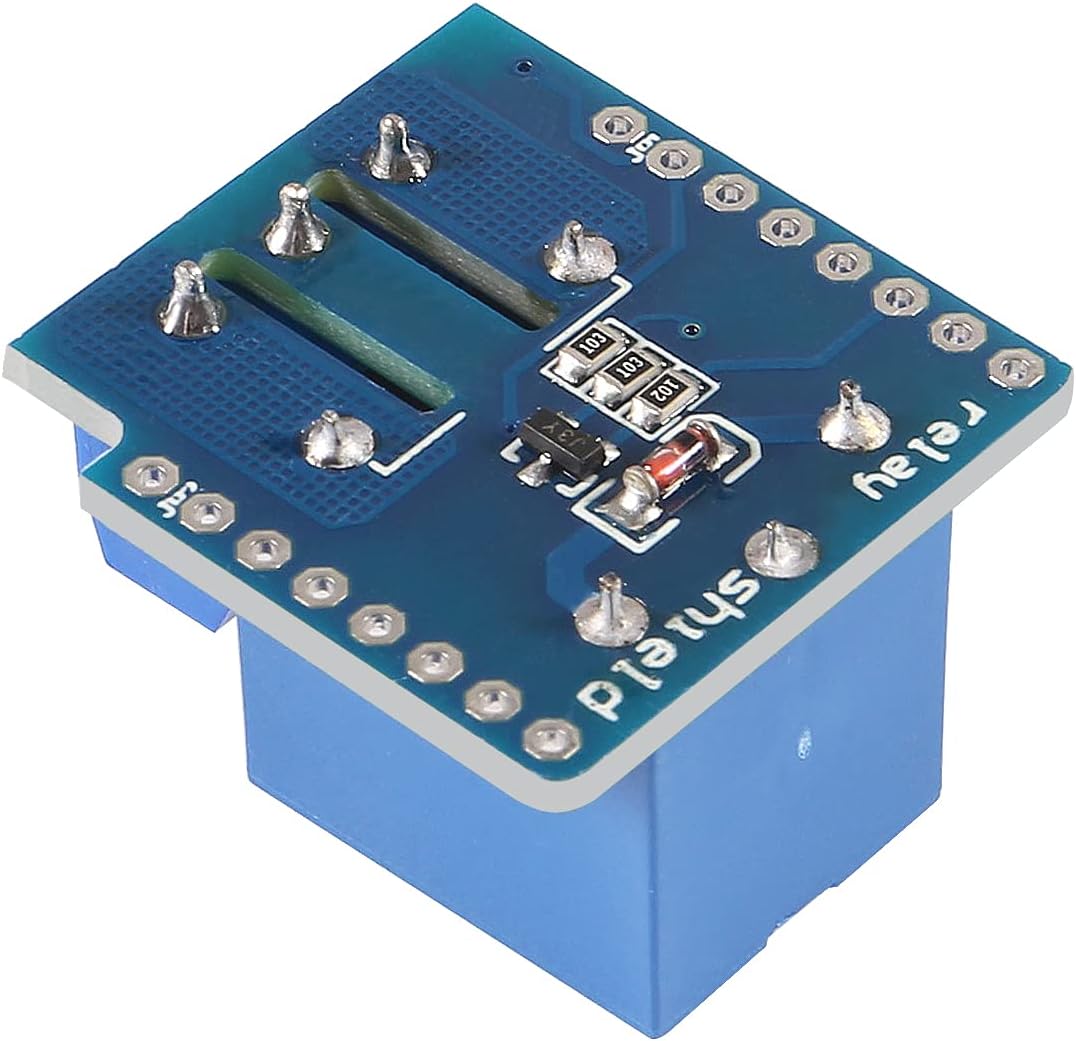

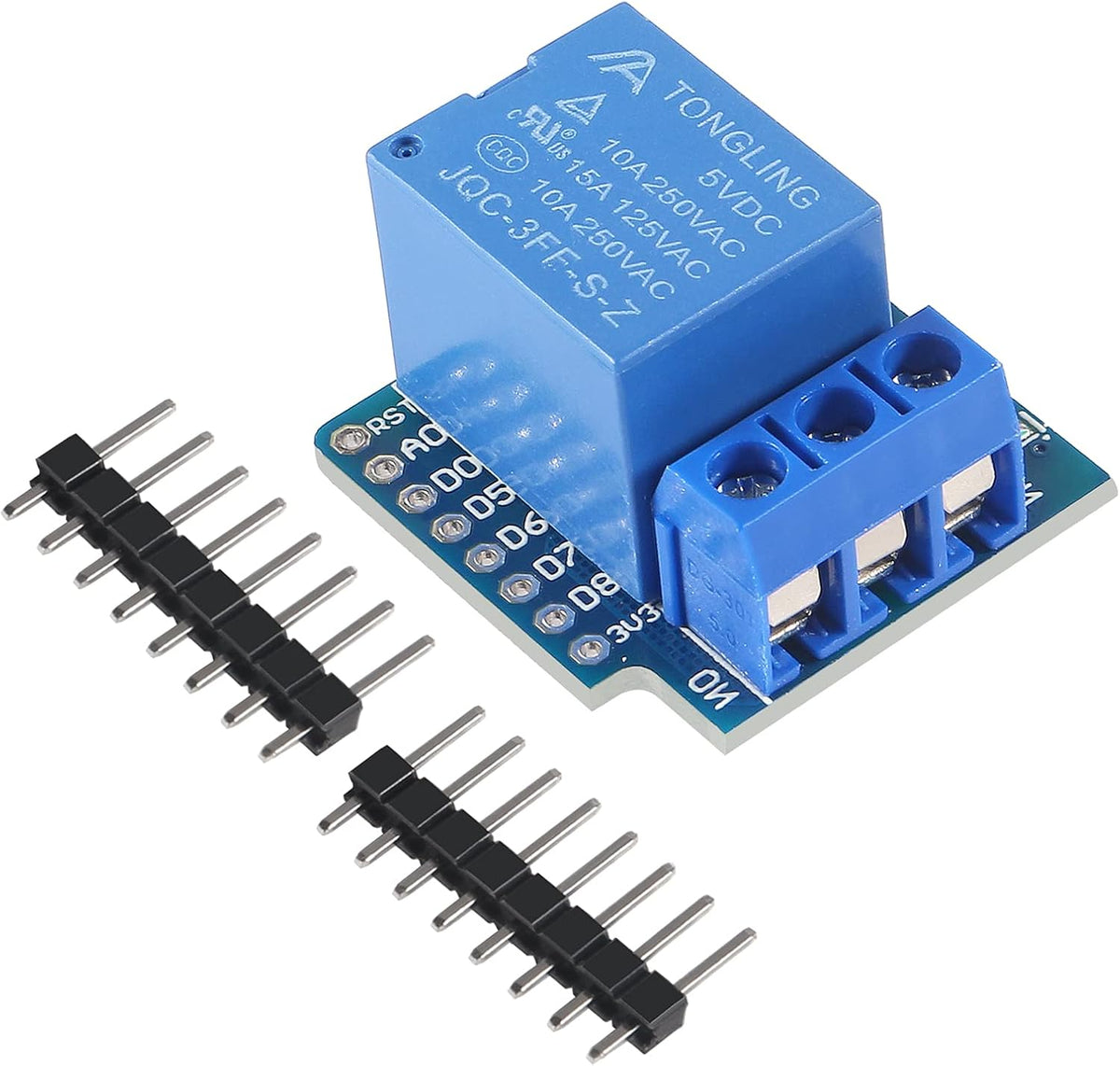

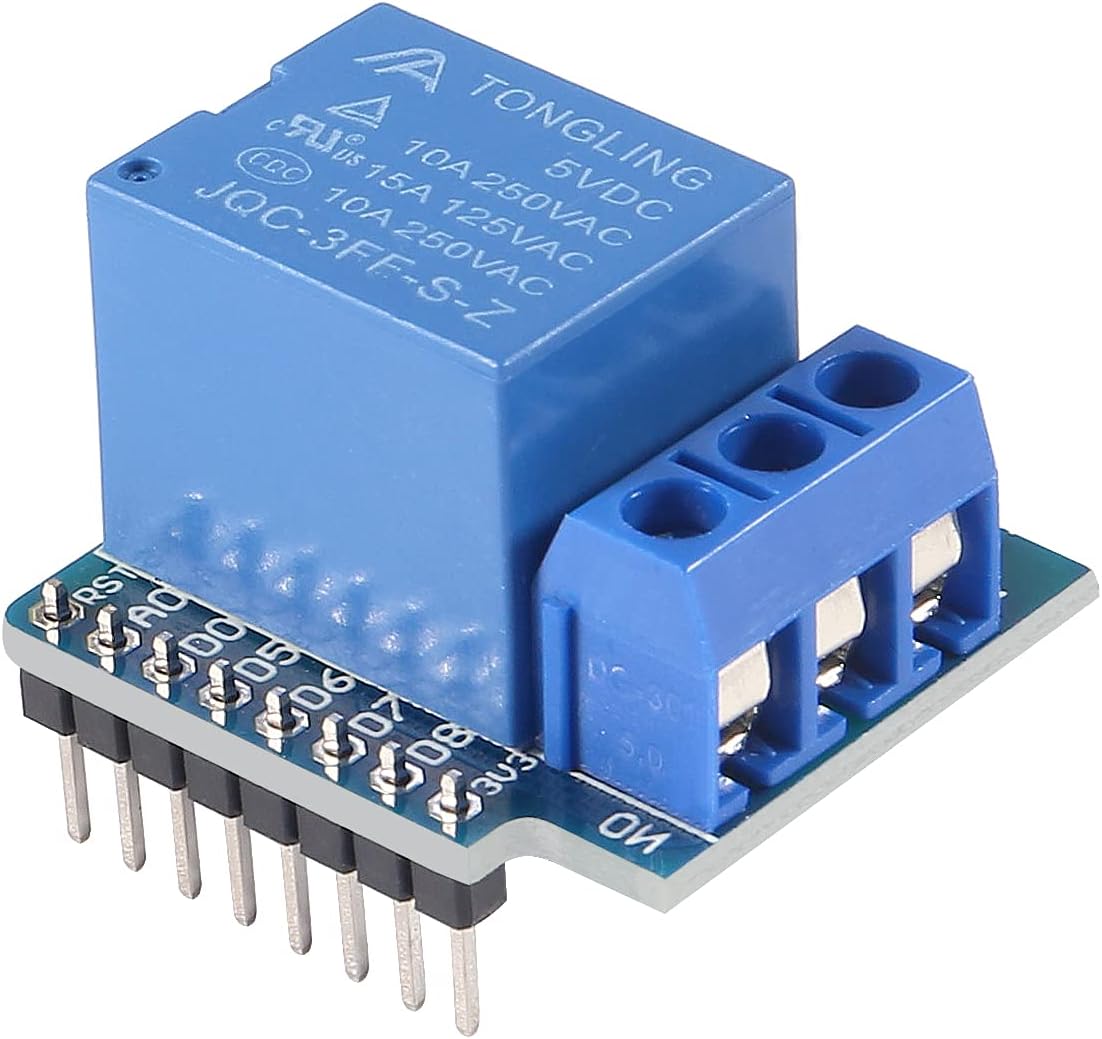

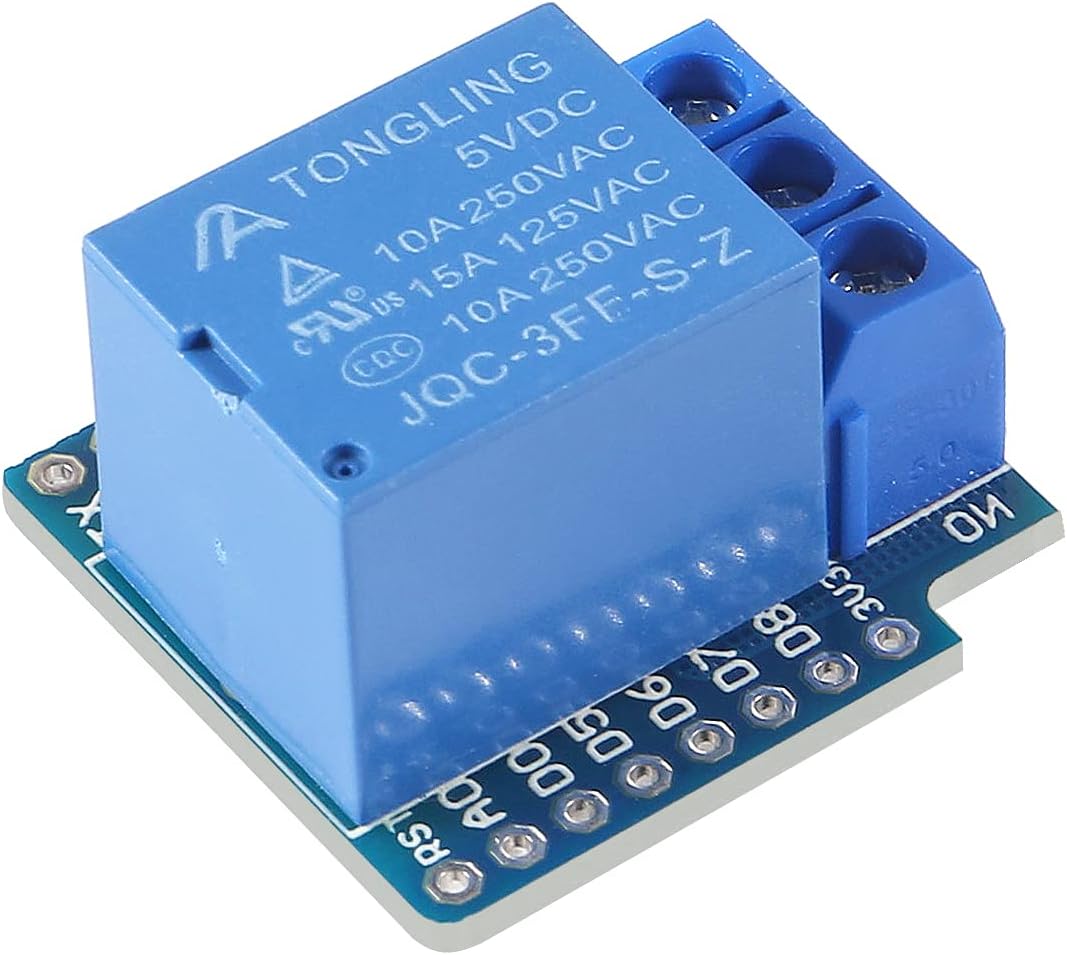

10pcs 5V Mini Relay Shield 5V Relay Module 1 Channel 5V Relay Shield for WeMos D1 Mini also Compatible with Arduino
10pcs 5V Mini Relay Shield 5V Relay Module 1 Channel 5V Relay Shield for WeMos D1 Mini also Compatible with Arduino
Key features
- ☀☀Mini Relay Shield 5V Relay Module
- ☀☀NO: 5A(250VAC/30VDC), 10A(125VAC), MAX:1250VA/150W
- ☀☀NC: 3A(250VAC/30VDC), MAX:750VA/90W
- ☀☀Compatible with Arduino, use for Arduino IDE for programming
- ☀☀Operating Voltage : 5V (Gets power from WeMOS Board)
Mini Relay Shield 5V Relay Module for WeMos D1Features:Operating Voltage : 5V (Gets power from WeMOS Board)Voltage and Current Rating: 10A @250VACOptical Isolation: No / Non IsolatedRelay Drive IO: D1Support OTA; 11XI / O pins; 1XADC pin (input 0-3.3V)NO: 5A(250VAC/30VDC), 10A(125VAC), MAX:1250VA/150WNC: 3A(250VAC/30VDC), MAX:750VA/90WCompatible with Arduino, use for Arduino IDE for programmingPin definition: Rrelay module VCC and GND are connected to the motherboard, and the data IO port is D1.Package included:10pcs * Mini Relay Shield
Free shipping included. 30-day hassle-free returns.
