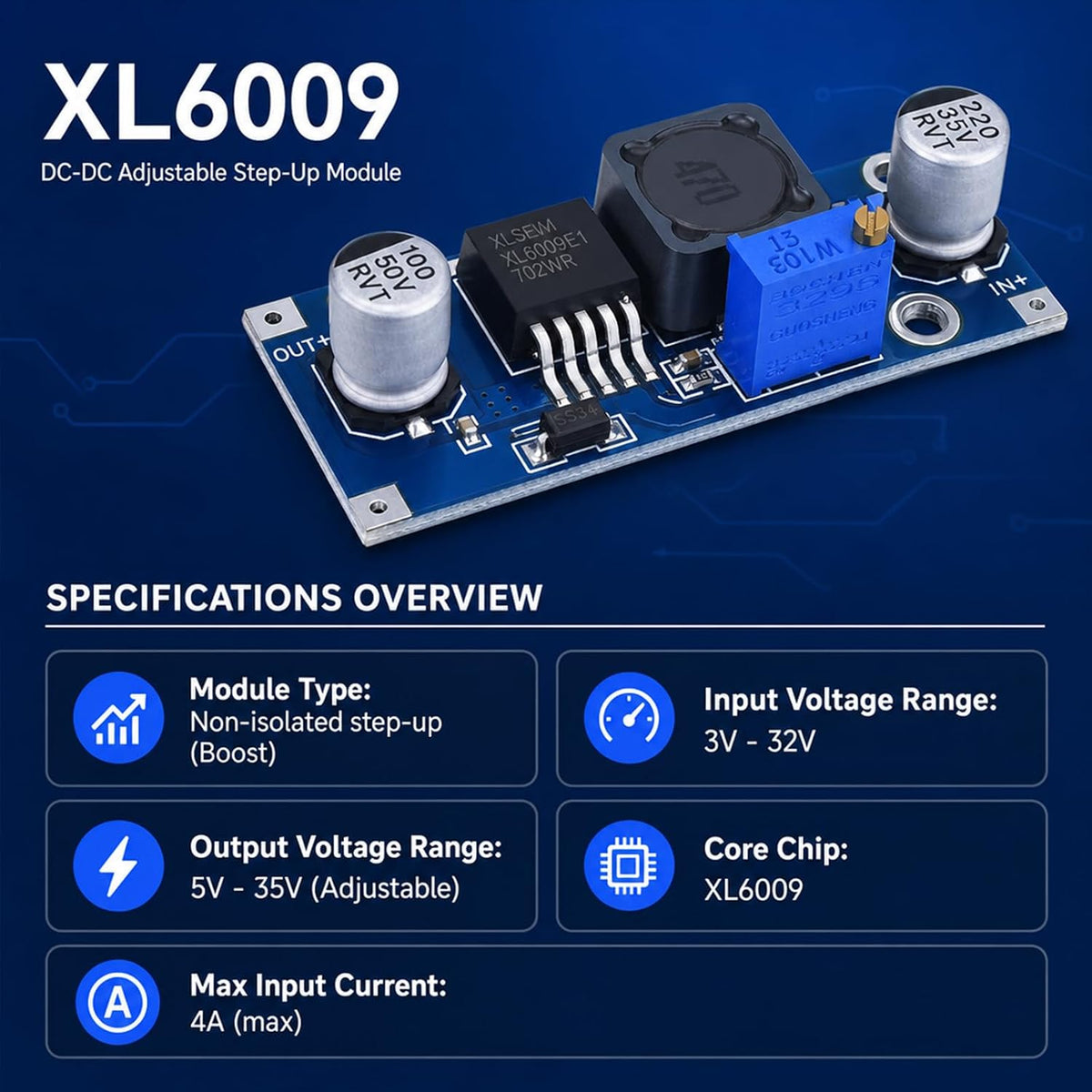

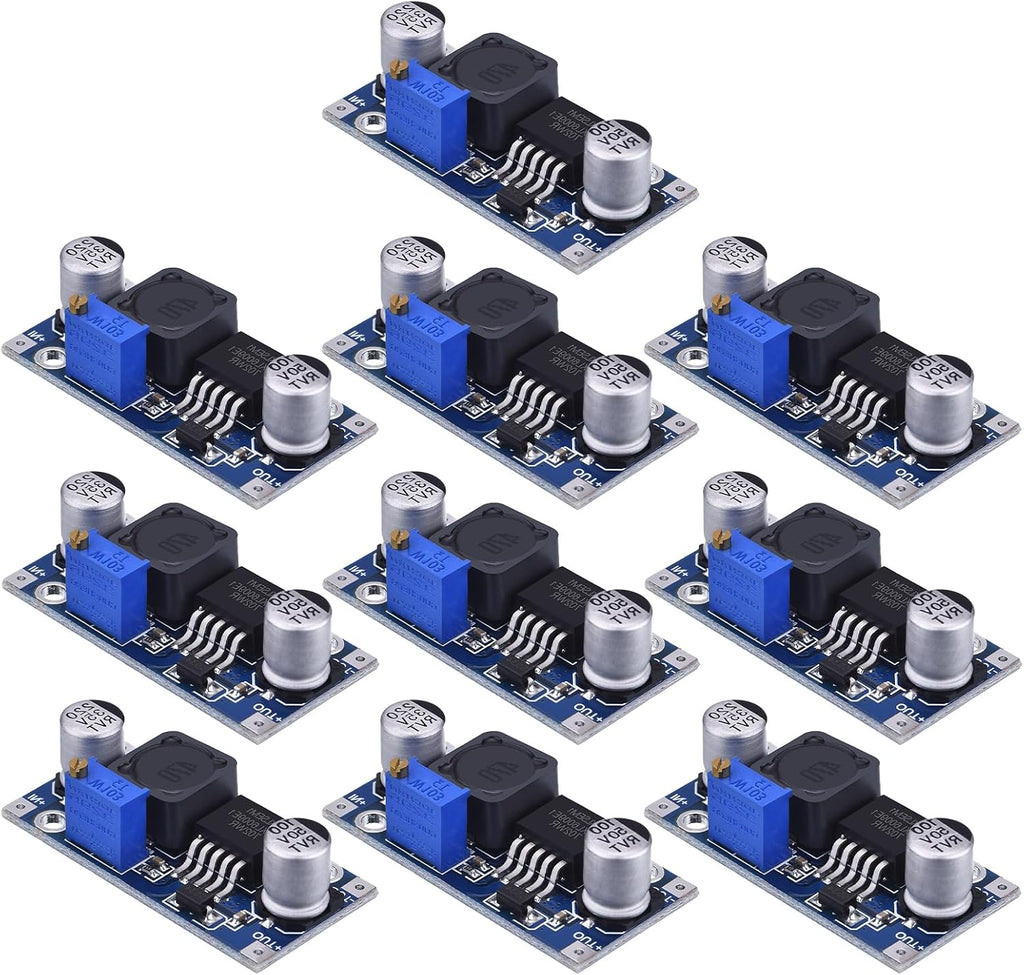

10-Pack XL6009 Boost Converter, DC-DC Step Up, 400KHz

Key features

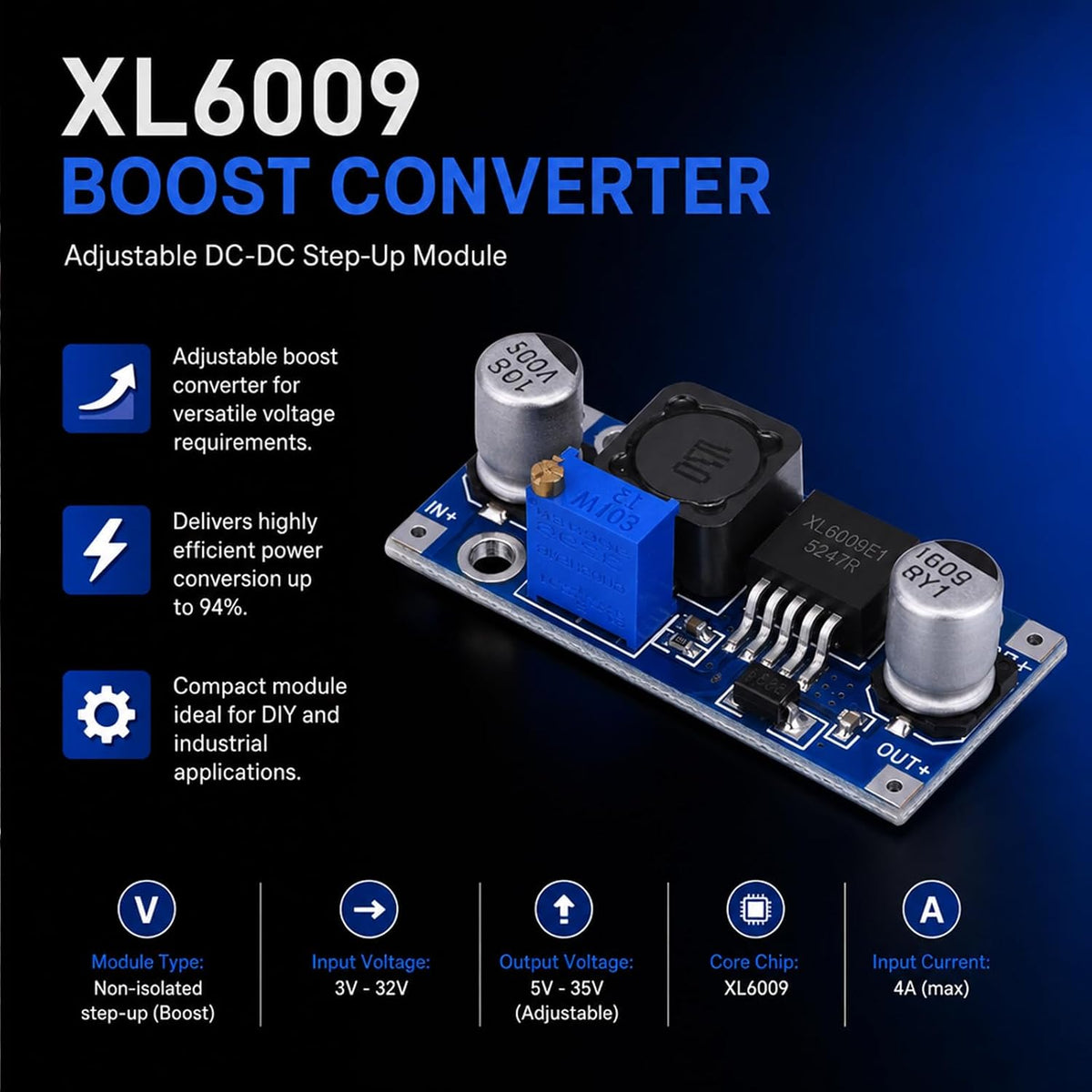

• HIGH-PERFORMANCE STEP-UP CONVERTER: Features the XL6009 core chip, a high-performance 400KHz switching frequency power converter. With integrated 4A high-efficiency MOSFET switches, this module achieves a conversion efficiency of up to 94%, delivering stable and reliable power for your projects.
• WIDE VOLTAGE RANGE & ADJUSTABLE OUTPUT: Accepts a wide input voltage from 3V to 32V (optimum range 5V-32V) and provides a fully adjustable output from 5V to 35V. The onboard multi-turn potentiometer allows for smooth and precise voltage adjustments, giving you exact control over your power supply.
• STABLE & LOW RIPPLE POWER: The ultra-high 400KHz switching frequency allows for the use of small-capacity filtering capacitors to achieve excellent results with an output ripple of 50mV (max). A 0.1uF high-frequency bypass capacitor is included to effectively filter out high-frequency noise, ensuring a clean power source.

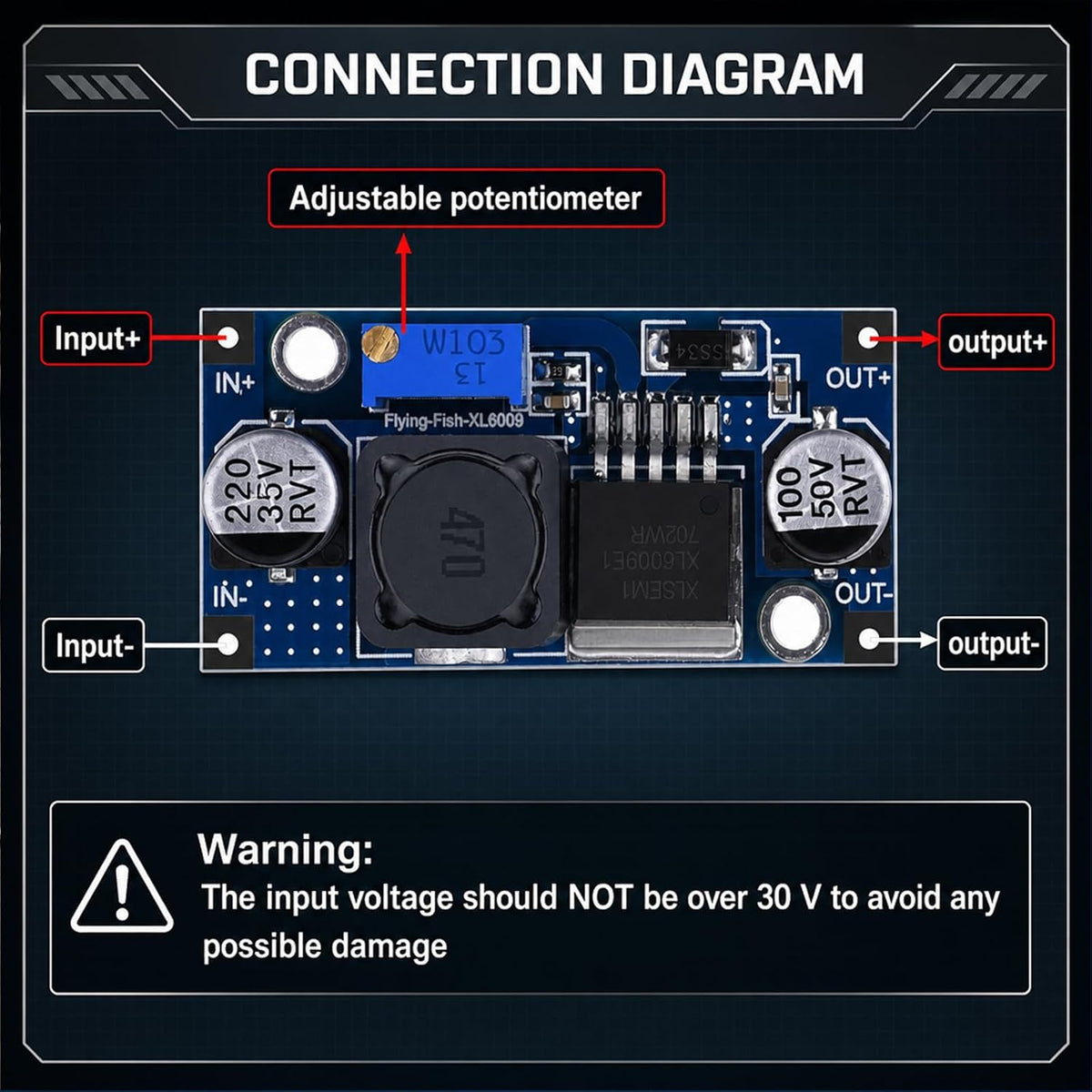

• COMPACT & CLEARLY LABELED: Measuring just 47 x 22 x 13 mm, this compact module is easy to integrate into any project. The PCB is clearly marked with IN+, IN-, OUT+, and OUT- terminals, ensuring straightforward and error-free wiring for both beginners and experienced hobbyists.

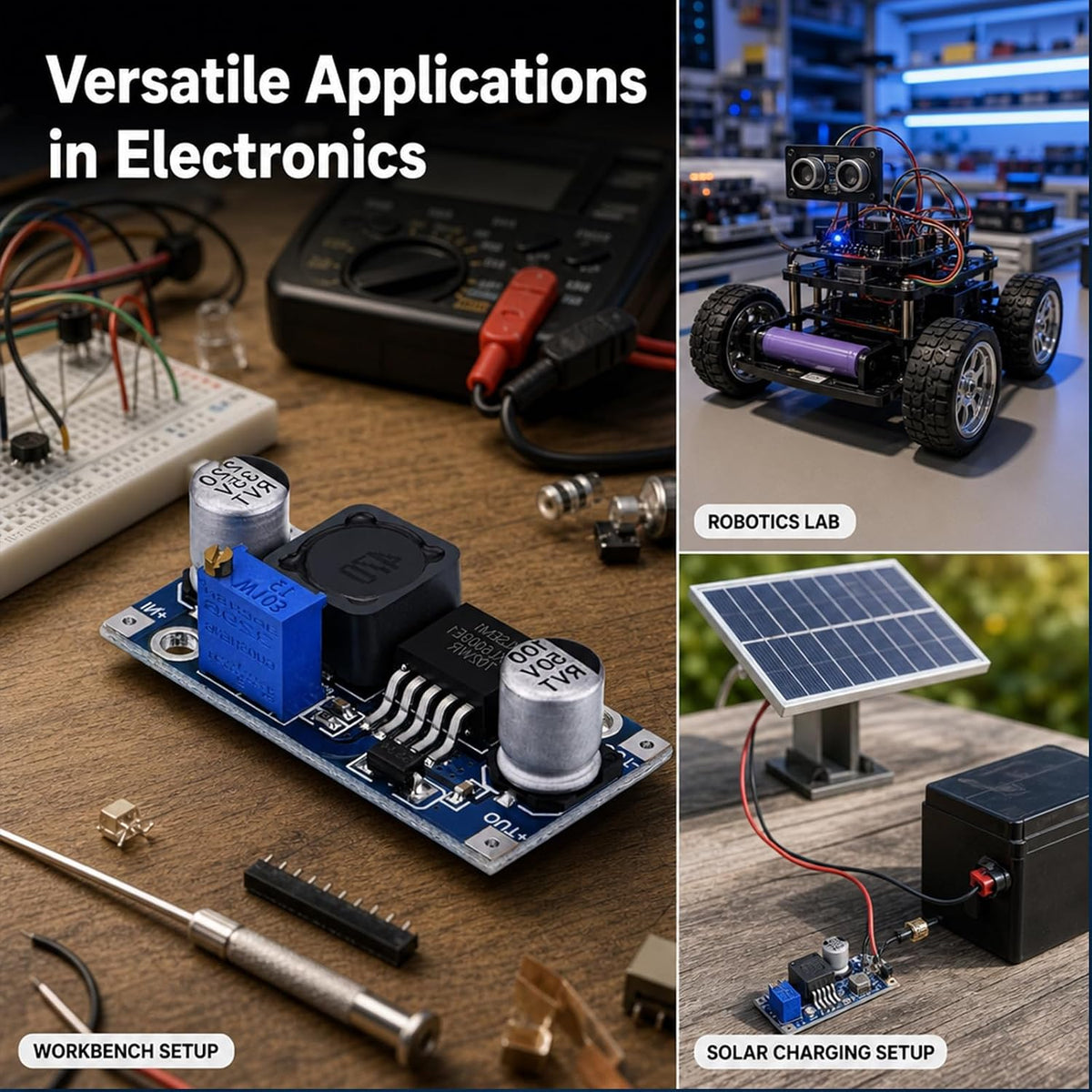

• VERSATILE DIY APPLICATIONS: Ideal for a wide range of applications, including creating a DIY mobile power supply, a boost charger, or providing regulated power for electronic equipment, LED backlights, and transfer relays. We provide comprehensive after-sales support: complete digital documentation including user guides and technical references is available through our store customer service, and our support team is ready to assist with installation, programming, and troubleshooting to help you get started quickly.

Free shipping included. 30-day hassle-free returns.
