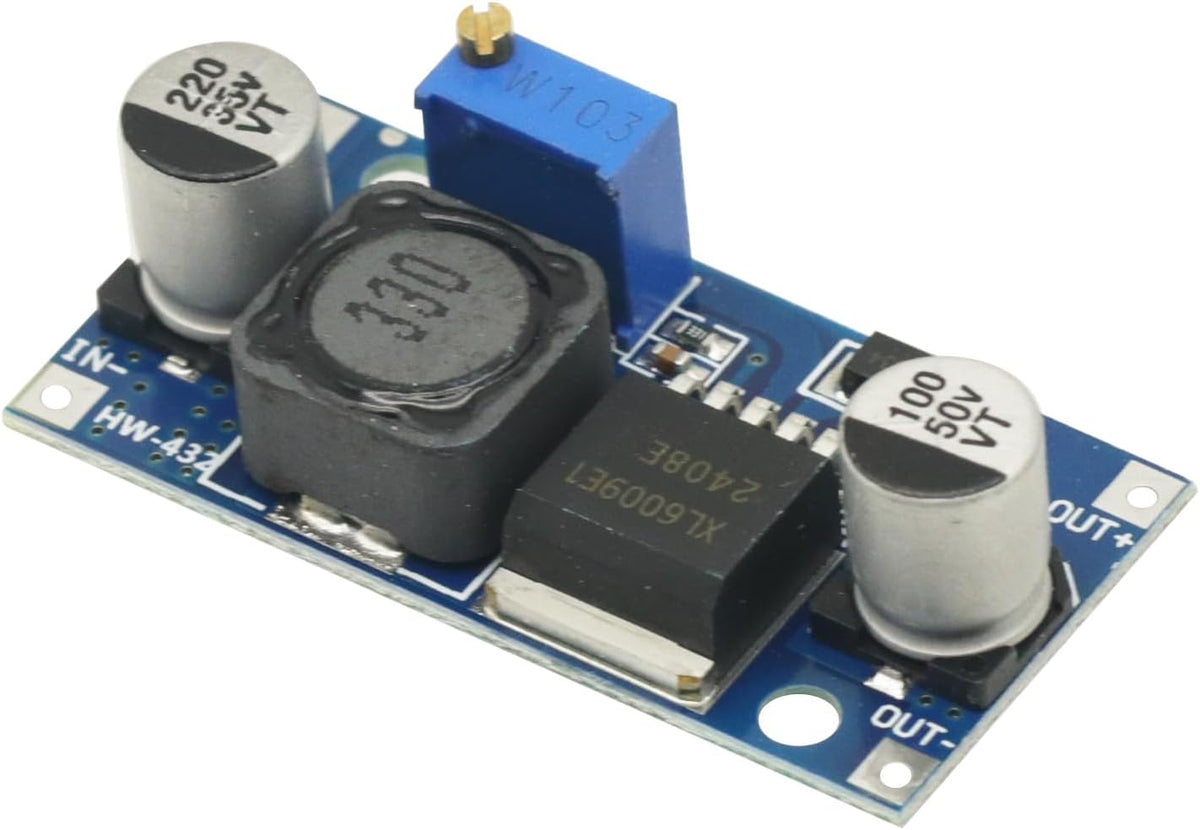

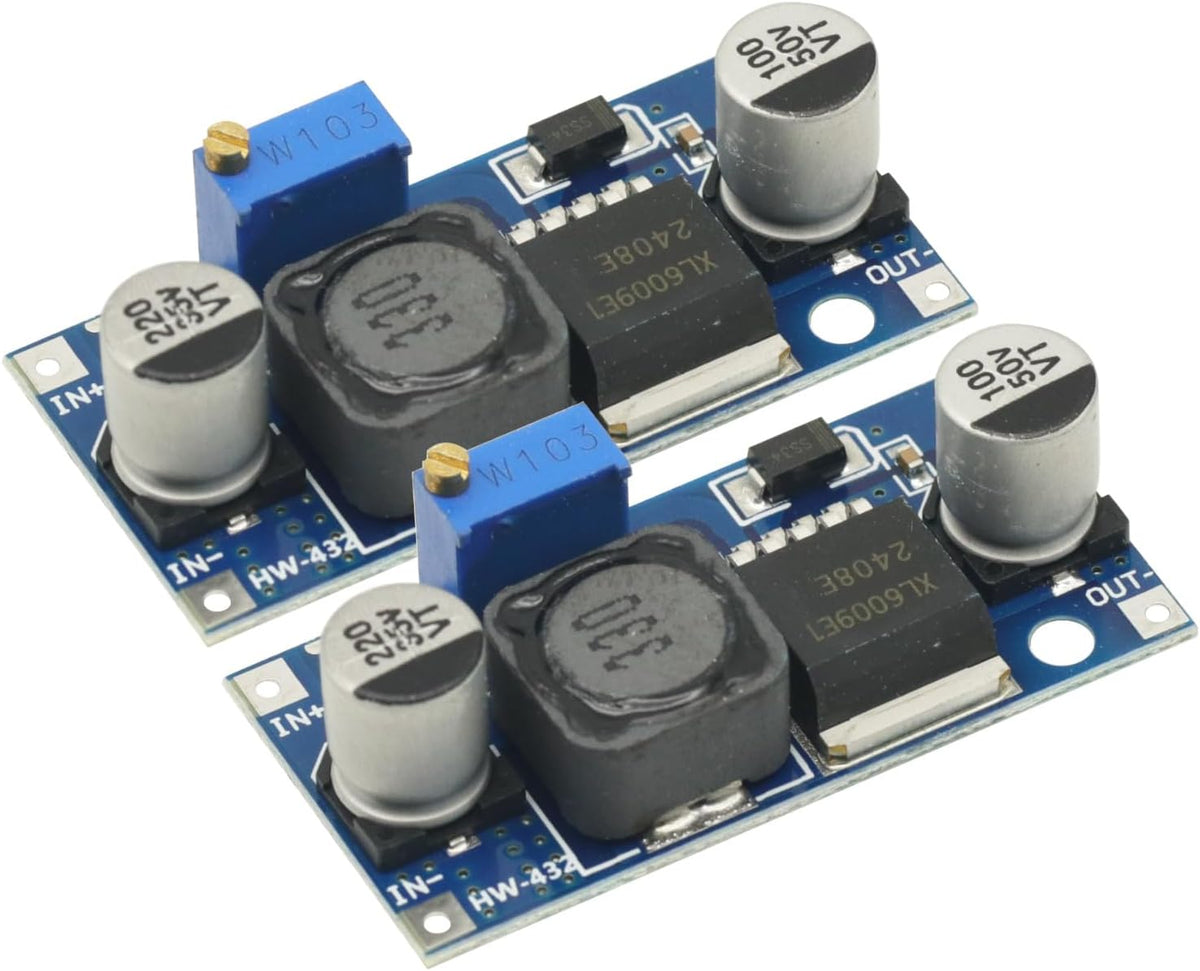

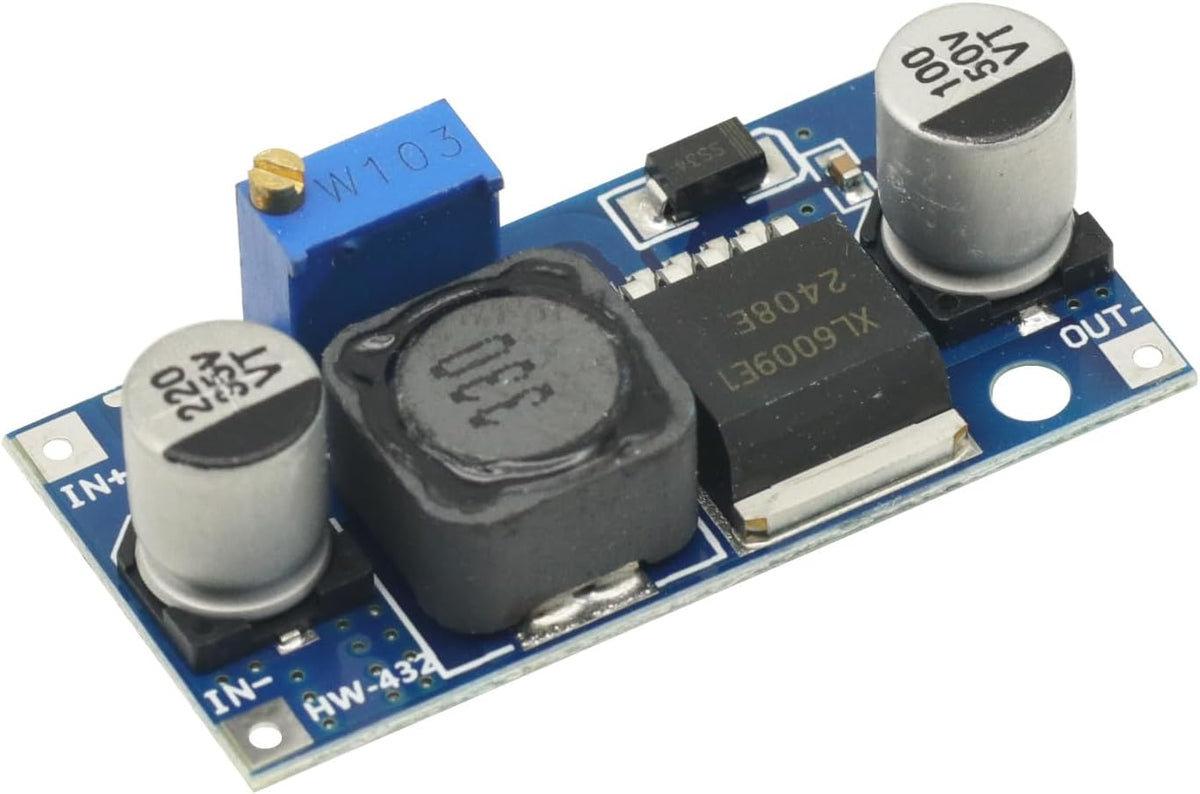

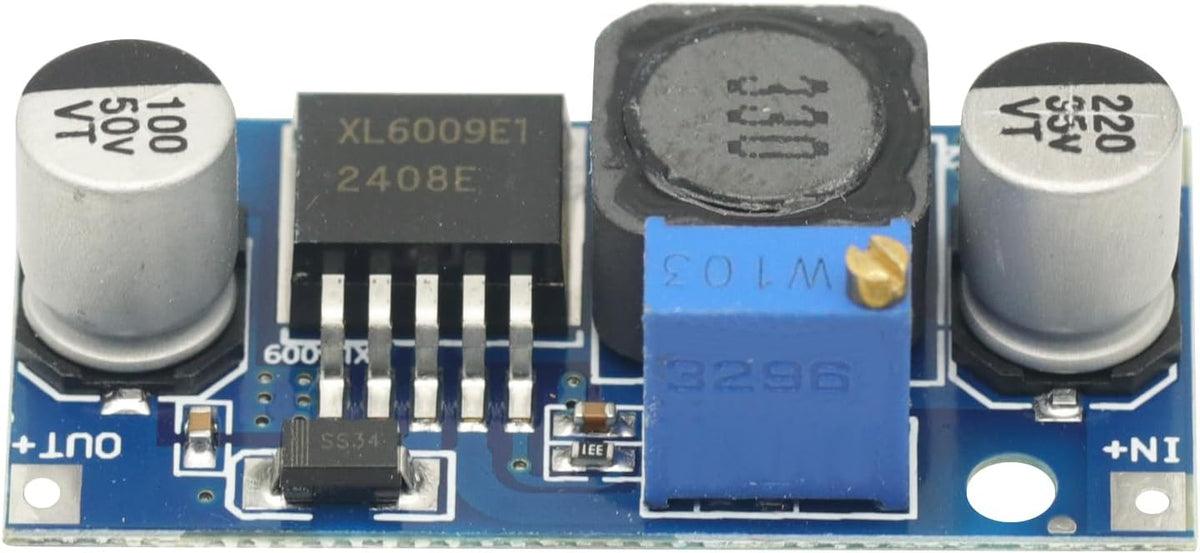

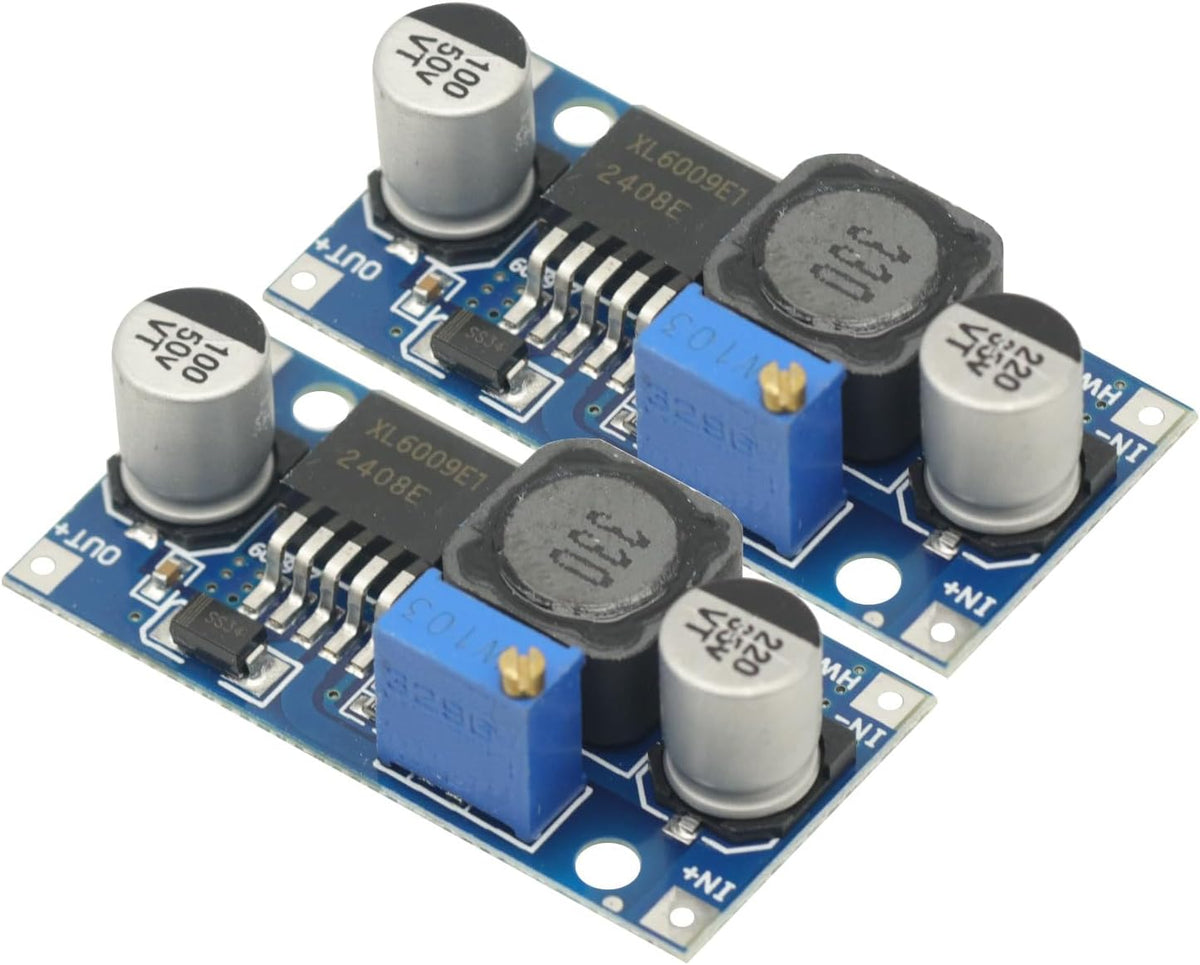

2Pcs 4A XL6009 Boost Converter Step Up Adjustable 15W DC 3-32V to 5-35V DC-DC Power Supply Module
2Pcs 4A XL6009 Boost Converter Step Up Adjustable 15W DC 3-32V to 5-35V DC-DC Power Supply Module
Key features
- 2Pcs 4A XL6009 Boost Converter Step Up Adjustable 15W DC 3-32V to 5-35V DC-DC Power Supply Module
- Input Range:3V~32V
- Output Range:5V~35V
- Input Current:4A (max), no-load 18mA (5V input, 8V output, no-load is less than 18mA. Higher the voltage, the greater the load current.)
- Switching frequency:400KHz

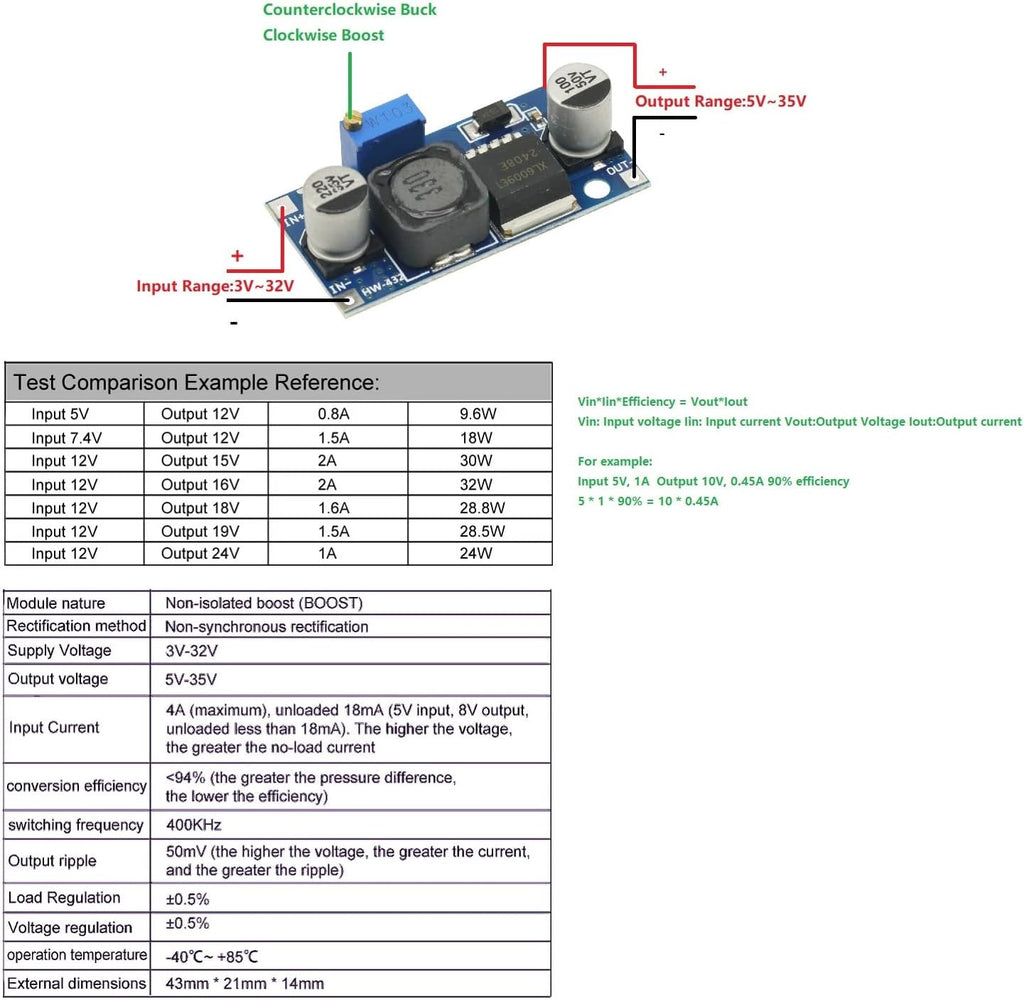

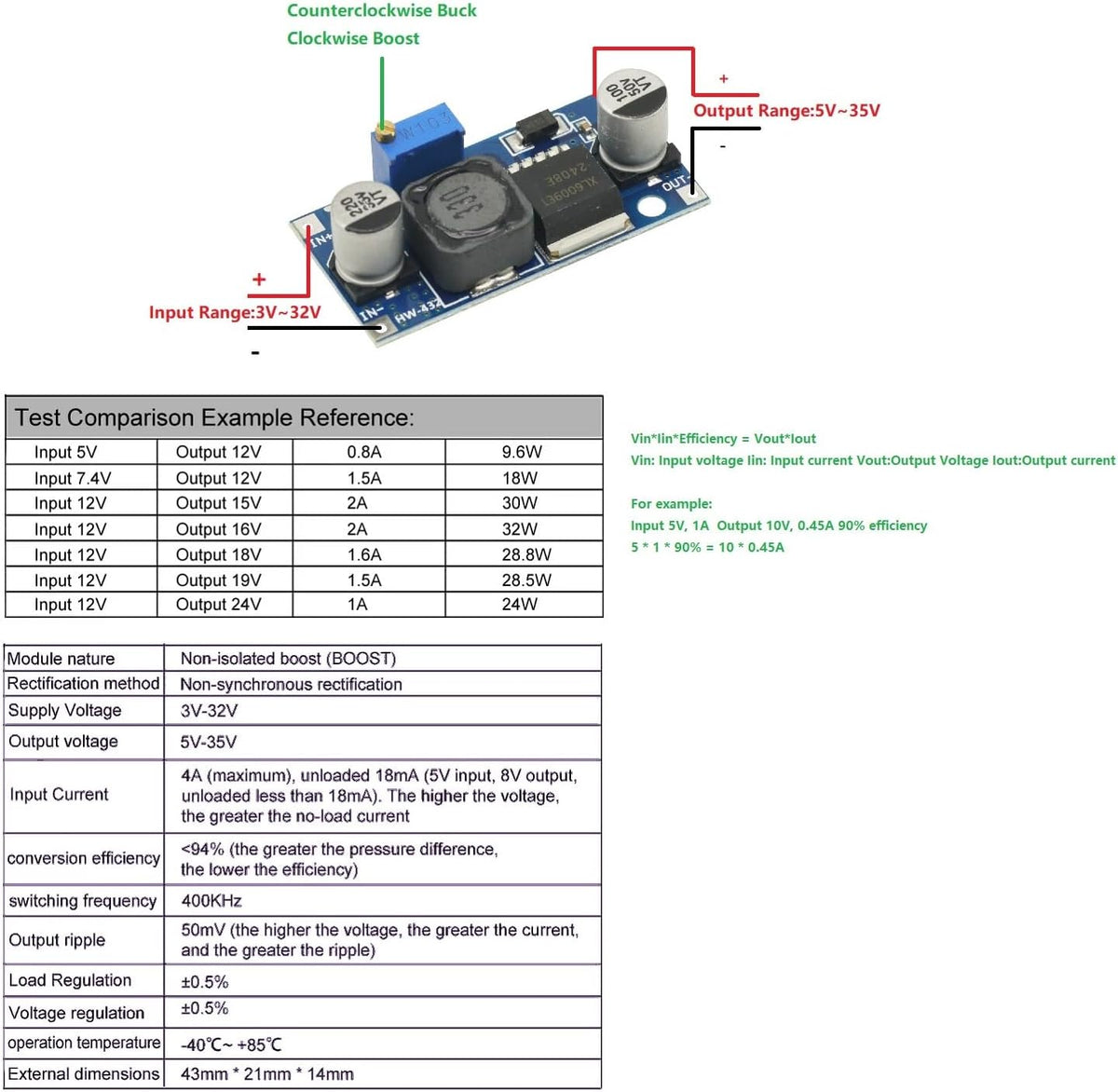

Module Properties:Non-isolated boost (BOOST)Rectification:Non-Synchronous RectificationInput Range:3V~32VOutput Range:5V~35VInput Current:4A (max), no-load 18mA (5V input, 8V output, no-load is less than 18mA. Higher the voltage, the greater the load current.)Conversion efficiency:<94% (greater the pressure, the lower the efficiency)Switching frequency:400KHzOutput Ripple:50mV (the higher the voltage, the greater the current, the greater the ripple)Load Regulation:±0.5%Voltage Regulation:±0.5%Operating Temperature:-40℃ ~ +85℃Dimensions:43mm*21mm*14mm (L*W*H)Package Include:2PCS DC-DC Adjustable Step-up Power Converter Module XL6009 Replace LM2577
Free shipping included. 30-day hassle-free returns.
