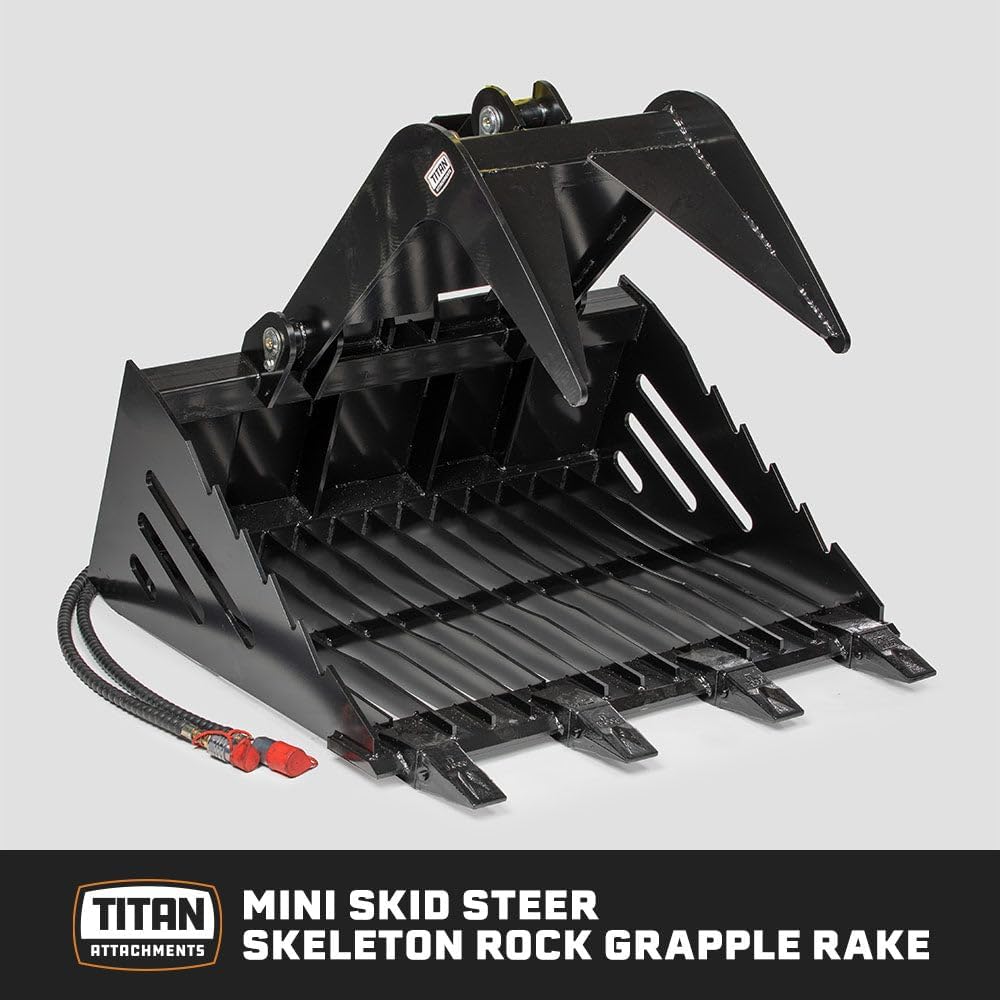

Mini Skid Steer Skeleton Rock Grapple Rake with Bolt-On Teeth, Toro Style Mounting System, Reinforced Side Cutters
Mini Skid Steer Skeleton Rock Grapple Rake with Bolt-On Teeth, Toro Style Mounting System, Reinforced Side Cutters
Key features
- SKELETON FRAME GRAPPLE: Built from 0.375" structural steel, this rock grapple rake features 5/16" thick tines spaced 2.5" apart and a single grapple powered by a 2.5" bore x 8" stroke hydraulic cylinder for strong clamping performance.
- GREAT FOR LANDSCAPING: Quickly scoop, sift, and move rocks, brush, and debris. The open skeleton design lets dirt fall through, making this attachment ideal for landscaping, property maintenance, and jobsite cleanup.
- REPLACEABLE TEETH: Bolt-on teeth are easy to replace individually or in convenient 3- or 5-packs - no need to replace the entire attachment due to normal wear.

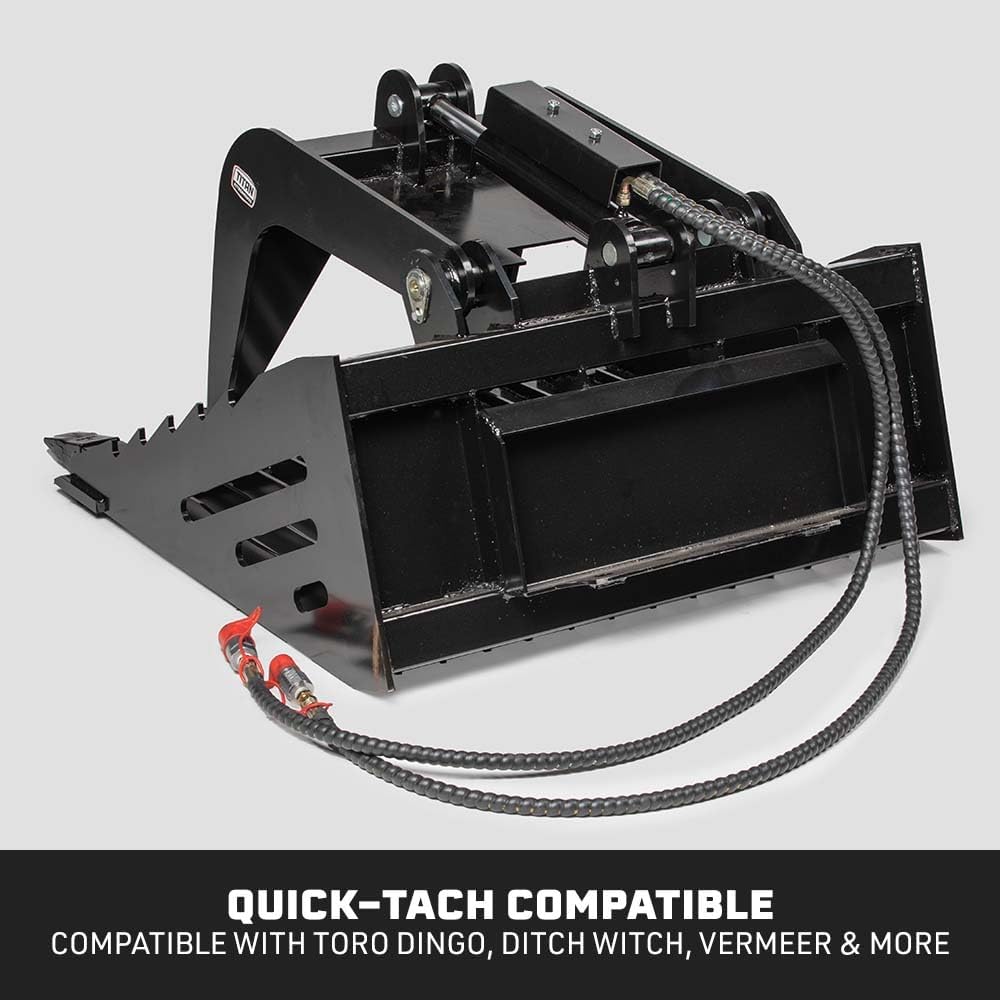

- MINI SKID STEER CONNECTION: Compatible with Toro-style Mini Skid Steer mounting systems, including Toro Dingo, Ditch Witch, MultiOne, Ramrod, Vermeer, Finn Eagle, Boxer, and Thomas.

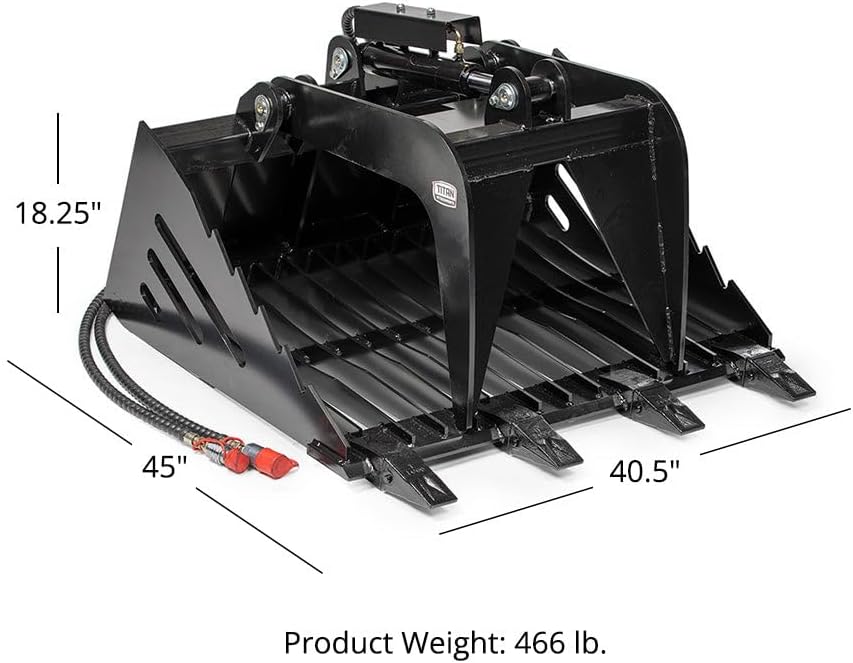

- DIMENSIONS: Weighs 466 LB with overall dimensions of 40.5" W x 45" D x 18.25" H. Deep-well bucket interior measures 39.5" W x 32.5" D x 13" H.

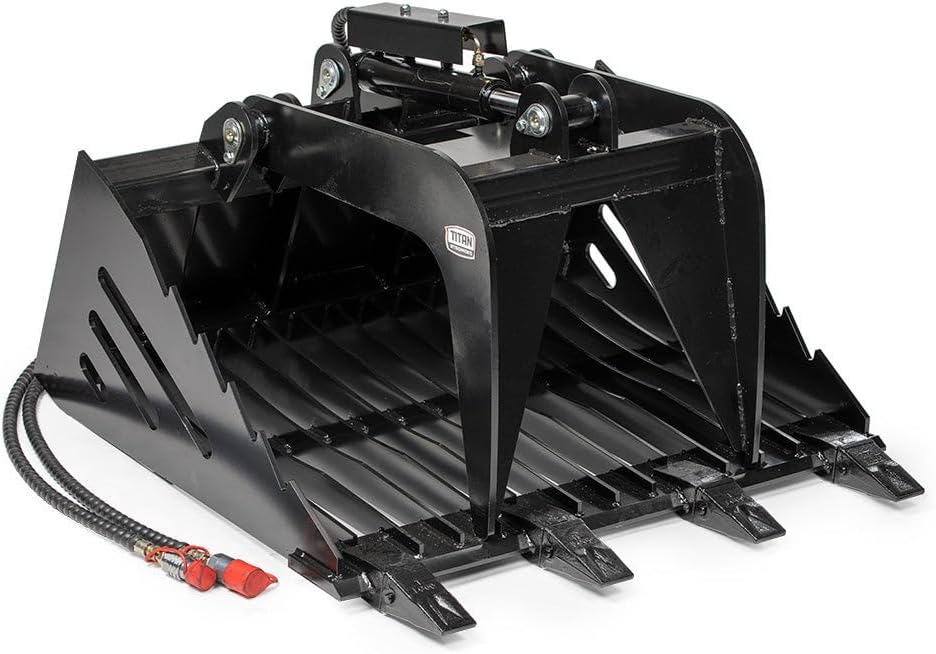

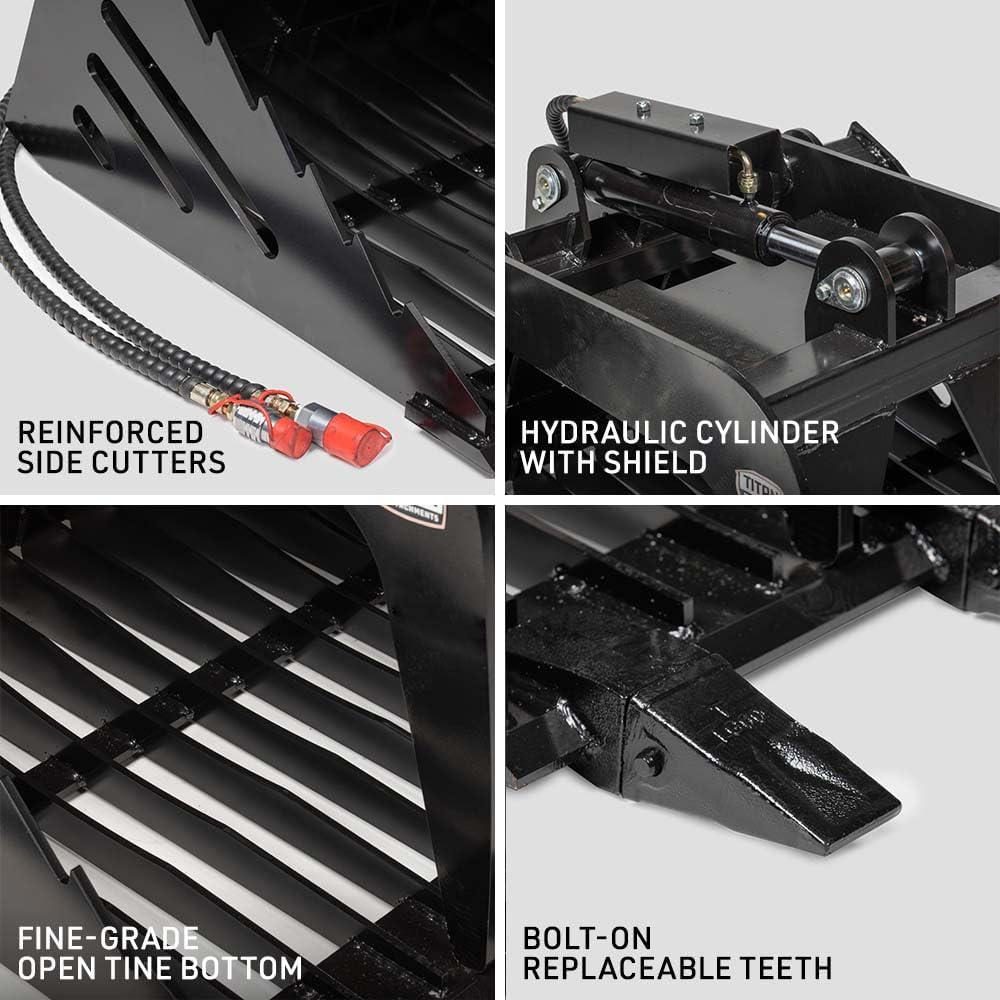

The Mini Skeleton Rock Grapple Rake is built for tough, all-day performance. Its open skeleton design lets dirt fall through for fast, efficient rock and debris separation. A powerful 2.5" bore x 8" stroke hydraulic cylinder delivers strong clamping force, while bolt-on bucket teeth dig into hard dirt, gravel, and sand. Reinforced side edges and a deep-well rock dam with 2.5" tine spacing provide strength and control when handling heavy loads. Compatible with Mini Skid Steer Quick Tach systems, including Toro Dingo, Ditch Witch, and Vermeer.FEATURES:- Mini Skid Steer Quick Tach Mounting System- Single hydraulic grapple- 2.5" bore x 8" stroke hydraulic cylinder with shield- 3" x 3" steel tubing frame- Rock dam and notch- Reinforced side cutters- Reinforced bolt-on cutting edge- Open tine bottom for sifting debris- Bolt-on replaceable teeth- Integrated step- Compatible with Toro Dingo, Ditch Witch, Multi One, Ram Rod, Vermeer, Finn Eagle, Boxer, Thomas, and more- It will not fit Bobcat, Kanga Kid, or ProdigyREPLACEMENT PARTS- 125066 - LW80KIT_GET - Single Tooth AssemblySPECIFICATIONS:- Overall Height: 18.25-in.- Overall Width: 40.5-in.- Overall Dept(more...)
Free shipping included. 30-day hassle-free returns.
More in Grapples
37 products · See all Grapples →
48" Economy Series Root Grapple Bucket Attachment, Hook and Pin Connection, Single 3,000 PSI Cylinder with Cylinder
48" Grade 50 Economy Series Root Grapple Bucket Fits John Deere Hook and Pin Connection, Single Cylinder Hydraulic
60" Grade 50 Standard Series Root Grapple Bucket, SSQA Connection, Dual Cylinder Hydraulic Design for Medium-Duty
60" Standard Series Root Grapple Bucket Fits John Deere Hook and Pin, Dual Cylinder Hydraulic Design for Medium-Duty
40" Root Grapple Attachments for Mini Skid Steer Loader, 34" Opening Height, Hollowed-out Hydraulic Wood Grapple Rake
60" Extreme Root Grapple Rake Attachment, Universal Quick Tach Connection, Twin 3,000 PSI Cylinders, Replaceable
48" Economy Series Root Grapple Bucket Attachment, Universal SSQA Connection, Single 3,000 PSI Cylinder with Cylinder

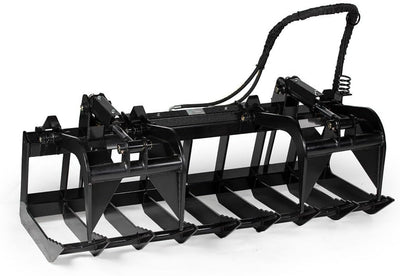

72" Standard Series Skid Steer Root Grapple Bucket, SSQA Attachment, Twin 3,000 PSI Cylinders, 1/2in Thick Steel
