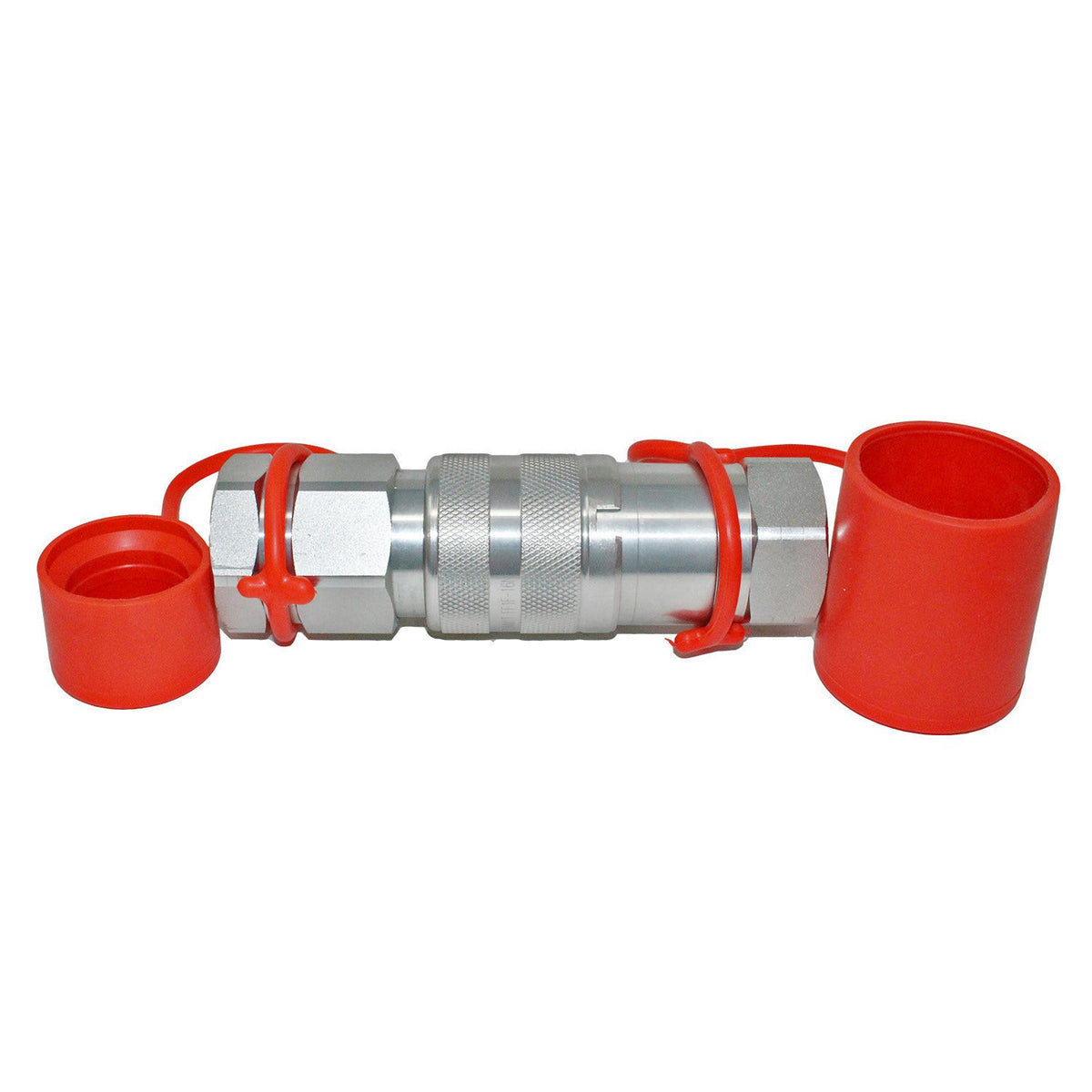

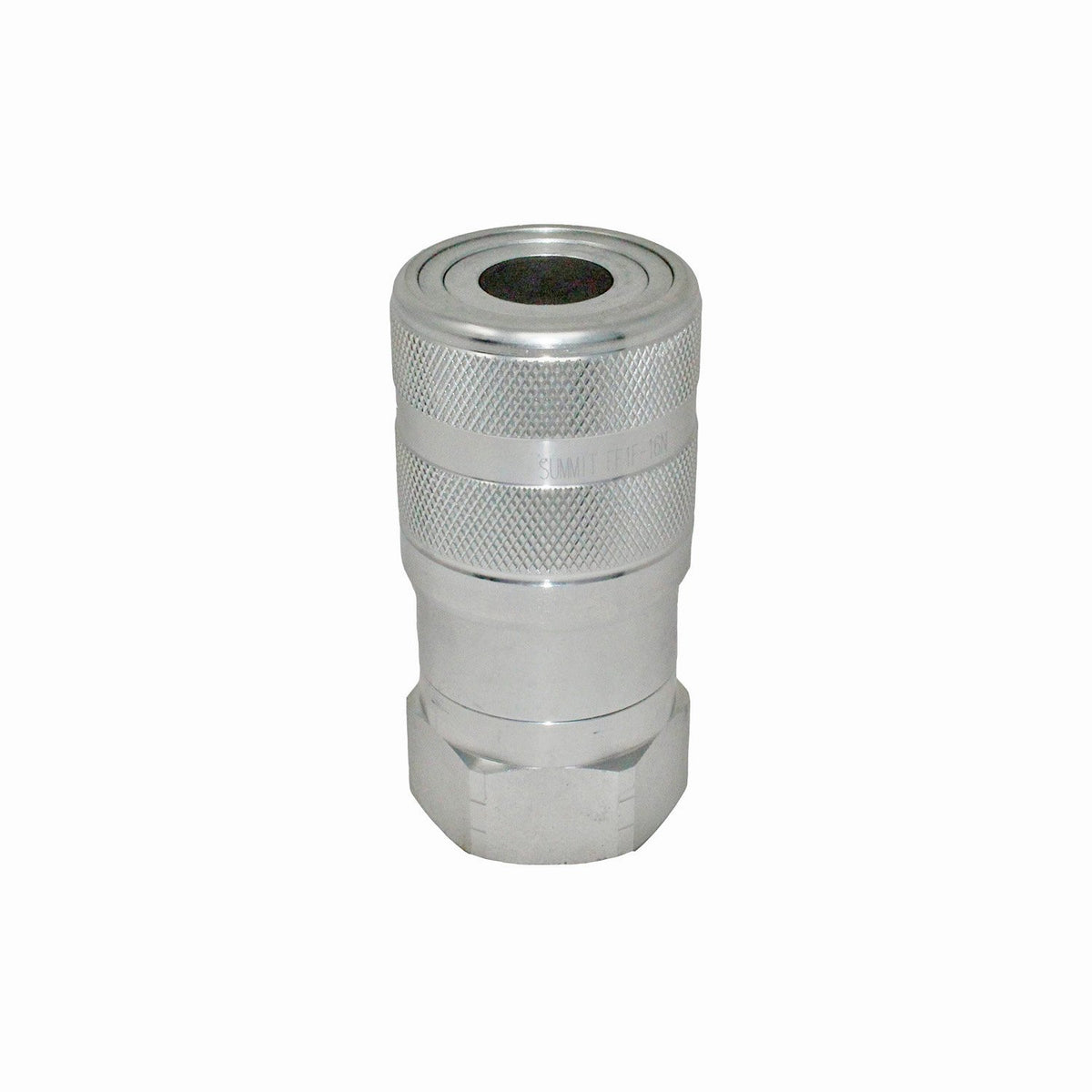

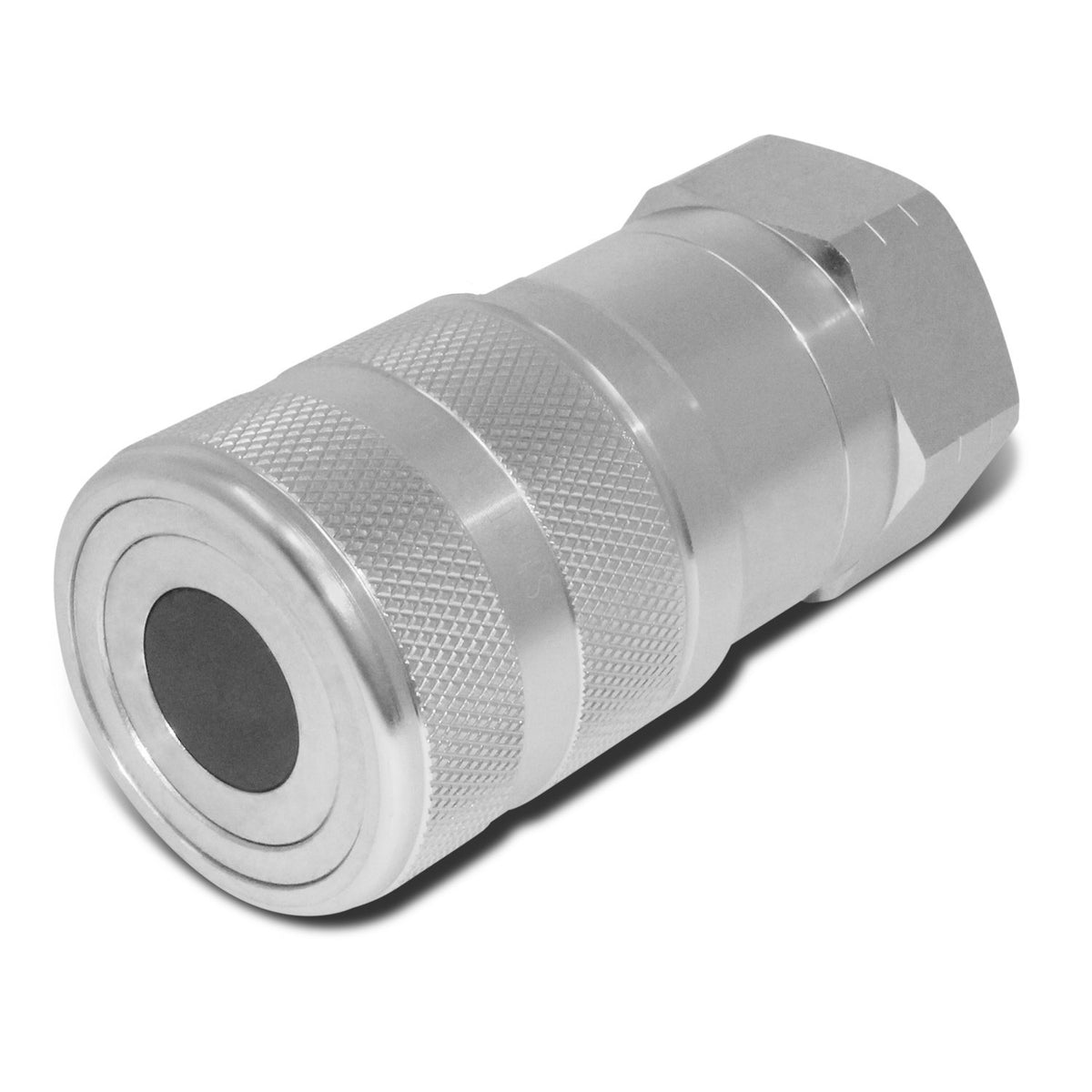

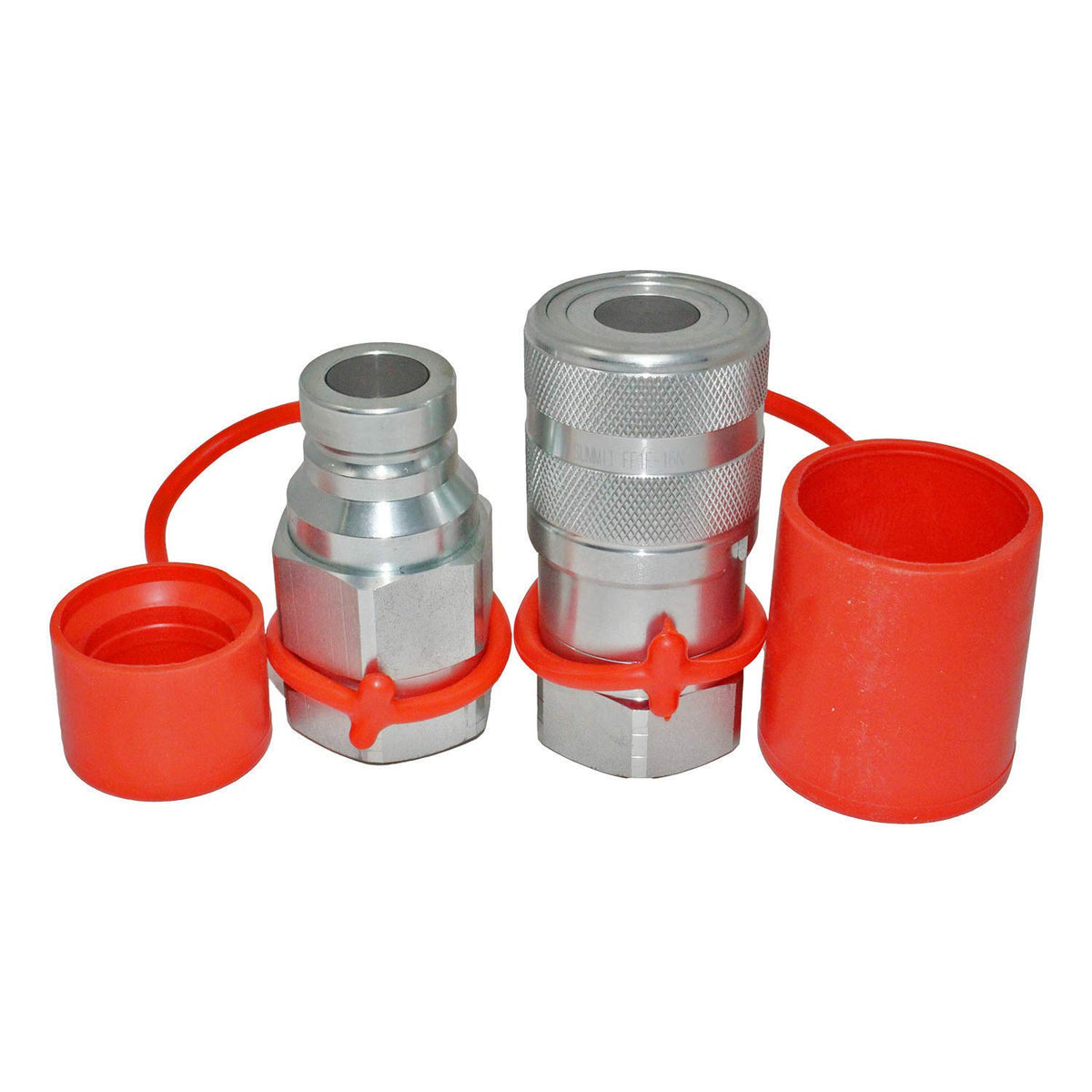

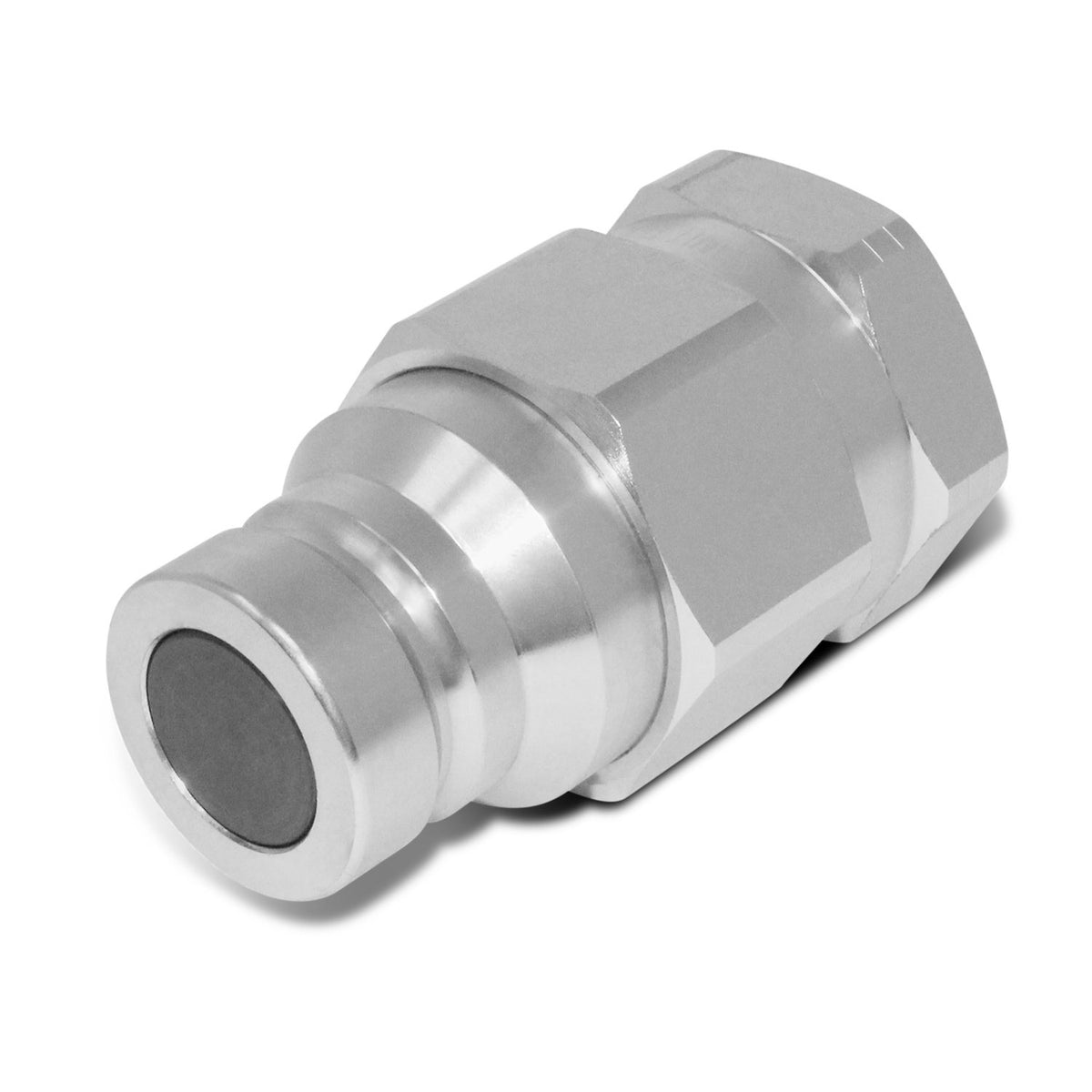

1-1/4” Flat Face Hydraulic Quick Connect Coupler Set, 1” SAE Thread

Key features

• ISO Body Size: 1”
• Port Thread: 1-1/4” SAE (1 5⁄8 – 12 O-Ring Boss)
• 5,076 PSI rating
• 73.97 GPM Max Flow Rate
• 50 GPM Nominal Flow Rate

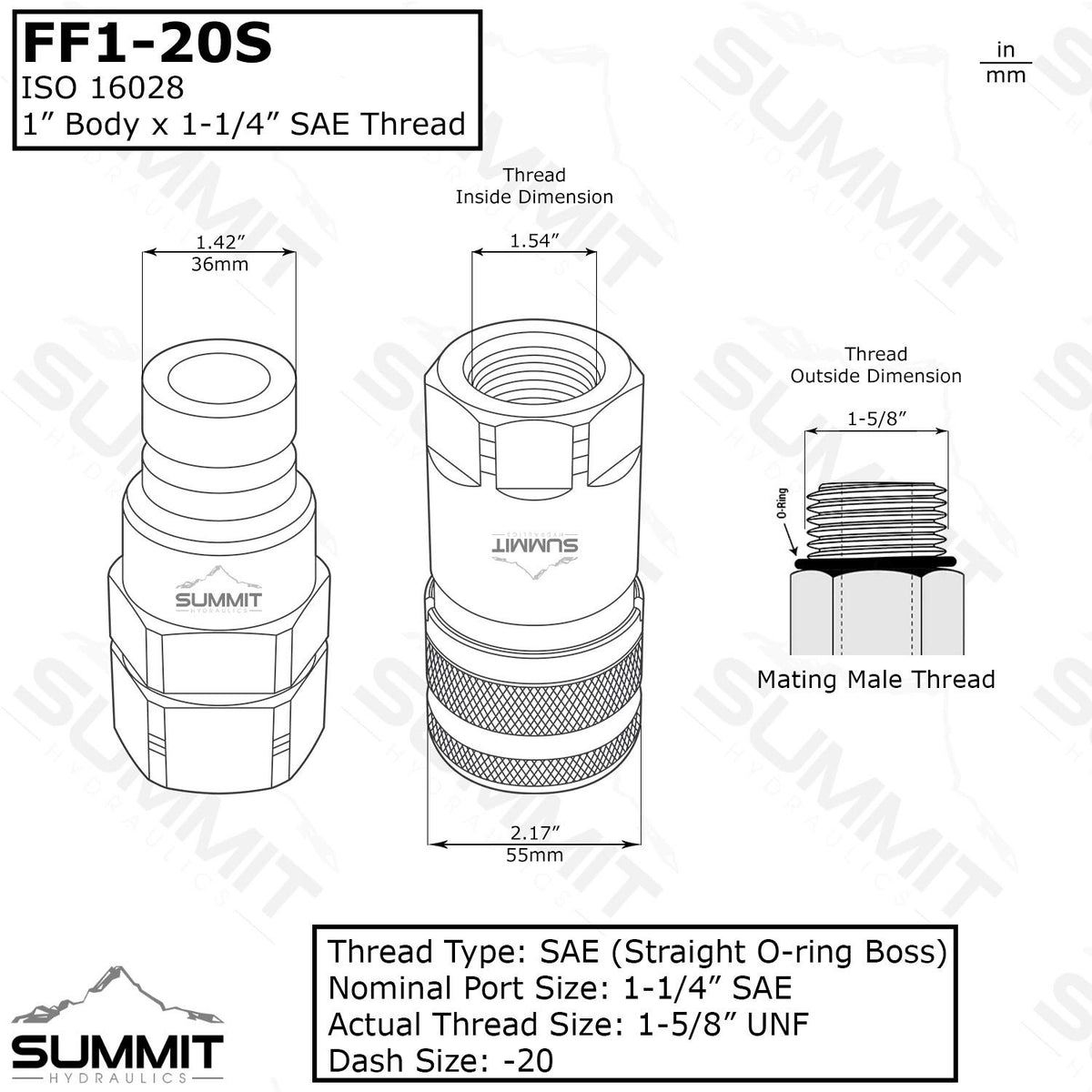

ISO Body Size: 1” Port Thread: 1-1/4” SAE (1 5⁄8 – 12 O-Ring Boss) Benefits Flush face valve design minimizes fluid loss and air inclusion Locking sleeve to prevent accidental disconnection Zinc-nickel plating provides superior corrosion resistance Hardened steel construction with hardened sleeves Allows for minimal pressure drops Easy single-handed push-connect design Nipple seal resists blow-outs Interchangeable with other ISO 16028 standard couplings Features 5,076 PSI rating 73.97 GPM Max Flow Rate 50 GPM Nominal Flow Rate Buna-N Seals with Teflon backup ring can operate up to 250° F Female Face Diameter: 2.17” (55mm) Male Face Diameter: 1.42” (36mm) Female Length: 4.31” (109mm) Male Length: 3.54” (90mm) Hex: 2.17” (55mm) Connected Length: 6.97” (177mm) Cross References: Parker FE Series FEM-1002-20FO FEM-1001-20FO Safeway FFE49 Series FFE491-8-20 FFE495-8-20 Stucchi FIRG Series 801304013 / M. A21 114 SA 801304014 / F. A21 114 SAE DNP PLT4 Series FF-HPG-16-20N-SAE FF-HPG-16-20C-SAE
