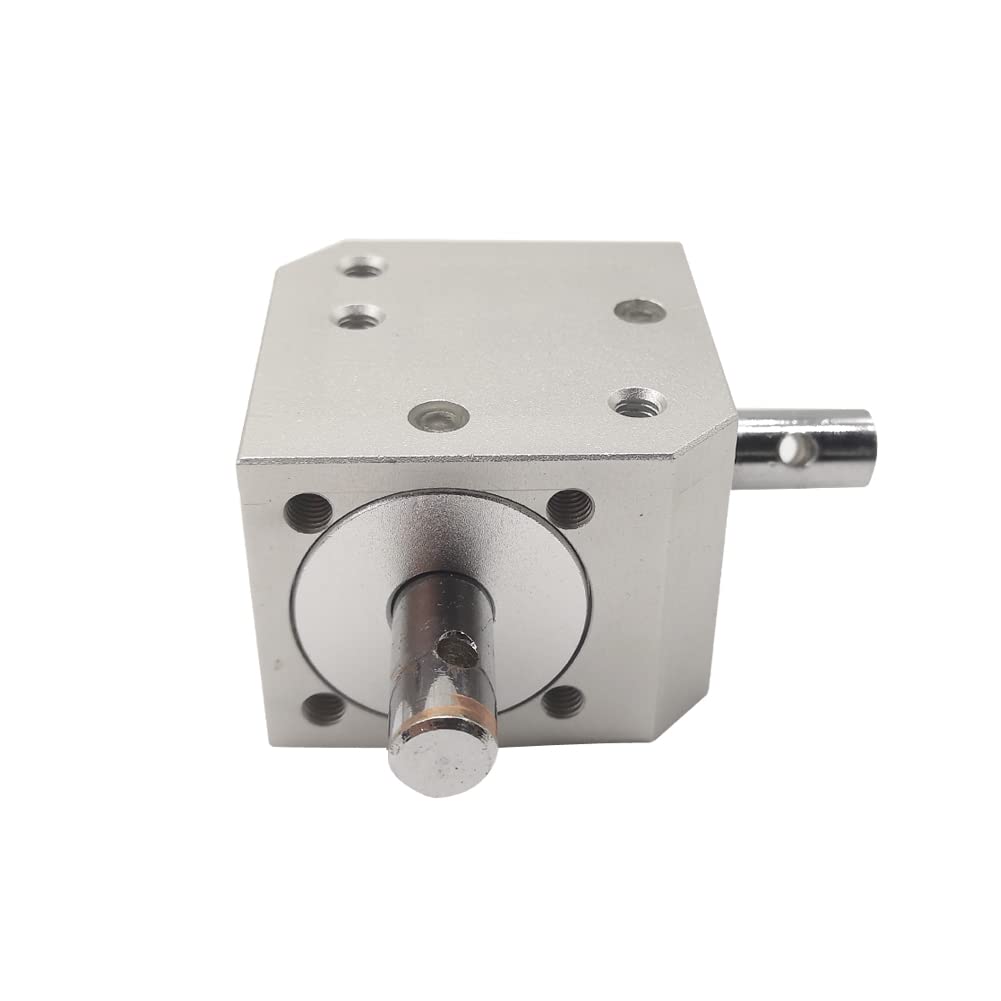

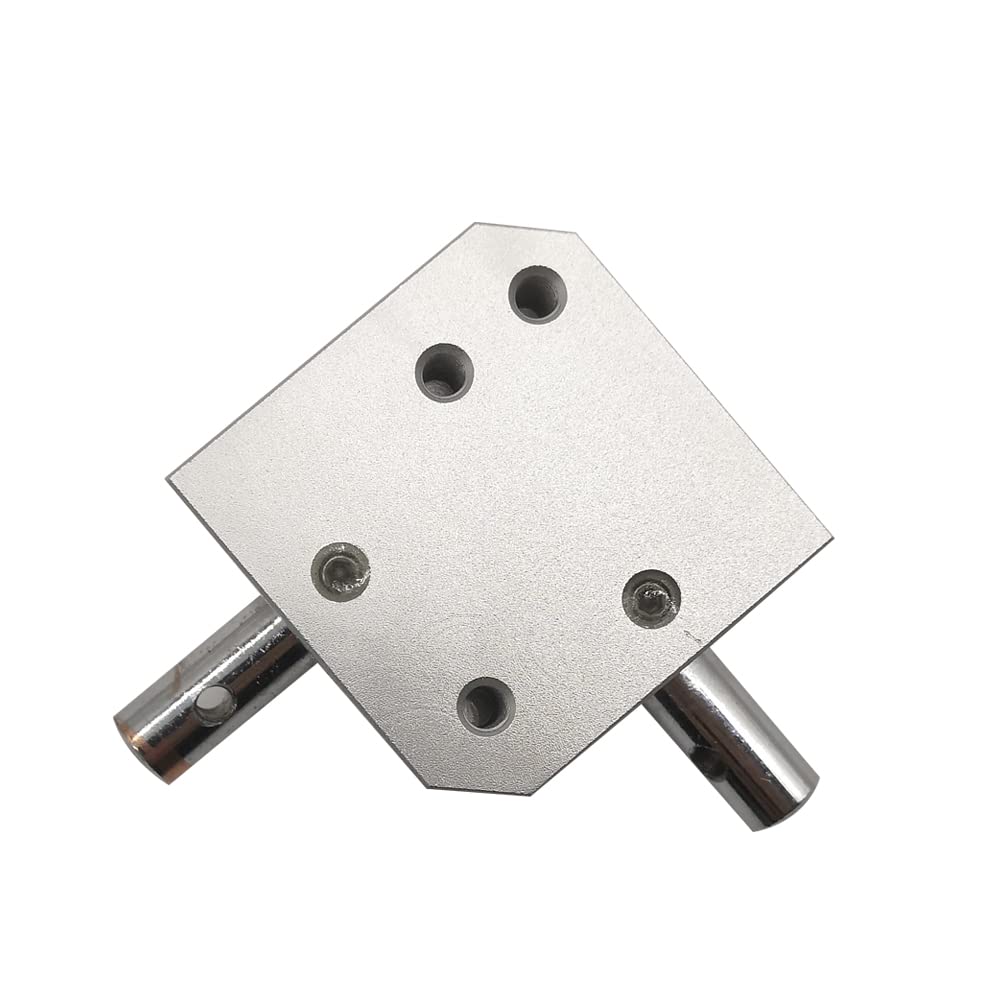

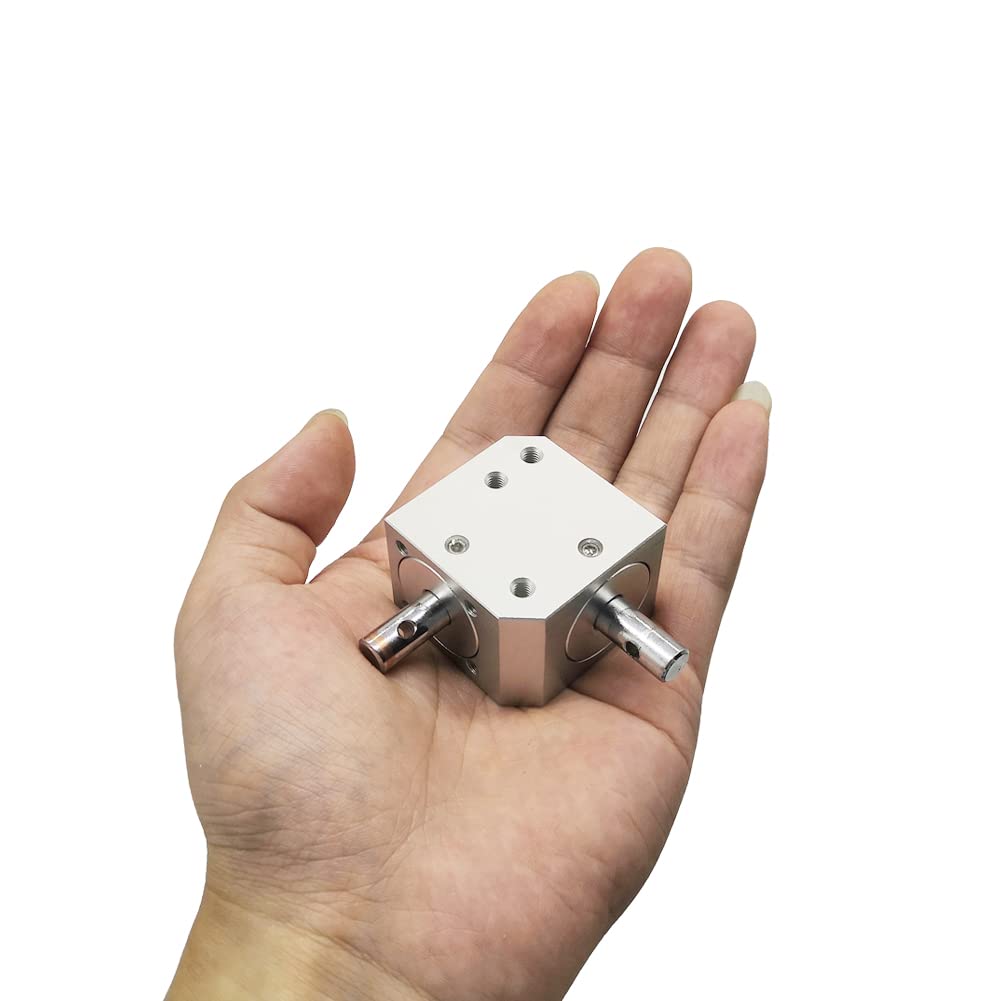

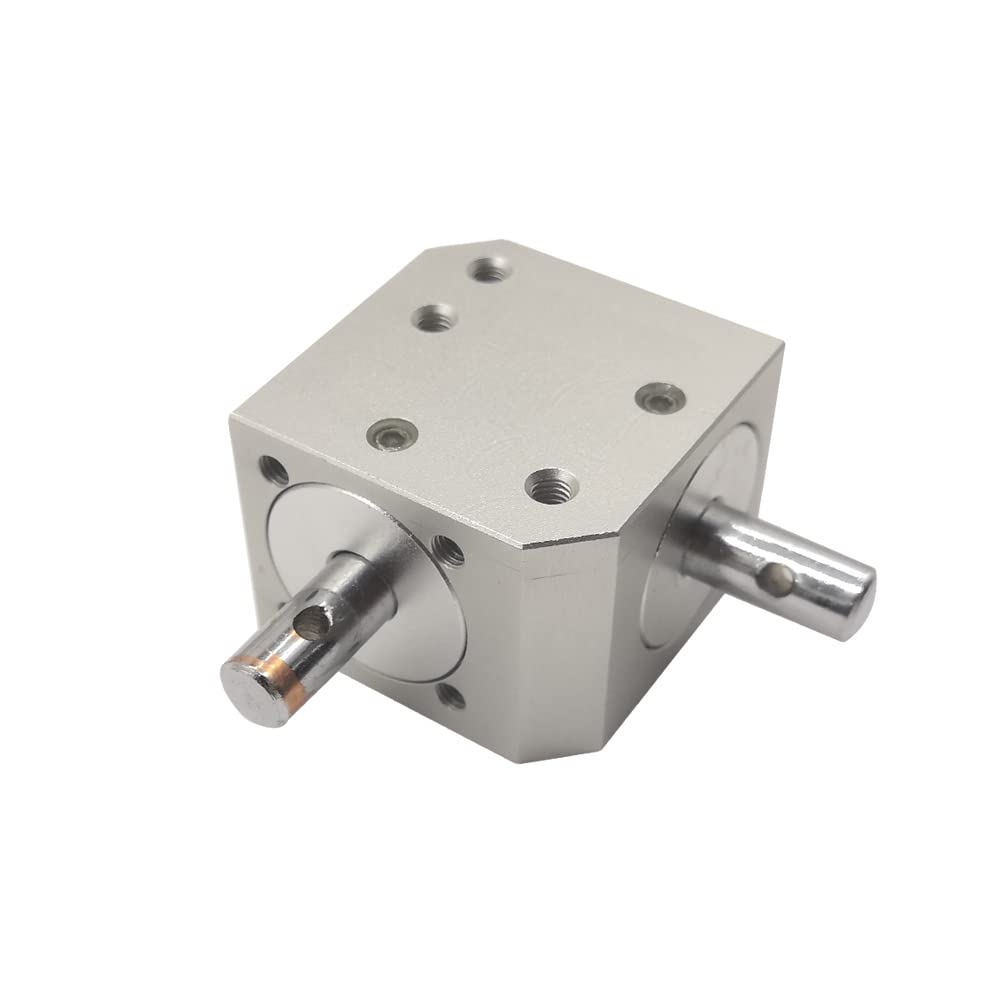

1:1 Right Angle Tapered Bevel Gearbox Mini 1 Module 20 Teeth 90° Angle Drive Steering Gear Device Simple Mechanical DIY Module with 8mm Shaft
1:1 Right Angle Tapered Bevel Gearbox Mini 1 Module 20 Teeth 90° Angle Drive Steering Gear Device Simple Mechanical DIY Module with 8mm Shaft
Key features
- 1:1 L-shaped Right Angle Bevel Gearbox for Simple DIY Mechanical Application, 1 Input Shaft Drives 1 Short Output Shaft.
- Specification: built-in 1 module 20 teeth bevel gears, 8 mm/ 0.3" shaft, max torque rating: 5 N.M/ 3.6 ft.lbs , max rotation speed: 1500 rpm, backlash: 5 degree, if 3D file(stp) is needed, free to contact us.
- Motor drive can be realized with coupling and belt pulley gear.

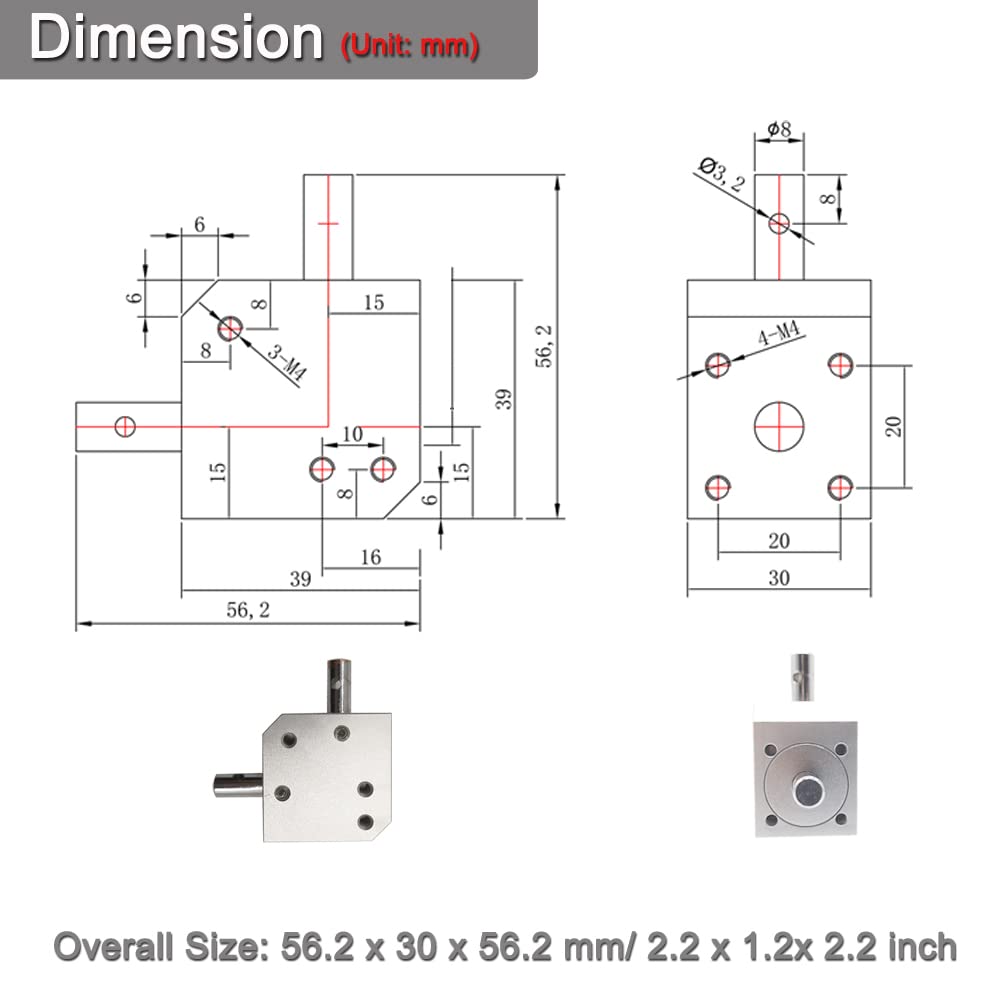

- Material: Aluminum alloy with sandblasting oxidation & Stainless Steel Shaft, Overall Size: 56.2 x 30 x 56.2 mm/ 2.2 x 1.2 x 2.2 inch.
- Note: it's simple steering gear, not recommended for high torque and high accuracy CNC application.
1:1 Right Angle Bevel Gearbox for Simple DIY Mechanical Application.Specification: built-in 1 module 20 teeth bevel gears, 8 mm/ 0.3" shaft, max torque rating: 5 N.M/ 3.6 ft.lbs , max rotation speed: 1500 rpmMotor drive can be realized with coupling and belt pulley gear.Material: Aluminum alloy & #45 Steel, Overall Size: 56.2 x 56.2 x 30 mm/ 2.2 x 2.2 x 1.2 inch.Note: it's simple steering gear, can not used for high torque and high accuracy CNC application, and the input & output shaft is not avaliable to replace. Note: the scratches on the shaft were left for installation, it's not used, pls do not buy if you mind.
Free shipping included. 30-day hassle-free returns.
