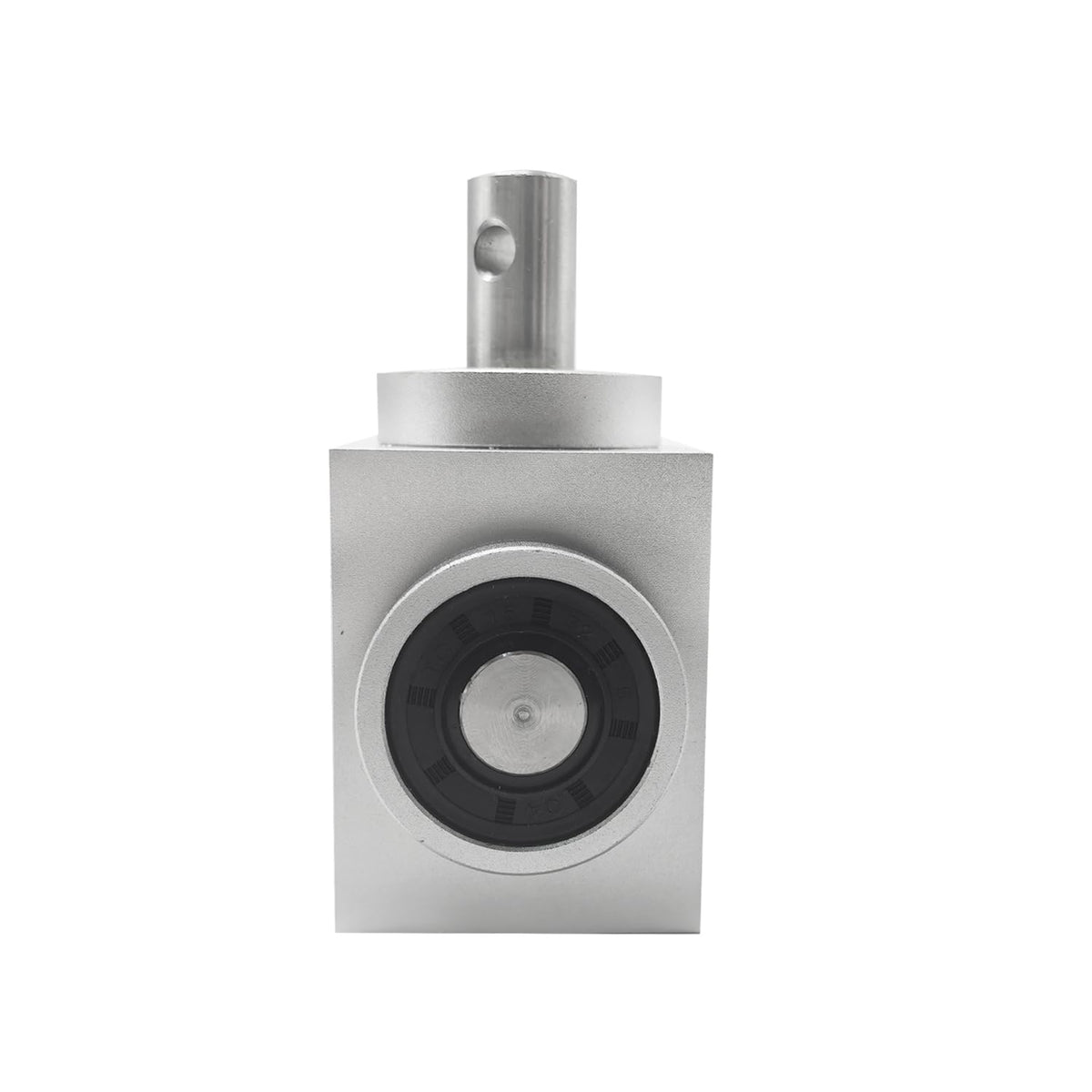

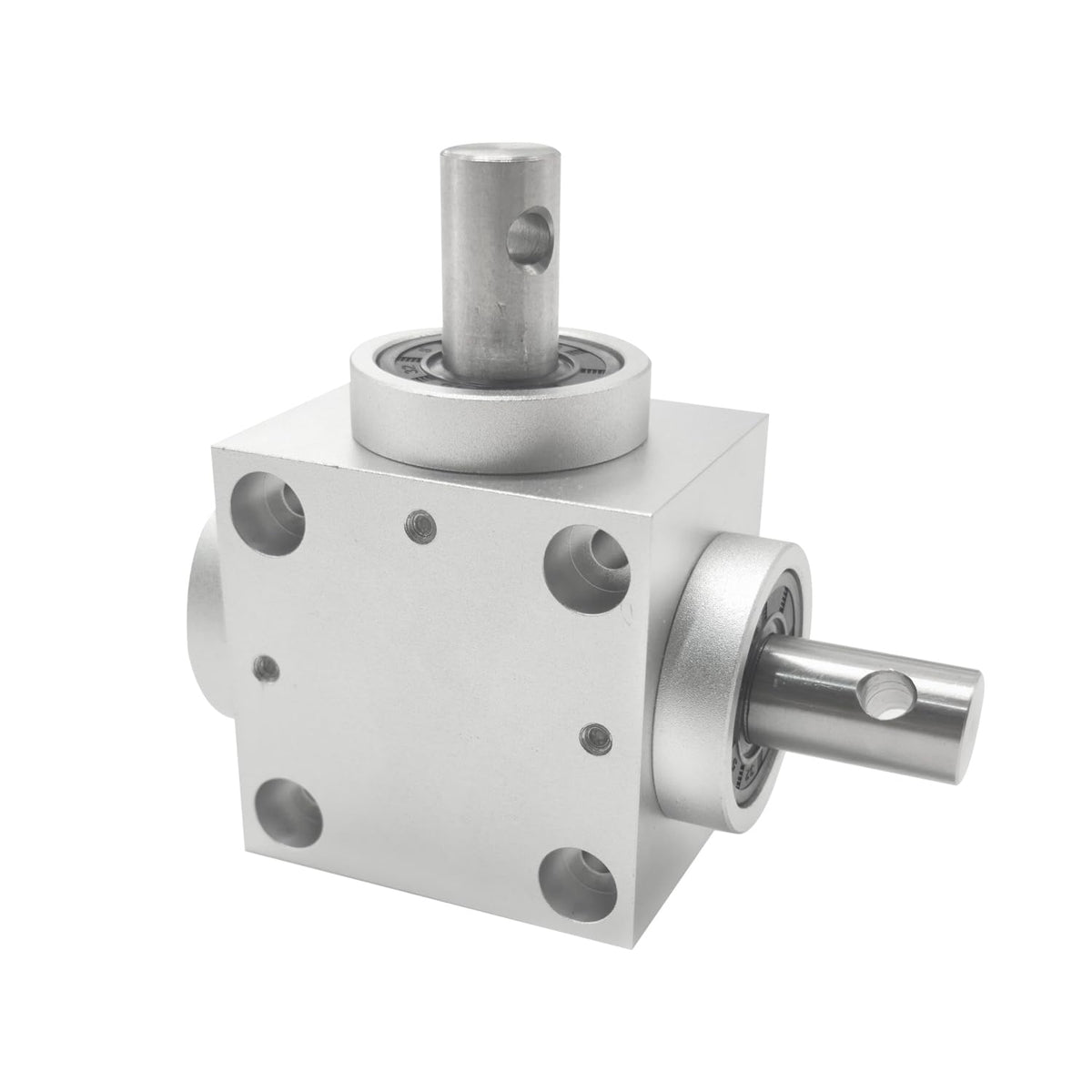

1:1 Waterproof Right Angle Gearbox 1.5 Module 20 Teeth 90° Angle Drive Steering Gear Device
1:1 Waterproof Right Angle Gearbox 1.5 Module 20 Teeth 90° Angle Drive Steering Gear Device
Key features
- Waterproof 1:1 Right Angle Gearbox: this right-angle gearbox adopts a sealed structure to form a sealed cavity, which is suitable for outdoor projects in humid and dusty conditions, like garden spraying devices, boat power devices, lightweight lift tables, etc.

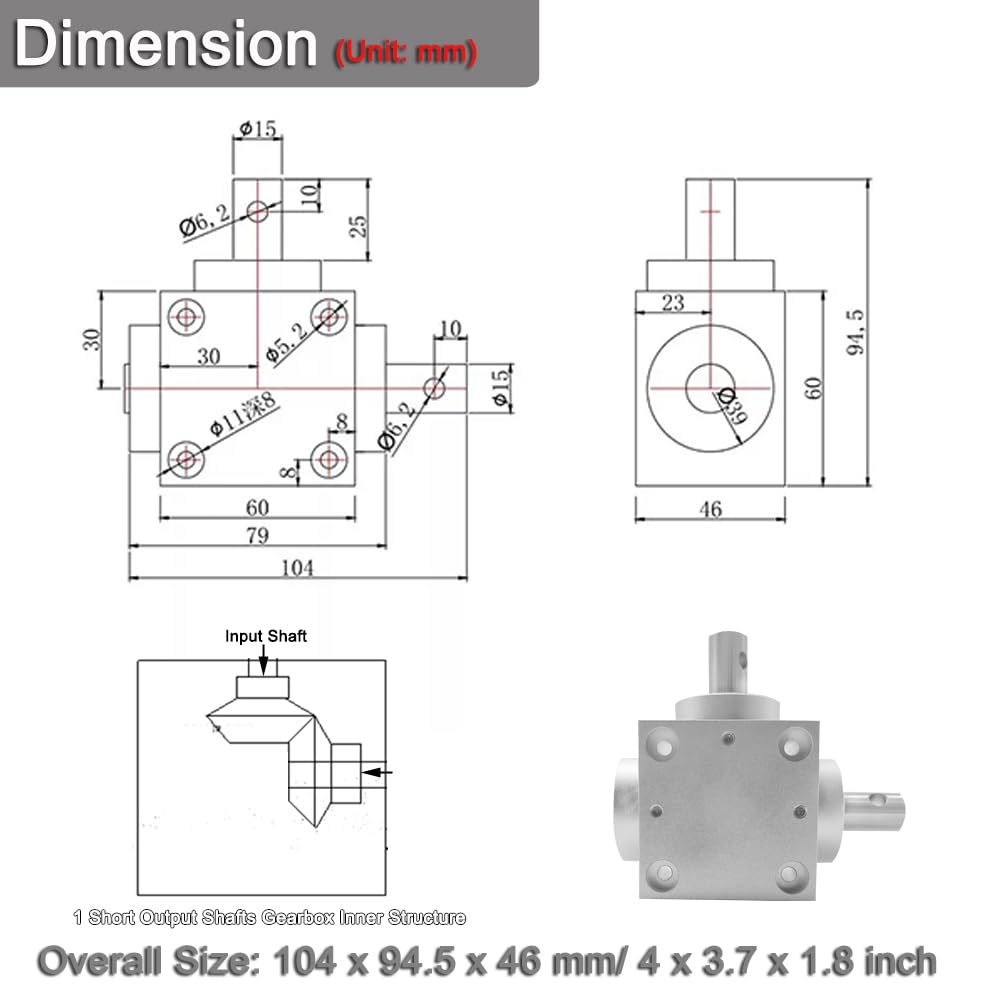

- Specification: 2pcs built-in 1.5 module 20 teeth bevel gears, 15 mm/ 0.6" shaft, Max Axis Loading: 30 kgs/ 66.1 lbs, max torque rating: 10 N.M/ 7 ft.lbs, max rotation speed: 1500 rpm, backlash: 5 degrees, ingress protection: IP64 ( dust-tight protection and withstand water splashes from any direction, NOT suppot soaking in water for a long time), if 3D file (stp) is needed, free to contact us.

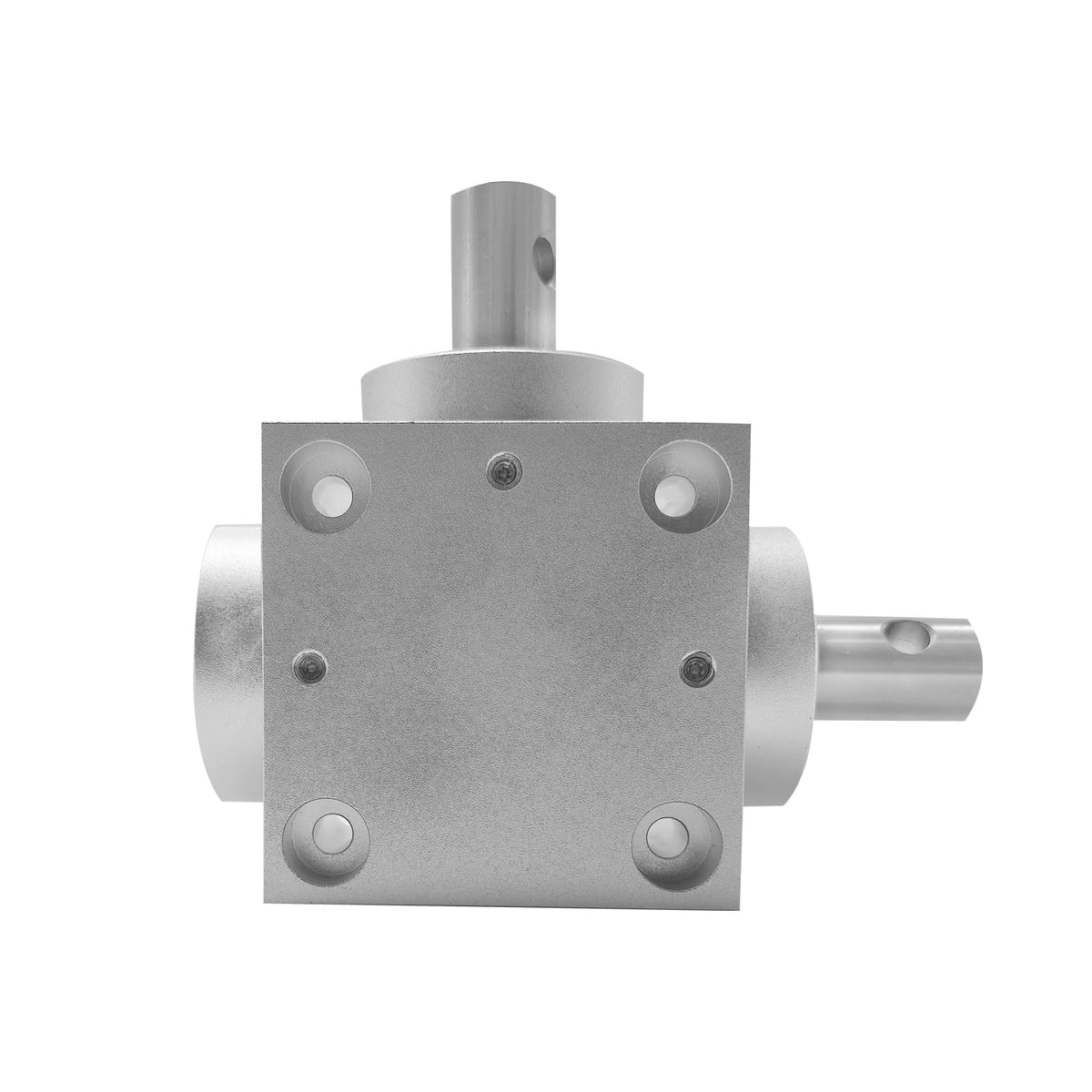

- Easy to Install and Use: there are 4 mounting holes on the side of the gearbox, which is convenient for fixing the equipment. It can be connected to the motor through a coupling or gear and belt to drive, or it can be driven by a hand crank with a 15mm bore.
- Materials: sandblasted anodized aluminum alloy housing, 45 steel gears, stainless steel shafts
PGFUN 1:1 Waterproof Right Angle Gearbox Waterproof 1:1 Right Angle Gearbox: this right-angle gearbox adopts a sealed structure to form a sealed cavity, which is suitable for outdoor projects in humid and dusty conditions, like garden spraying devices, boat power devices, lightweight lift tables, etc. Easy to Install and Use: there are 4 mounting holes on the side of the commutator, which is convenient for fixing the equipment. It can be connected to the motor through a coupling or gear and belt to drive, or it can be driven by a hand crank with a 15mm bore. Materials: sandblasted anodized aluminum alloy housing, 45 steel gears, stainless steel shafts. Specification: 2pcs built-in 1.5 module 20 teeth bevel gears, Shaft size 25mm x 15 mm/1 x 0.6" shaft, Max Axis Loading: 30 kgs/ 66.1 lbs, Max torque rating: 10 N.M/ 7 ft.lbs, Max rotation speed: 1500 rpm, Backlash: 5 degrees, Ingress protection: IP64 ( dust-tight protection and withstand water splashes from any direction, NOT suppot soaking in water for a long time) Tips: if 3D file is needed, free to contact us.
Free shipping included. 30-day hassle-free returns.
