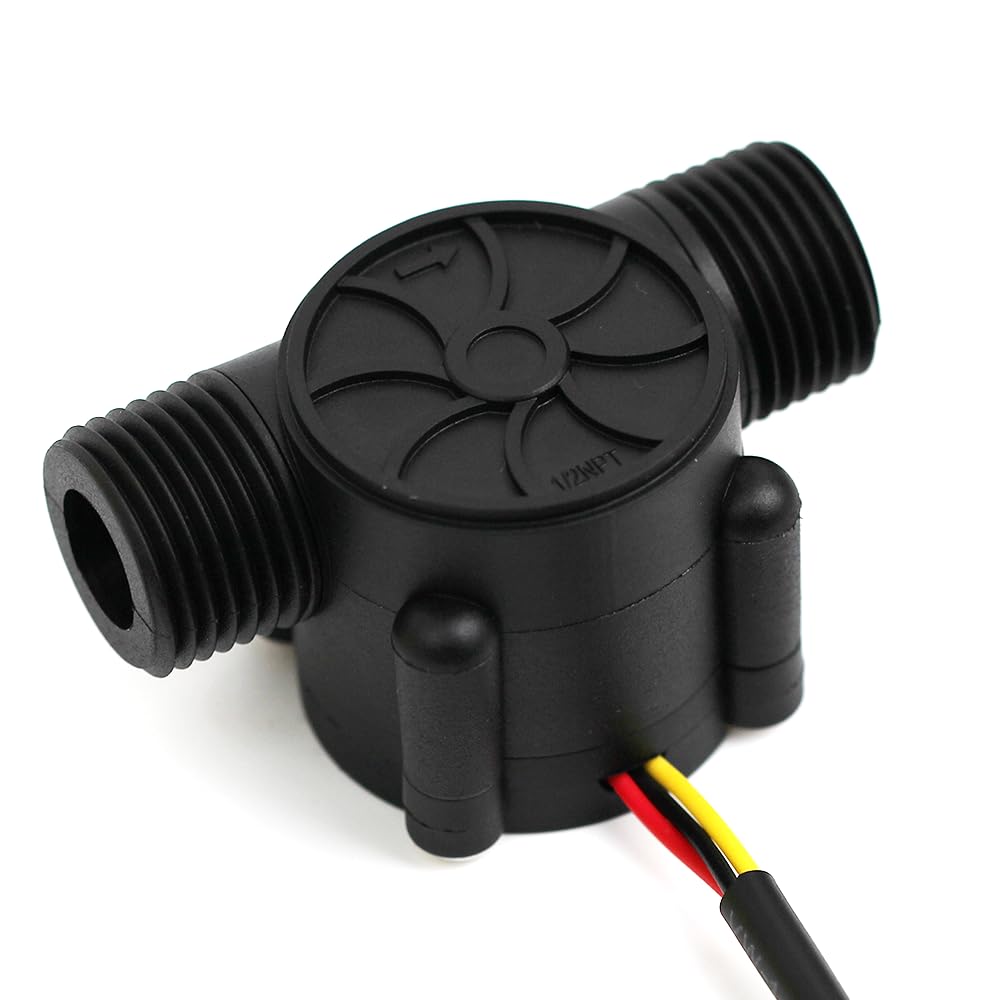

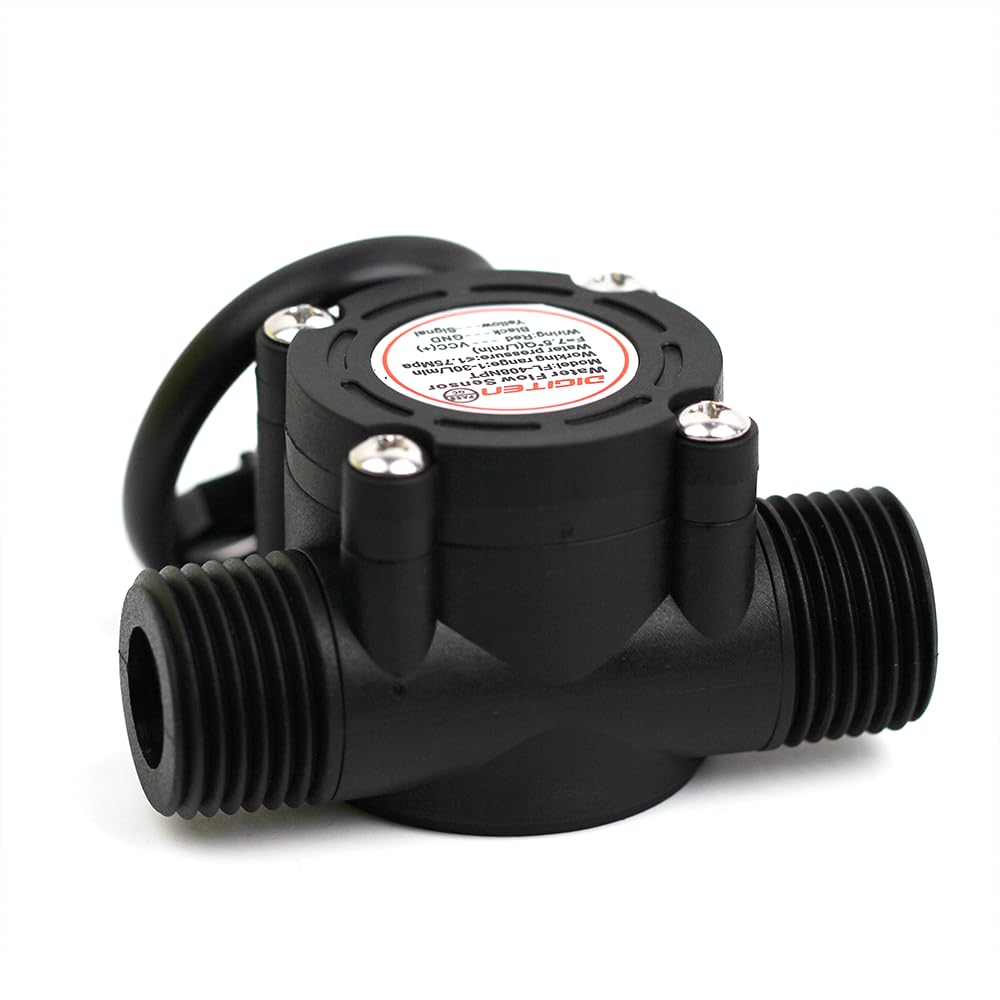

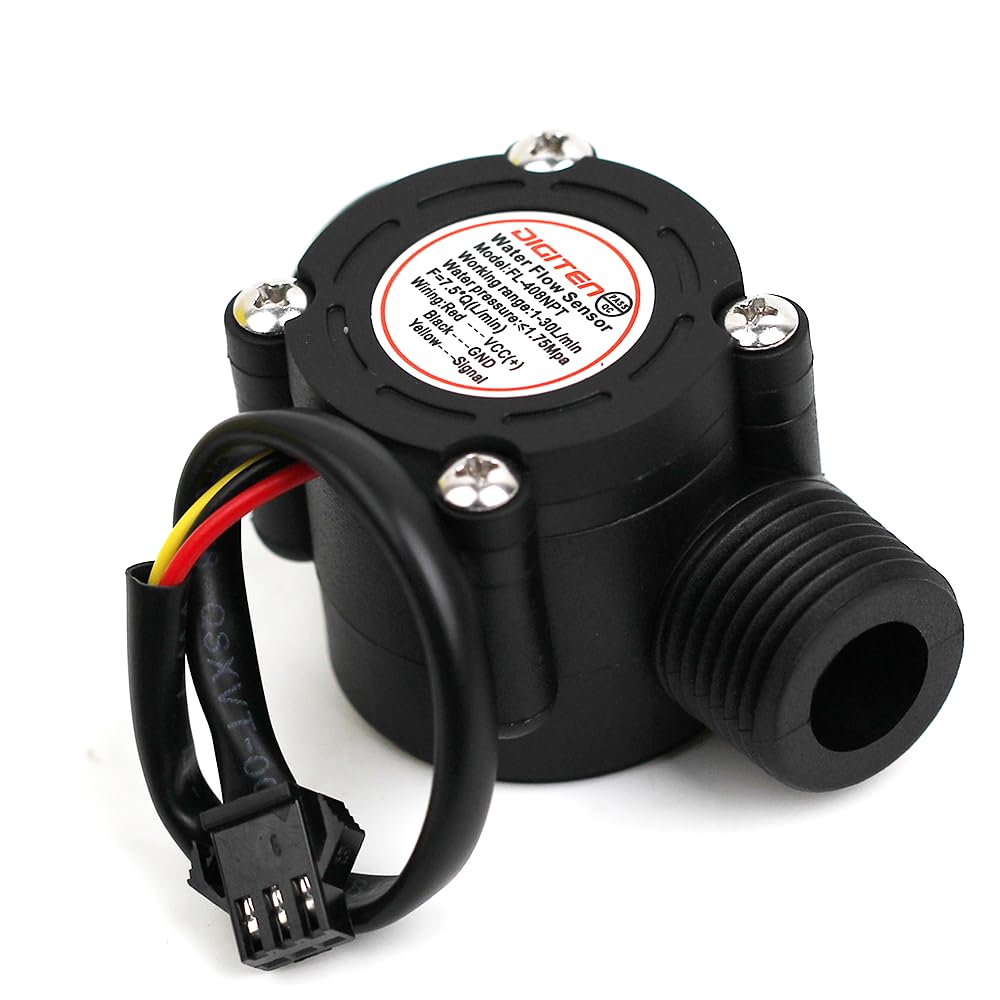

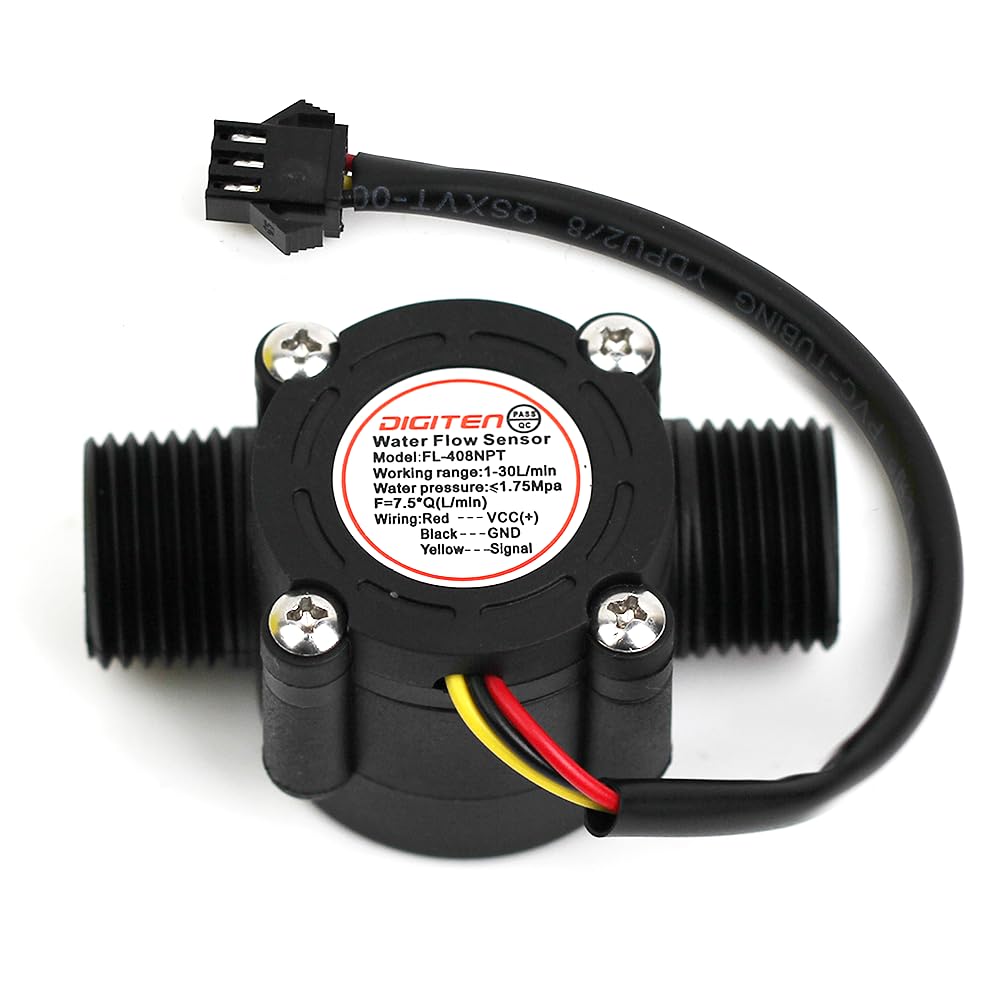

1/2 ’’ Flow Hall Sensor with NPT Thread, 1-30L/Min Flow Meter, Flowmeter Counter, Arduino, Raspberry Pi, and Reverse Osmosis Filter Compatible

Key features

• NPT Thread
• 1-30L/min
• The Water Flow Sensor is light, has a nimble outline, small, and is easy to install—the bearings used in the rotating part.
• There is an integrated magnetic hall effect sensor that outputs an electrical pulse with every revolution. The hall effect sensor is sealed from the water pipe and allows the sensor to stay safe and dry.
• Installed by flow direction in the product, otherwise, there is no signal output.
• It is mainly used in water heaters, coffee machines, water purifiers, drinking fountains, beverage machines, campus smart card equipment, etc.

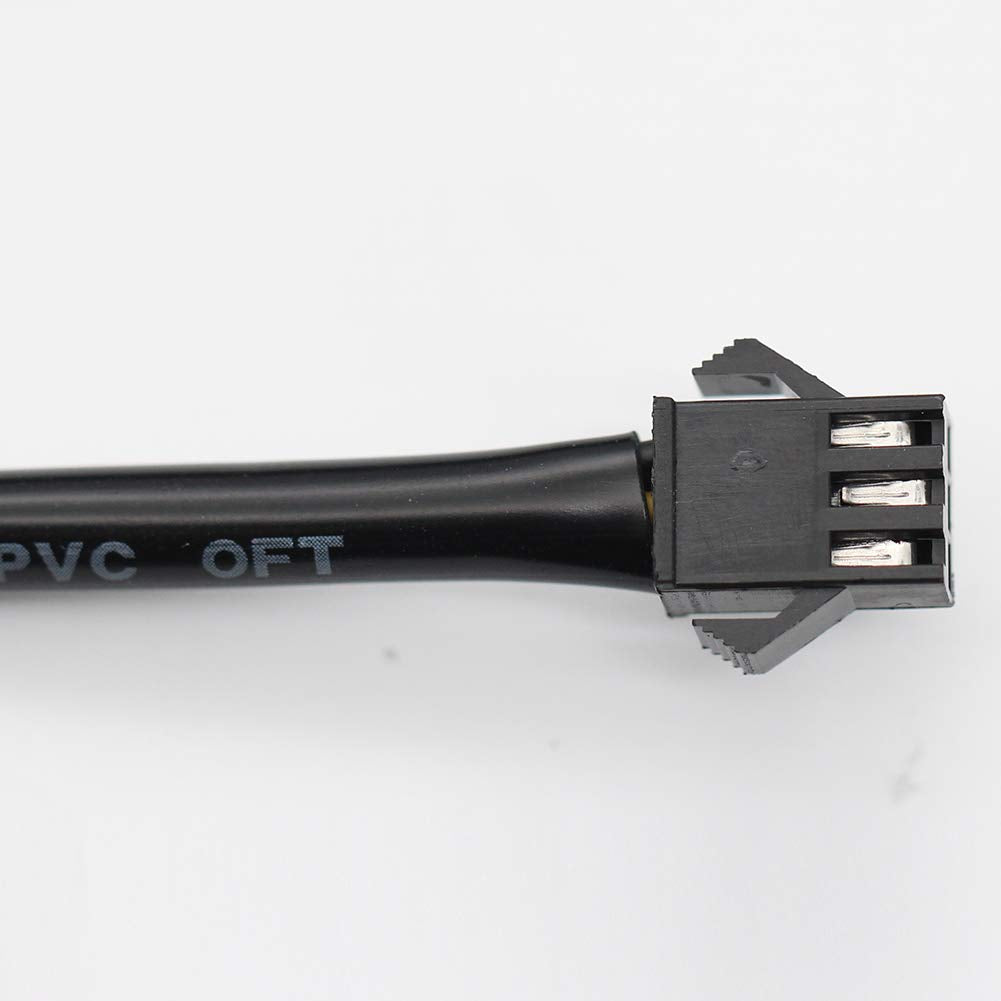

SENSTREE G1/2 ’’ Flow Hall Sensor with NPT thread, 1-30L/Min Flow Meter, Food Grade Flowmeter Counter, Arduino, Raspberry Pi, and Reverse Osmosis Filter CompatibleSpecifications: Frequency: F=7.5 * Q (L / Min) error: ± 2% , current can not exceed 10mA, 450 output pulses/liters. F=onstant * units of flow (L / min) * time (seconds) Flow range:1-30L/minMaximum current:10 mA(DC 5V) Working voltage range: DC 5-18 VLoad capacity: ≤10 mA(DC 5V) Operating Temp: ≤80℃. Operating humidity: 35%-90%RHAllow compression: Water pressure 1.75 Mpa belowInsulation resistance: >100M OHMStorage Temperature: -25-80℃Storage humidity: 25%-95%RHOutput Waveform: square wave, output pulse signal. Cable length:15cm. It is mainly used in water heaters, coffee machines, water purifiers, drinking fountains, beverage machines, campus smart card equipment, etc. Refer to the wiring: Red wire: VCC(+)Black wire: GND(-)Yellow wire: Signal output
