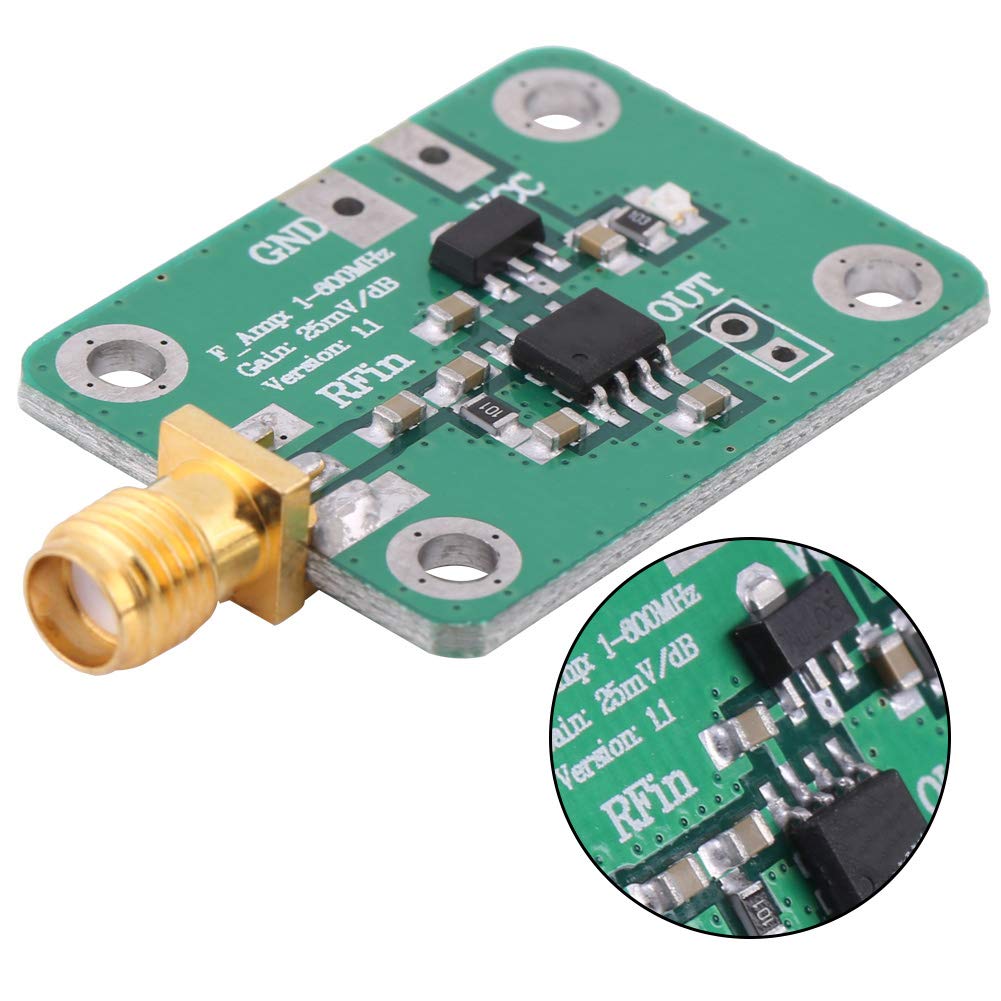

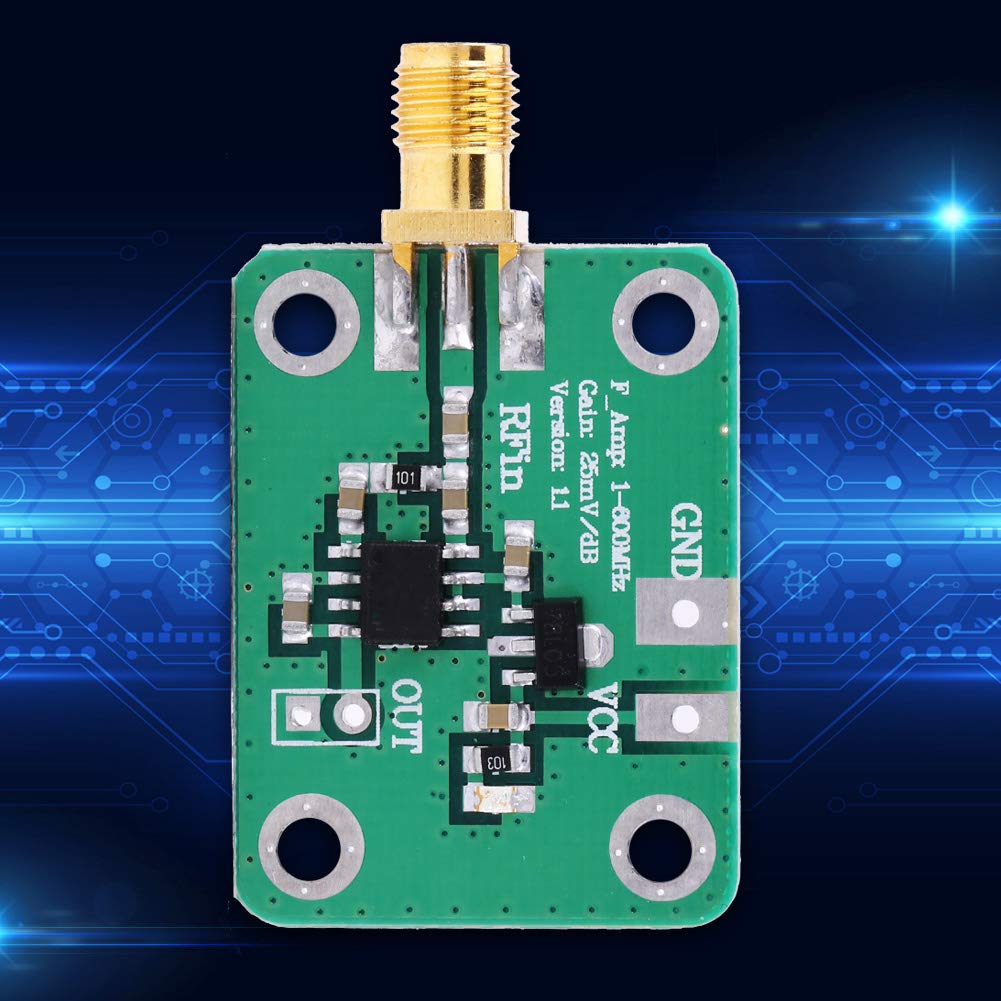

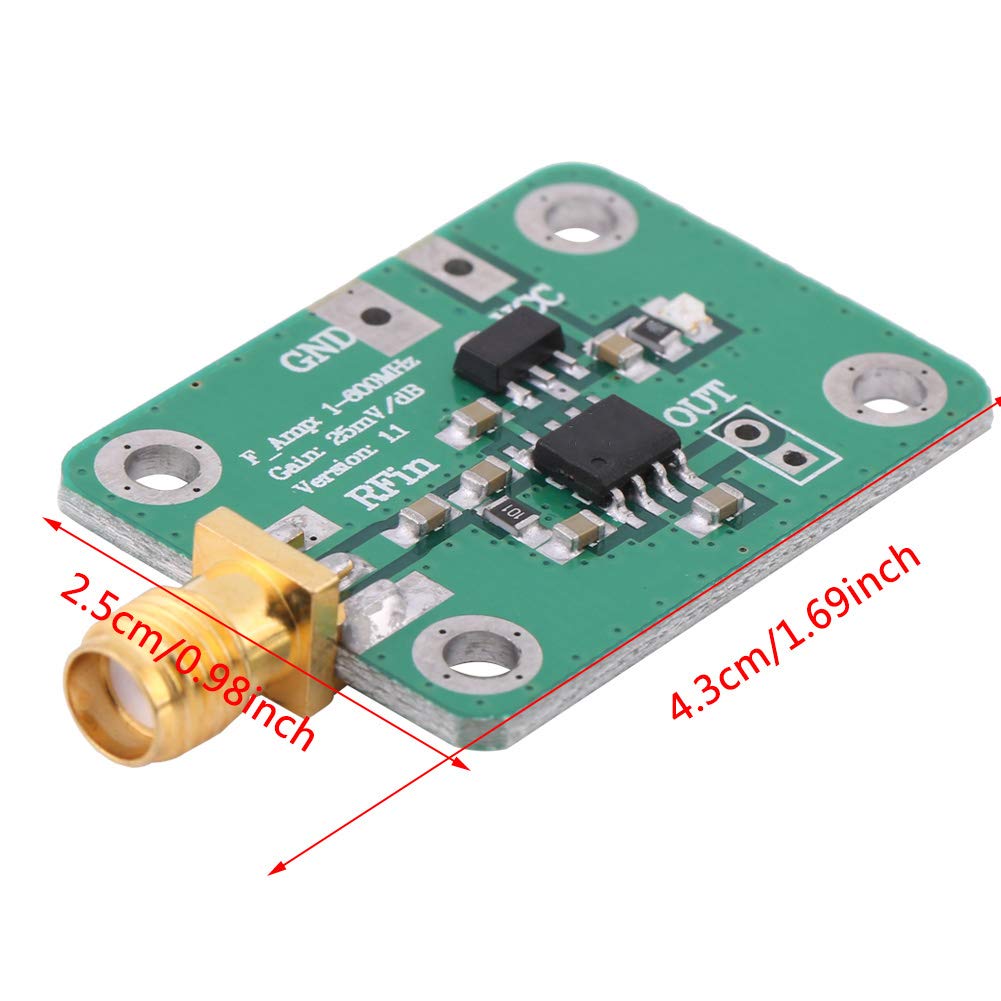

1-600 MHz Rf Power Ad8318 Rf Power Detector,Meter Logarithmic Detector.

Key features

• It can detect a rf of power from -74dBm to 18dBm,and convert the RF into a DC voltage output
• The detector is is used for RF power detection of frequency range between 1MHZ and 600MHZ

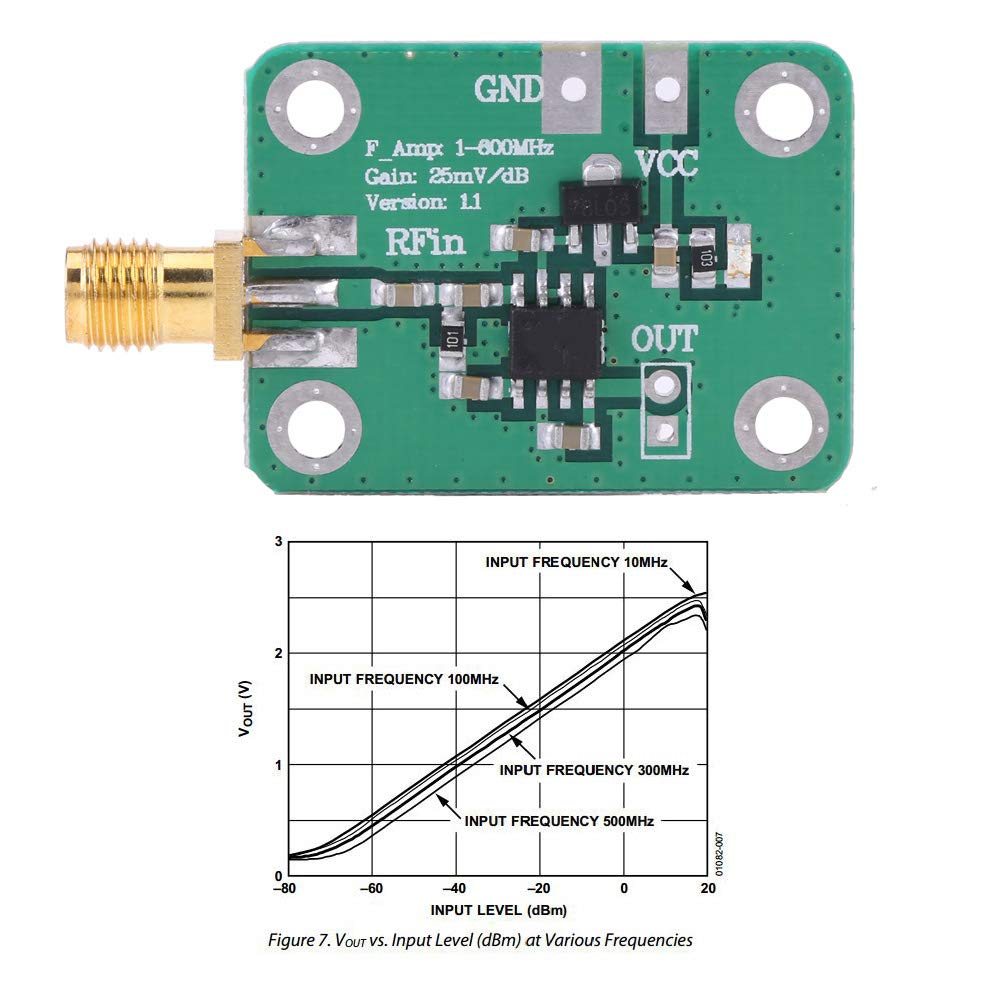

• The higher radio frequency range or power is,the higher output voltage will be; output voltage is proportional to logarithm of input range
• It can be made into 1mw ~ 1kw RF power meter after appropriate transformation
• Widely used for RF detection, power measurement,environment field strength detection,can also be used as a part of automatic gain control and automatic control

1. The detector is is used for RF power detection of frequency range between 1MHZ and 600MHZ 2. It can detect a rf of power from -74dBm to 18dBm, and convert the RF into a DC voltage output 3. The higher radio frequency range or power is, the higher output voltage will be; output voltage is proportional to logarithm of input range 4. Widely used for RF detection, power measurement, environment field strength detection, can also be used as a part of automatic gain control and automatic control 5. It can be made into 1mw ~ 1kw RF power meter after appropriate transformation Specification: Features: The detector is is used for RF power detection of frequency range between 1MHZ and 600MHZ. It can detect a rf of power from -74dBm to 18dBm, and convert the RF into a DC voltage output. The higher radio frequency range or power is, the higher output voltage will be; output voltage is proportional to logarithm of input range. Widely used for RF detection, power measurement, environment field strength detection, can also be used as a part of automatic gain control and automatic control. It can be made into 1mw ~ 1kw RF power meter after appropriate transformation. Specifications: Working Fr
