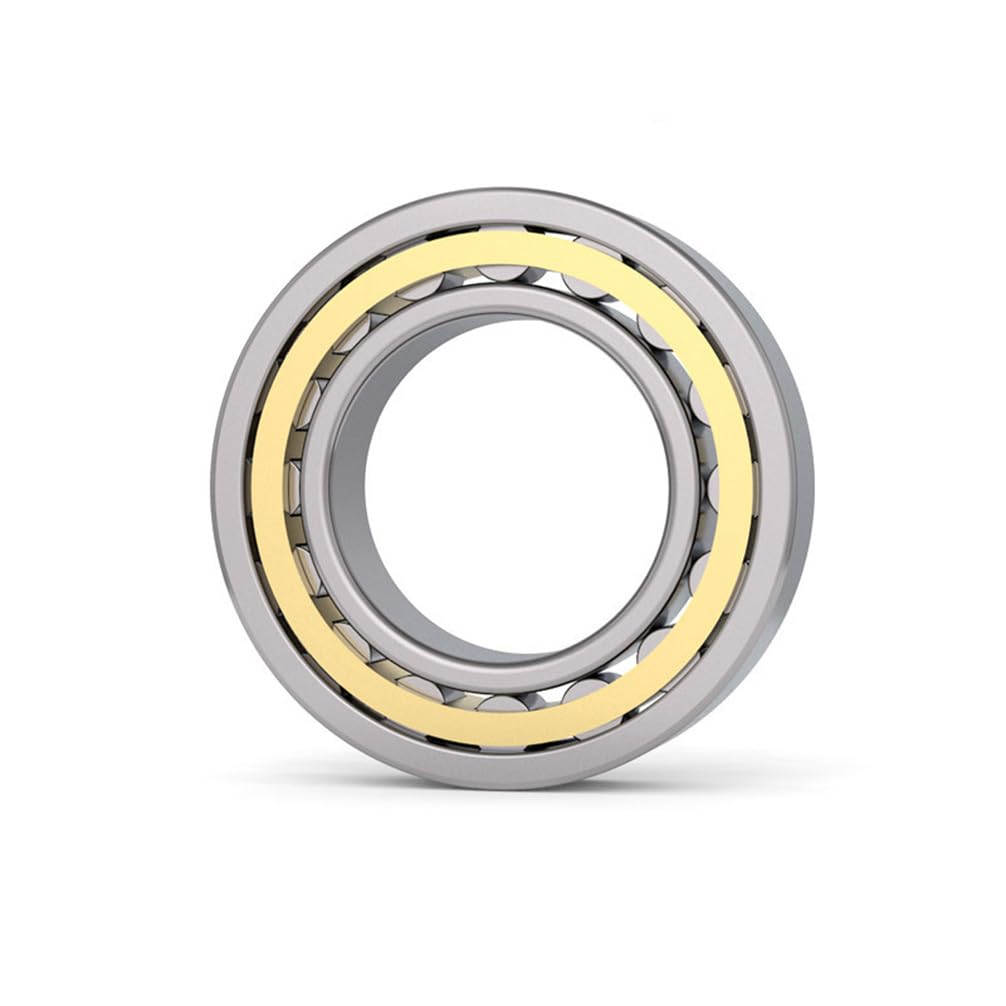

1 Pcs, NU208 EM C3 Cylindrical Roller Bearing

Key features

• Features two integral ribs on the outer ring and a ribless inner ring. The removable inner ring creates a separable configuration for flexible mounting and assembly.
• Cylindrical rollers provide line contact with the raceways, making this bearing configuration suitable for applications where radial-load support is the primary requirement.
• The ribless inner ring allows relative axial movement between the shaft and housing in both directions within the bearing, helping accommodate dimensional changes during operation.
• The inner ring can be mounted separately from the outer ring, roller and cage assembly, providing installation flexibility for shafts, housings and related mechanical components.
• Suitable for non-locating bearing positions in motors, gearboxes, machine tools and transmission equipment. Verify dimensions, clearance, cage type, lubrication and operating conditions before ordering.

NU Series cylindrical roller bearings are designed for industrial rotating equipment where radial support and internal axial movement are required. The bearing uses a single row of cylindrical rollers and a separable ring arrangement, providing a practical configuration for a wide range of mechanical assemblies. The outer ring incorporates two ribs while the inner ring has no ribs. This arrangement allows the shaft and housing to move axially relative to each other in both directions within the bearing. It is therefore commonly used as the non-locating side of a bearing arrangement where operating conditions may cause changes in shaft length. The removable inner ring can also be installed separately from the outer ring and roller assembly, which can simplify installation where individual machine components require different fitting procedures. NU bearings are primarily intended for radial-load applications rather than axial positioning. Before purchasing, verify the model, bore diameter, outside diameter, width, internal clearance, cage configuration, lubrication method, operating speed and load conditions required by the equipment.
