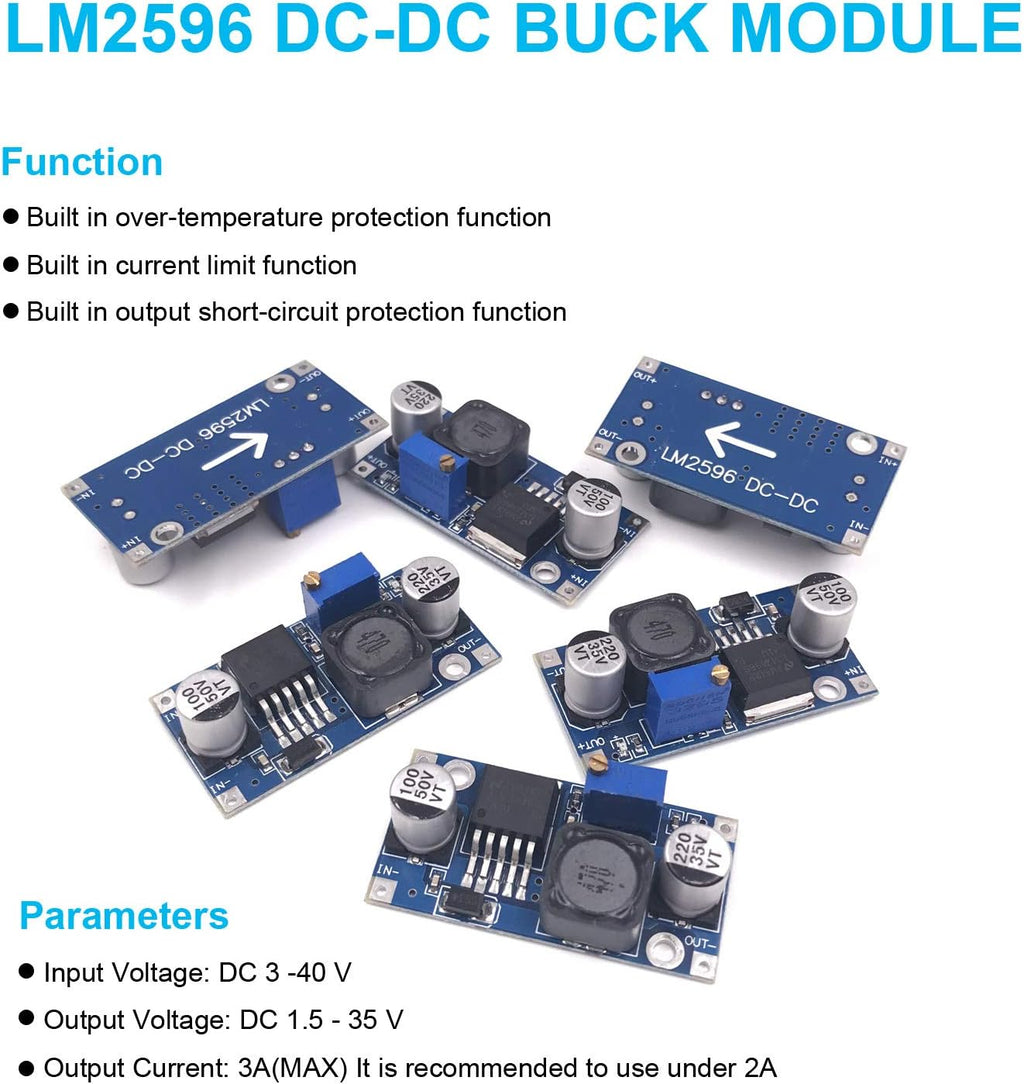

10 Pack LM2596 DC-DC Buck Converter Step Down Module Power Supply DIP Output 1.25V-30V 3A

Key features

• Input voltage range: DC 3.2V to 35V (input voltage must be higher than the voltage output to 1.5V or more can not be boosted.)
• Output: 1.25V to 30V DC voltage is continuously adjustable, high efficiency and maximum output current of 3A.
• All solid capacitors using SANYO
• 36u thick circuit boards
• High-Q inductors with high power output LED indicator

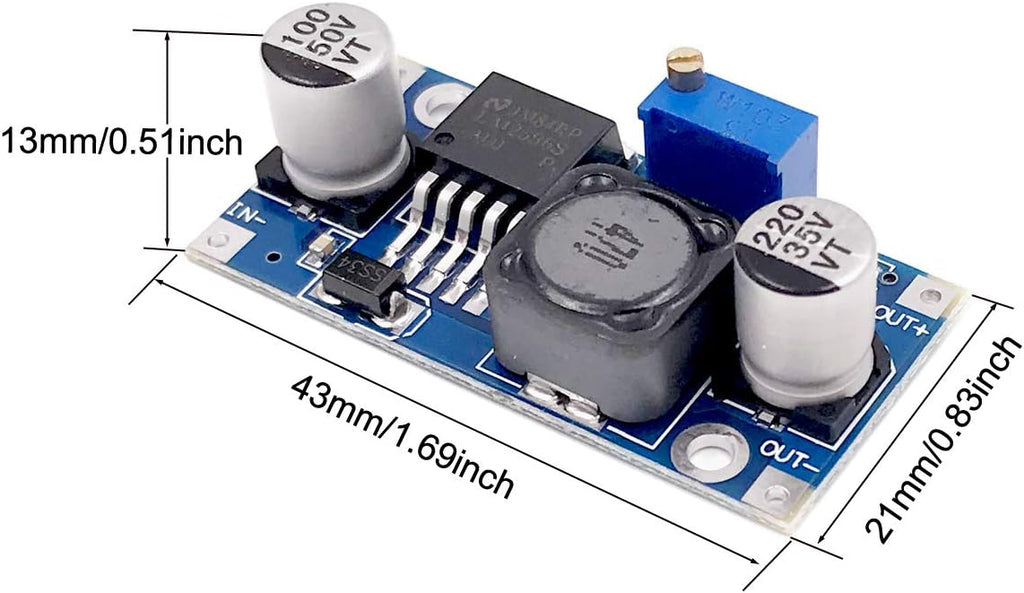

Electrical Parameters:Input: DC 3.2V to 35V (input voltage must be more than the output voltage can not be higher than boost 1.25v.)Output: 1.25V to 30V DC voltage is continuously adjustable, high efficiency and maximum output current of 3A.Features: All solid capacitors using SANYO, 36u thick circuit boards, high-Q inductors with high power output LED indicatorSize: 45 21 13mm / 1.69 0.83 0.51inch (including potentiometers)minimum with locating hole with LED indicator DC-DCInstructions:Access to power (3-35V), adjust the blue potentiometer knob (clockwise rotation generally boost, buck counterclockwise rotation) and with a multimeter to monitor the output voltage reaches the required voltage.Wiring:1. welding, welded directly to the power line input (output) port;2. solder pins, or pins can be inserted through the lead insertion use in tunnel plate; soldered directly to the PCB after another or add pins.Note: The input and output can not be reversed, reverse might burn chips;This is a step-down module, the input voltage is higher than the required output voltage;Output 2A or less long period of time without additional heat sink output current is greater than 2.5A (or output power
