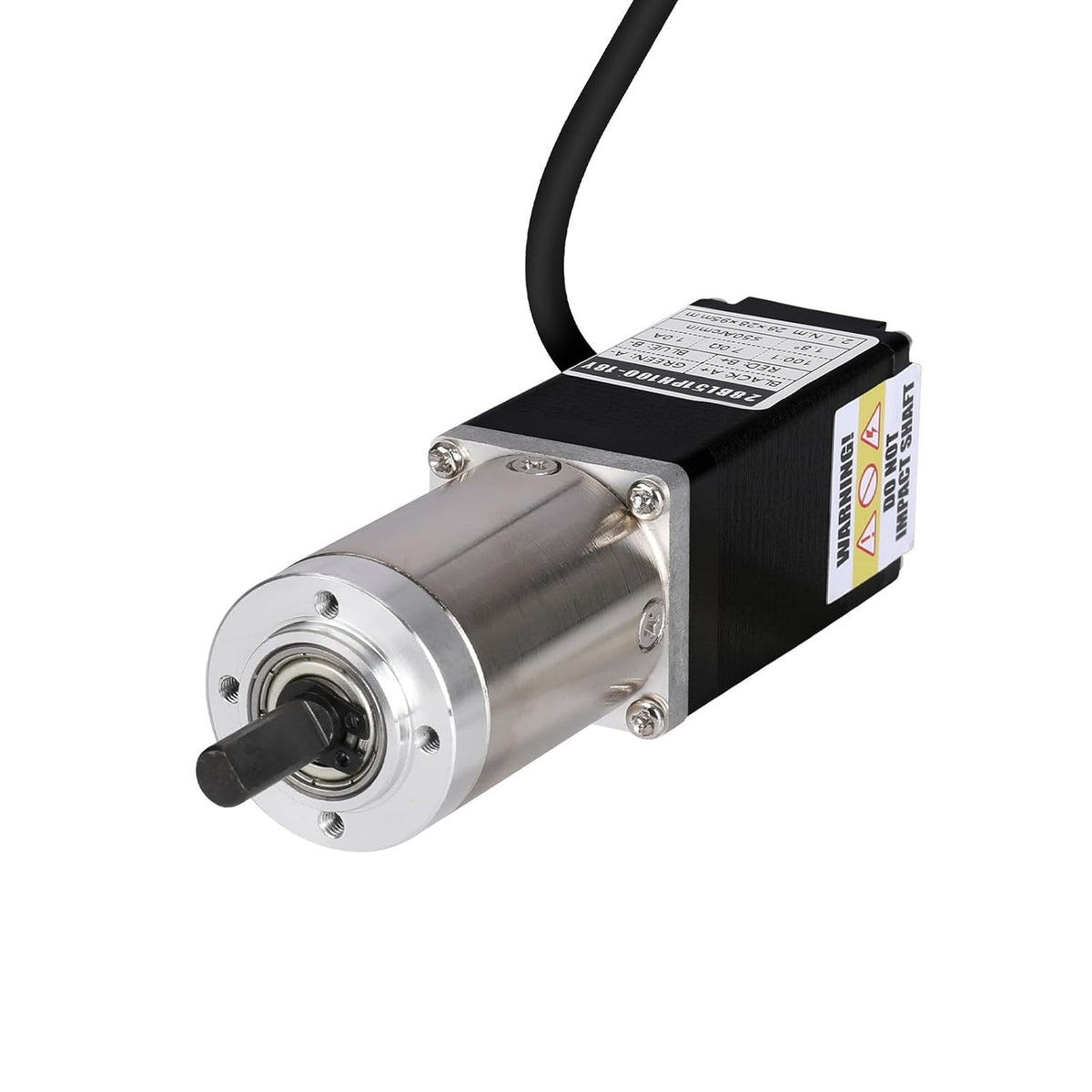

100:1 Planetary Gearbox Nema 11 Stepper Motor 11Ncm 28x94mm 1.0A

Key features

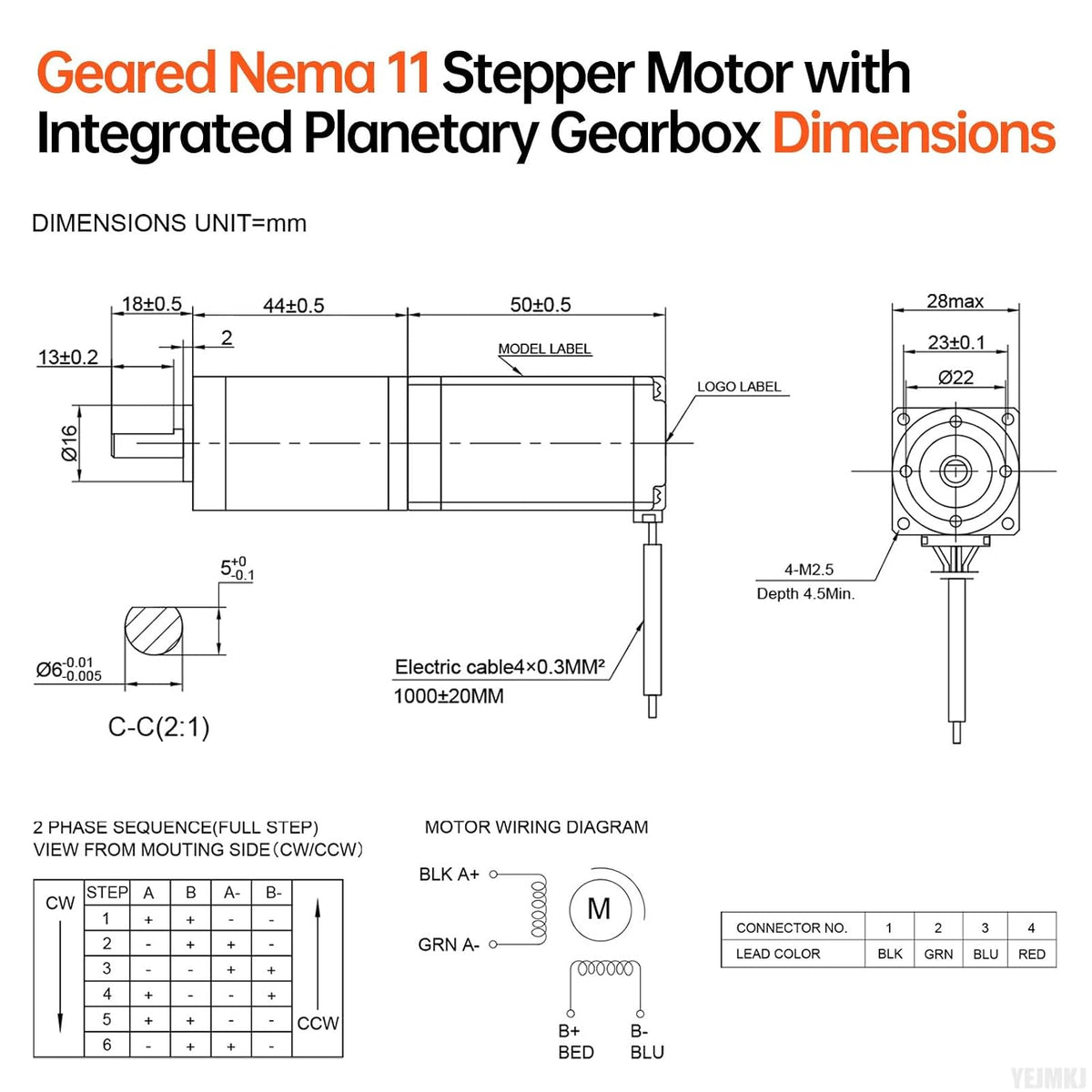

• Dimensional data: Key dimensions for 100:1 Geared Nema 11 Stepper Motor with Integrated Planetary Gearbox include the following. Body size 28x28x94mm (1.11x1.11x3.71in), Shaft length 18mm, Shaft diameter Ø6mm, D-cut length 13mm, Lead color Black (A+) Green (A-) Red (B+) Blue (B-), incl. Cable 1M, Weight 349g.

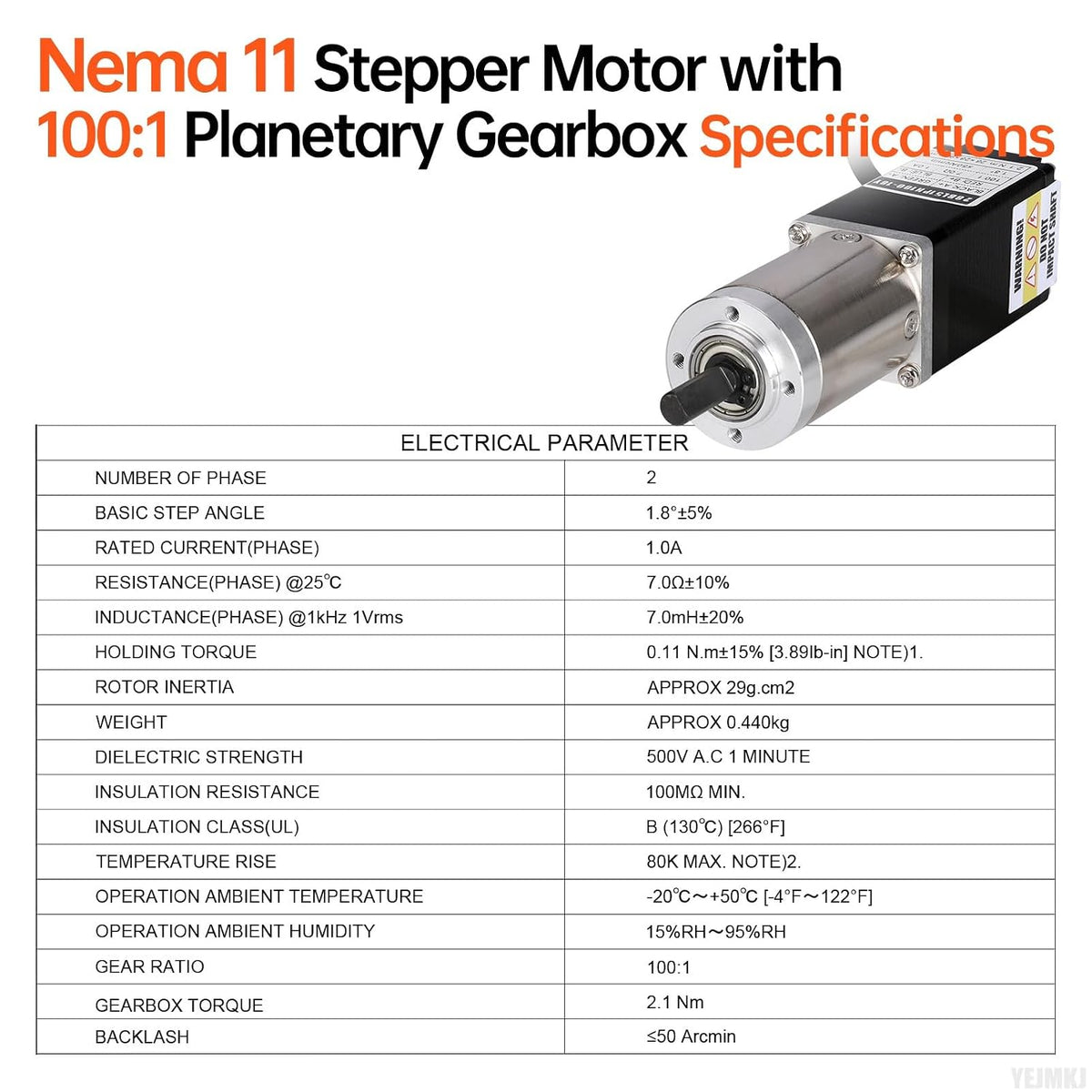

• Specifications: Ratio 100:1 Planetary Gearbox Nema 11 Stepper Motor, Step angle 1.8‌dge(200 steps/rev), 2 Phase Holding torque 11Ncm (15.58oz·in), Resistance 7.0Ω, Rated current 1.0A, Inductance 7.0mH±20%, Rotor inertia approx 29g.cm².
• Safety Compliance: This Nema 11 Stepper Motor with planetary gear boasts safe and reliable operation, with the following key safety parameters. Dielectric strength 500V A.C 1 MINUTE; Temperature rise 80K MAX; Insulation resistance 100MΩ MIN; Insulation class(UL) B (130℃) [266°F]; Operation ambient temperature -20℃～+50℃ [-4°F～122°F]; Operation ambient humidity 15%RH～95%RH.
• Safety Compliance: This Nema 11 Stepper Motor with planetary gear boasts safe and reliable operation, with the following key safety parameters. Dielectric strength 500V A.C 1 MINUTE; Temperature rise 80K MAX; Insulation resistance 100MΩ MIN; Insulation class(UL) B (130℃) [266°F]; Operation ambient temperature -20℃～+50℃ [-4°F～122°F]; Operation ambient humidity 15%RH～96%RH.
• Key Points: Increasing speed lowers torque, with the recommended range of 0–600 RPM. Lower current results in lower torque and temperature rise, while reduced voltage decreases torque (range: 12–24V DC). Widely used in 3D printers, DIY robots, CNC machines, and other automated systems, the 28mm Stepper Motor with Planetary Gearbox offers compact size and high torque for tough tasks.
