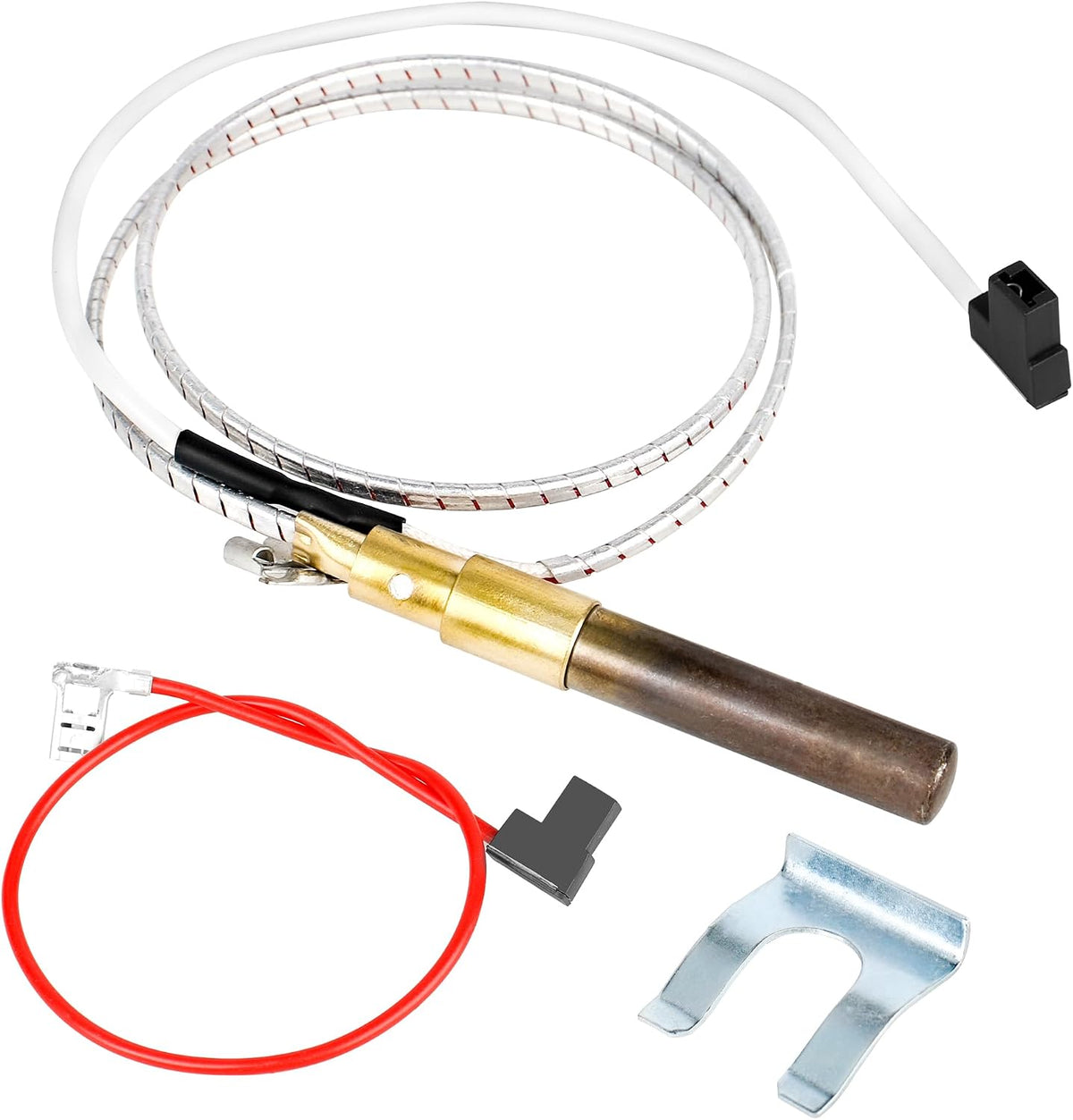

100112328 21" 750mV Thermopile Assembly for Gas Water Heater

Key features

• Thermopile Compatibility: The 100112328 gas water heater thermopile assembly can replace #6911197, 9007872005, 100094024, and 100112327. Compatible with A.O. Smith, Reliance/State, Whirlpool, Kenmore, and American water heaters.Not for use on Reliance C3 FAIR and C3 FVIR.

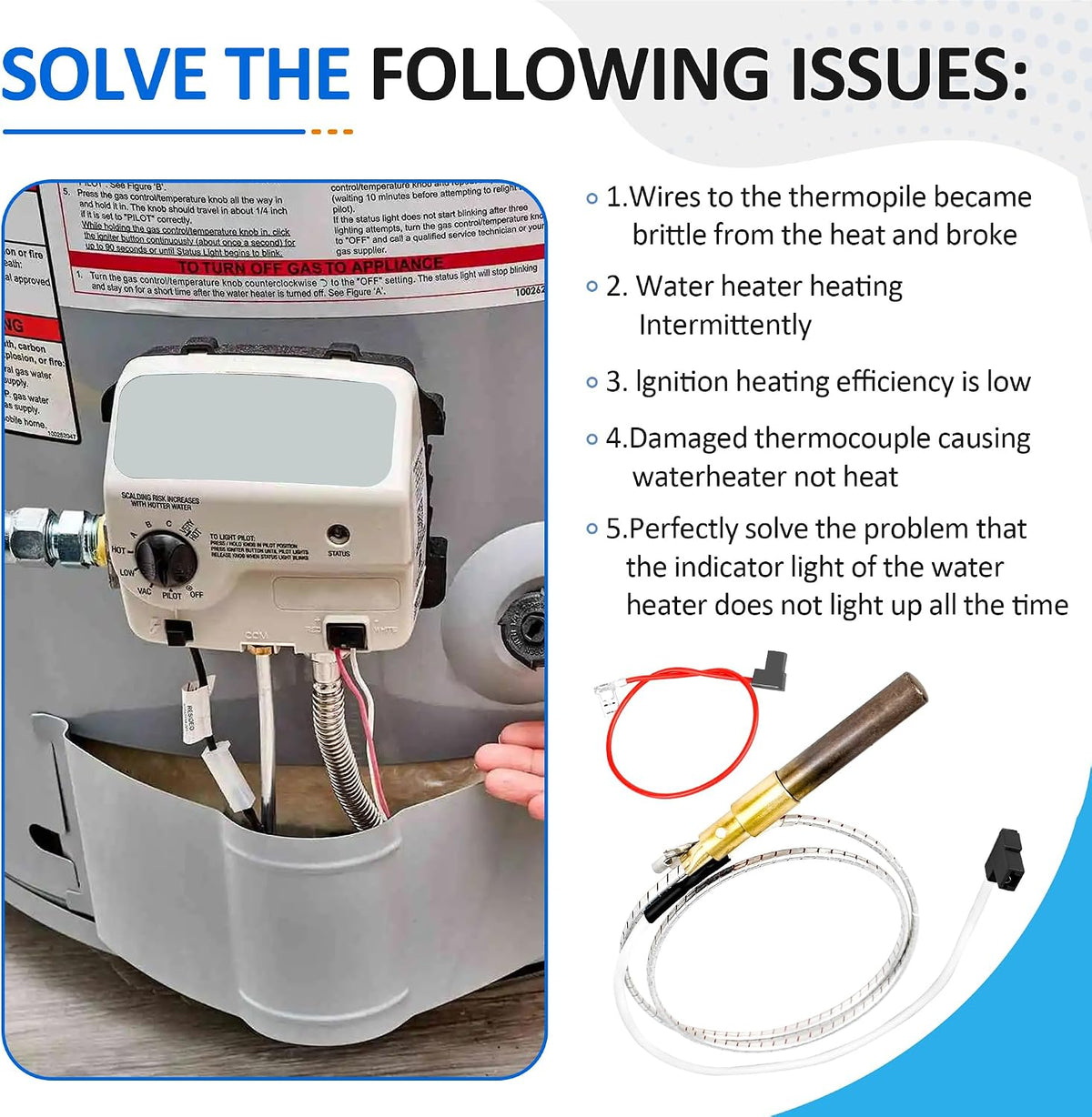

• Thermocouple for Water Heater Solve The Following Issues:1.Wires to the thermopile became brittle from the heat and broke.2. Water heater heating Intermittently.3. lgnition heating efficiency is low.4.Damaged thermocouple causing waterheater not heat.5.Thermopile 100112330 for ao smith water heater parts perfectly solve the problem that the indicator light of the water heater does not light up all the time

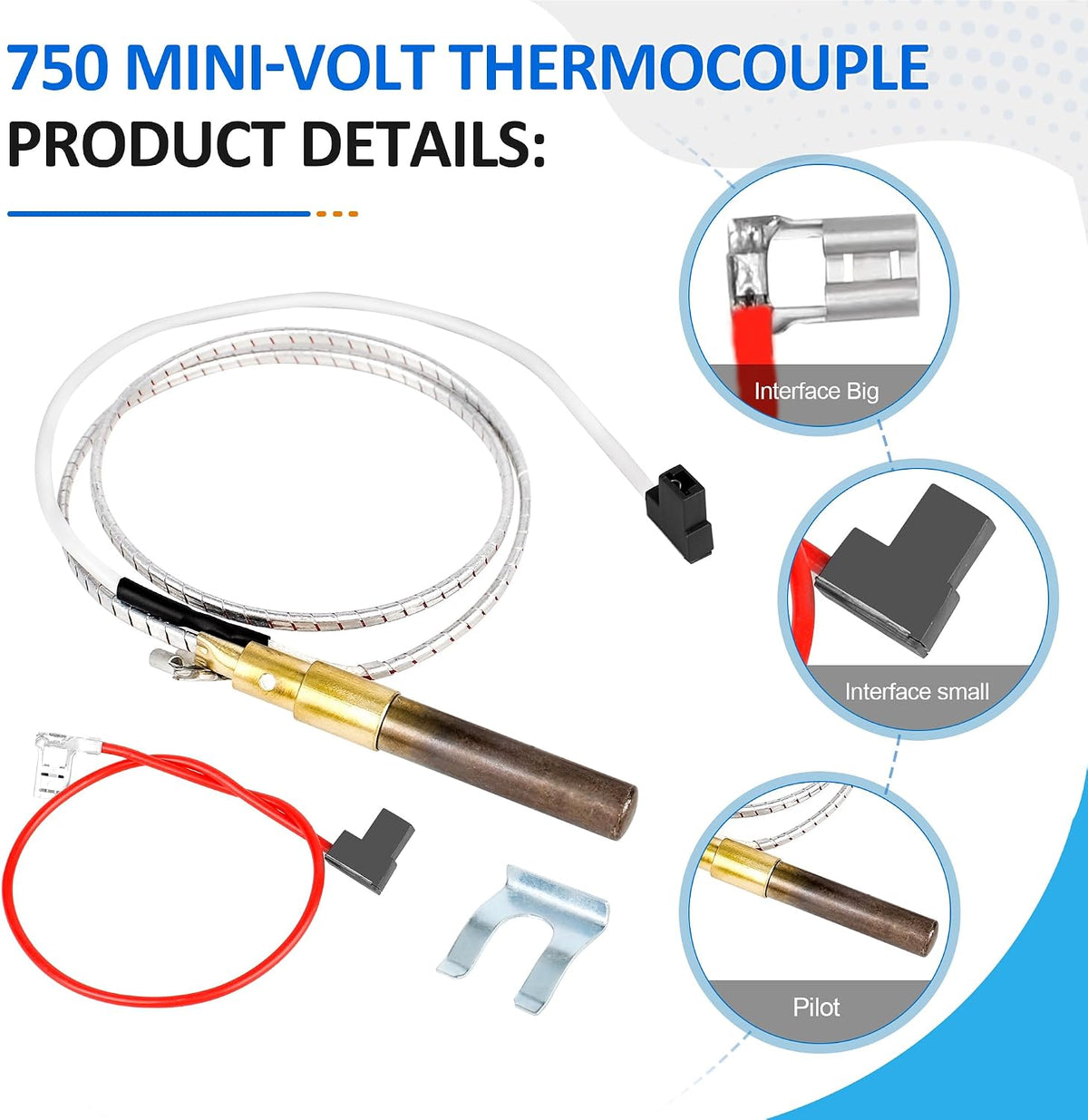

• Specifically Designed for Natural Gas:The gas pilot assembly is designed for matural gas. Maximum operating temperature: 750 degrees; Rating: (650 degrees)≥750mV; Internal resistance: 3.0Ω±10%(20 degrees).For whirlpool hot water heater parts ,It is a New replacement water heater pilotassembly for ao smith water heater thermocouple
• Great Quality:Our 100112328 water heater thermopile assembly Made of high quality raw materials, and undergo rigorous testing by the supplier before leaving the factory to ensure thermopile for water heater a super long service life.
• Thermocouple for Water Heater Installation Steps:1. Turn off the gas supply.2. Unplug all accessories from the gas valve.3. Remove the burner assembly.4. Remove the thermocouple from the ignition assembly.5. Install new thermocouple.6. Put everything back into place.7. Turn on the air source and check for leaks

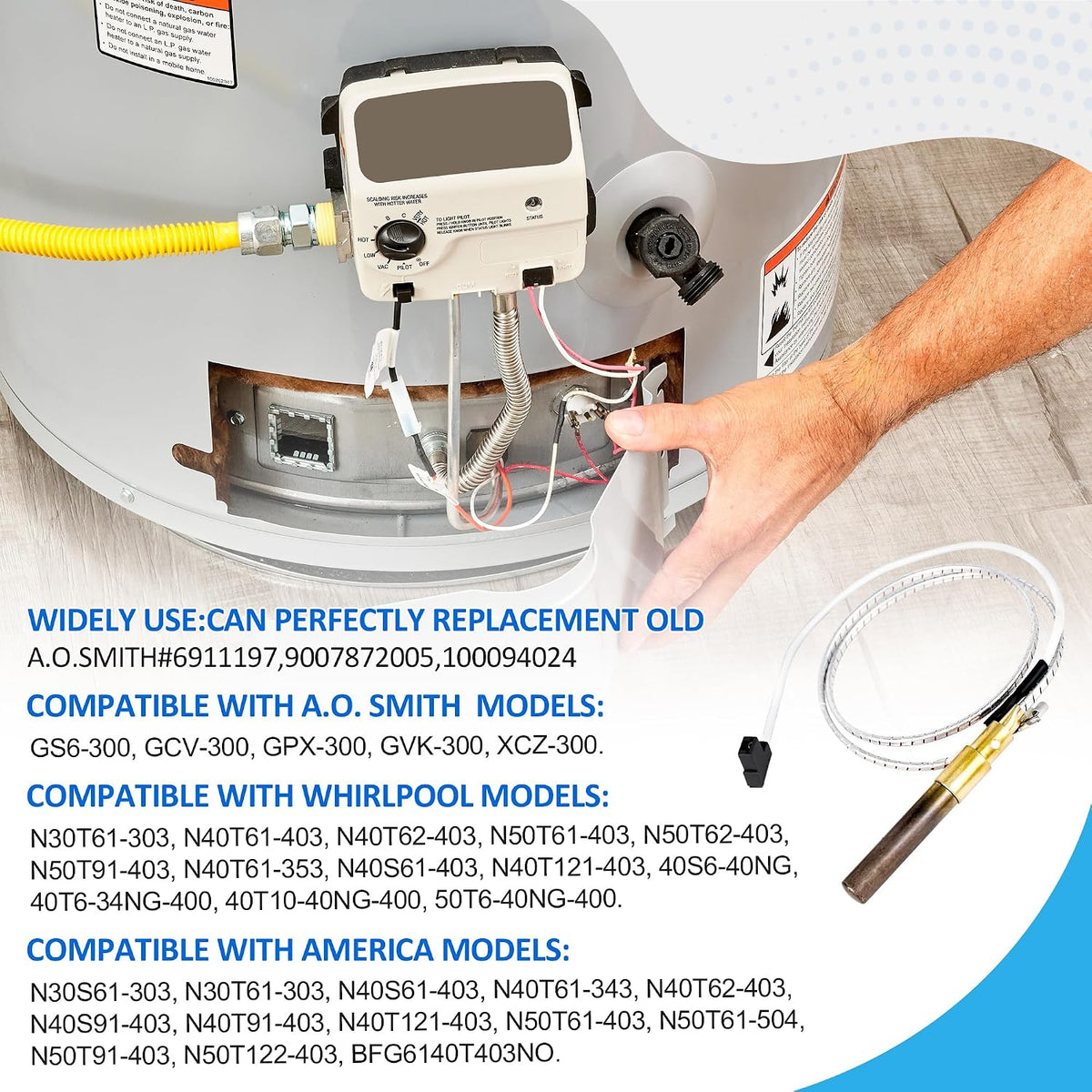

100112328 Thermopile Assembly – Restore Your Hot Water TodayOur 100112328 replacement assembly is meticulously engineered to meet OEM specifications, providing a reliable, cost-effective fix for A.O. Smith, Whirlpool, Kenmore, and more. Stop paying for expensive service calls—this DIY-friendly part restores your unit’s heating capability in under 30 minutesExtensive Compatibility ListPlease verify your model number against the list below to ensure a perfect fit. This thermopile replaces part numbers: 6911197, 9007872005, 100094024, and 100112327Compatible with Whirlpool:​ N30T61-303, N40T61-403, N40T62-403, N50T61-403, N50T62-403, N50T91-403, N40T61-353, N40S61-403, N40T121-403, 40S6-40NG, 40T6-34NG-400, 40T10-40NG-400, 50T6-40NG-400Compatible with American Water Heaters:​ N30S61-303, N30T61-303, N40S61-403, N40T61-343, N40T62-403, N40S91-403, N40T91-403, N40T121-403, N50T61-403, N50T61-504, N50T91-403, N50T122-403, BFG6140T403NOCompatible with A.O. Smith:​ GS6-300, GCV-300, GPX-300, GVK-300, XCZ-300Compatible with Reliance / State:​ 630 LORT 301, 630 LORS 301, 630 LOCT 401, 630 LOCS 401, 640 LORT 301, 640 LORS 301, 640 LOCT 401, 650 LORT 301Compatible with Kenmore:​ 153.330290, 15
