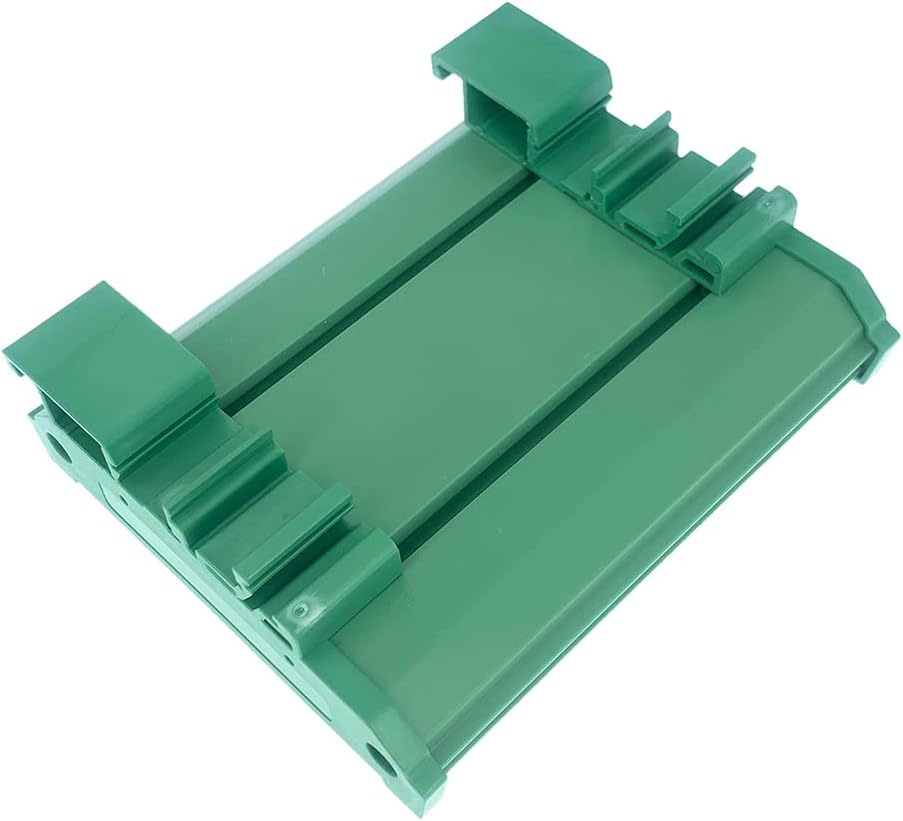

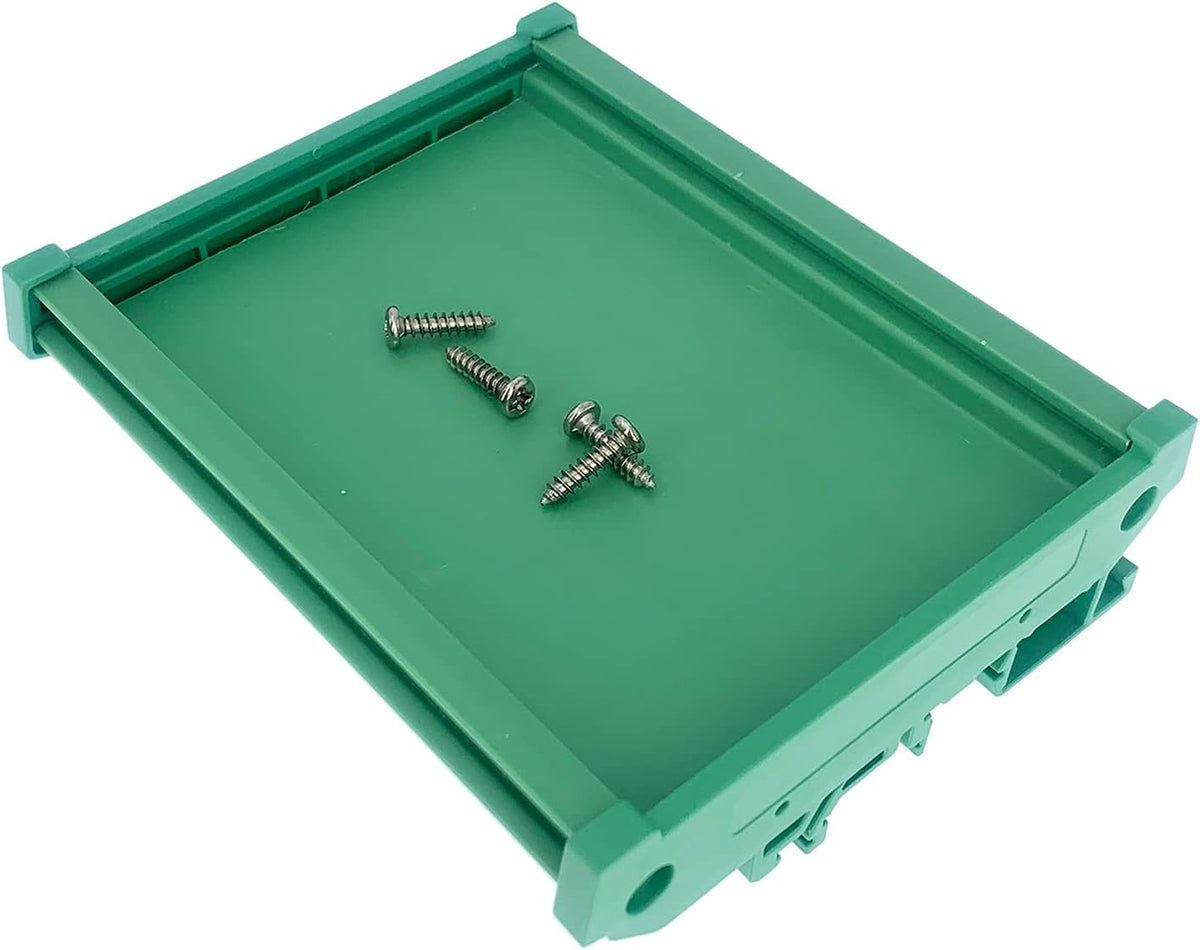

100mm*72mm PCB DIN Rail Mount Carrier for 35mm Wide C45 Din Rail

Key features

• This PCB DIN Rail mount carrier is for mounting DIN C45 rail mounting (width 35mm/1.38in). Easy to install and detach.
• The circuit board mounting holder is used to secure and hold PCB or electronic switching devices.
• Matching PCB size: 100mm x 72mm(pcb thickness:1.5-2.0mm)
• Panel mounting base PCB holder

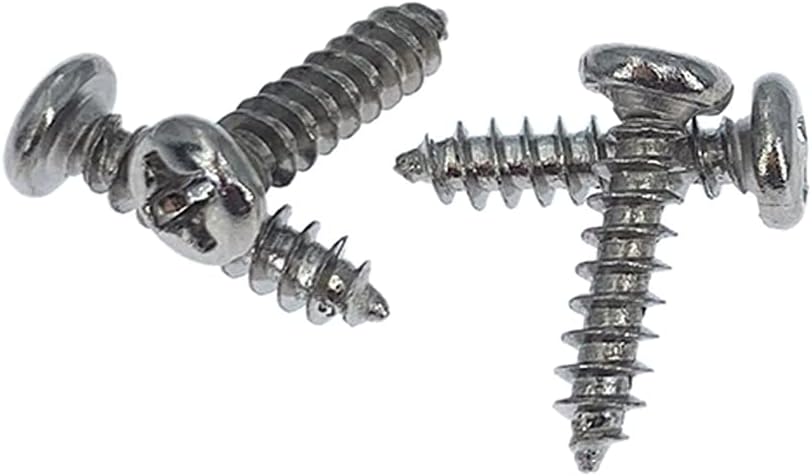

• Package: 1 × PCB DIN Rail mount bracket and 4 × Screws

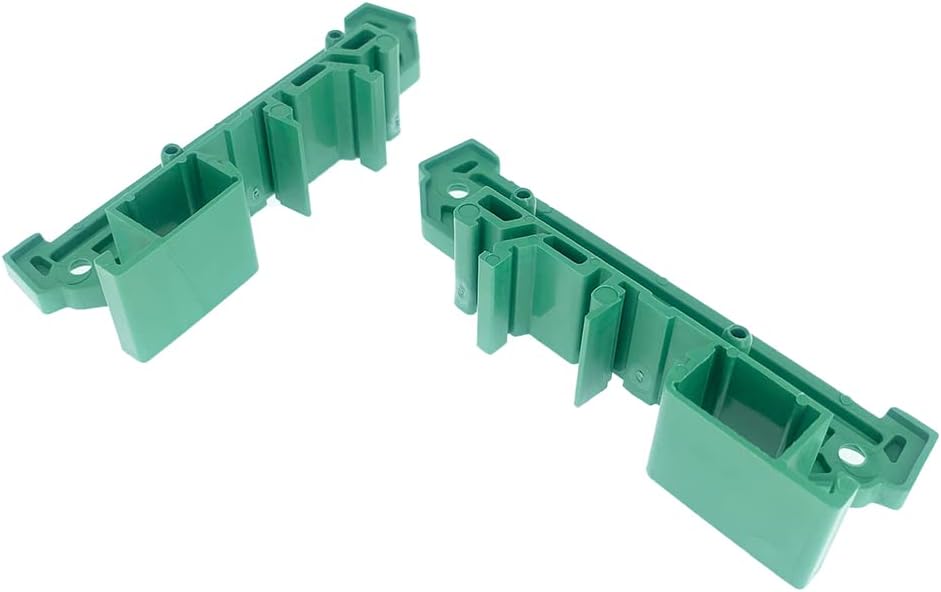

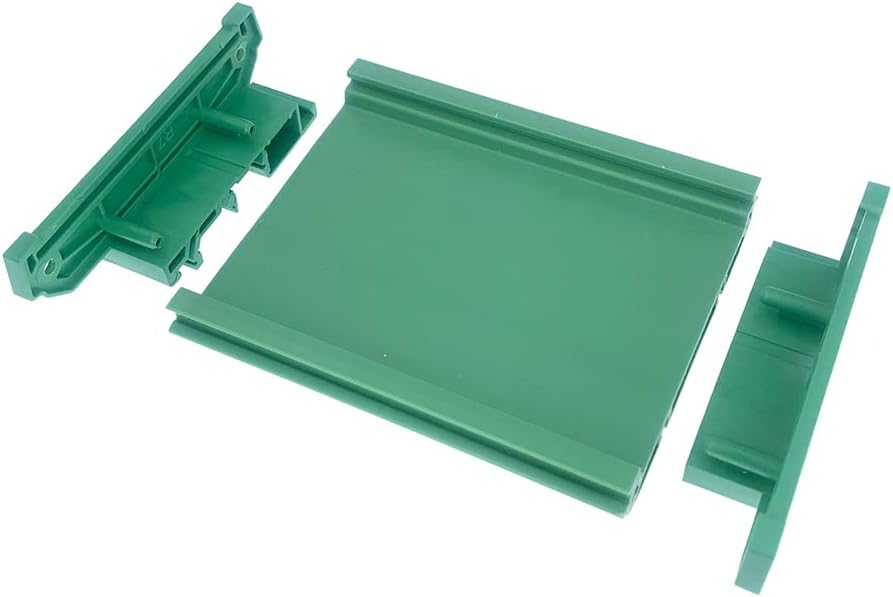

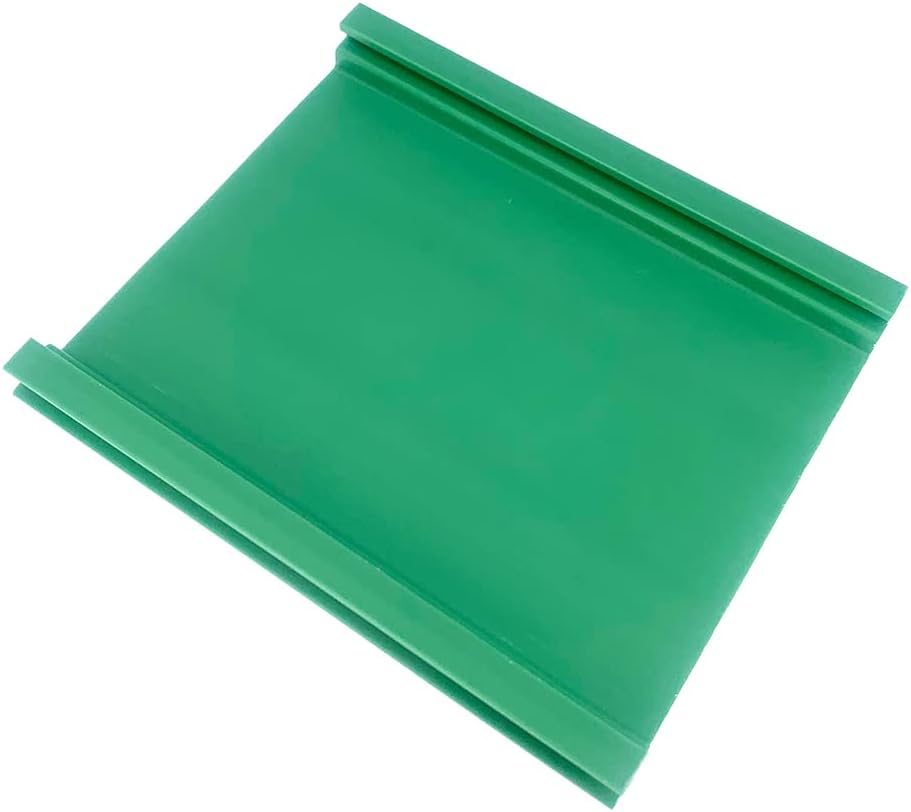

Specification: This bracket is designed for holding PCB control board with the width 72mm. PCB guides on up to three levels enable compact electronic circuits,e.g.in SMD technology. In order to determine the profile length,0.40cm must be subtracted from the PCB length. The PCB area that can be equipped is reduced once by 2mm at each edge of the profiles as well as on the front of the side elements. The overall length of the module ,i.e.including the side elements, corresponds to the profile length plus 0.20cm per side element. PCB Thickness 1.6 ~ 2.0mm Matching DIN rail width: EN 50 022 / 035 / 045 (TS 35/32/15) rail Color: Green Material: PVC Size: 100x72mm Ambient Temperature:-20℃~50℃ Compatible Din Rail Size:35mm(C45 Rail) and 15mm Package Included: 1 X DIN Rail Mount Carrier
