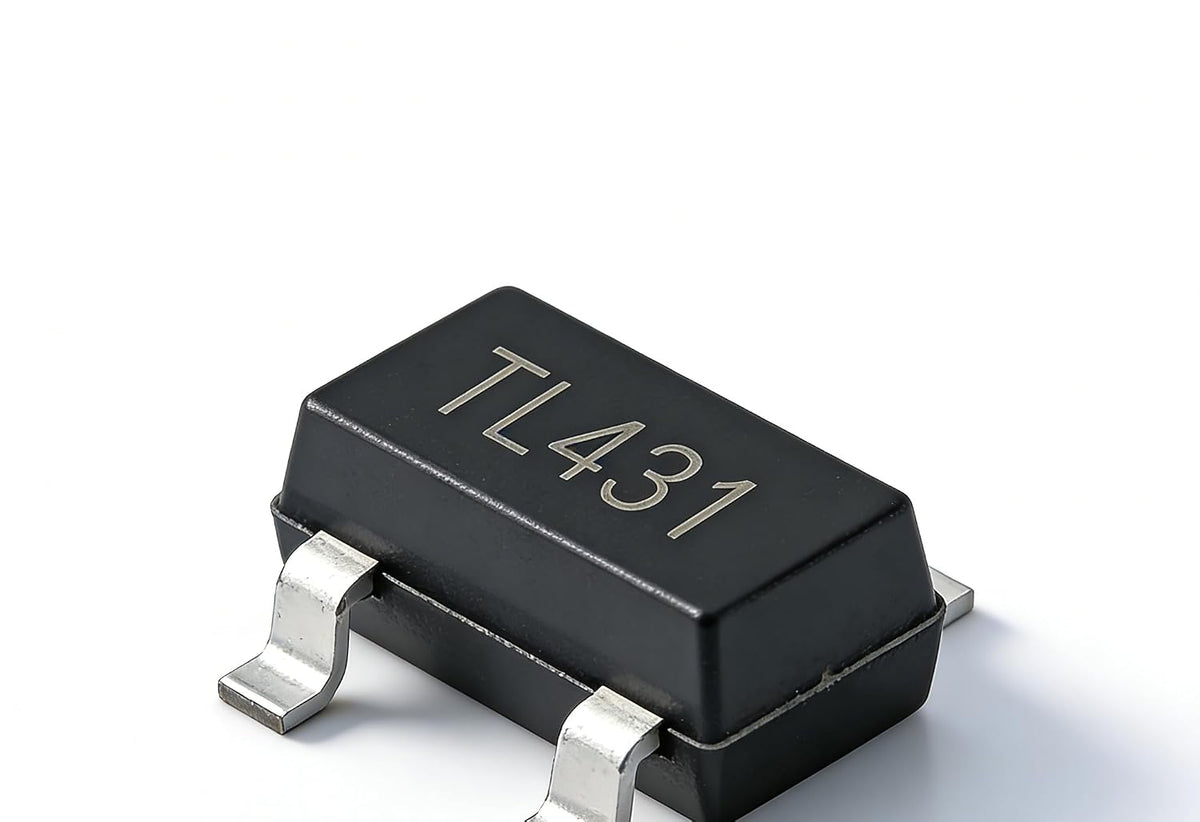

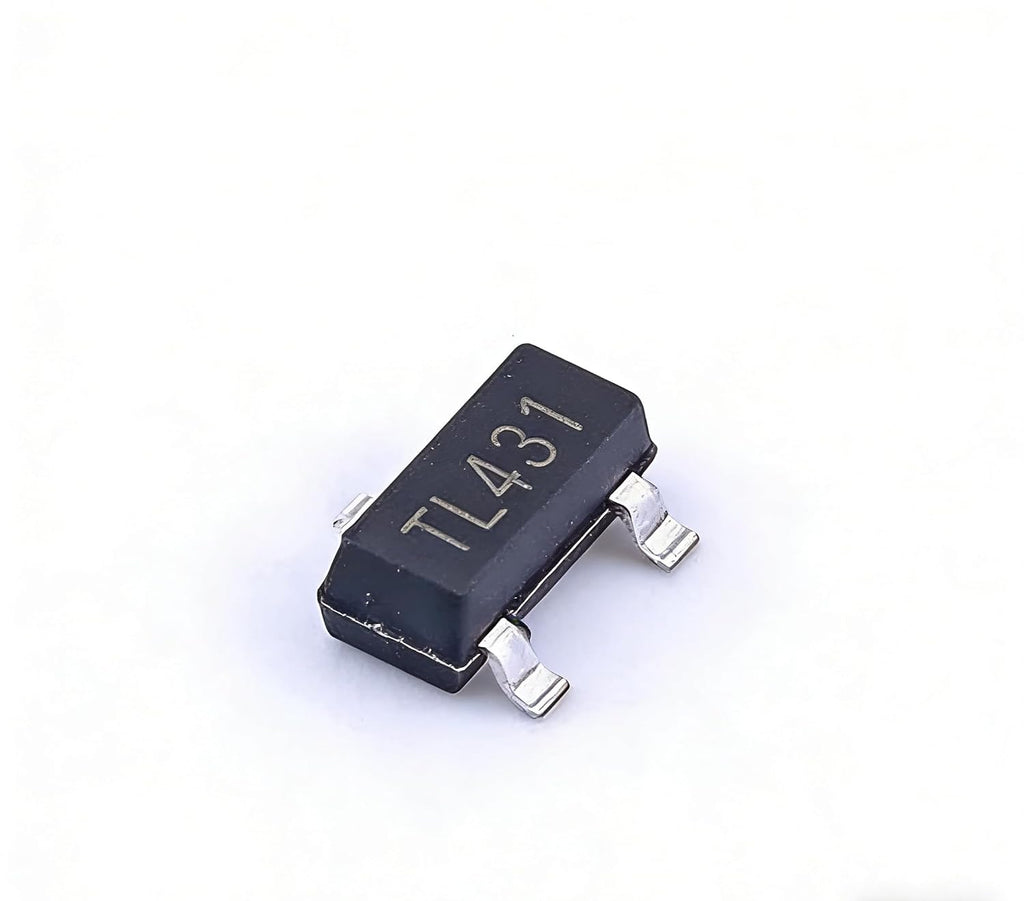

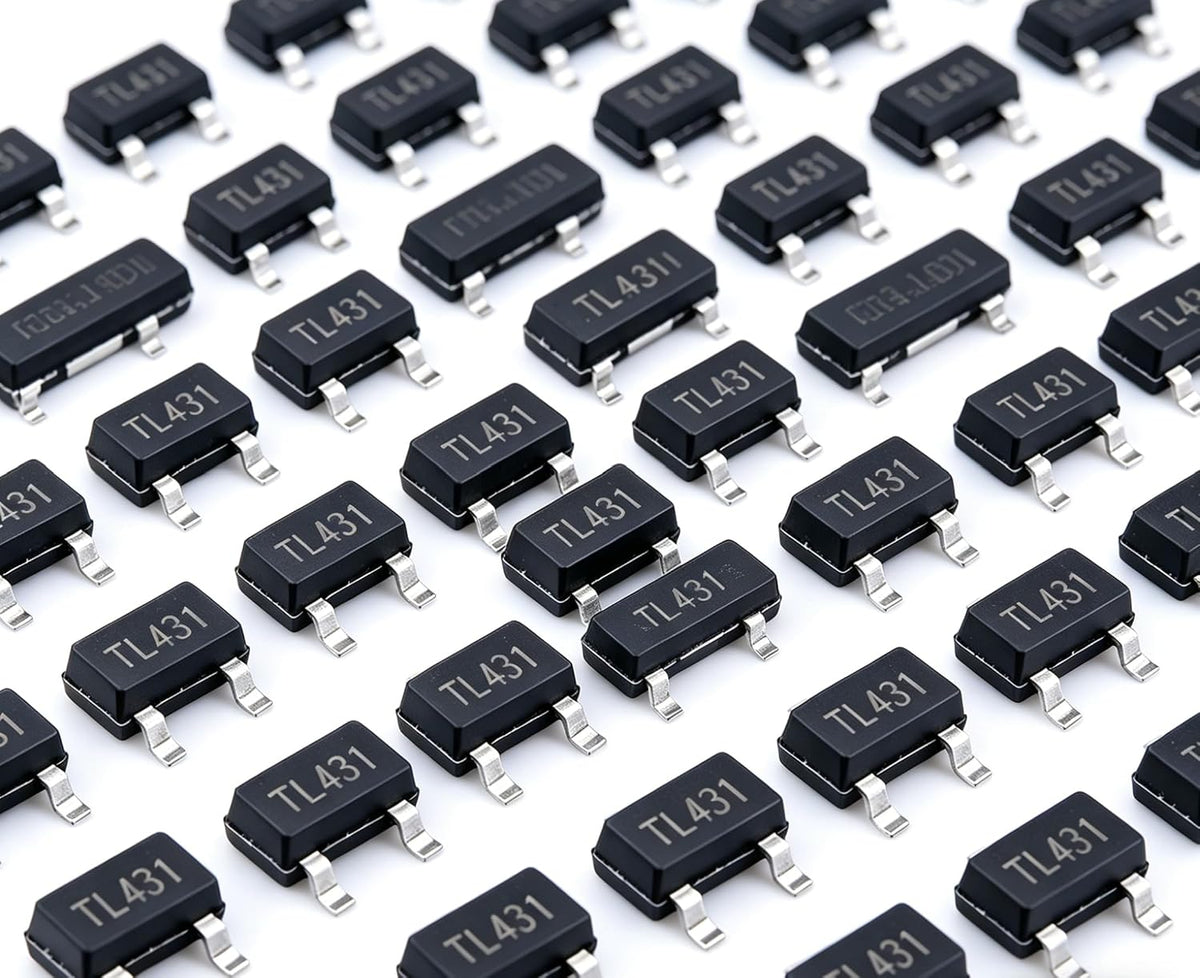

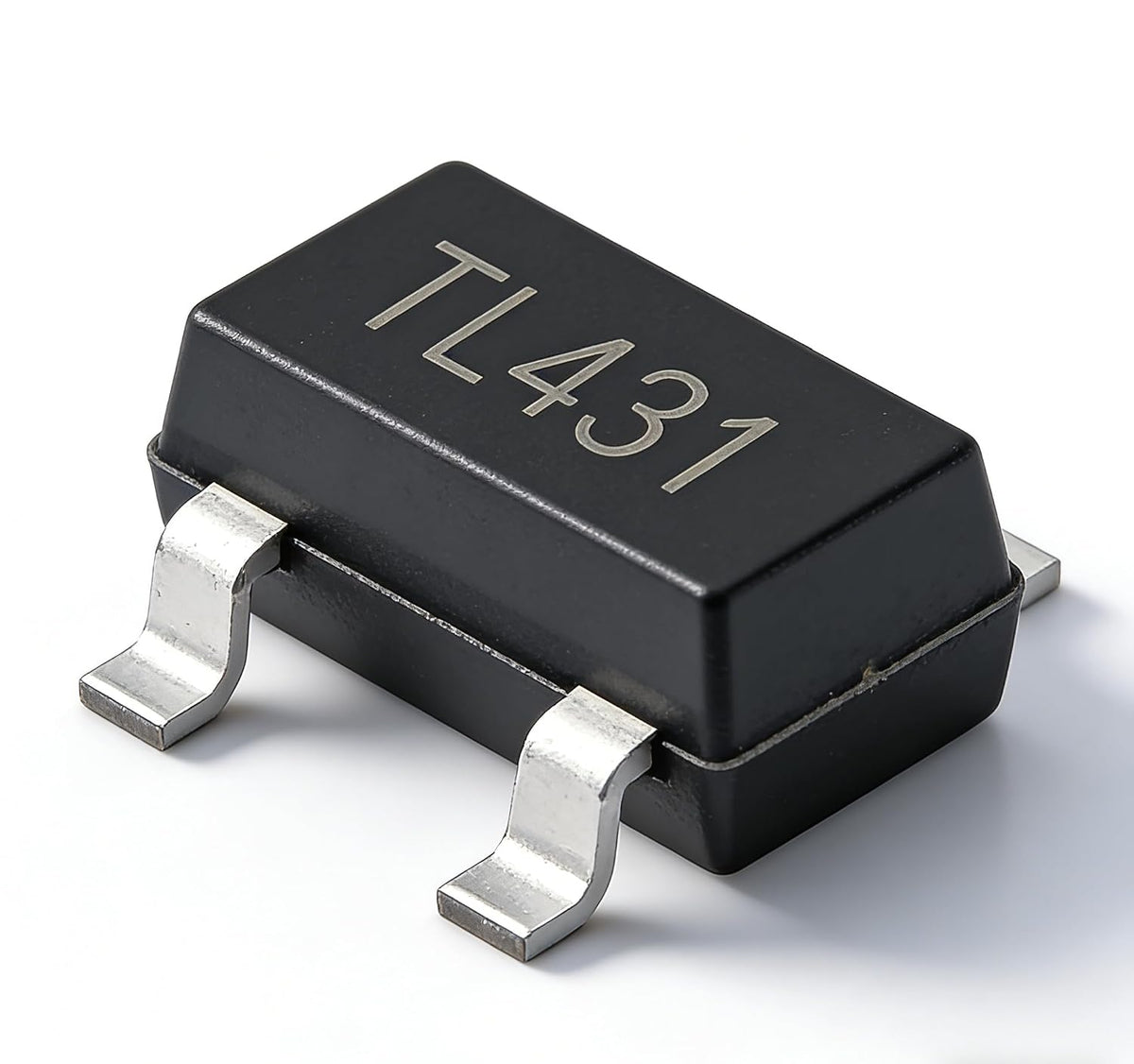

100PCS TL431 Adjustable Precision Shunt Regulator IC, SOT-23 SMD, 2.5V-36V Adjustable Output, 37V Working Voltage, ±1% Voltage Reference
100PCS TL431 Adjustable Precision Shunt Regulator IC, SOT-23 SMD, 2.5V-36V Adjustable Output, 37V Working Voltage, ±1% Voltage Reference
Key features
- TL431 Adjustable Shunt Regulator Includes 100 individual TL431 adjustable precision shunt regulator ICs in SOT-23 surface-mount package for voltage reference and regulation circuit designs.
- 2.5V-36V Adjustable Output Provides an adjustable output voltage range from 2.5V to 36V with a specified working voltage of 37V.
- ±1% Precision Specified voltage accuracy is ±1%, with a minimum cathode current for regulation of 1mA for compatible precision voltage-control circuits.
- Temperature Compensated Design Features temperature compensation with a specified temperature coefficient of 50ppm/°C and an operating temperature range from -25°C to +85°C.
- SOT-23 SMD Package Compact SOT-23 surface-mount package with a typical dynamic output impedance of 0.2Ω. Suitable for PCB assembly, electronics repair and circuit development. Confirm model, package and pin configuration before installation.
The TL431 is a three-terminal adjustable precision shunt regulator designed for voltage reference and regulation applications.This package contains 100 individual TL431 ICs in the SOT-23 surface-mount package for PCB assembly, electronics repair, prototyping and circuit development.The device provides an adjustable output voltage range from 2.5V to 36V with a specified working voltage of 37V and voltage accuracy of ±1%.The minimum cathode current for regulation is specified at 1mA. The device features temperature compensation with a specified temperature coefficient of 50ppm/°C. Typical dynamic output impedance is 0.2Ω.Product Specifications:Model: TL431Device Type: Adjustable Precision Shunt RegulatorVoltage Reference Type: ShuntOutput Type: AdjustableOutput Voltage: 2.5V-36VWorking Voltage: 37VVoltage Accuracy: ±1%Minimum Cathode Current for Regulation: 1mATypical Dynamic Output Impedance: 0.2ΩTemperature Coefficient: 50ppm/°COperating Temperature: -25°C to +85°CPackage: SOT-23 SMDQuantity: 100 PiecesPackage Includes:100 × TL431 SOT-23 ICsConfirm the model, package, pin configuration, voltage range and circuit requirements before installation.
Free shipping included. 30-day hassle-free returns.
