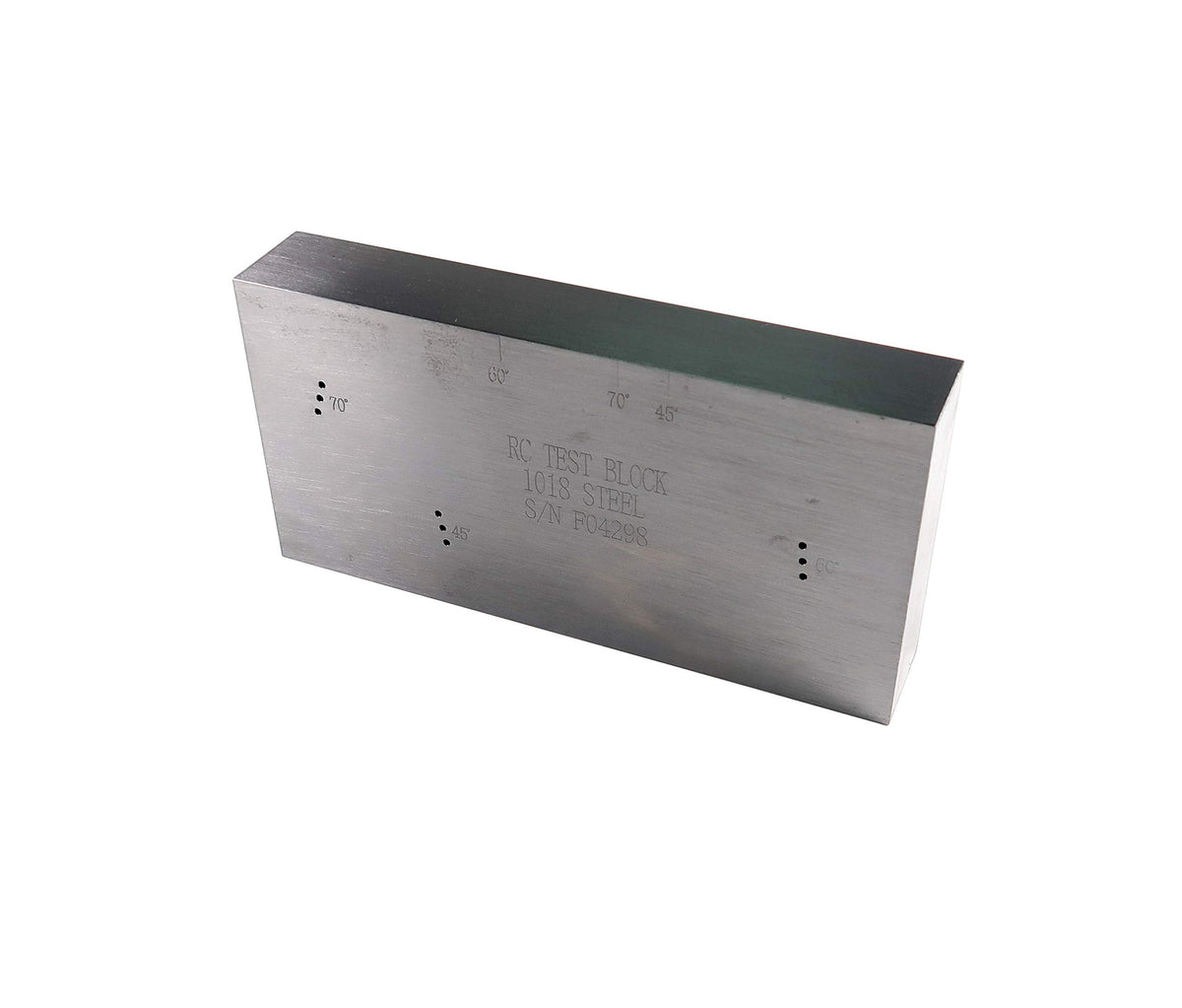

1018 Steel RC/AWS Resolution Reference Block UT Calibration Block
1018 Steel RC/AWS Resolution Reference Block UT Calibration Block
Key features
- Standard 1018 Steel/Super durable
- AWS Resolution Reference Block is used for checking resolution capabilities of angle beam transducers.

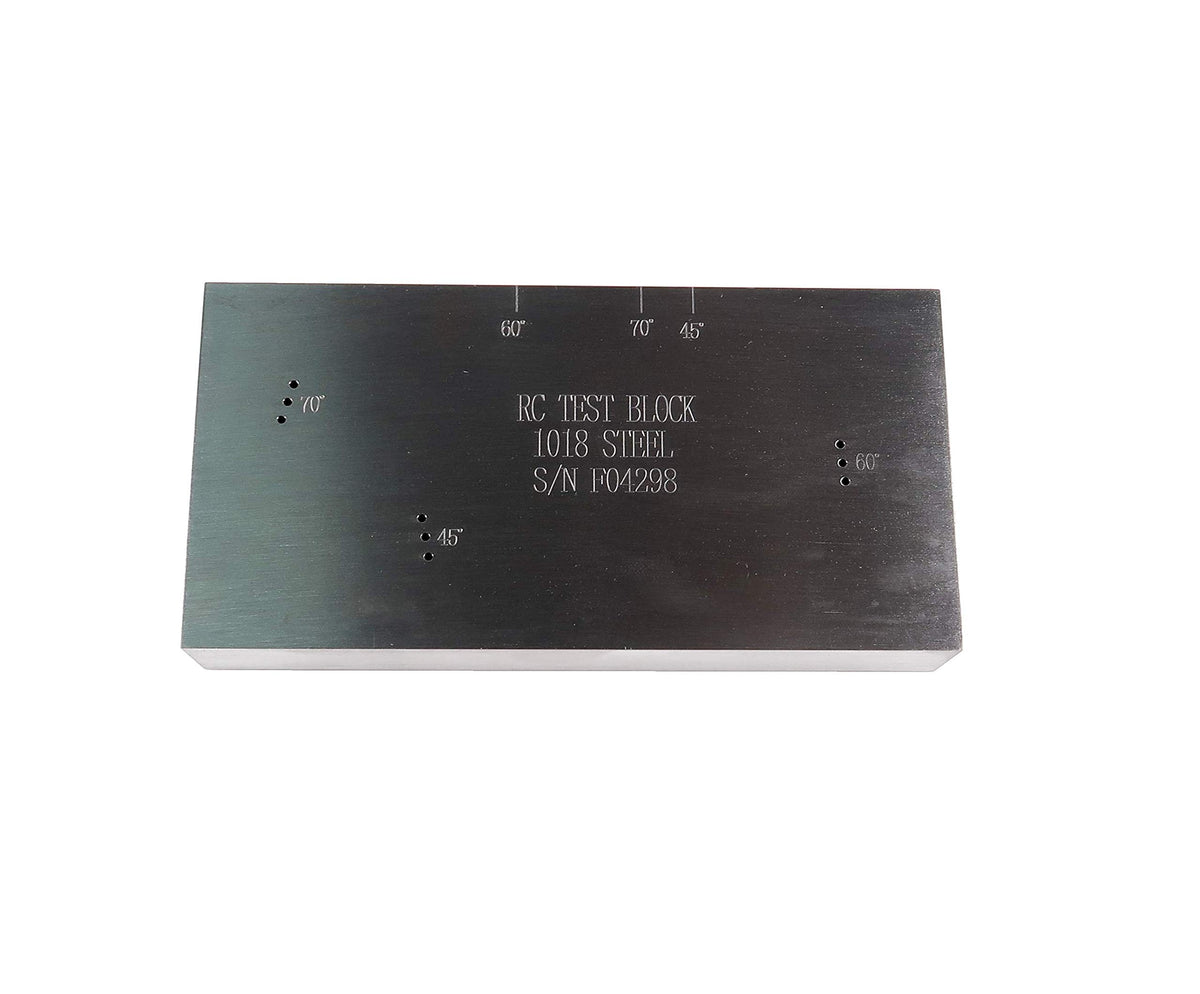

- Contains three sets of 0.0625" diameter through-holes for 45°, 60° and 70°

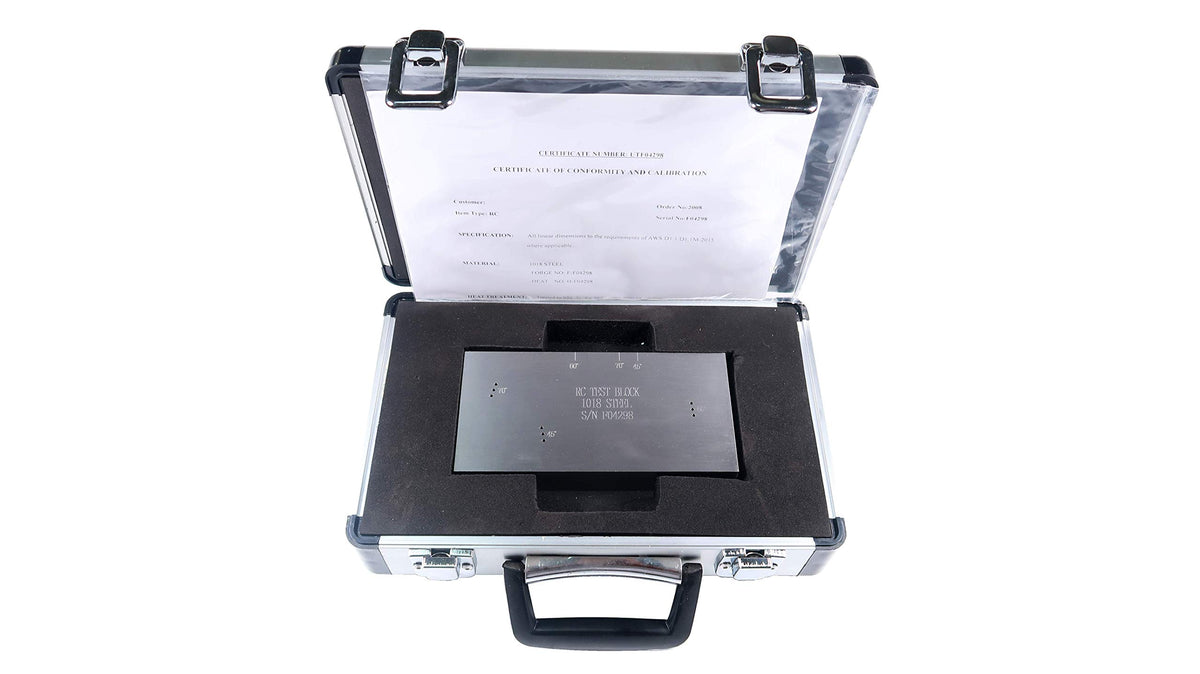

Specifications: AWS D1.1/D1.1M-2015 Calibration Functions: Angle Beam: resolution (45°, 60°, 70°). Also called an RC block, the AWS Resolution Reference Block is used for checking resolution capabilities of angle beam transducers. Contains three sets of 0.0625" diameter through-holes for 45°, 60° and 70°. In accordance with AWS Welding Highway and Railway Bridges specification D2.0, and Structural Welding Code ANSI/AWS D1.1. Dimensions: 6.000" x 3.000" x 1.000" (152.4 mm x 76.2 mm x 25.4 mm) AWS does not specify a separate metric version of the AWS Resolution block. The metric block in AWS shows only the metric equivalents to the standard design. Therefore, this one block can be used for both inch and metric requirements. Made from 1018 Steel Fitted wooden storage case optional About US TMTeck Instrument Co., Ltd.(hereafter:TMTeck) is a leading NDT manufacturers and suppliers in Beijing China and provides innovative technologies and comprehensive know-how to benefit customers in a lot of countries around the world.Till now,TMTeck has been active in the areas of technology-driven inspection solutions that deliver productivity, quality and safety. Began from the Ultrasonic Transduc
