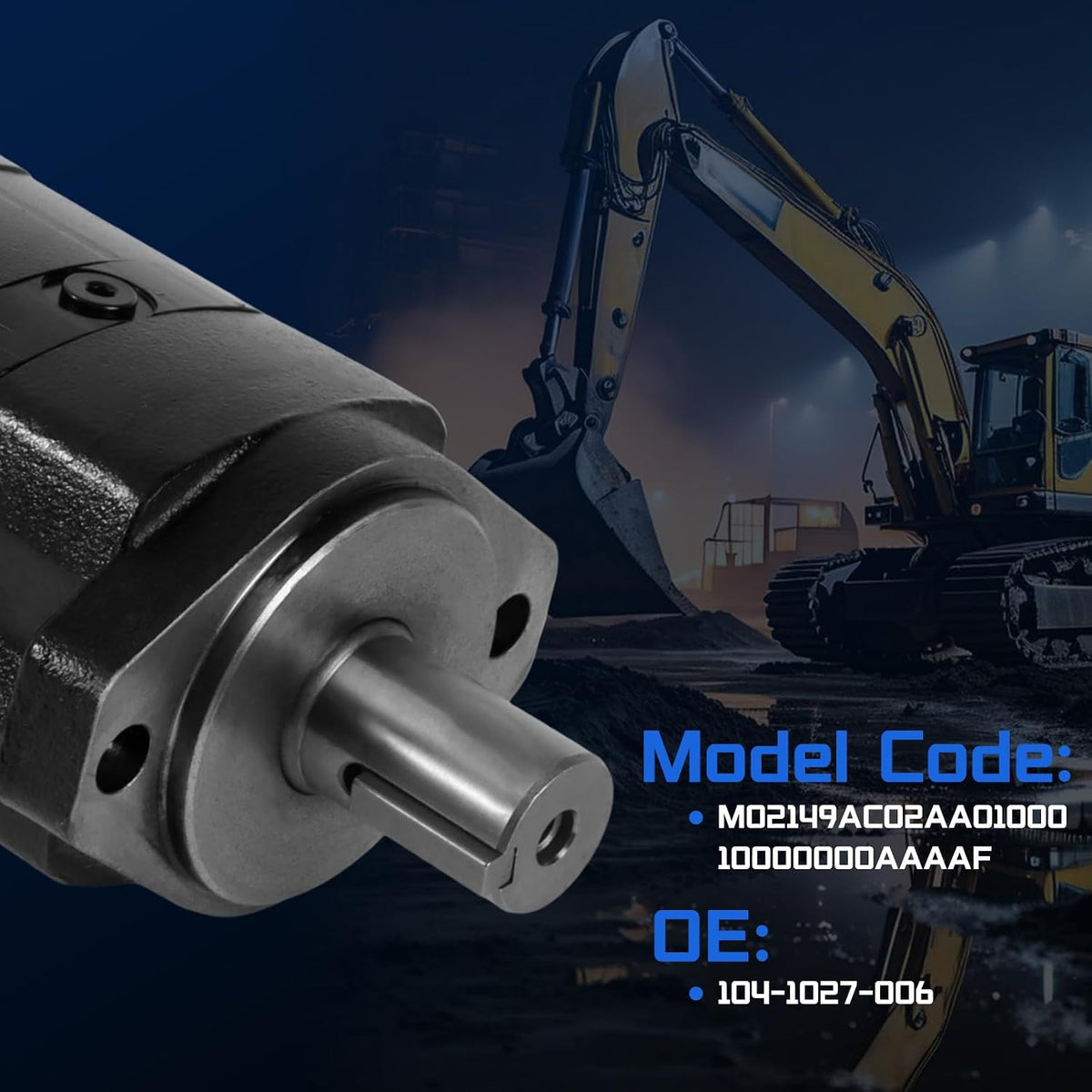

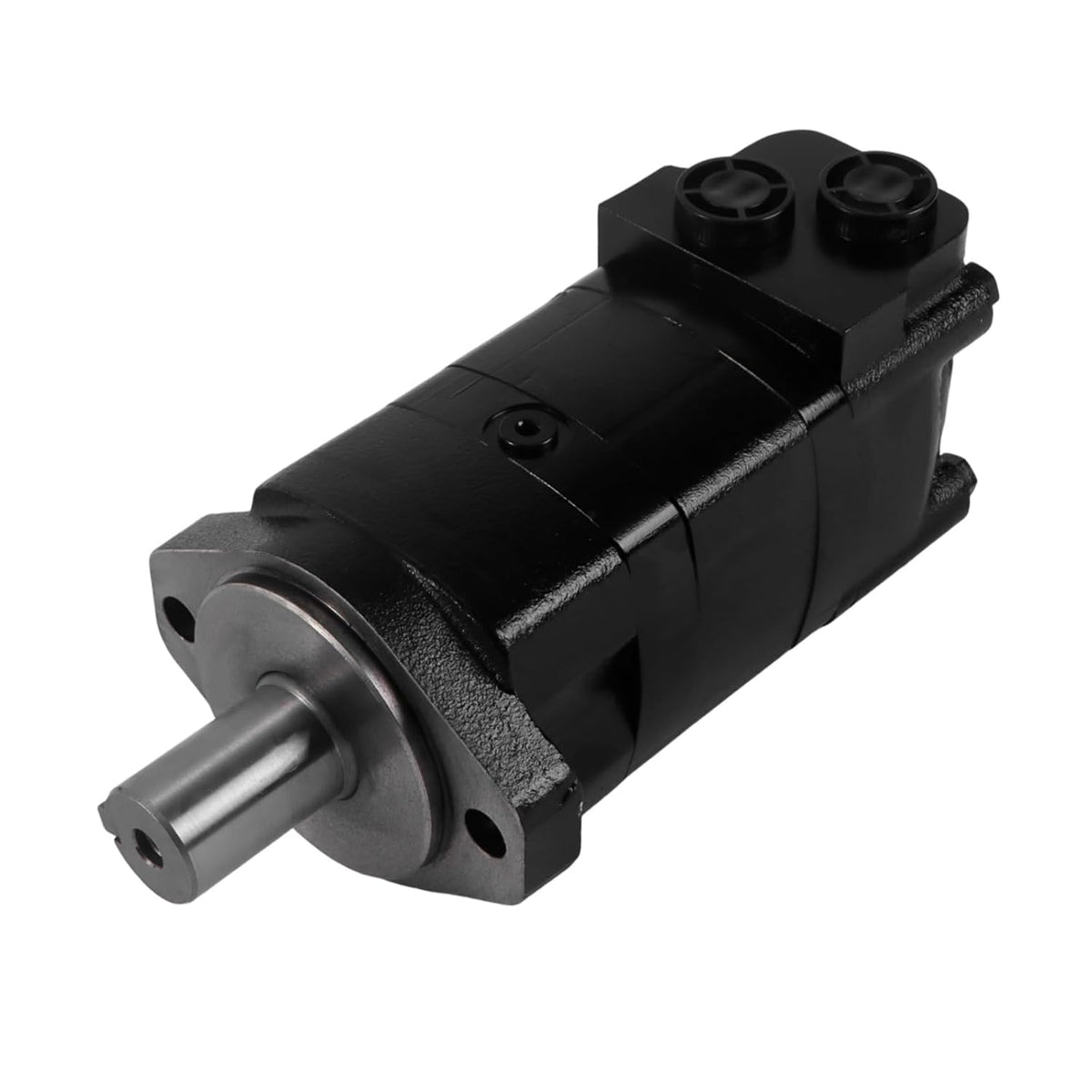

104-1027-006 Hydraulic Motor Replacement for Eaton Char-Lynn 2000 Series, 14.91 cu in/rev Displacement High Torque Low Speed Orbital Motor for Construction Agricultural Mining Equipment

Key features

• [📦] Ready-to-Install – Complete Assembly: Box contains one hydraulic motor 104-1027-006 (cast iron, 2-bolt mount). 𝐈𝐦𝐩𝐨𝐫𝐭𝐚𝐧𝐭: 𝐕𝐞𝐫𝐢𝐟𝐲 𝟑.𝟐𝟓 𝐢𝐧𝐜𝐡 𝐩𝐢𝐥𝐨𝐭 𝐝𝐢𝐚𝐦𝐞𝐭𝐞𝐫, 𝟐-𝐛𝐨𝐥𝐭 𝐩𝐚𝐭𝐭𝐞𝐫𝐧 (𝟒.𝟏𝟗 𝐢𝐧𝐜𝐡 𝐛𝐨𝐥𝐭 𝐜𝐢𝐫𝐜𝐥𝐞), 𝐚𝐧𝐝 𝟏.𝟐𝟓 𝐢𝐧𝐜𝐡 𝐬𝐡𝐚𝐟𝐭 𝐬𝐢𝐳𝐞 𝐛𝐞𝐟𝐨𝐫𝐞 𝐨𝐫𝐝𝐞𝐫𝐢𝐧𝐠. 𝐕𝐞𝐫𝐢𝐟𝐲 𝐭𝐡𝐚𝐭 𝐭𝐡𝐞 𝐦𝐨𝐭𝐨𝐫 𝐦𝐚𝐭𝐜𝐡𝐞𝐬 𝐲𝐨𝐮𝐫 𝐞𝐪𝐮𝐢𝐩𝐦𝐞𝐧𝐭'𝐬 𝐦𝐨𝐮𝐧𝐭𝐢𝐧𝐠 𝐩𝐚𝐭𝐭𝐞𝐫𝐧, 𝐬𝐡𝐚𝐟𝐭 𝐬𝐢𝐳𝐞, 𝐚𝐧𝐝 𝐩𝐨𝐫𝐭 𝐜𝐨𝐧𝐟𝐢𝐠𝐮𝐫𝐚𝐭𝐢𝐨𝐧. Flush hydraulic lines prior to installation. Replacement seal kit 61258-000.

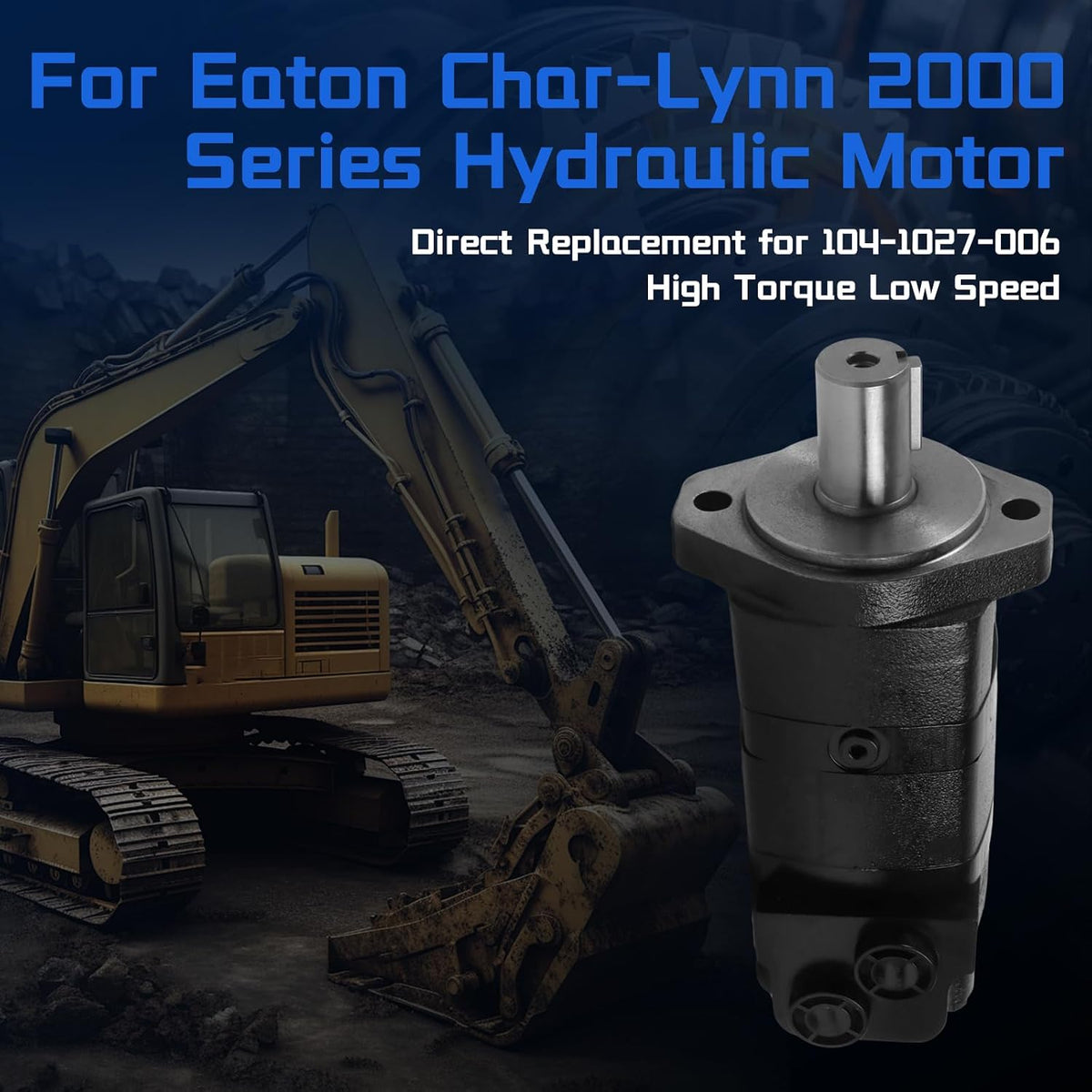

• [🔧] Direct Swap – 14.91 cu/in Displacement: Hydraulic motor 104-1027-006 replaces for Eaton Char-Lynn 2000 Series models with 14.91 cu in/rev (244.3 cc/rev) displacement. The 2-bolt SAE-A flange mount with 3.25 inch pilot diameter and 4.19 inch bolt circle lets this 104-1027-006 hydraulic motor bolt directly onto brush cutters, swing motors, and harvesting equipment without modifications.

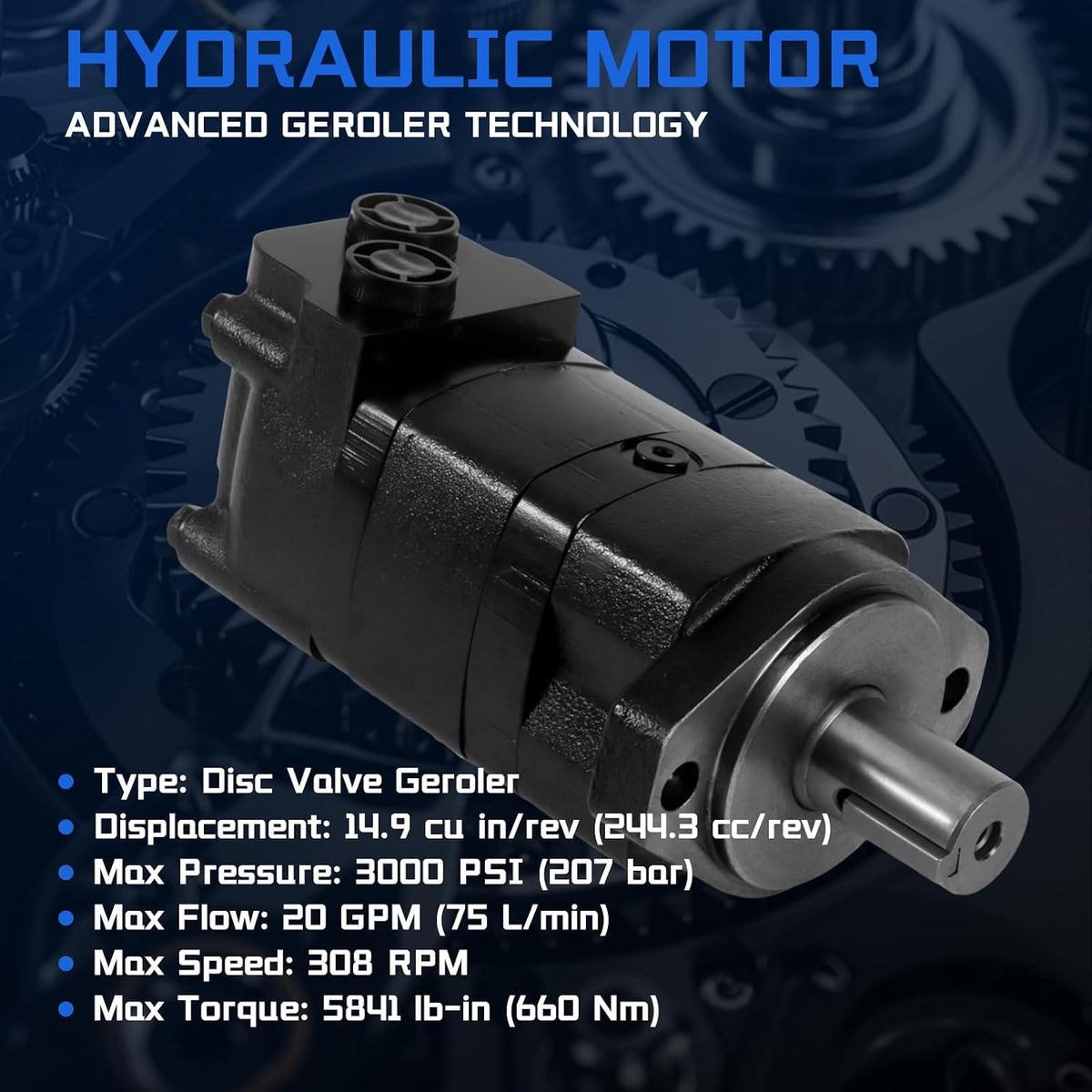

• [⚙️] High Torque – 5841 lb-in at 308 RPM: 2000 series hydraulic motor delivers 5841 lb-in (660 Nm) continuous torque at 308 RPM, with max pressure 3000 PSI and max flow 20 GPM. The disc valve Geroler design with tapered roller bearings helps this 104-1027-006 replacement hydraulic motor provide the lowest pressure drop in its class for energy savings.
• [🛢️] Staggered SAE O-Ring Ports – 7/8-14 UNF: For Eaton Char-Lynn style hydraulic motor features staggered 7/8-14 UNF-2B SAE O-ring side ports for flexible installation. The staggered configuration on this 104-1027-006 hydraulic motor allows easier hose routing in tight equipment spaces and includes a separate 7/16-20 UNF-2B SAE O-ring case drain port.

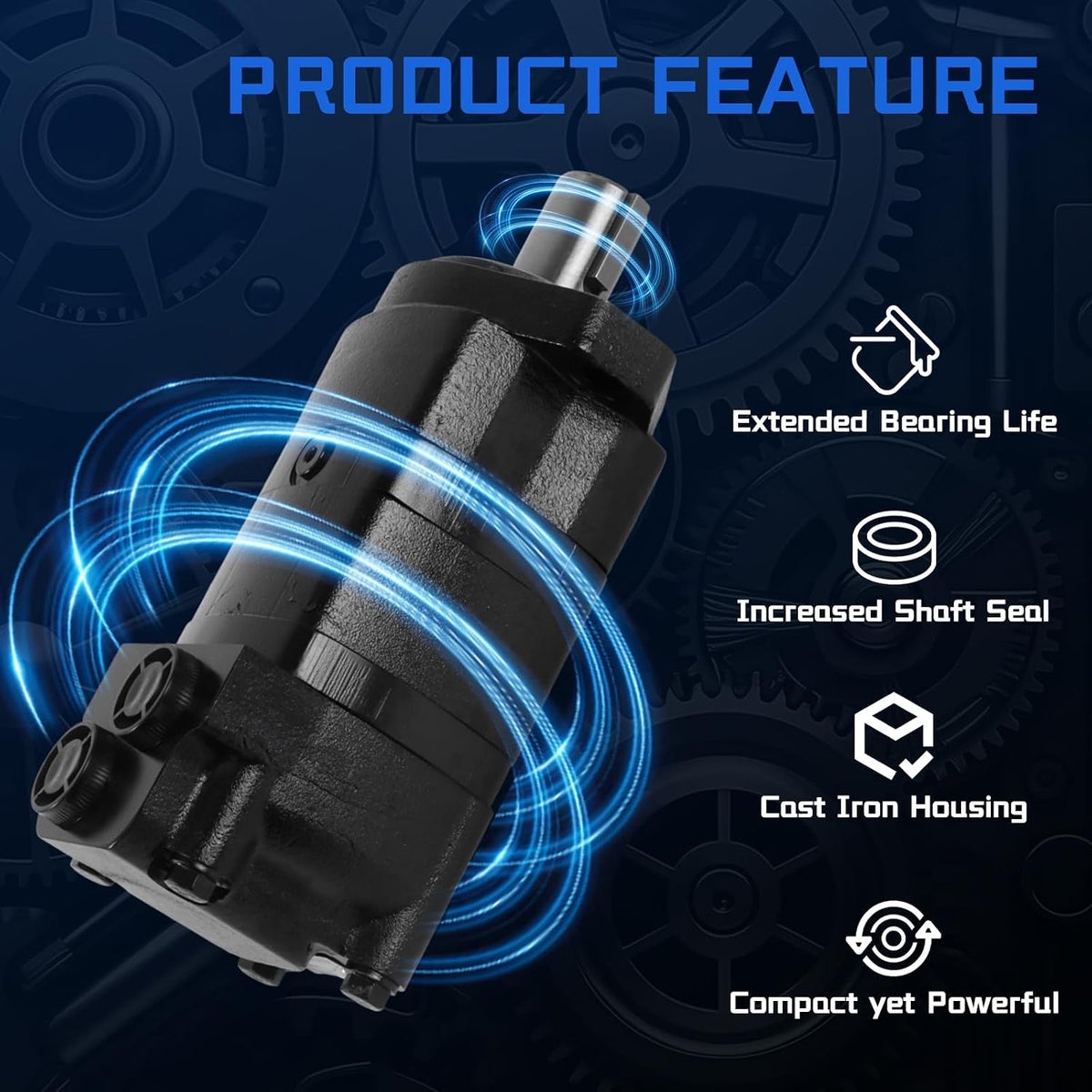

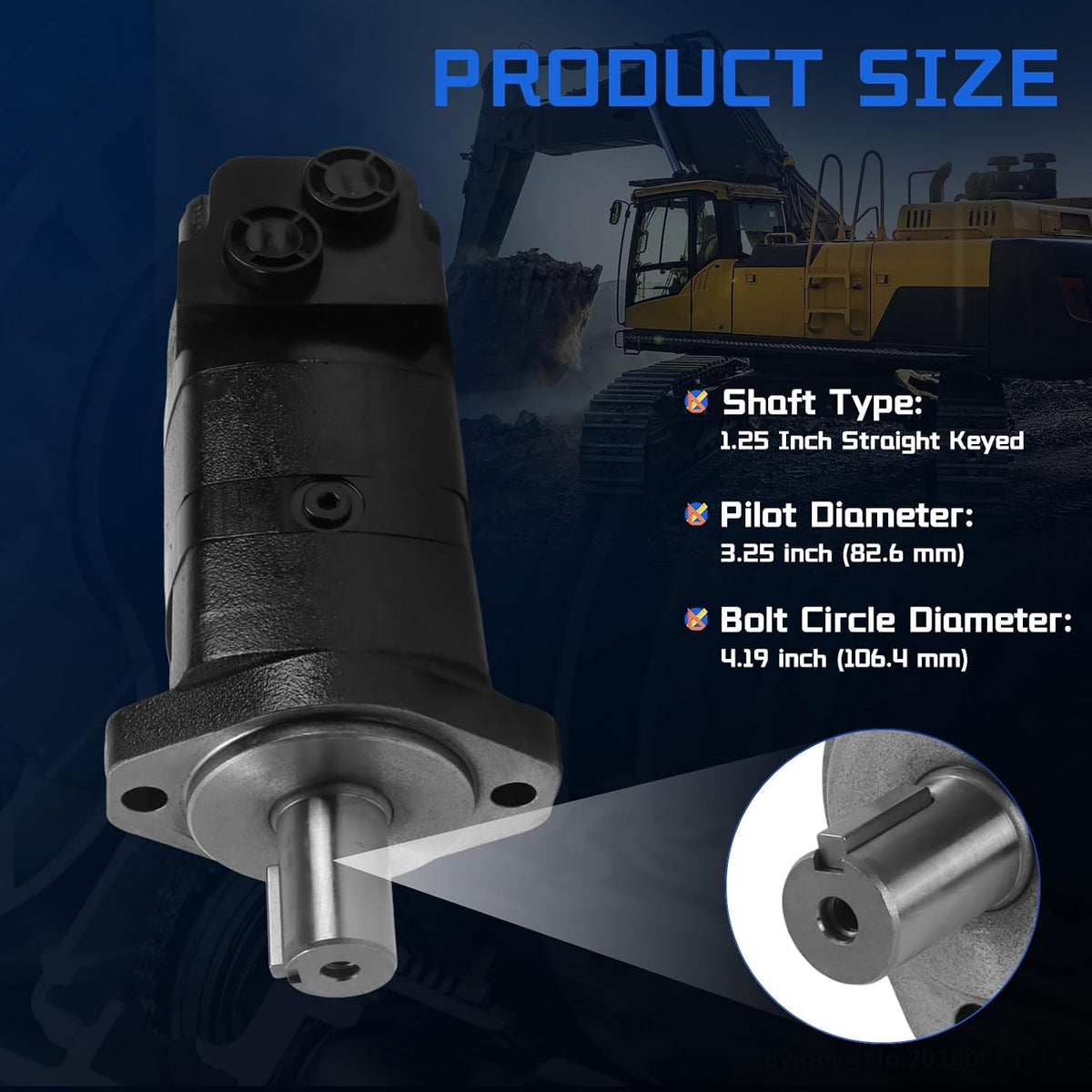

• [🏗️] Keyed Shaft – 1.25 Inch with 5/16 Keyway: This 104-1027-006 replacement hydraulic motor comes with a 1.25 inch straight keyed shaft, 5/16 inch square keyway, and 3/8-16 UNC-2B threaded end hole. Cast iron housing with tapered roller bearings on both front and rear for extended service life. Max operating temperature 180°F, minimum -30°F.

Free shipping included. 30-day hassle-free returns.
