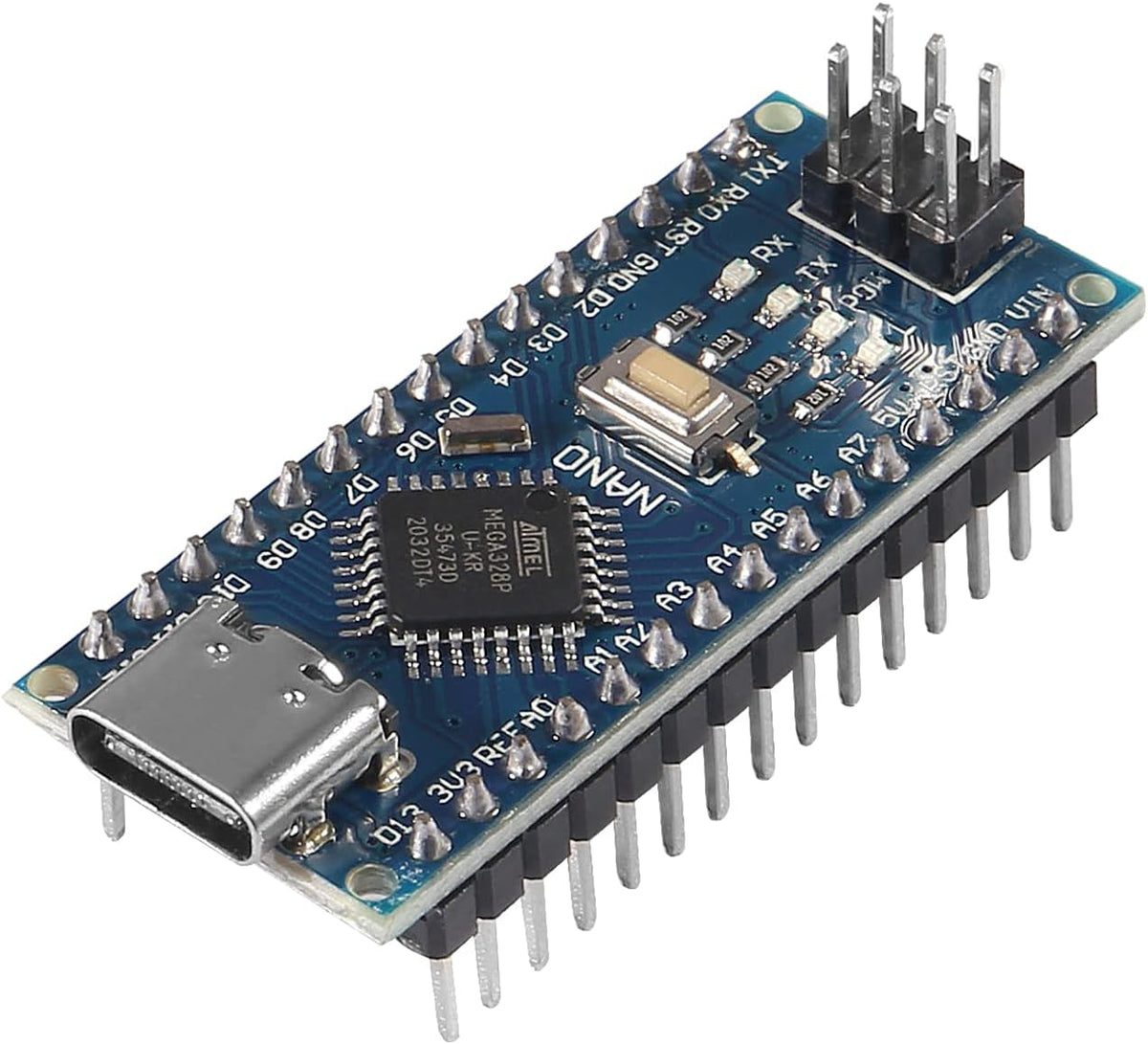

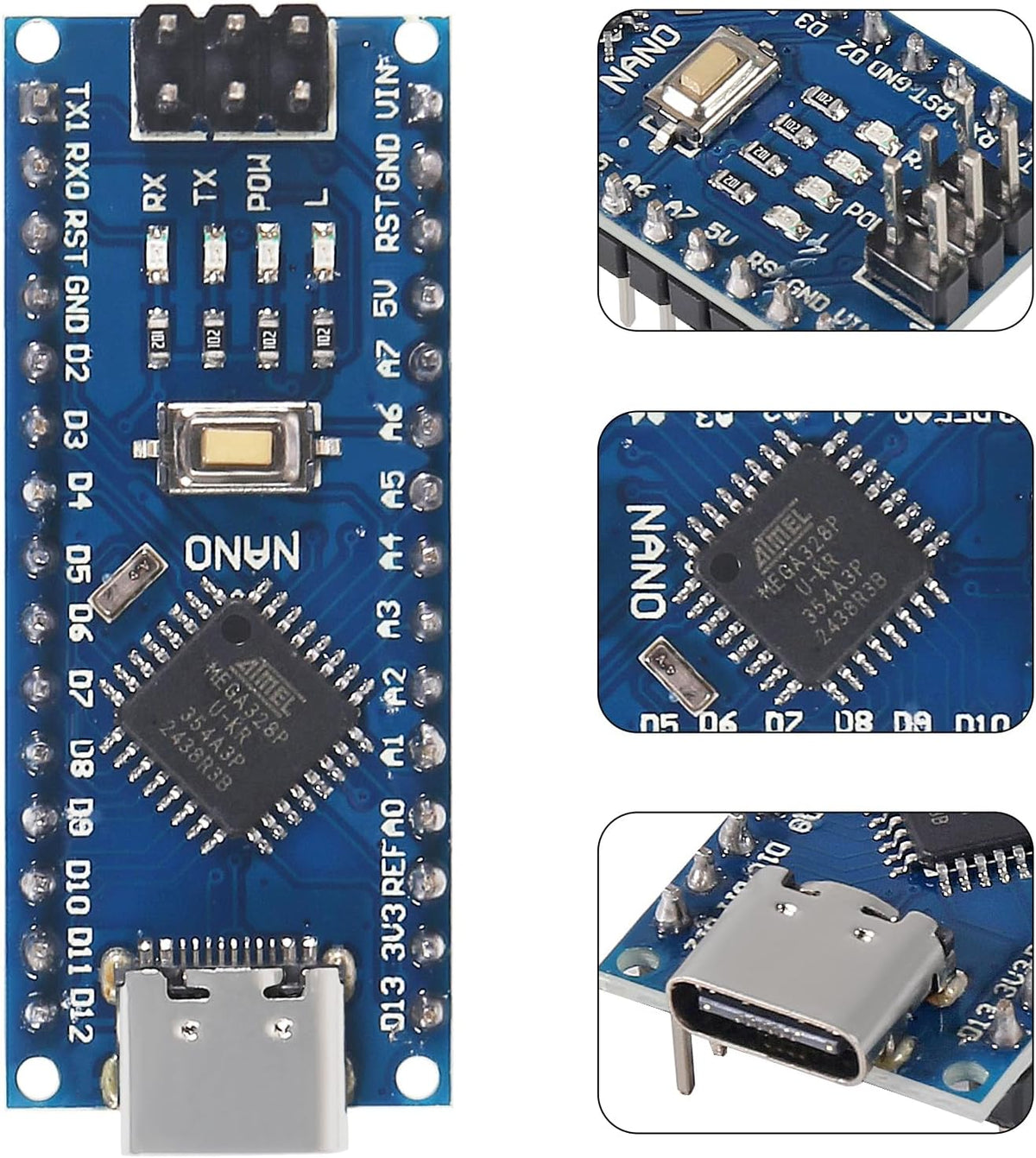

10PCS USB C Nano V3.0 Board, ATmega328P, CH340G Chip 5V 16M, Microcontroller Compatible with Arduino
10PCS USB C Nano V3.0 Board, ATmega328P, CH340G Chip 5V 16M, Microcontroller Compatible with Arduino
Key features
- The Nano board can be powered via a USB C connection; 6-12 V unregulated external power supply or 5 V regulated external power supply
- the Nano V3 development board is the smallest, complete and breadboard-friendly board with more analog input pins and onboard +5V AREF jumpers.

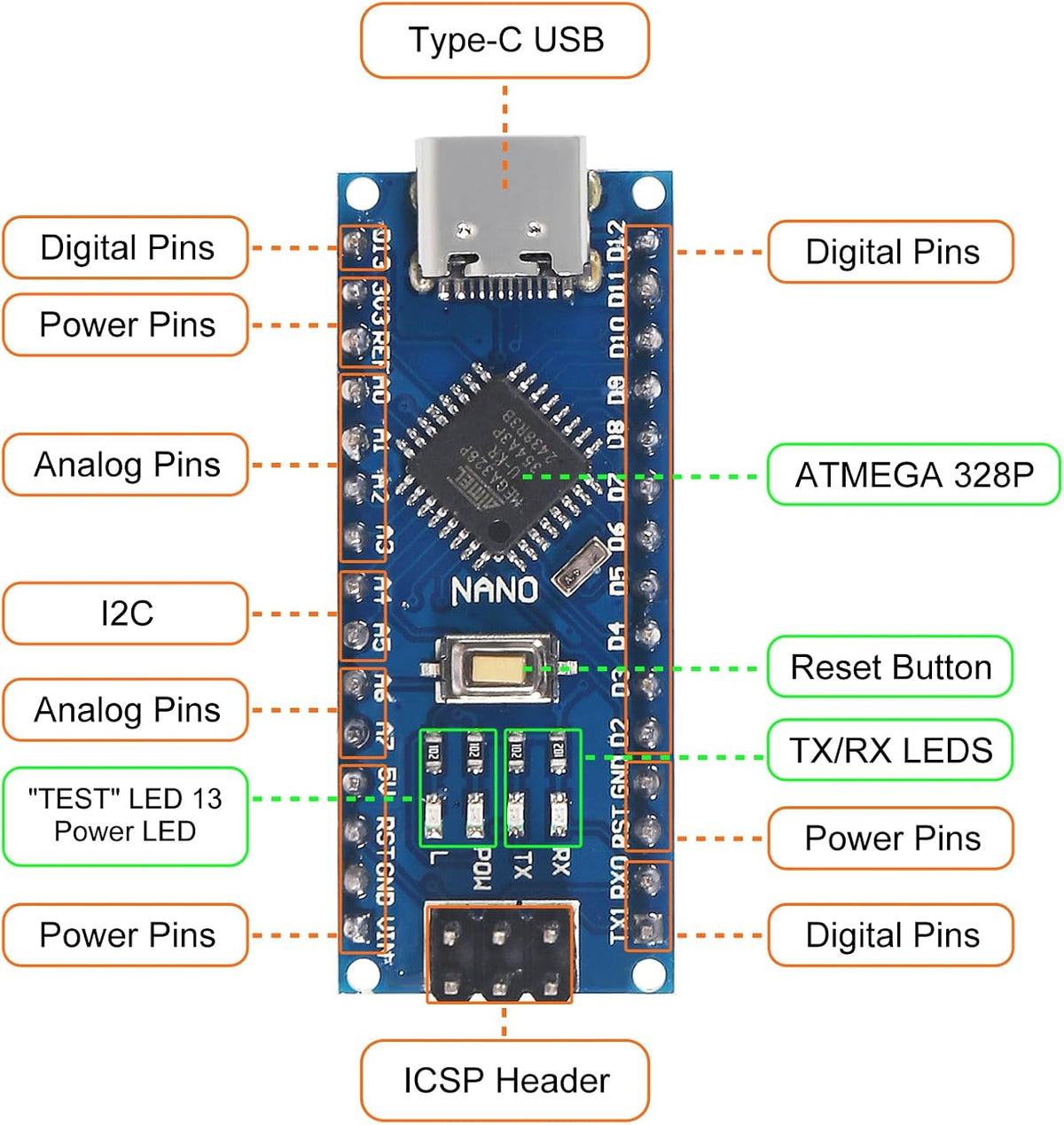

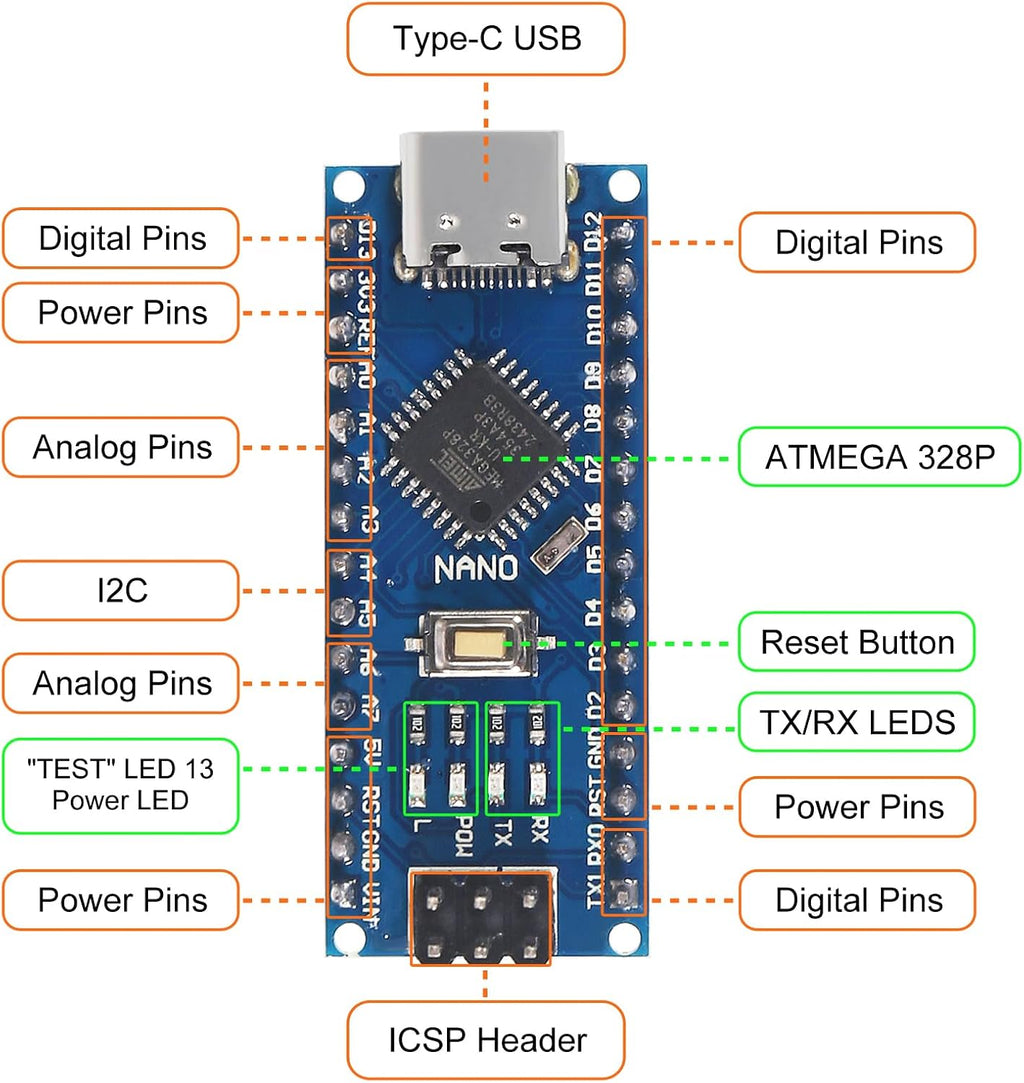

- The Nano board has 14 digital I/O pins (6 of which can be used as PWM outputs), 6 analogue inputs, a 16MHz quartz oscillator, a USB C power socket, an ICSP port and a reset button.

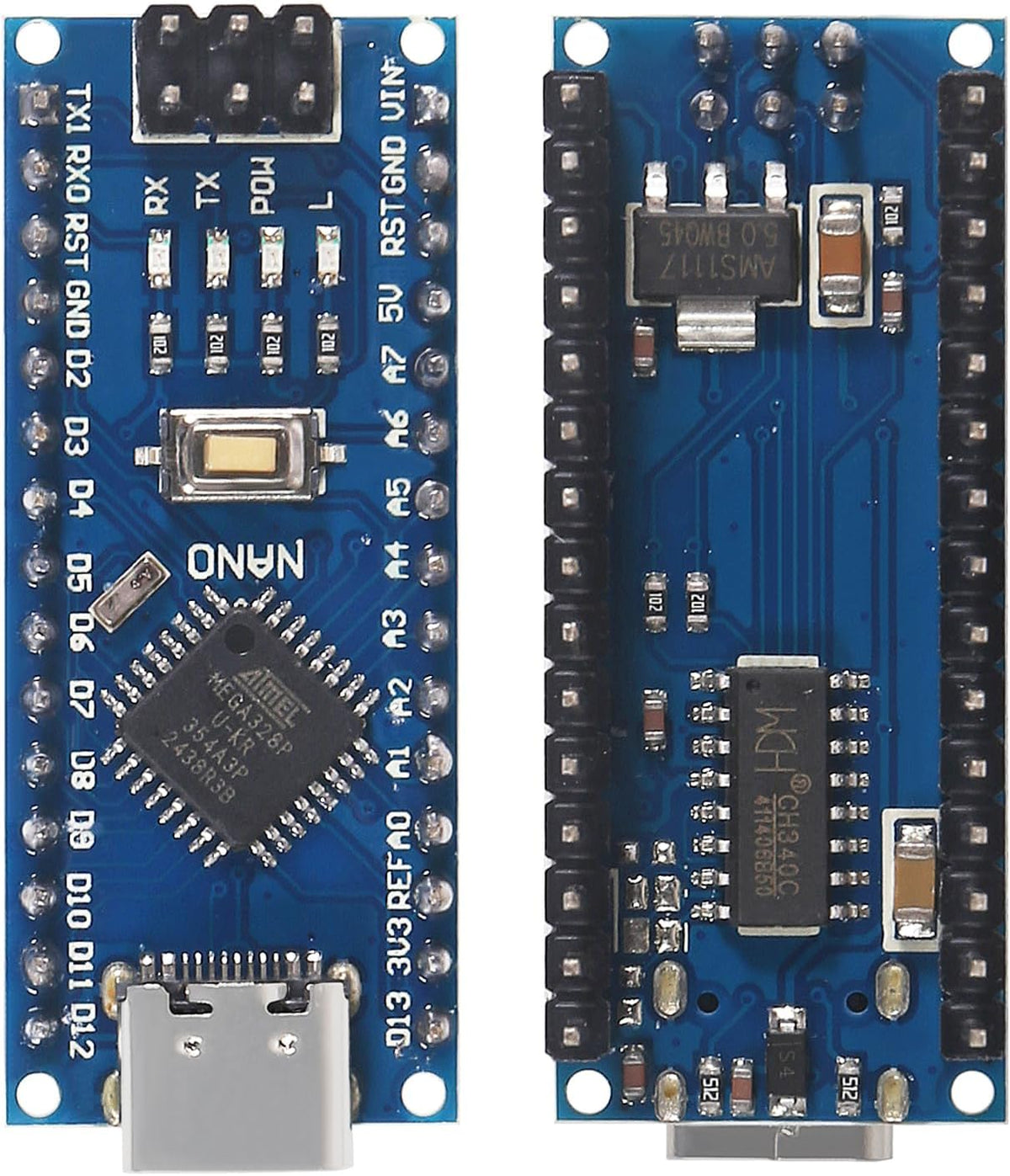

- Uses the CH340G instead of the FTDI FT232RL IC which can improve the transfer speed, increase the stability in windows and solve the issues with FTDI drivers bricking non-original chips, ATMEGA328P offers even more programming and data memory space. It also has a pin layout that works well with the Mini or the Basic Stamp (TX, RX, ATN, GND on one side, power, and ground on the other).

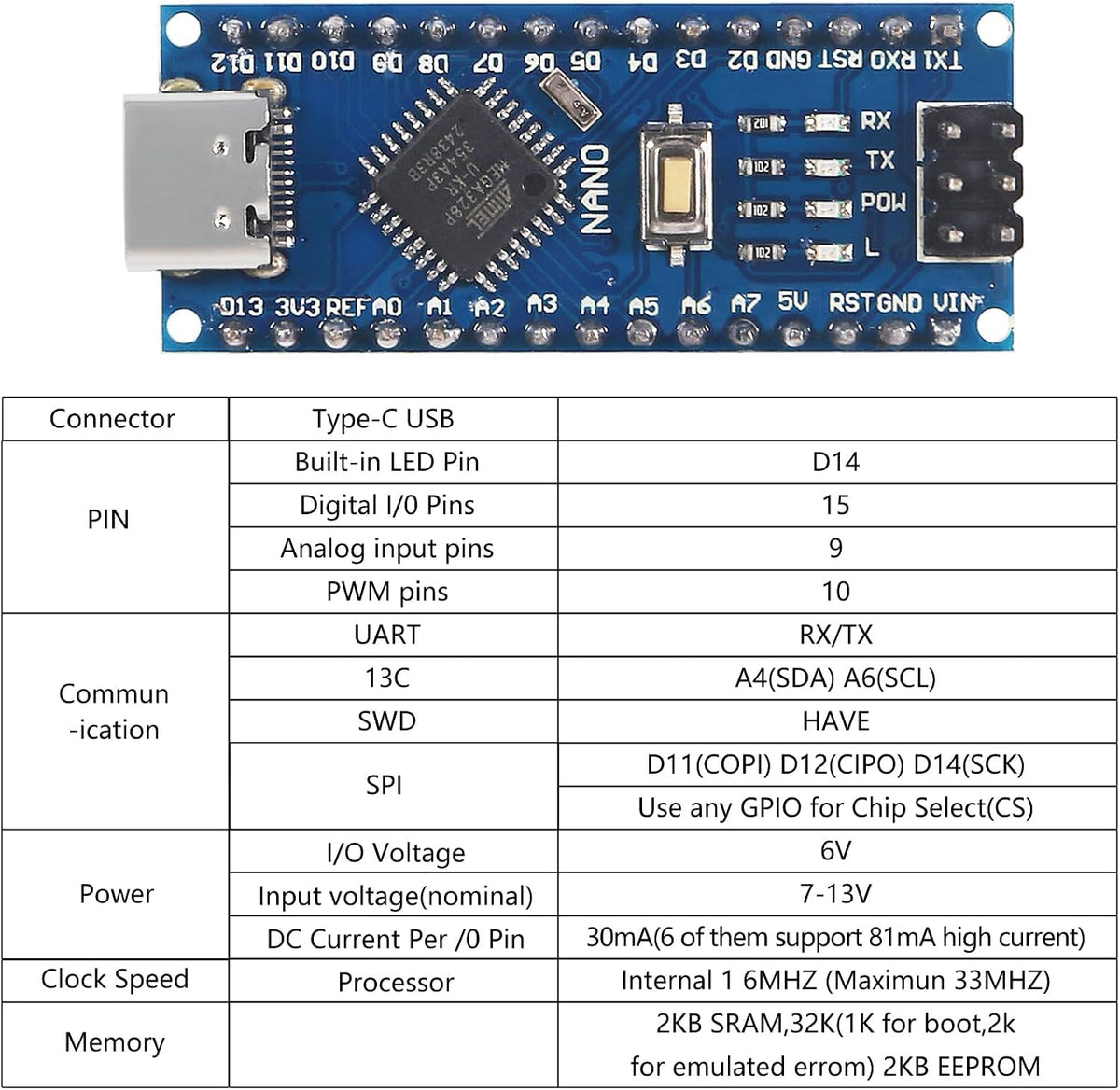

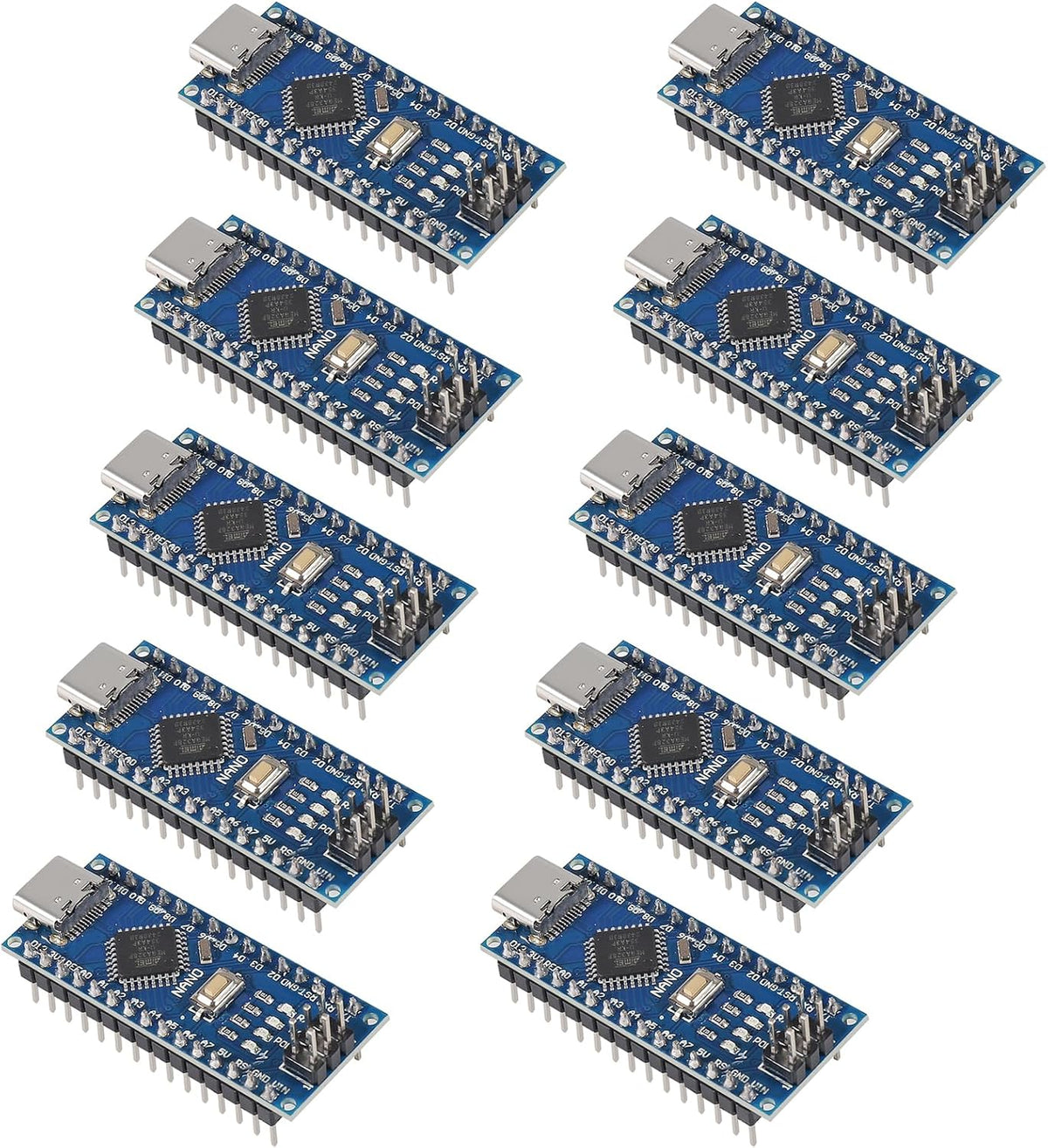

Nano V3.0 Board ATmega328P/CH340G Chip Microcontroller Kit Compatible with Arduino IDE/PWM/SPI 5V 16M(USB C Port)The Nano board Features 14 digital I/O pins (6 PWM outputs), 6 analog inputs, a 16MHz quartz oscillator, USB-C power socket, ICSP port, and reset button. Its compact, breadboard-friendly design ensures easy handling and integrationThe Nano board can be powered via a USB C connection; 6-12 V unregulated external power supply or 5 V regulated external power supply. The Nano automatically detects and switches to the power source with higher potential, no power selection jumper is requiredSpecificationsAnalog Input Pins:8Clock Speed:16 MHzOperating Voltage:5VUSB Connector:Type-CSRAM:2 KB (ATmega328P)Weight:Approximately 7gUSB to Serial Chip:CH340Input Voltage (limit): 6-20VEEPROM: 1 KB (ATmega328P)Dimensions:43 mm x 18 mmMicrocontroller:ATmega328PDC Current per I/O Pin:40 mAInput Voltage (recommended): 7-12VDigital I/O Pins:14 (of which 6 provide PWM output)Flash Memory:32 KB (ATmega328) of which 2 KB used by bootloaderPackage: 10PCS nano board
Free shipping included. 30-day hassle-free returns.
