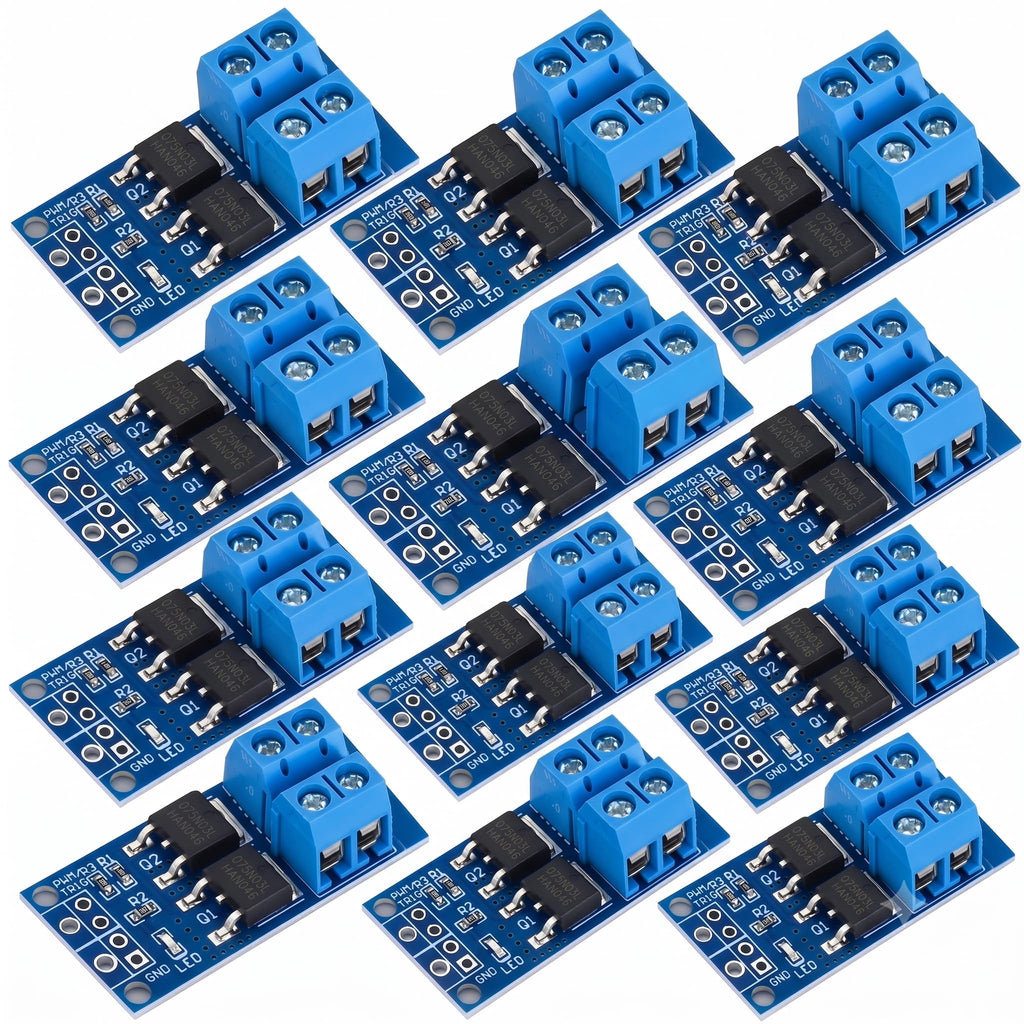

12 PCS Dual MOSFET Trigger Switch Driver Module PWM Electronic Switch Board

12 PCS Dual MOSFET Trigger Switch Driver Module PWM Electronic Switch Board

Key features

• Wide DC Signal Range: Designed for DC 5V to 36V operation, the module accepts DC 3.3V to 20V digital high/low trigger signals for compatible microcontroller I/O, PLC interfaces, and DC signal sources.
• PWM Adjustment Ready: Supports 0 to 20kHz PWM input, allowing a compatible controller to adjust DC motor speed, LED strip brightness, or lamp dimming through an electronic switch setup.
• Dual MOSFET Output: Parallel MOSFET active output helps reduce internal resistance for higher current handling; rated at 15A continuous, 400W max, and up to 30A peak with enhanced cooling.
• Compact Board Size: Measuring 34 x 17 x 12 mm / 1.34 x 0.67 x 0.47 in, the small control board fits project boxes, panels, and space-limited builds; operating temperature range is -40°C to 85°C.
• For Common DC Loads: Use with compatible DC motors, LED lights, light bulbs, micro pumps, and solenoid valves in hobby electronics, lab prototypes, equipment control, and repair projects.
