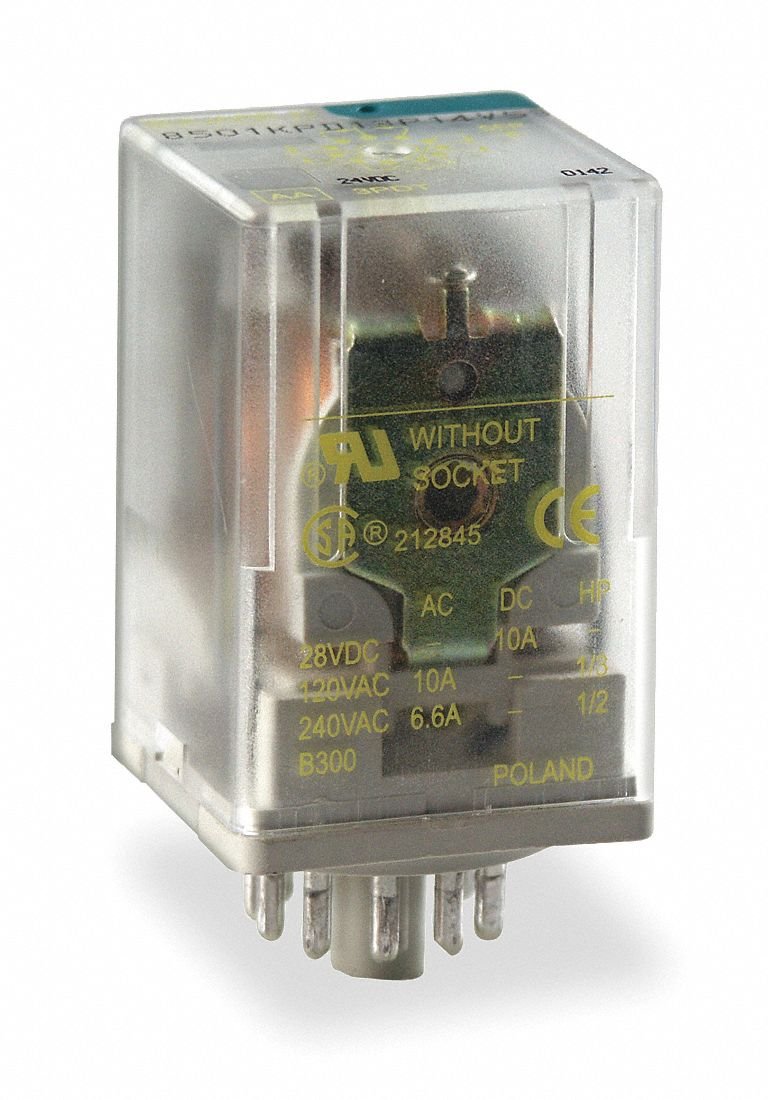

120VAC, 8-Pin Octal Base General Purpose Plug-In Relay; AC Contact Rating: 10A @ 277V
120VAC, 8-Pin Octal Base General Purpose Plug-In Relay; AC Contact Rating: 10A @ 277V
Key features
- Plug-In Relay Style: General Purpose
- Item: Plug-In Relay
- Base Type - Plug In Relay: Octal
- Contact Form - Relay: DPDT
- Coil Volts: 120VAC
Item - Relay: General Purpose Relay Coil Volts: 120VAC AC Contact Rating - Relay: 10A @ 277V DC Contact Rating - Relay: 10A @ 28V Base Type - Plug In Relay: Octal Number of Pins - Relay: 8 Contact Form - Relay: DPDT Mounting - Relay: Plug In Socket Code - Relay: A Power Consumption - Relay: 3.0VA Contact Material: Silver Tin Oxide Status Indicator: LED Push To Test: No Body Height - Relay: 2.10" Body Width - Relay: 1.40" Body Depth - Relay: 1.40" Overall Height - Relay: 2.60" Standards: UL Listed, CSA Certified, CE Marked Green Environmental Attribute: RoHS Compliant
Free shipping included. 30-day hassle-free returns.
