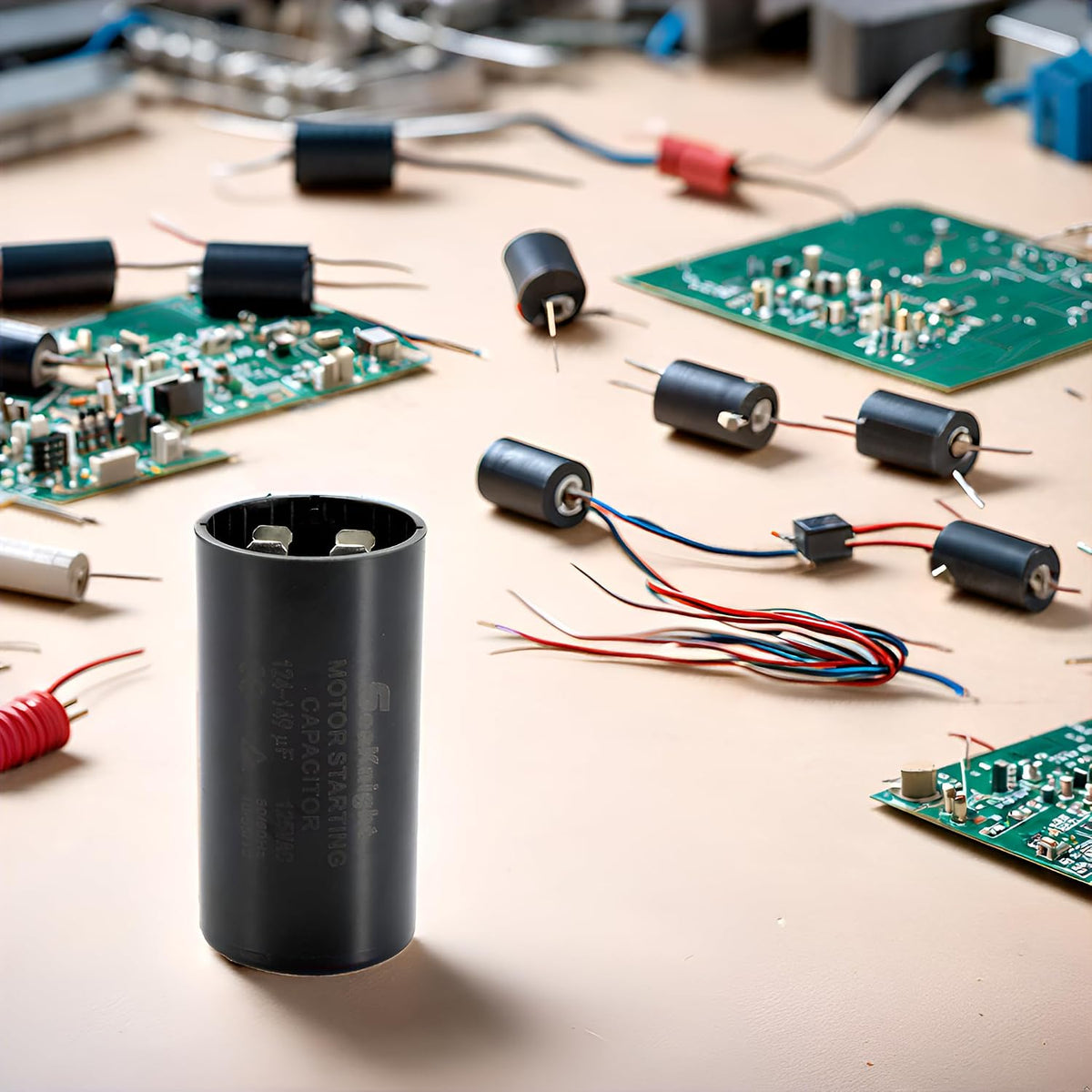

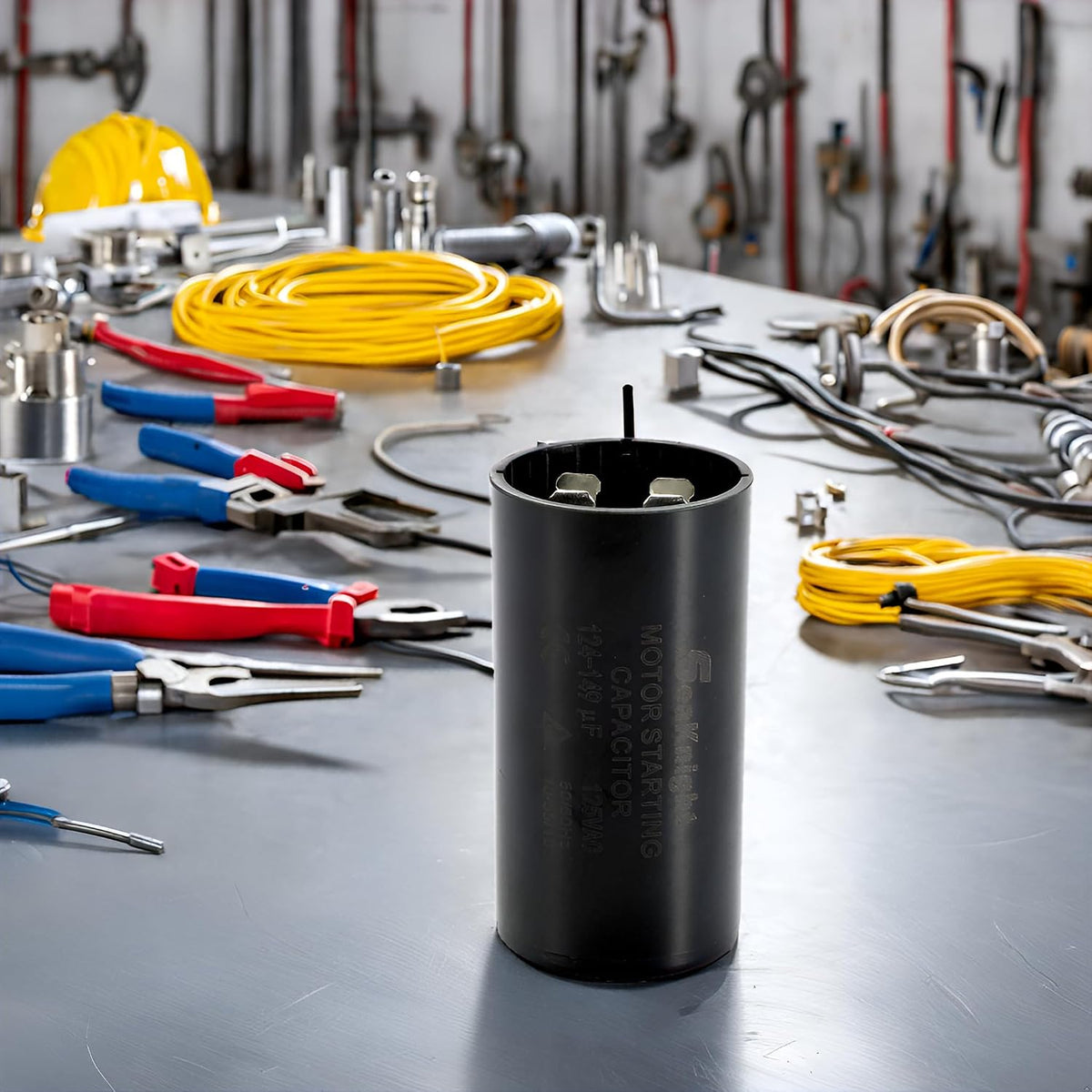

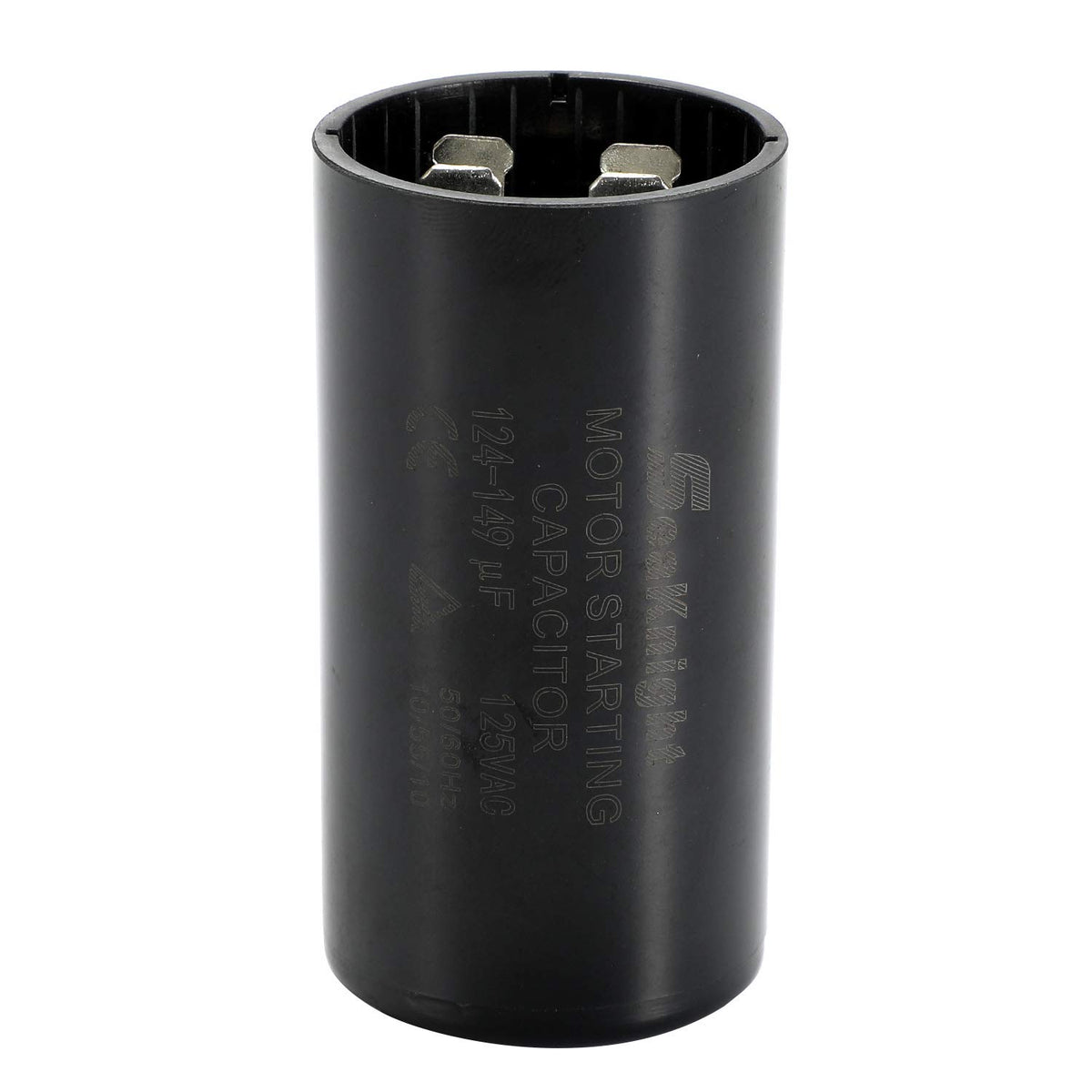

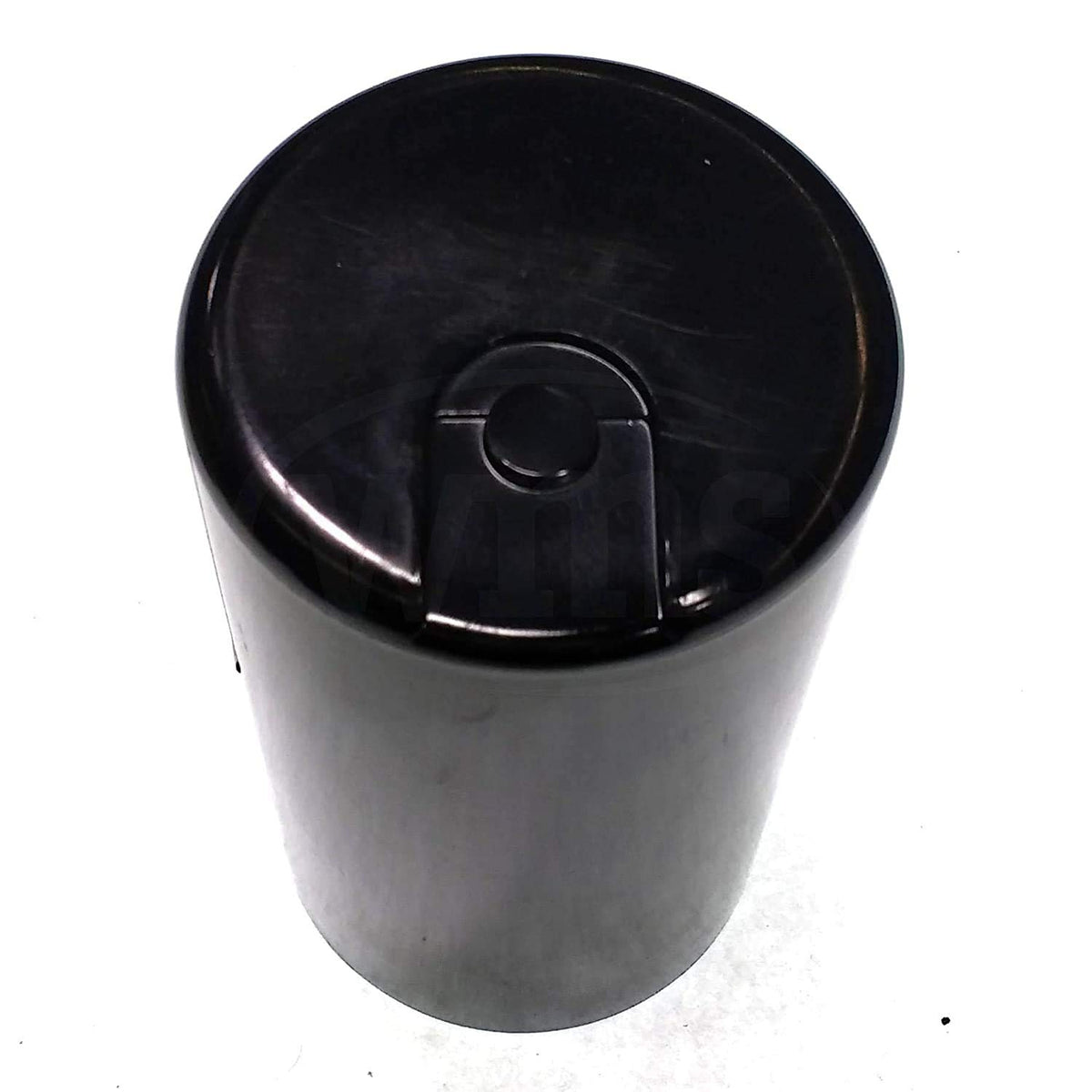

124-149 uF MFD Motor Start Capacitor Withstand Voltage 110-125V AC

Key features

• Production Name: Start Capacitor 124-149 Microfarad, Withstand Voltage:110-125V AC 50/60Hz, Vollume: 124-149 Microfarad,Shape: Round
• Size: 1.437*2.75 in/36*70mm (Diameter * Height),Wide used for 125v single phase motor as start capacitor,such as for pump, water supply,washer,garage door motor etc.
• US style start capacitor,made a rugged phenolic resin body, no PCB inside
• With 1/4 inch standard(6.3*0.8mm/Width*Thickness) quick connect terminals, each pole has 2 terminal
• Compatible for all old Aerovox , MARS 11112 , 11012 , JARD 11912 , Global 1011 , Packard PMJ124 , TMJ124 , MSC125V124 , Vanguard BC-124 , Mallory PSU12415 and other Start Capacitors with similar volume and voltage rating

start capacitor 124-149 microfarad Remark: 1.Normaly single phase motor has 2 capacitors, one is start capacitor, use only start, another is run capacitor, using all the time when motor runs 2.As 220v or 230v single phase motor, run capacitor can be estimated Approximately as C = 0.03* Power(watts) uF 3.As 110v or 125v single phase motor, run capacitor can be estimated Approximately as C = 0.1* Power(watts) uF 4.As start capacitor estimated Approximately, C(start) = (1 - 4)*C(run) 5.Best methods is that just replace with the same size of the origial 6.Normally with same vollume the high withstand voltage capacitor body is bigger than the low one
