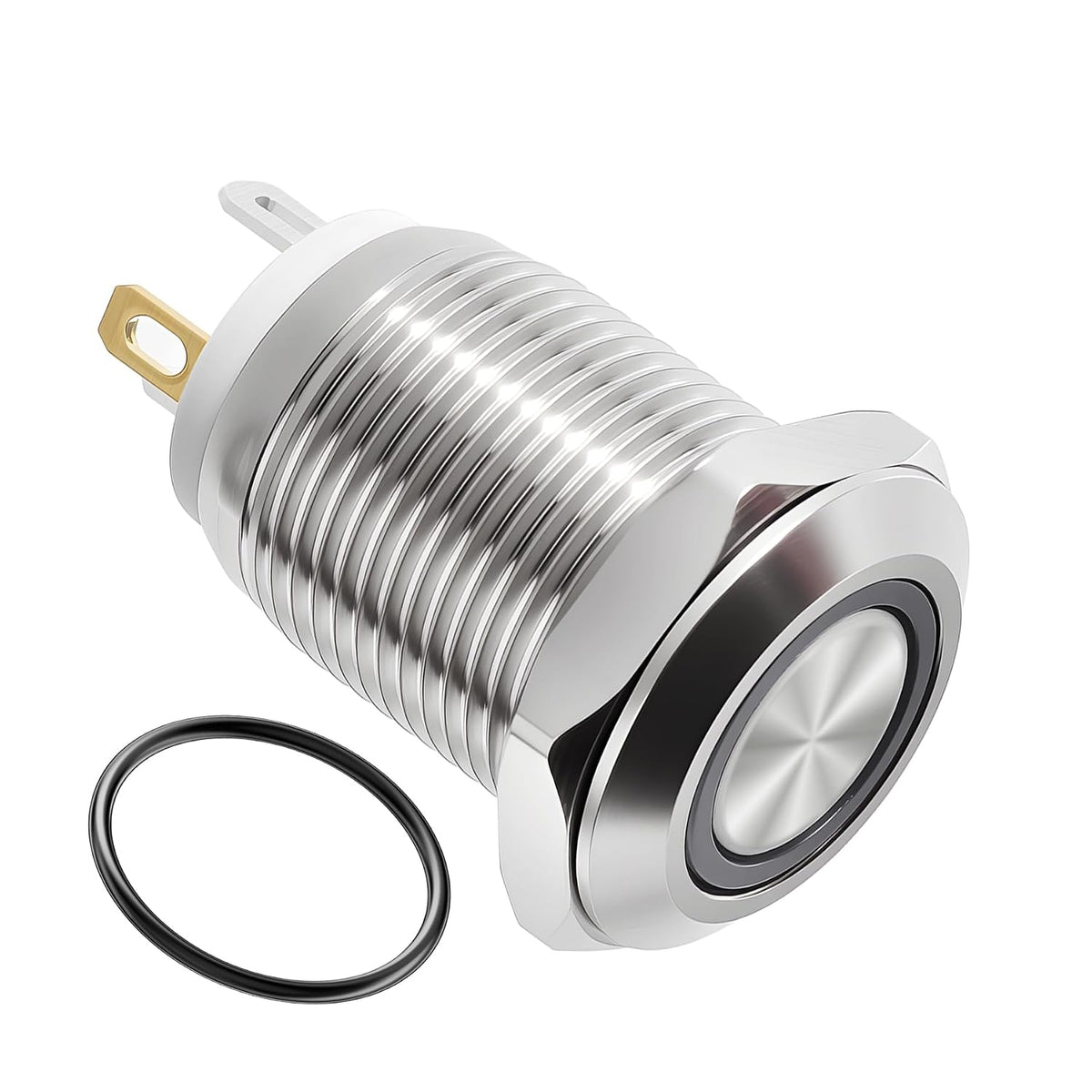

12mm Momentary Push Button, 3-6V, O Shape White LED, 304 SS

Key features

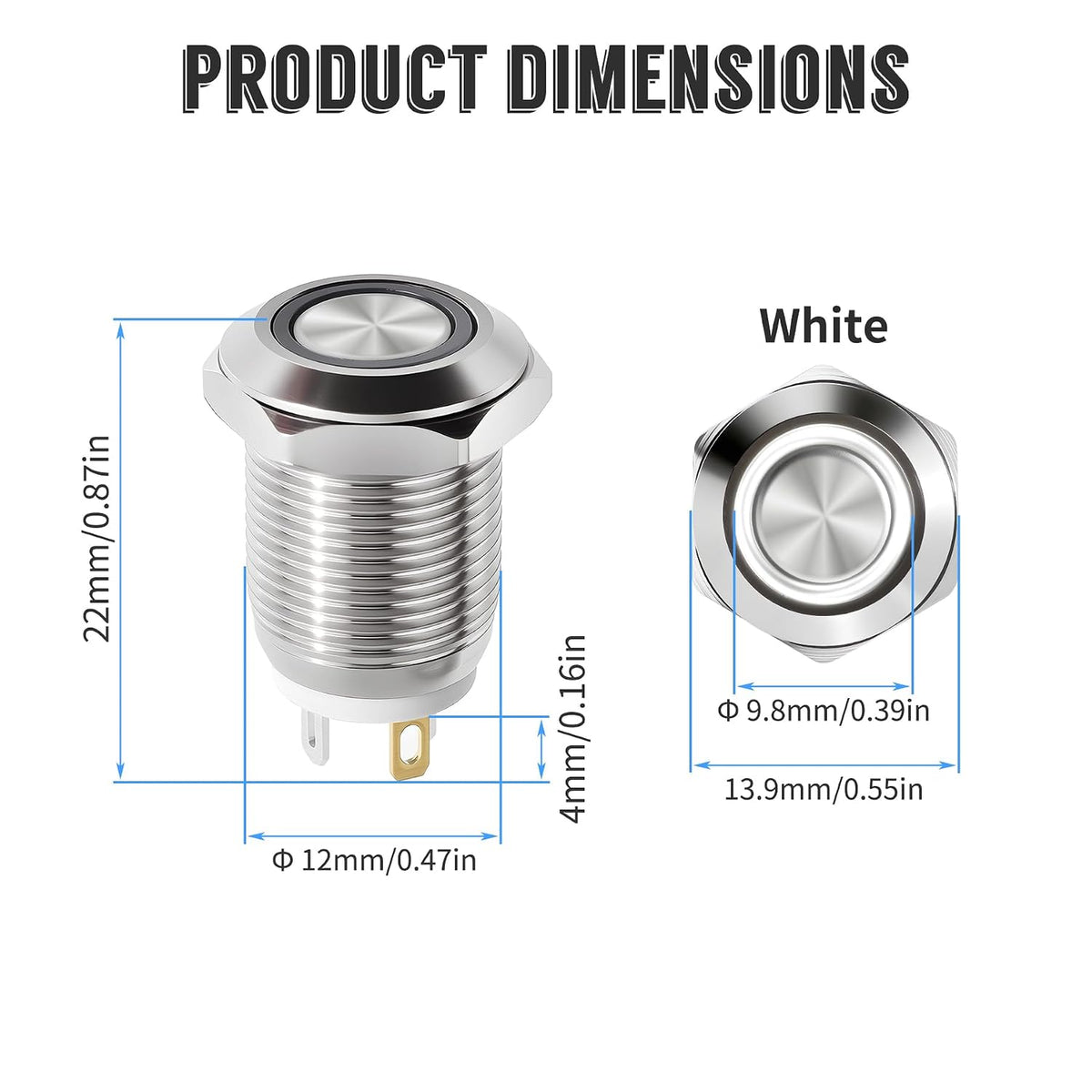

• Size：3-6 volt push button switch mounting diameter 12mm(1/2" mounting hole), total height 22mm/0.87, button head is rround and flat with diameter of 9.8mm/0.39"; rated voltage 250VAC, rated current 5A; please see Figure 2 for detailed dimensions

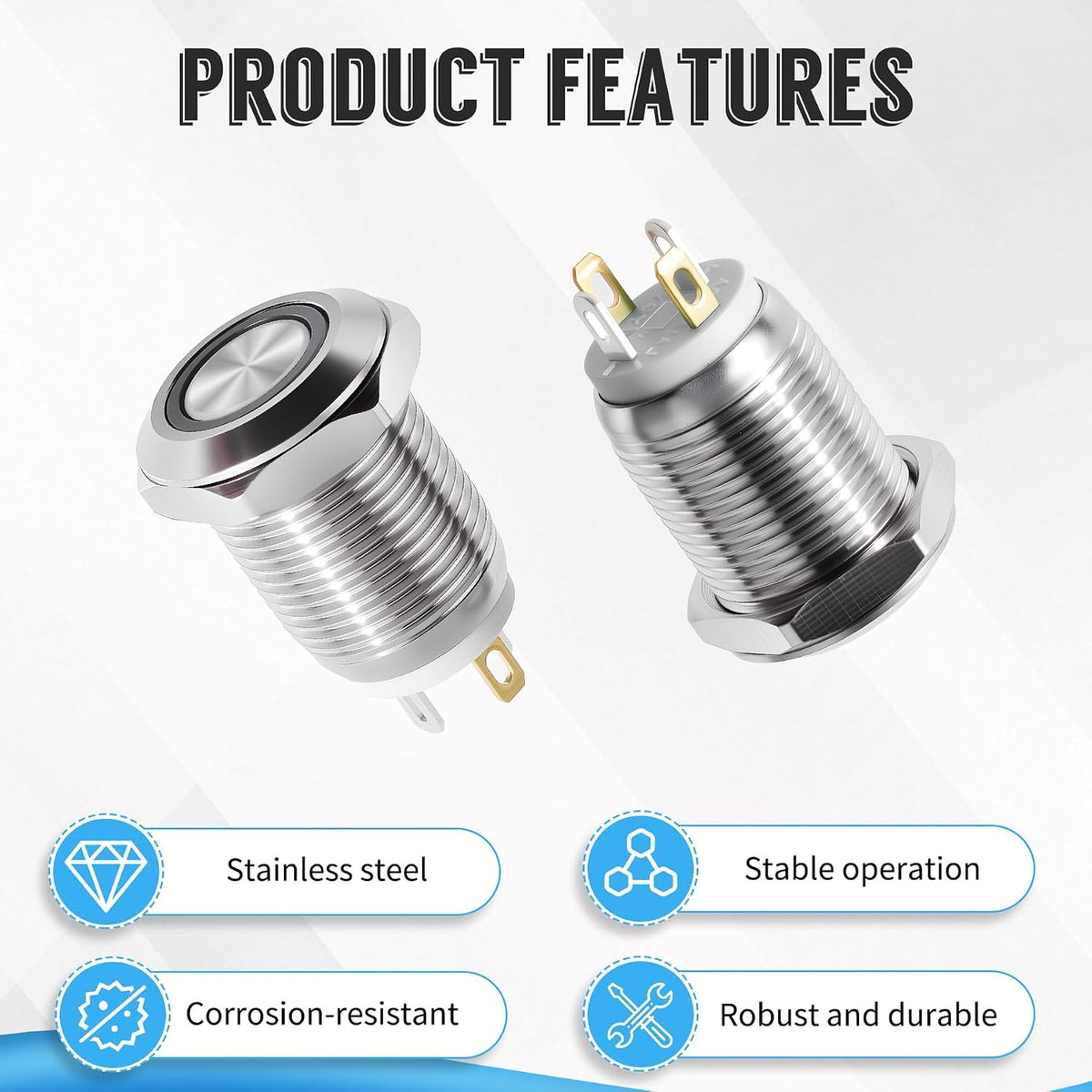

• Material：push button switches made of 304 stainless steel,corrosion and impact-resistant, IP67 waterproof and dustproof rating, stable operation in humid environments, 1,000,000 mechanical cycles and 200,000 electrical cycles, high-grade texture, sturdy and durable

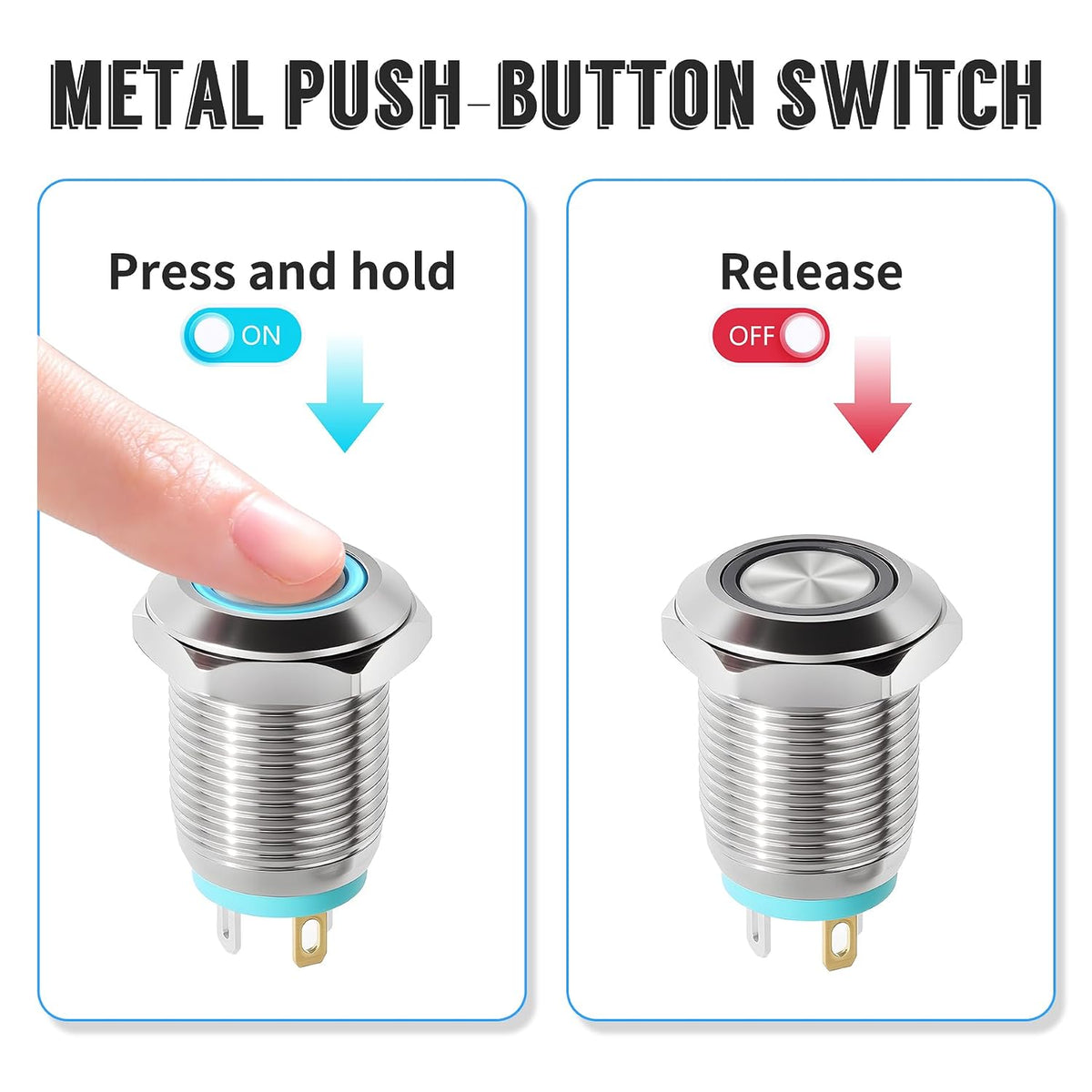

• Self-Reset Design Design：Momentary push button adopts self-reset design, Press the button switch, and the load will be energized; when the finger is released, the button resets and the load is disconnected; switch button contact configuration: 1NO1NC
• Flexible use：Metal push button switch have two usage modes, the circular LED can stay on all the time, allowing you to locate the air horn button switch in the dark, or it can light up when you press it, increasing interaction(depending on how to wire it)
• Applications：push button switches with LED light widely used as horn button switch, air horn button switch, computer switch, household appliance switches replacement; Ideal for automobiles, ships/yachts, industrial machinery and DIY electronic projects

Product Name： FOCMKEAS Momentary Push Button SwitchProduct FeaturesDurable Structure: 304 stainless steel shell (corrosion-resistant, impact-resistant), IP67 waterproof and dustproof, usable in harsh environments like humidity, dust, and outdoors;Reliable Performance: Chrome plated copper pins for stable conductivity, reducing contact resistance; 1,000,000 mechanical cycles and 200,000 electrical cycles, no easy damage from high-frequency operation, suitable for long-term use;Blue Ring LED: 24V working voltage, moderate brightness and long life, with both status indication (visual on/off) and decorative functions, easy to locate in dark environments; LED light life: 40,000 hoursApplication√ Automotive Field: Start-stop control for car refrigerators, dashcams, interior ambient lights, horns, and central control equipment;√ Marine Field: Switch control for cabin lights, navigators, radar equipment, and water pumps, seawater corrosion-resistant;√ Industrial Field: Operation buttons for machine tools, conveyors, packaging machines, and assembly lines, oil and dust resistant;√ Home Field: Start-stop for ovens, microwaves, treadmills, PC, humidifiers, and air purifiers;√ Outdoor Field: C
