12V Dc Worm Gear Motor Kit 80Rpm Reversible& Variable 114 N·Cm High Torque 8mm D-Shaft Self-Locking Gearbox, Variable Speed Motor for Halloween Props, Rotating Table, Door Lock, DIY Automation

Key features

• [Motor Assortment Kit]: 12V dc worm gear motor(8000RPM, 1:100 Reduction rate), worm gear motor coupling bracket, pwm dc motor speed controller(6-24V,3A), Provide Impetus to diy mechanical projects,halloween props,small automation equipment
• [Self-Locking]: 12v dc variable speed motor feature self-locking geared, preventing slippage when the power is off, reversible cw/ccw, variable，applications requiring fixed positioning and bidirectional movement, Provide Impetus to motorized shade and diy automation
• [Precise Speed]: Dc motor 8000rpm, gearbox reduction ratio 1:100, no-load: 80 rpm, rated-load: 60 rpm, forward and reverse rotation, variable speed controller ensures smoother operation of the motor in curtain tracks lifting devices and sliding mechanisms without shaking or impact
• [High Torque]: Featuring all-metal gearbox structure stable torque of 114 n·cm high torque 80r/min low rpm, Ball bearing end cap design ensures low noise and long lifespan. continuous operating time of up to 500 hours within 60 decibel distance of 35cm in laboratory tests
• [Spec Check]: Works well as a door lock motor, curtain machine motor, diy robot drive, rotating display stand motor, and compact gearbox motor for custom projects. please confirm voltage, rpm, torque, shaft size, shaft direction and mounting dimensions before purchase

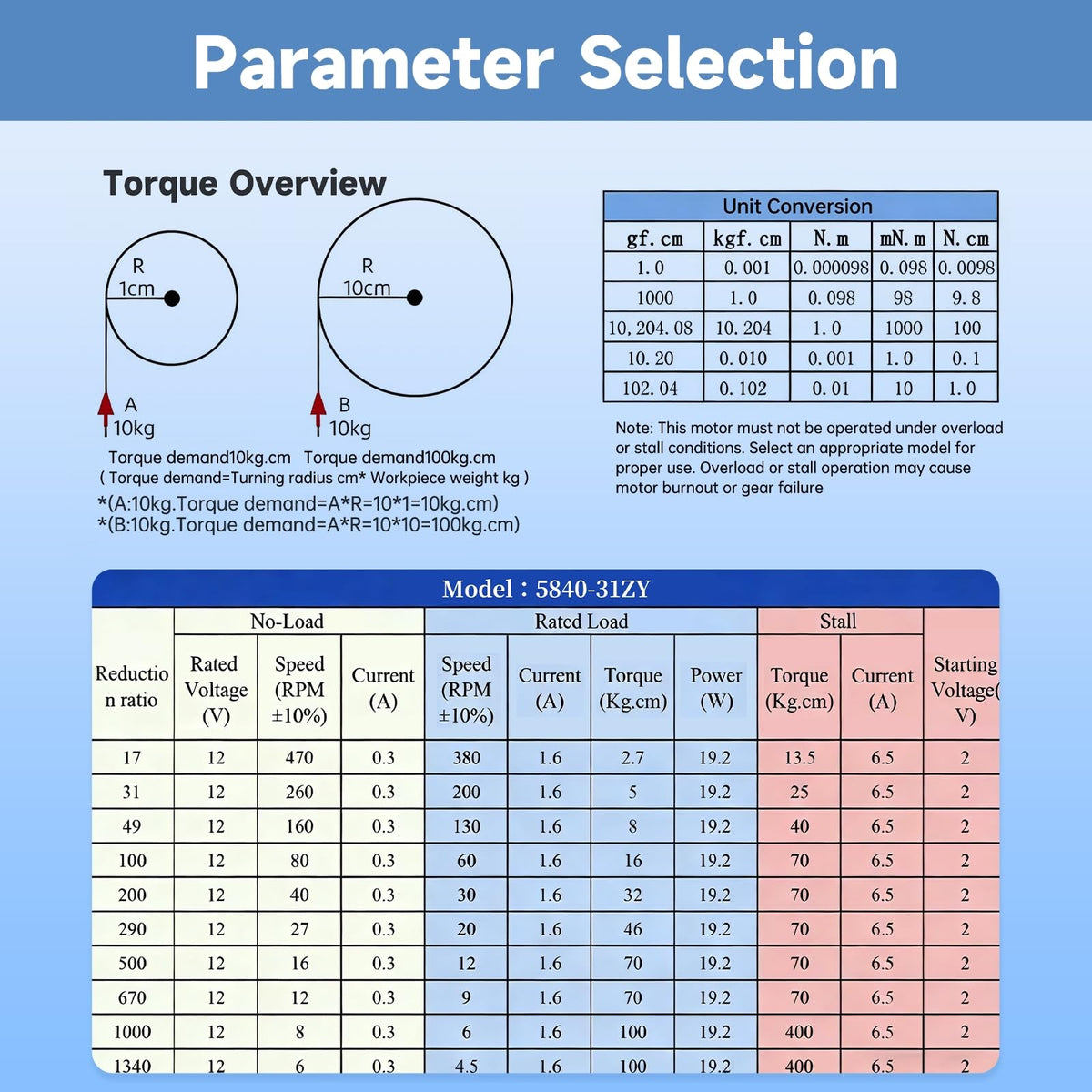

Product Description： Rated Voltage: DC 12V Reduction Ratio: 1:100 No-Load Speed: 80 RPM Rated Load Speed: 60 RPM Rated Torque: 16 KG.CM Stall Torque: 70 KG.CM Rated Power: 19.2W Error: ±10% D Shaped Output Shaft Size: φ0.31 x 0.59" (D*L) Gearbox Size: 2.24 x 1.57 x 1.96” (L*W*H) Motor Size: φ1.22 x 2.16" (D*L) Mounting Hole Size: M4 (not included) Main Material: Metal, Electronic component Wire Length : 0.74" Packages: Worm Gear Motor x1 Pwm Controller x1 Motor Mount x1 Motor Lead Wire x1 Please Notes: 1. Torque and Speed: Match the appropriate torque and speed requirements to avoid issues such as failure to start jamming vibration or motor overheating due to insufficient torque 2. Forward and Reverse Rotation: Connect the red pin to the positive terminal and the black pin to the negative terminal. If reversed the rotation direction will be opposite 3. Heat Dissipation and Load: Metal gearbox is wear-resistant and heat-resistant, but it's own heat dissipation capacity is low. Ensure proper ventilation during prolonged operation and conduct regular inspections. 4. Motor Operating Environment: Temperature: -10℃ - 40℃ Humidity: 15% -70% RH Avoid placing in high temperature high humidi
