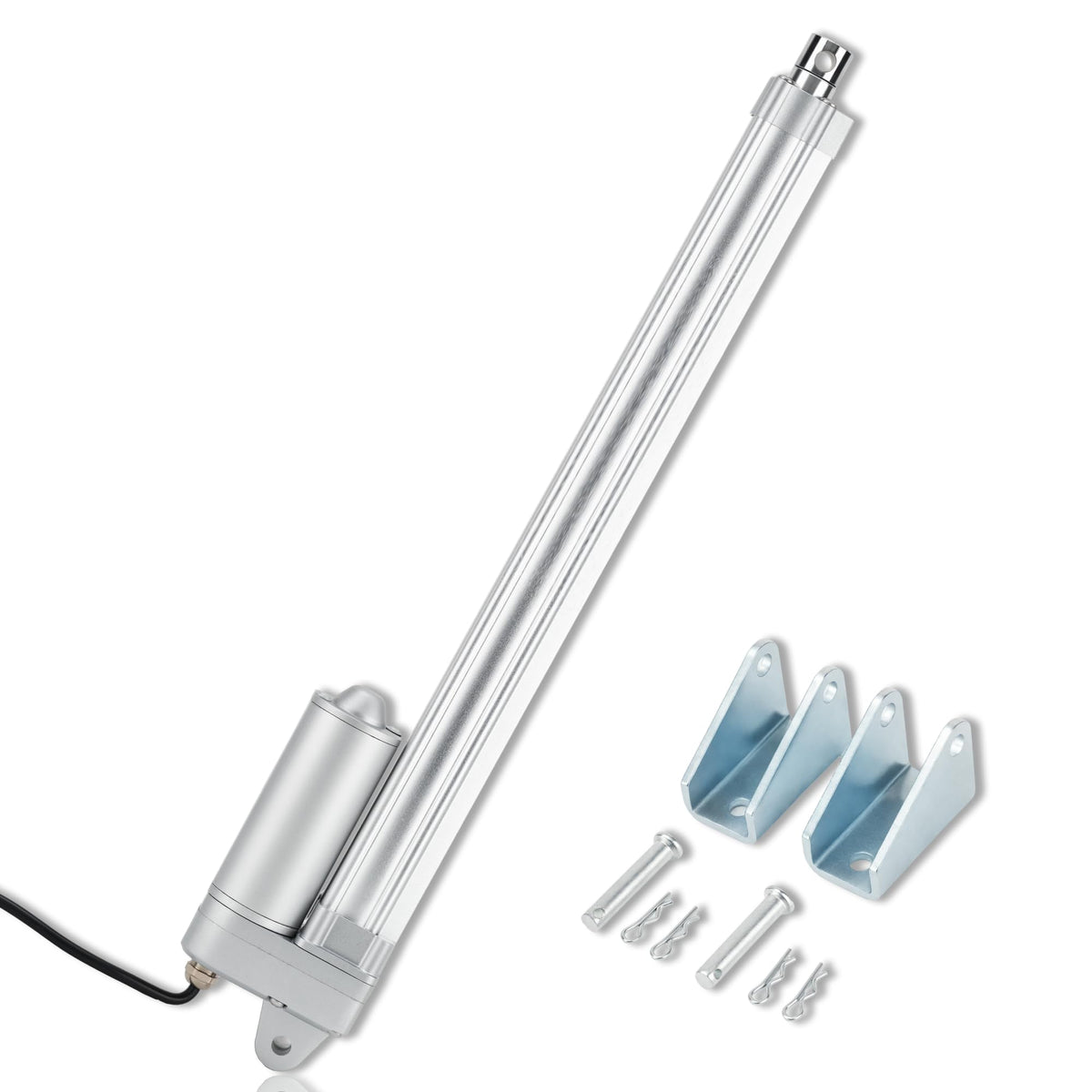

12V High Force Linear Actuator 12 inch Stroke, 617 lbs Force 0.2"/s Speed

Key features

• Specification: Stroke length = 305mm(12"); Retracted length = 420mm(16.53"); Extended Length= 725mm(28.54"); Travel speed = 0.2 in/sec (5mm/s); Maximum current draw = 7Amps; Maximum Load = 617lbs(2800N).
• IP67 Waterproof & Durable: The small linear actuator features an impressive IP67 rating, protecting it against dust and water jets. The high-quality aluminum body and stainless steel inner core, offers the actuator an excellent corrosion resistance, wear resistance, and structural stability.
• 2800N Heavy Duty: Equipped with a robust 12V DC motor, this 12V linear actuator delivers a dynamic load capacity of 2800N (617lbs). Actuator motor is perfect for applications like industrial machinery, heavy equipment adjustment, solar tracker positioning, and large door/window automation.
• Steady Speed & Self-locking: The 12V actuator features ultra-slow 5mm/s speed ensures smooth, precise positioning without jerking. There is a built-in self-locking to make the stroke stop at your wanted position and the built-in self-locking automatically holds the position when power is cut. To prevent back-driving and ensuring safety without the need for external brakes.
• Versatile Applications: The linear motor actuator is perfect for a wide range of DIY projects and automation systems. 12V actuator linear is widely used in electric beds, sliding doors, window openers, TV lifts, agricultural machinery, and robotics. The compact design allows for easy integration into various mechanical setups.
• Package Includes: 1 x 12V DC Electric Linear Actuator a pair of brackets 1 x User Manual
