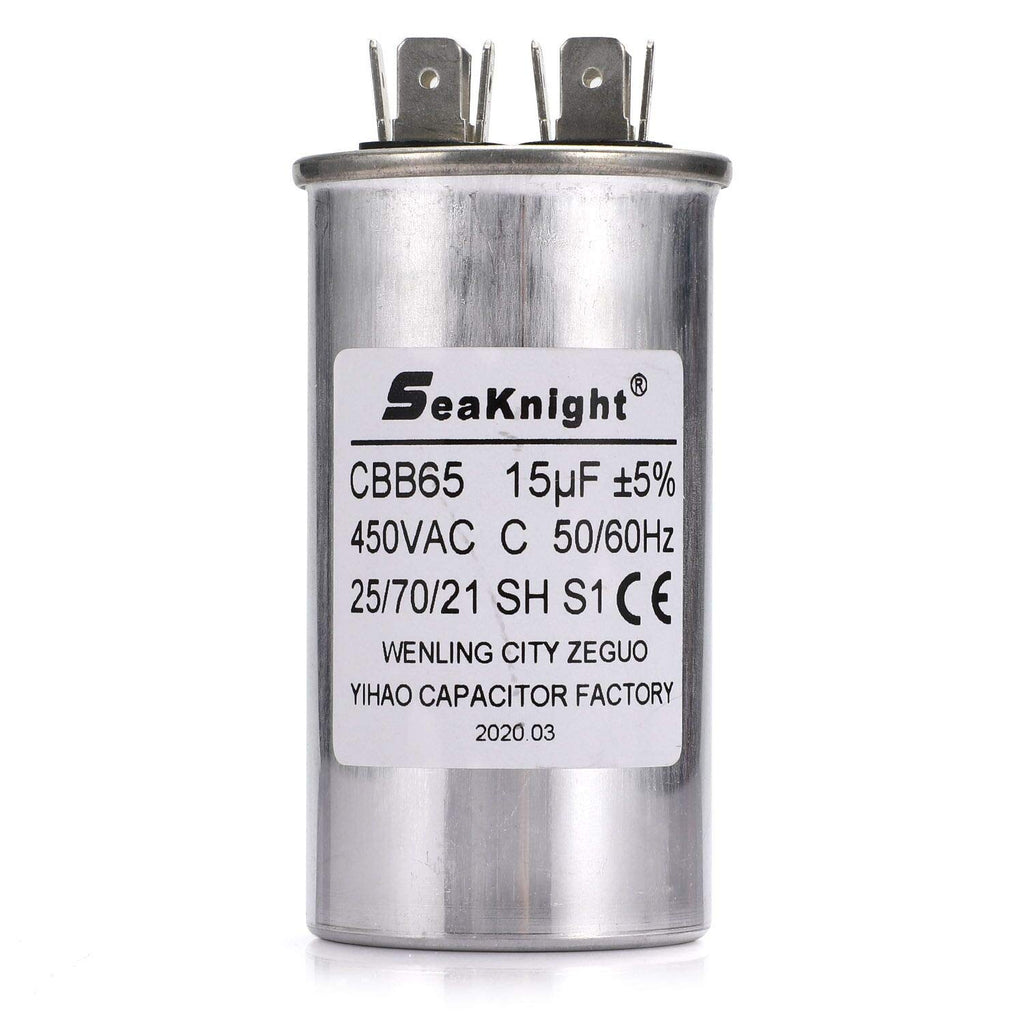

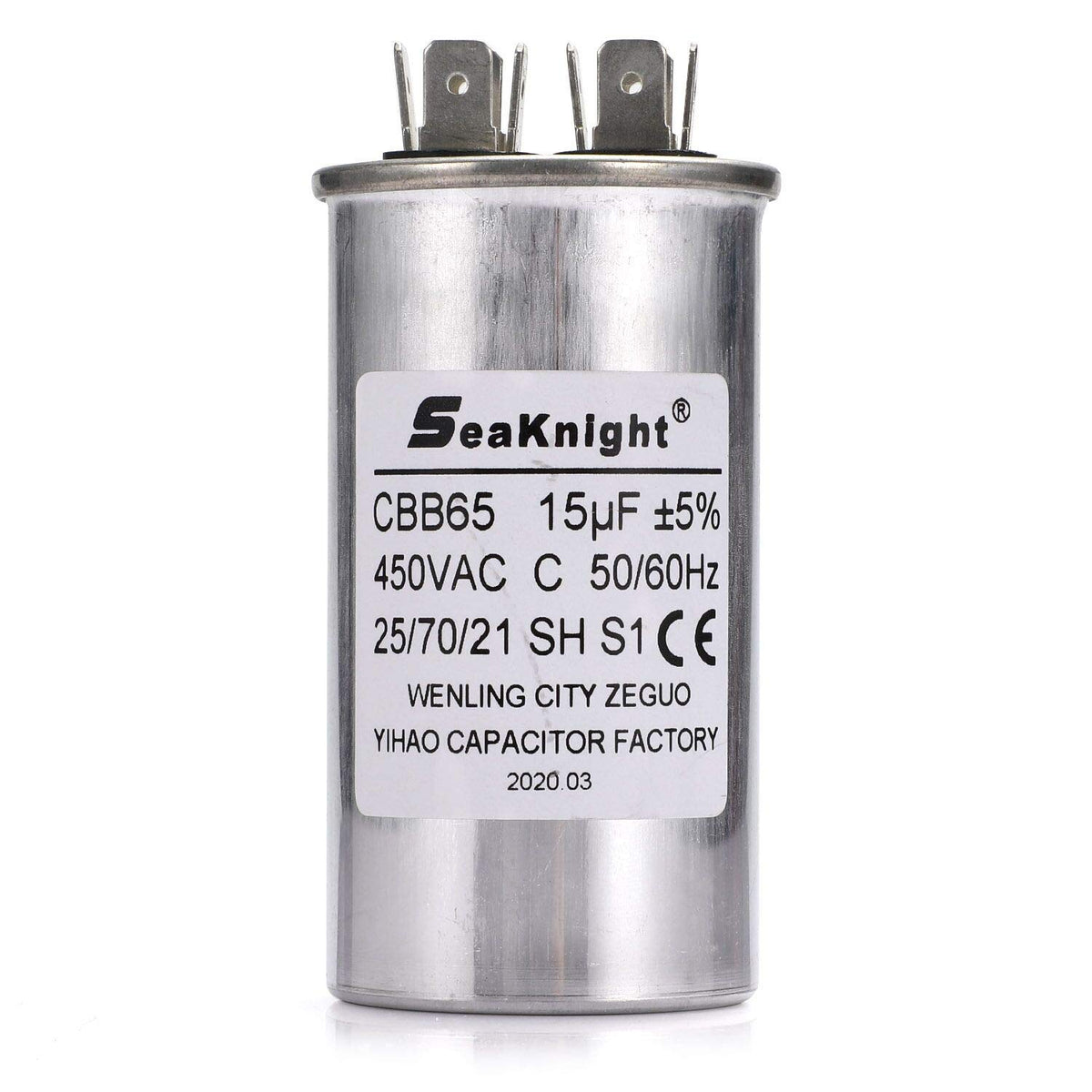

15 MFD uF Well Pump Run Capacitor

Key features

• Product Specifications: Run Capacitor with 15 MFD volume, 450V AC withstand voltage, +/-5% tolerance, round shape, CBB65 single capacitor module, and standard 1/4 inch terminal size (6.35x0.8mm / 0.25x0.03in)
• Industry Standard Compliance: Built to meet rigorous USA standards for AC motor run capacitors including EIA-456-A and IEC 60252-1:2001, ensuring enhanced safety and durability
• Heavy Duty Construction: Features aluminum casing designed for HVAC heat pumps, home water pumps, well pumps, and pool pump applications
• Motor Compatibility: Functions as a run capacitor for water, well, or small pool pumps with single phase motors having input power of approximately 1/2 to 3/4 horsepower

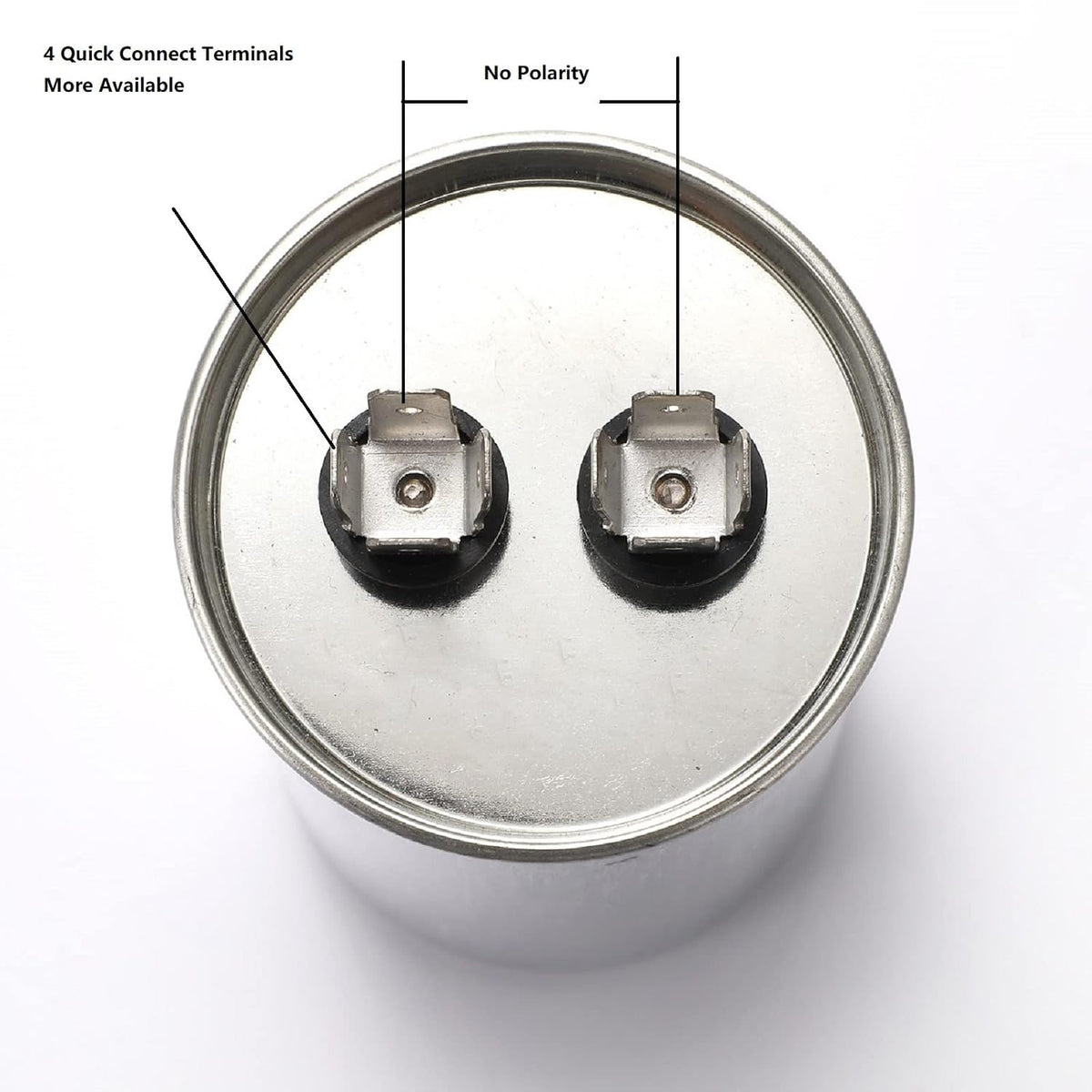

• Quick Connect Terminals: Equipped with 1/4 inch standard quick connect terminals with 4 terminals per pole for fast replacement and repair
• Wide Temperature Range: Operates efficiently in temperatures ranging from -25C to 70C (-13F to 158F) for reliable performance in various environmental conditions
• Versatile Voltage Replacement: 450V series run capacitor can replace 250V, 330V, 370V, and 440V series capacitors for convenient and fast repairs

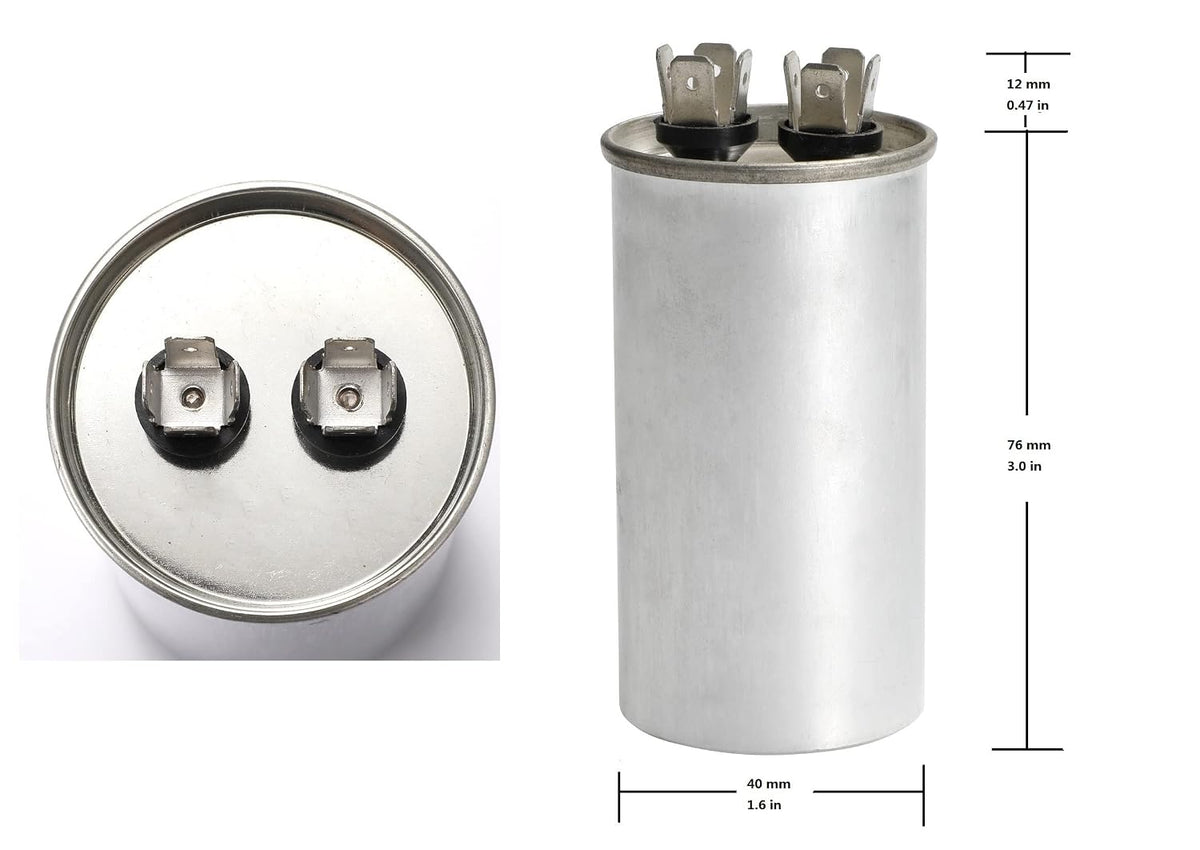

15 MFD CBB65 Motor Run Capacitor Work Temperature: -25°C to 70°C(-13°F to 158°F) OverView Size: 1.6x1.6x3.5in / 40x40x88mm(Diameter x Height) Net Weight: 6.4 oz/180 g Remark: 1.450V series run capacitor can replace 250, 330, 370 V, 440V series, more convenient for fast repairing 2.Widely used for window air condition capacitor or small heat pump as condensor capacitor 3.Also widely used for run capacitor of well pump or pool pump control box especially for Franklin water pump control box 4.Normally there are 1 start capacitor and 1 run capacitor inside water pump control box 5.CBB65 run capacitor is more better fit for long time run capacitor at water pump control system because aluminium case is better to dissipate heat
