1550PCS JST PH 2.0mm Connector Assortment Kit 2.0mm Pitch Male Female 2/3/4/5/6/7/8/9/10 Pin Housing Adapter Plug Terminal
1550PCS JST PH 2.0mm Connector Assortment Kit 2.0mm Pitch Male Female 2/3/4/5/6/7/8/9/10 Pin Housing Adapter Plug Terminal
Key features

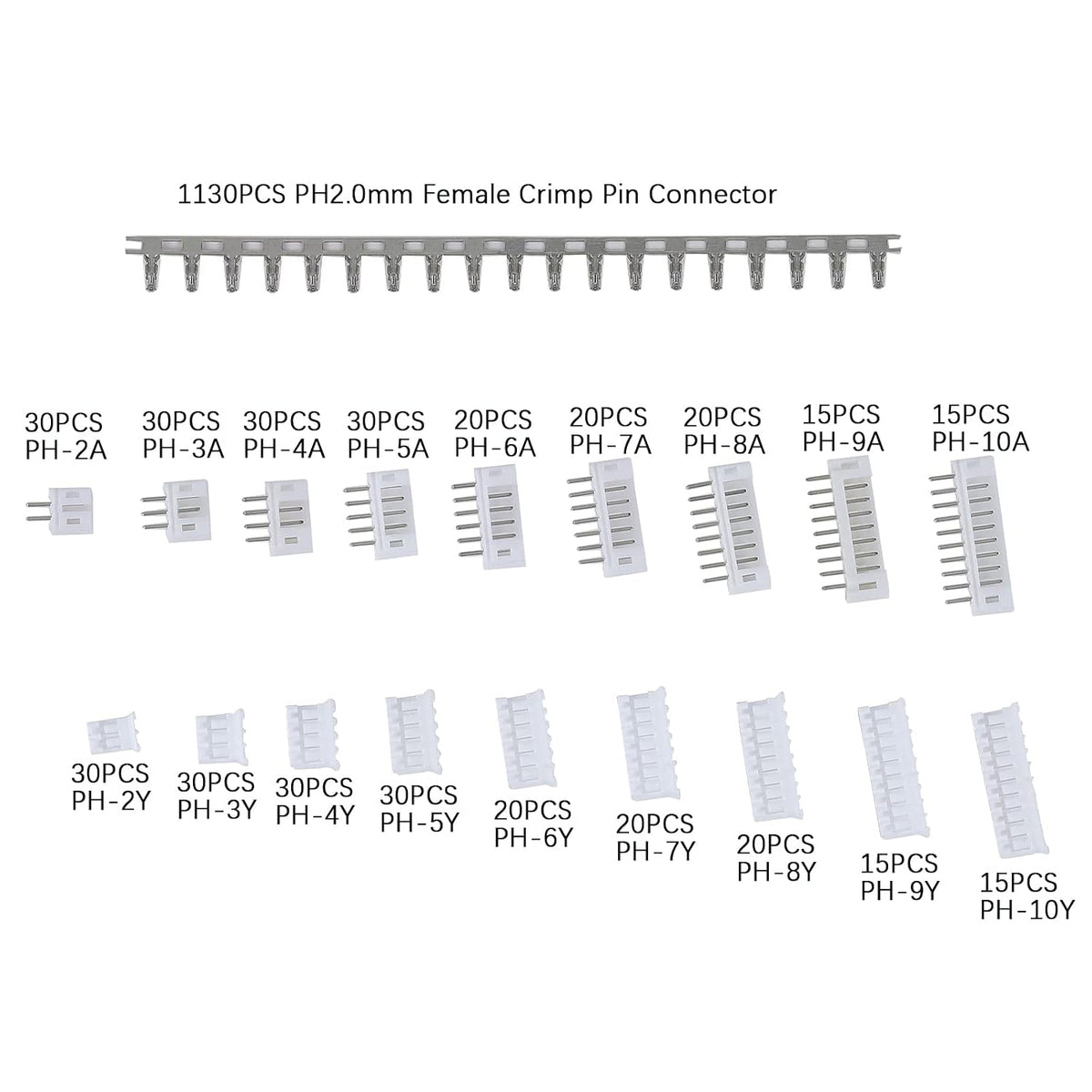

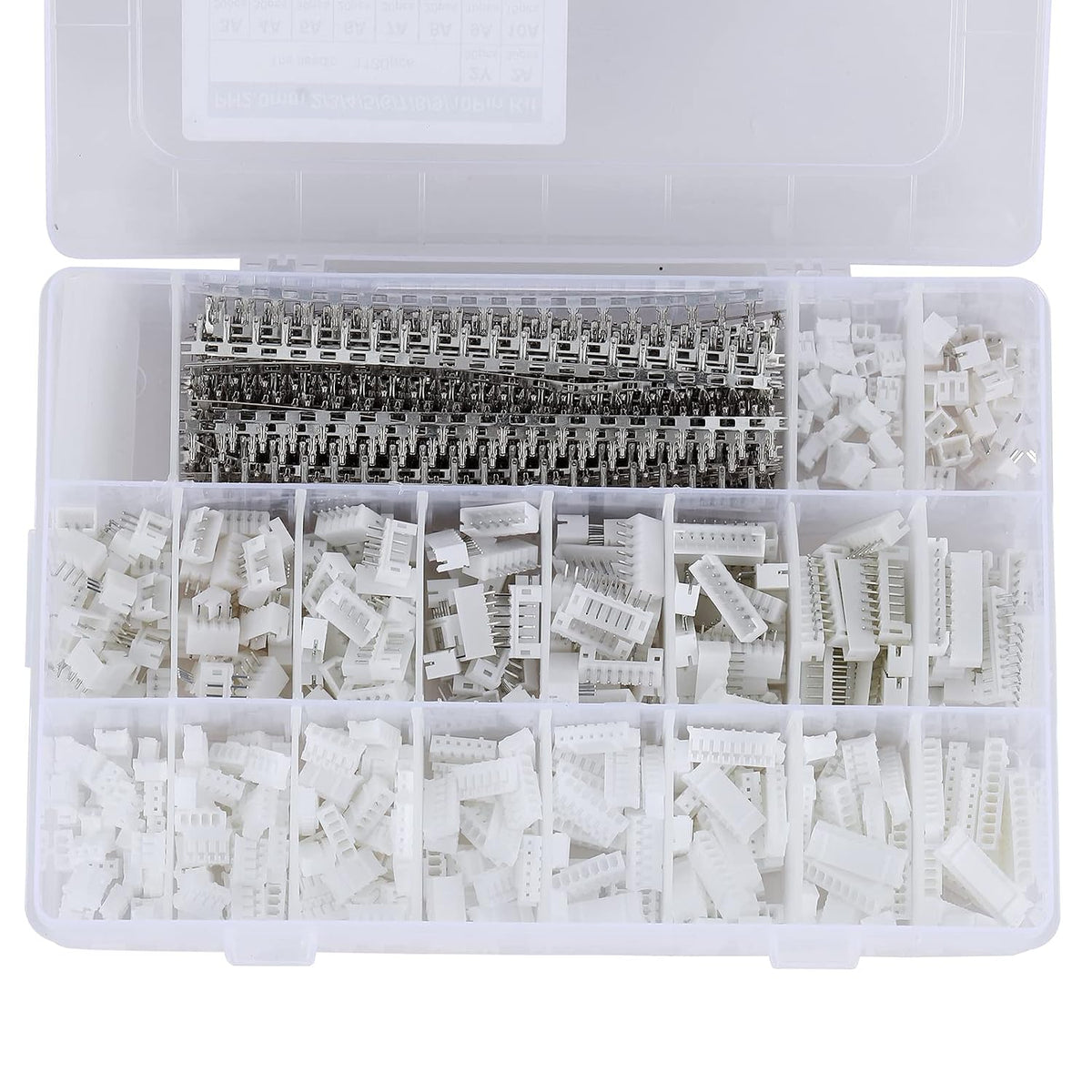

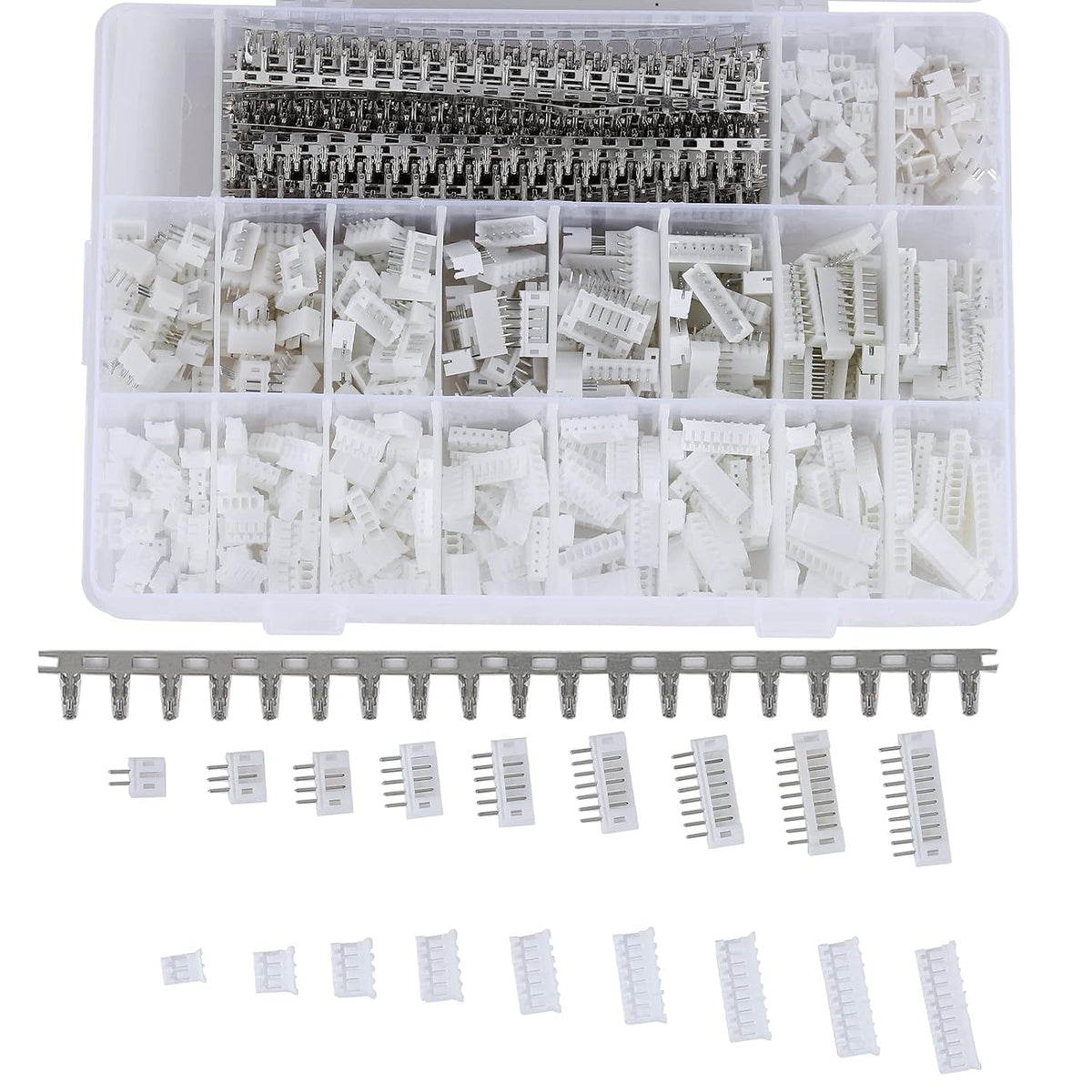

- There are a total of 1550 in the box, 2/3/4/5 pin male and female housings each 30pcs, 6/7/8 pin male and female housings each 20pcs, 9/10 pin male and female housings each 15pcs, and 1130 female header pins.
- Pins Pitch: 2.0mm; Material: PVC, Metal. The JST PH2.0mm connector kit has a pitch of 2.0mm, and the pins are firm and not easy to loosen.
- Made of durable nylon material. The inside of the connector is designed with tinned copper, which has good conductivity and long service life.
- Just put the terminals in the crimping tool and press them so that the insulating shell of the connector is facing the wire, which is very convenient for your installation.
- Widely used in speakers, monitors, household appliances, LED lighting, copiers, fax machines, medical equipment, computers, electronic toys, batteries, circuit boards, Arduino mkr1010, MKR ZERO and MKR VIDOR 4000 lipo socket and tiny drone.

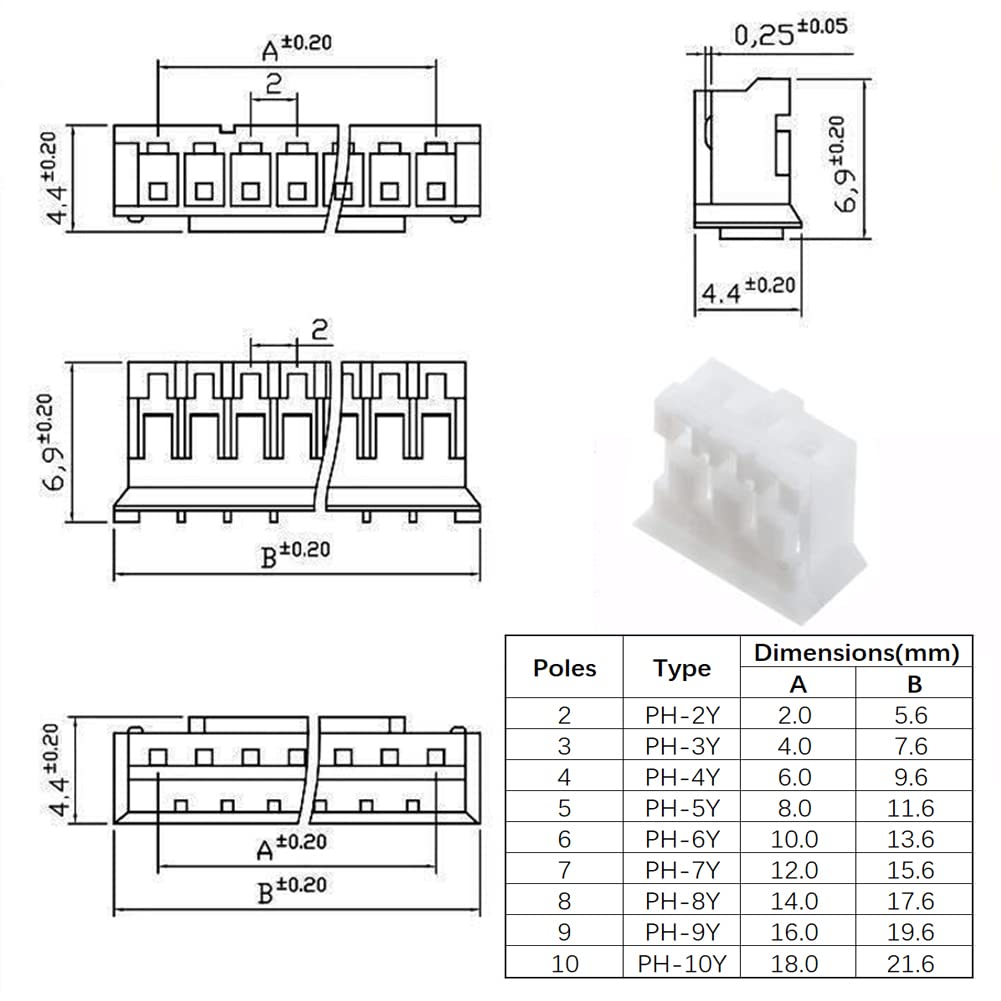

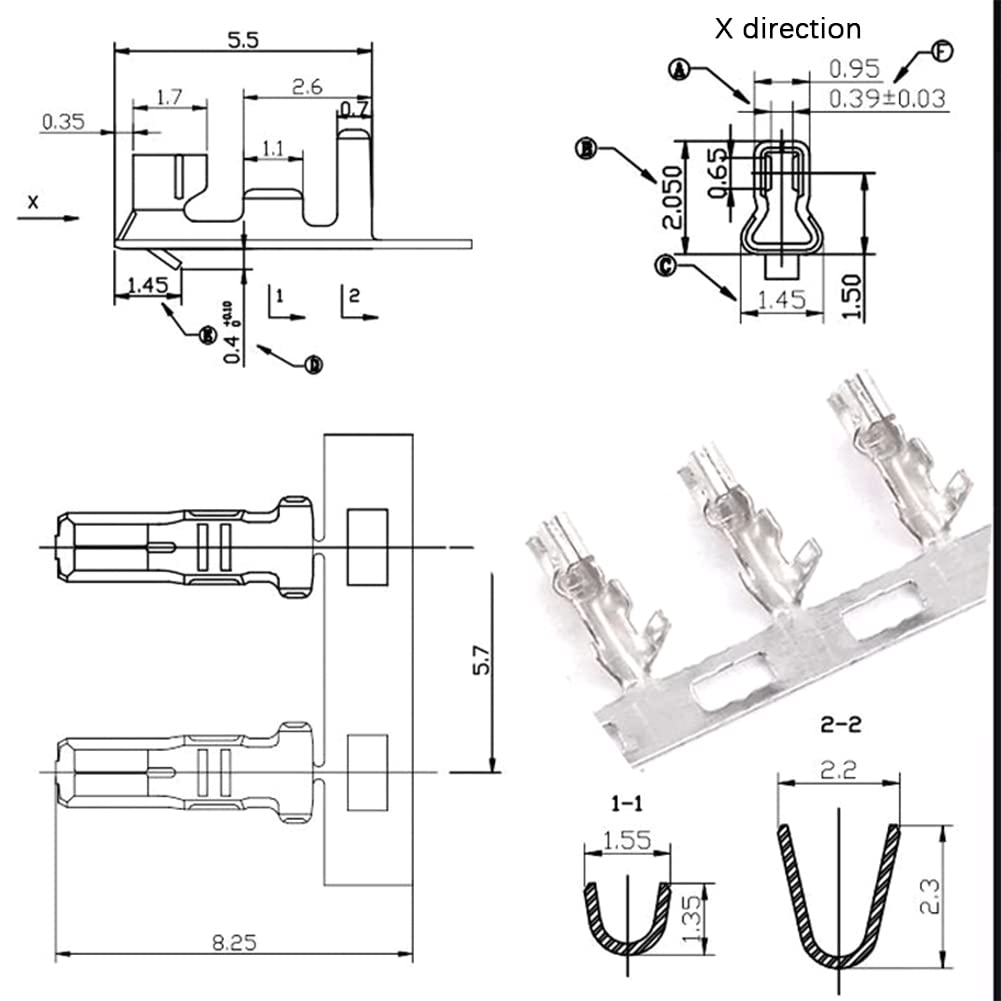

The JST PH2.0 connector plays the role of conducting current and connecting signal in electronic equipment. Connectors are easier for professional division of labor, parts replacement, troubleshooting and quick assembly. They are widely used in various equipments because of their stronger and more reliable features. Specifications: Pin Pitch: 2.0mm Base material: nylon Terminal material: phosphor bronze Socket material: brass Withstand voltage: 800V Rated current: 2A Contact Resistance: Initial value/10m Ohm max Temperature range: - 25~85 ℃ Applicable Wire: AWG 32 to 24 Applicable PC Board Thickness: 0.8 mm to 1.6 mm (0.03 inch to 0.06 inch) Package Content: JST 2.0mm PH-2 housing x 30Pcs JST 2.0mm PH-3 housing x 30Pcs JST 2.0mm PH-4 housing x 30Pcs JST 2.0mm PH-5 housing x 30Pcs JST 2.0mm PH-6 housing x 20Pcs JST 2.0mm PH-7 housing x 20Pcs JST 2.0mm PH-8 housing x 20Pcs JST 2.0mm PH-9 housing x 15Pcs JST 2.0mm PH-10 housing x 15Pcs JST PH 2.0mm B2B-PH-Athrough-hole type shrouded header x 30Pcs JST PH 2.0mm B3B-PH-Athrough-hole type shrouded header x 30Pcs JST PH 2.0mm B4B-PH-Athrough-hole type shrouded header x 30Pcs JST PH 2.0mm B5B-PH-Athrough-hole type shrouded header x 30P
Free shipping included. 30-day hassle-free returns.
