16Amp AC/DC 2x12 Position Terminal Block Distribution Module

16Amp AC/DC 2x12 Position Terminal Block Distribution Module

$19.99
$19.99 $27.99
Skip to product information
16Amp AC/DC 2x12 Position Terminal Block Distribution Module
  • 16Amp AC/DC 2x12 Position Terminal Block Distribution Module
  • 16Amp AC/DC 2x12 Position Terminal Block Distribution Module
  • 16Amp AC/DC 2x12 Position Terminal Block Distribution Module
  • 16Amp AC/DC 2x12 Position Terminal Block Distribution Module
  • 16Amp AC/DC 2x12 Position Terminal Block Distribution Module
  • 16Amp AC/DC 2x12 Position Terminal Block Distribution Module
  • 16Amp AC/DC 2x12 Position Terminal Block Distribution Module
  • 16Amp AC/DC 2x12 Position Terminal Block Distribution Module
  • 16Amp AC/DC 2x12 Position Terminal Block Distribution Module
  • 16Amp AC/DC 2x12 Position Terminal Block Distribution Module
  • 16Amp AC/DC 2x12 Position Terminal Block Distribution Module
  • 16Amp AC/DC 2x12 Position Terminal Block Distribution Module
16Amp AC/DC 2x12 Position Terminal Block Distribution Module

16Amp AC/DC 2x12 Position Terminal Block Distribution Module

$19.99
$19.99 $27.99
FREE shipping on this itemShips from West Long Branch, NJ. Typically arrives in 3–7 business days.
30-day returnsChanged your mind? Send it back within 30 days. Return policy
Secure checkoutQuestions? Call 1-888-460-3822 · Mon–Fri 9–5 ET

Key features

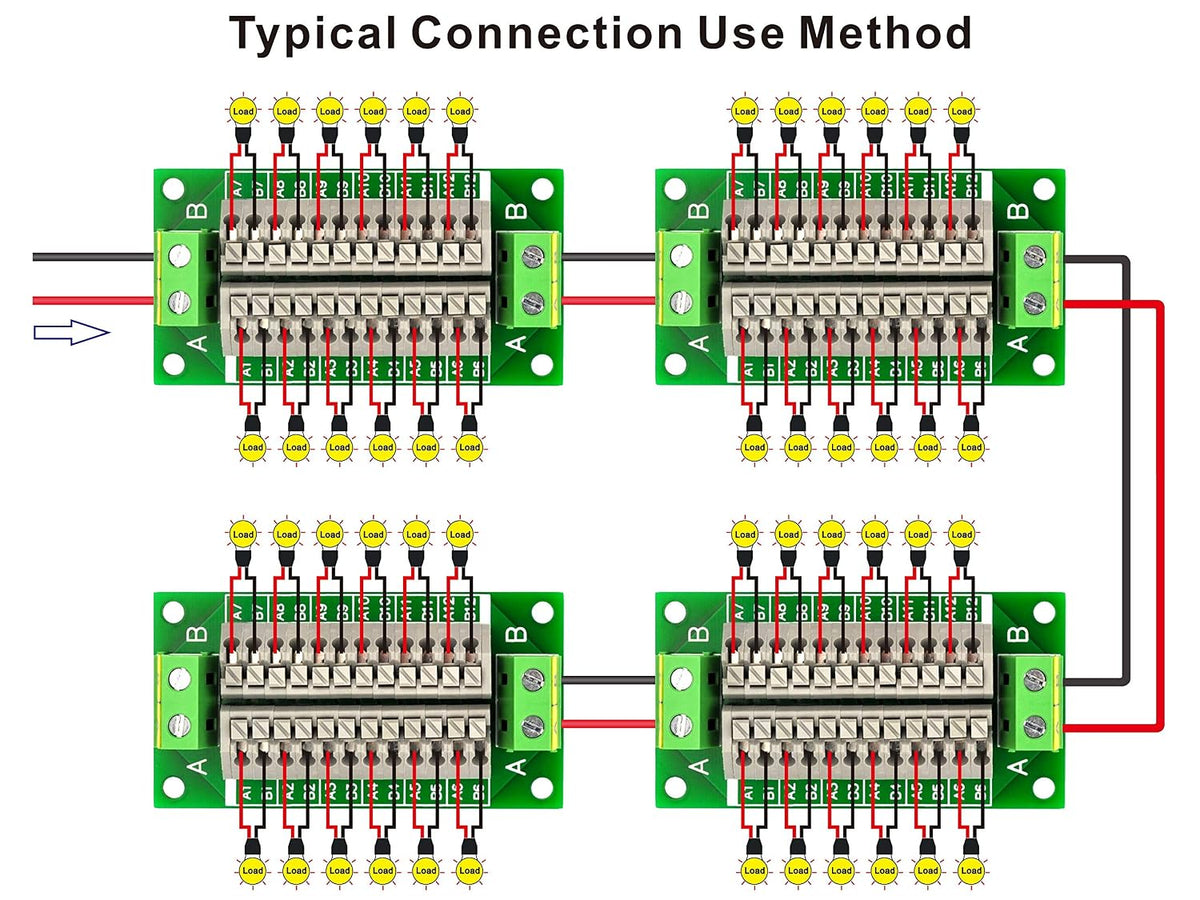

  • 16Amp 48V 2x12 position terminal block distribution module. Support for multiple module extension connections.
  • Rated current 16 Amp(total input or output), Maximum voltage 48V AC or DC.

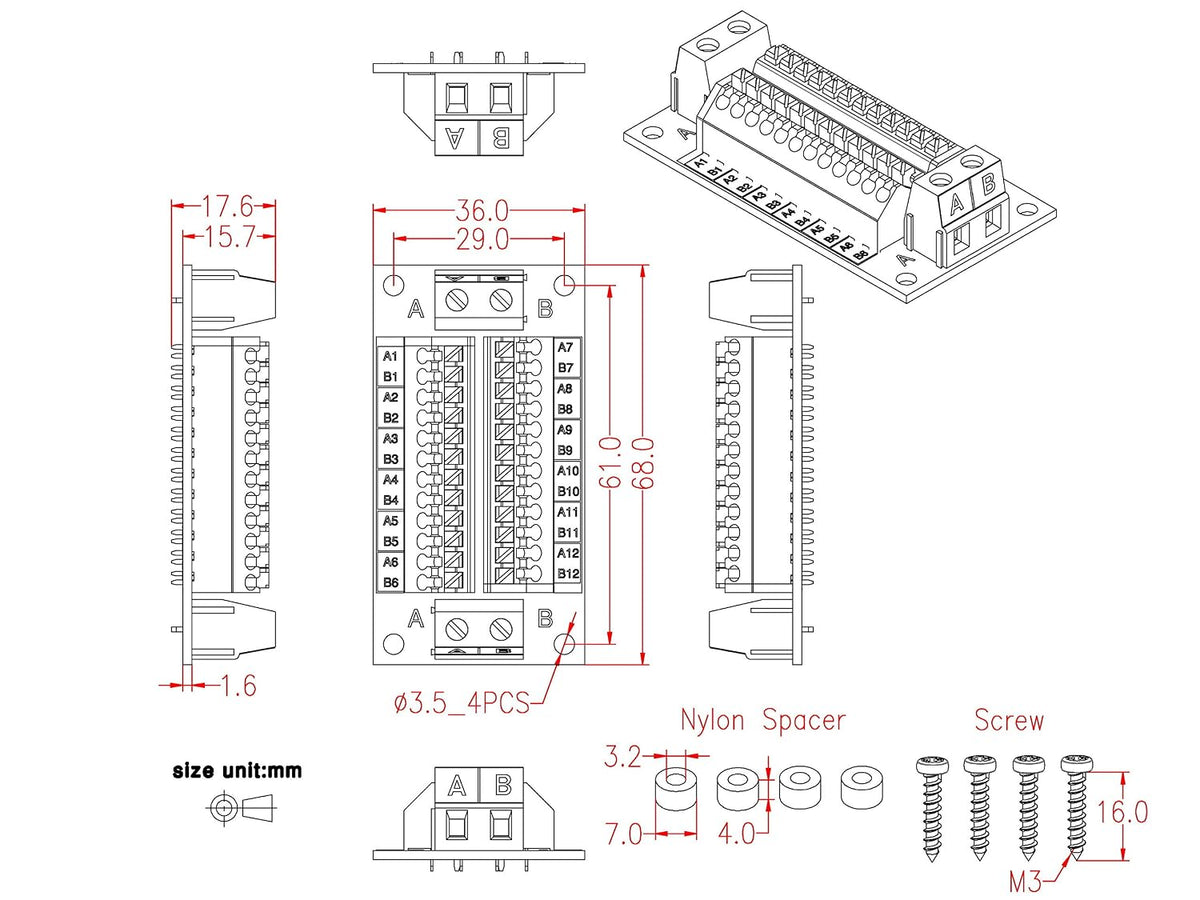

  • A / B Screw terminal blocks, Pitch 7.5mm/0.295", Wire range 26AWG ~ 12AWG / 2.5mm square. Rated current 16 Amp. Strip length 7mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.

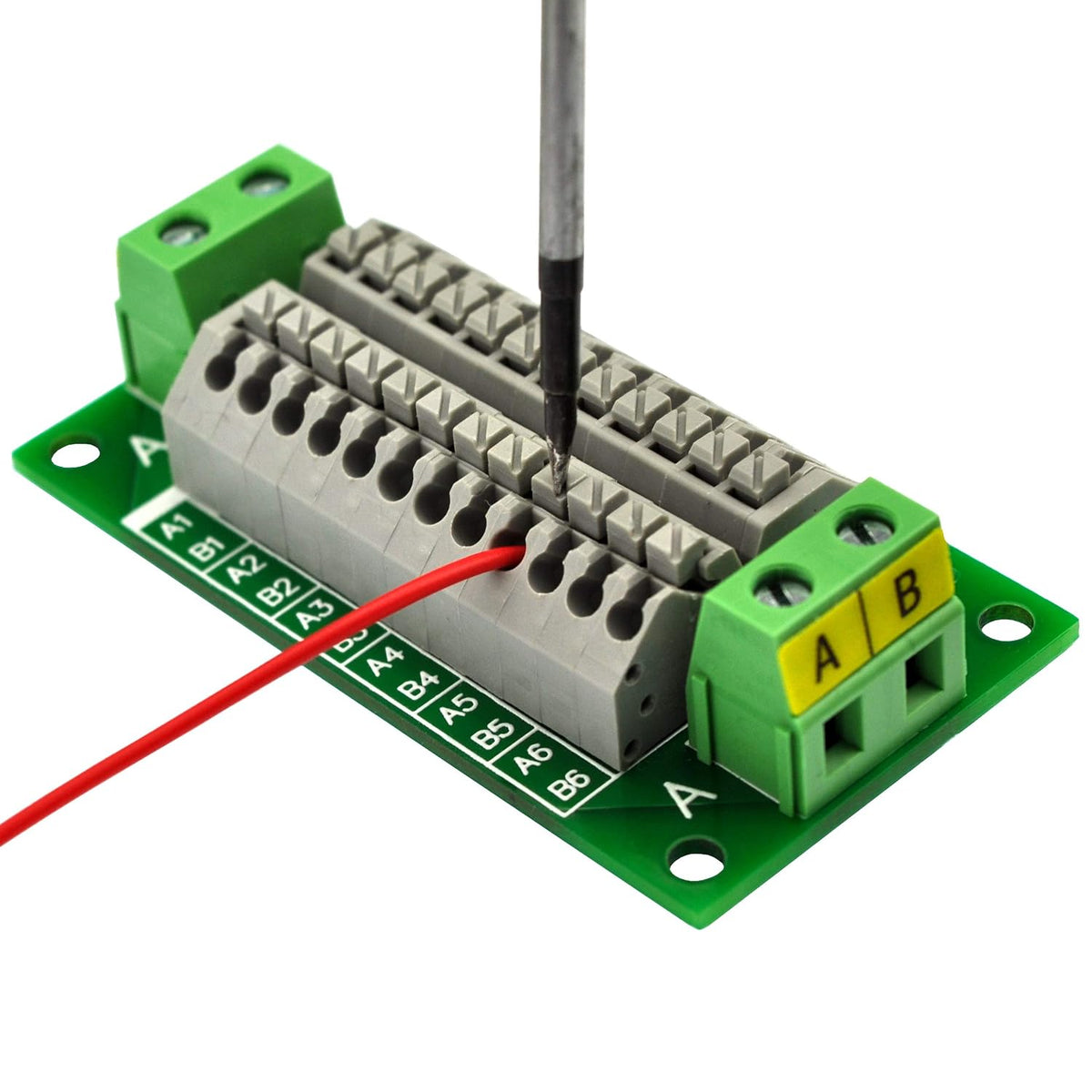

  • A1~B6 / A7~B12 Screwless terminal blocks, Pitch 3.5mm/0.138", Wire range 26AWG ~ 20AWG / 0.75mm square. Rated current 2 Amp(for each positon). Strip length 8mm. For the screwless terminals, you can use your fingers or a screwdriver to press the top button, then fill the wire conductor into the hole and release the button, which is very convenient.
  • UL CE CQC certified terminal blocks, FR-4 glass fiber PCB.

Free shipping included. 30-day hassle-free returns.
