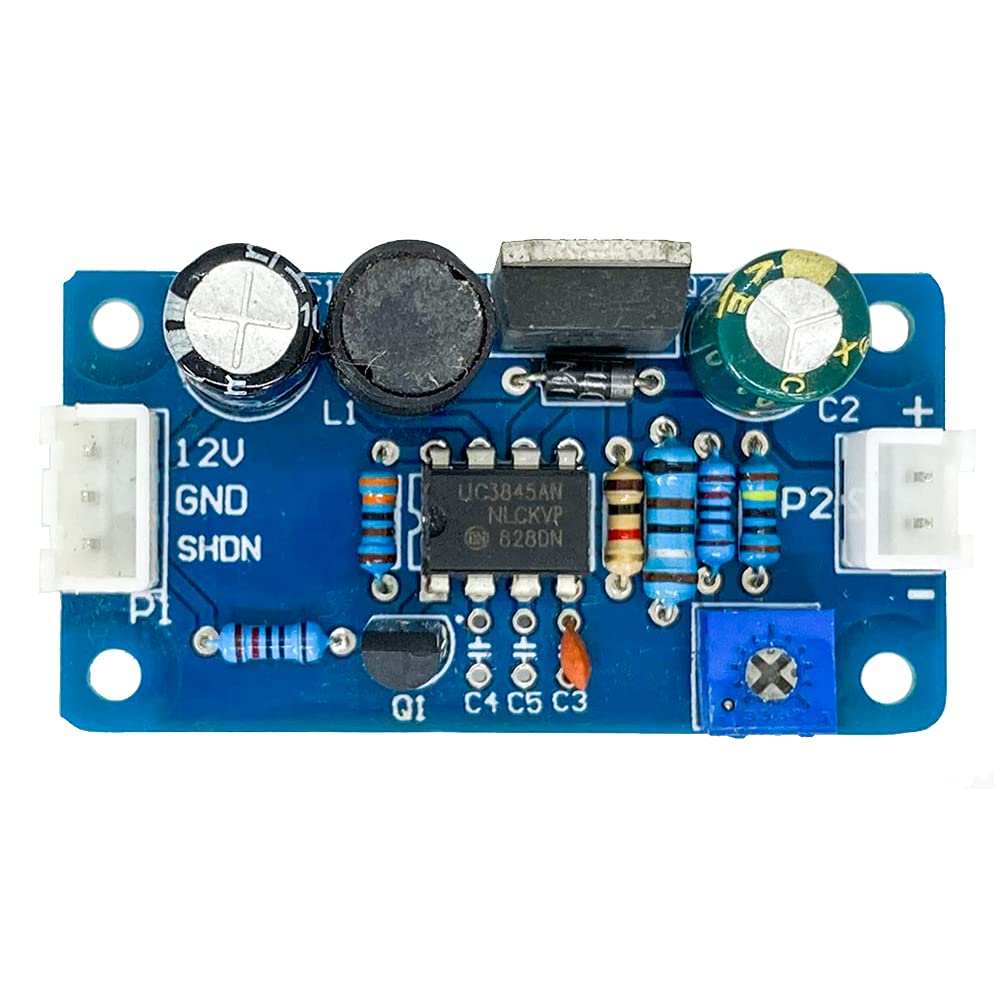

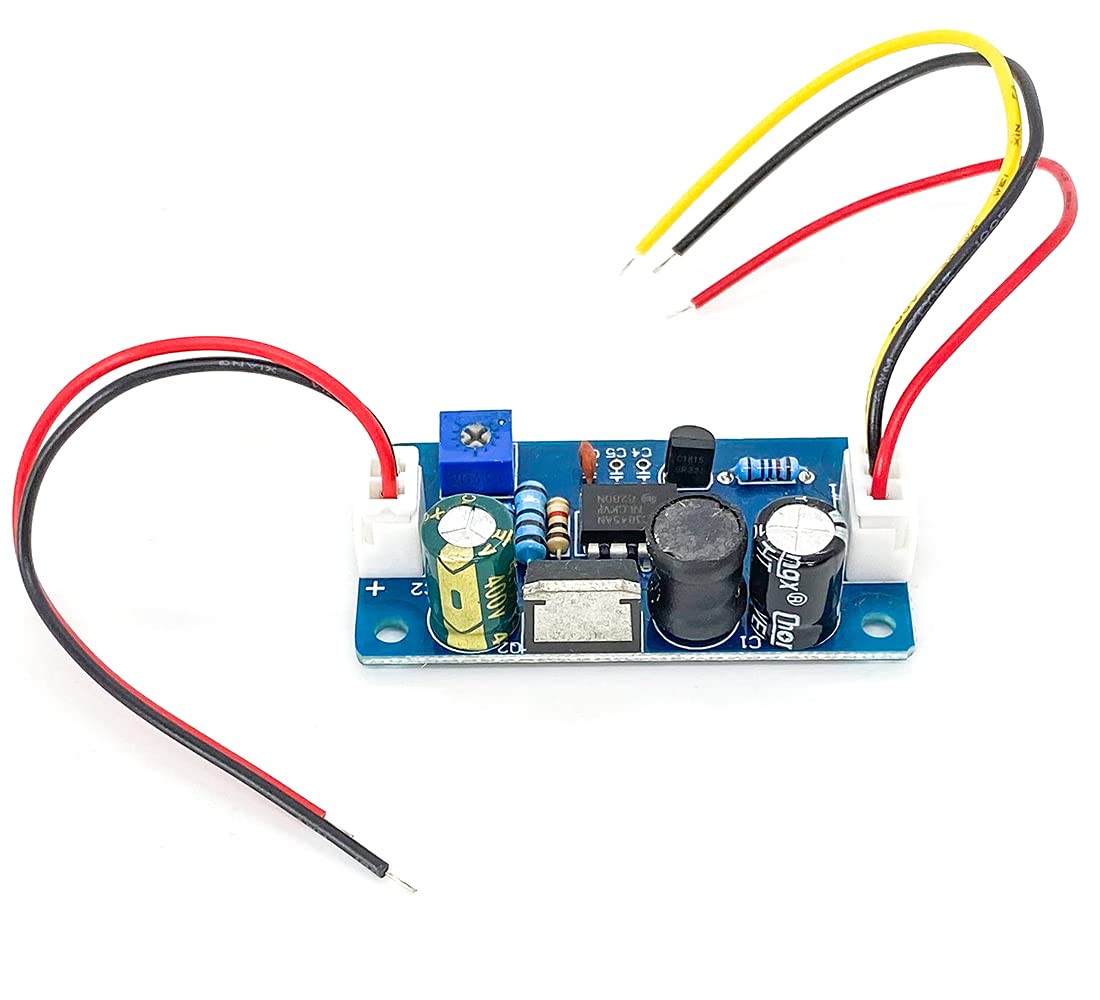

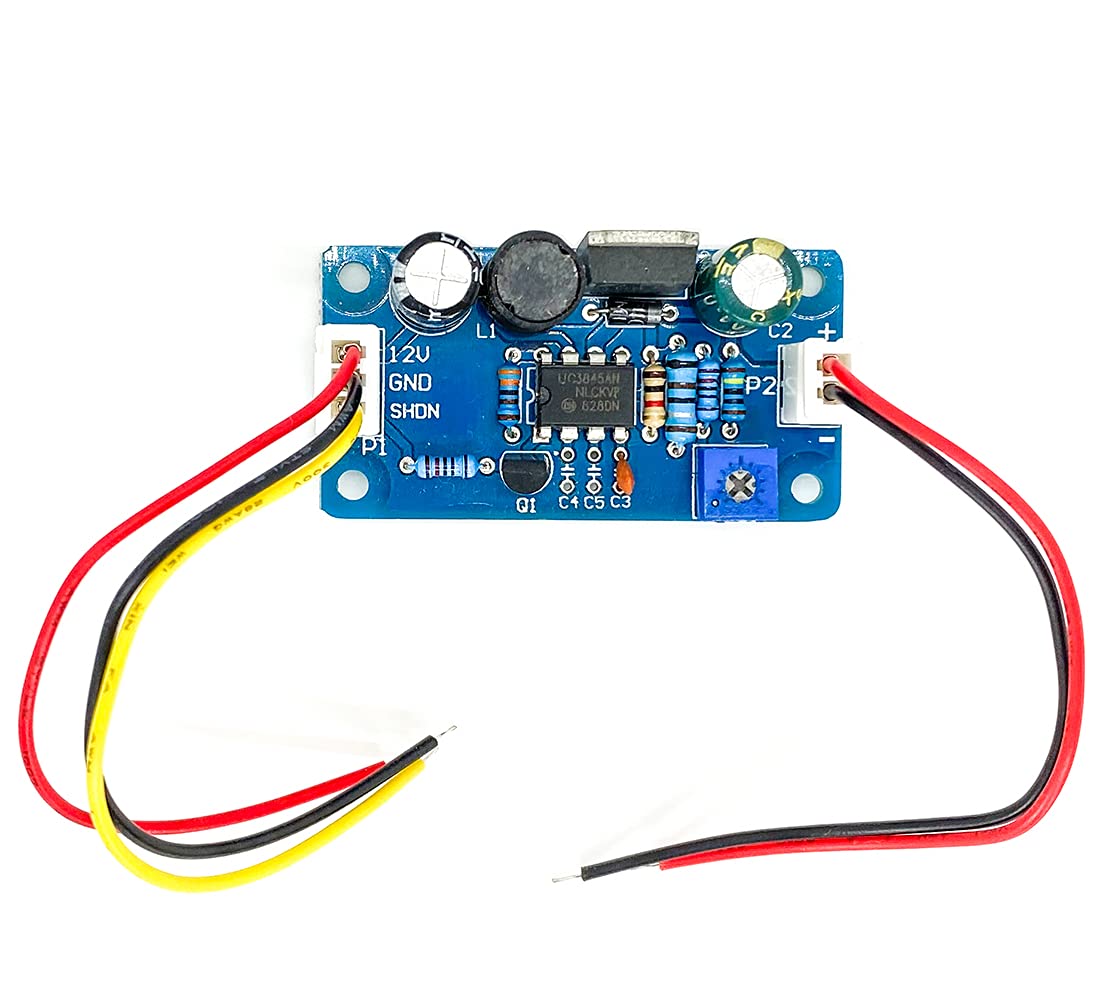

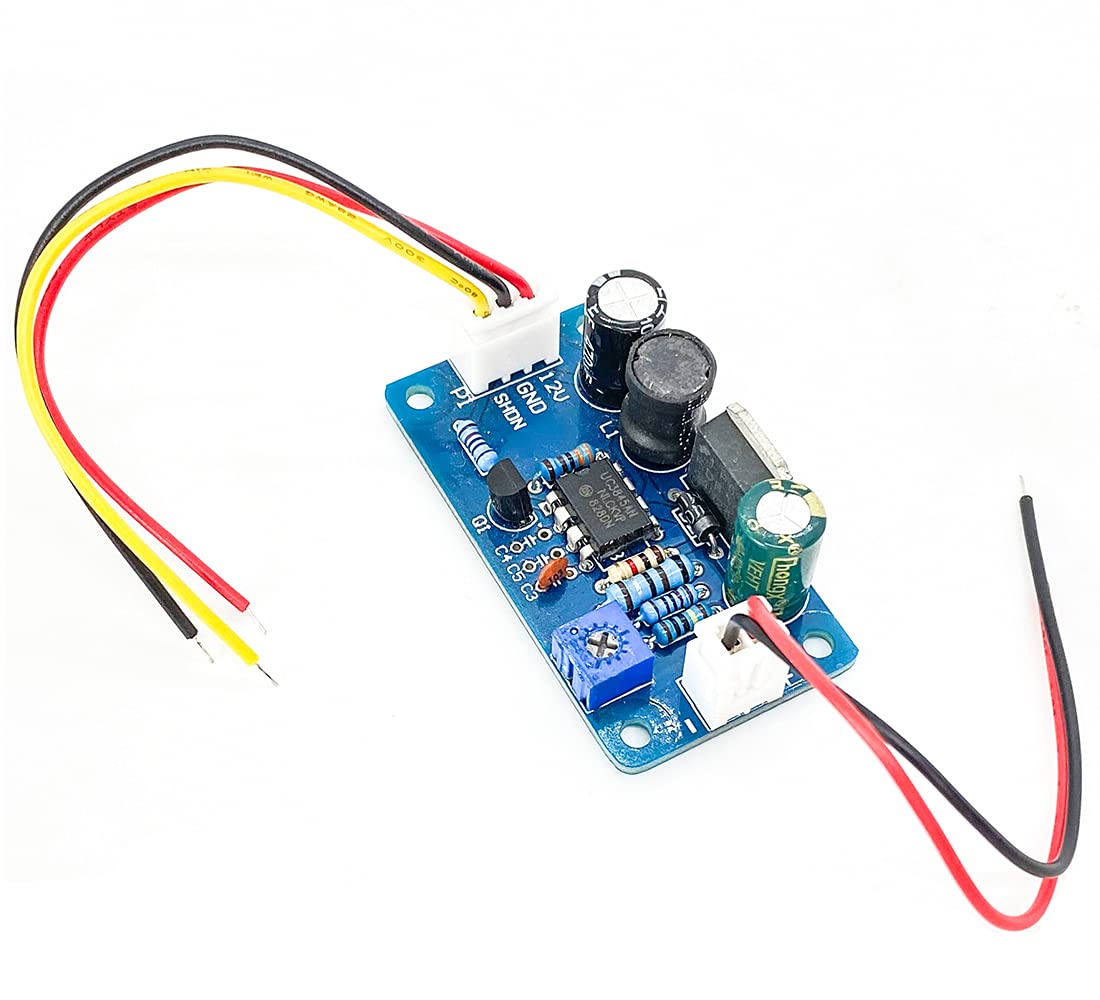

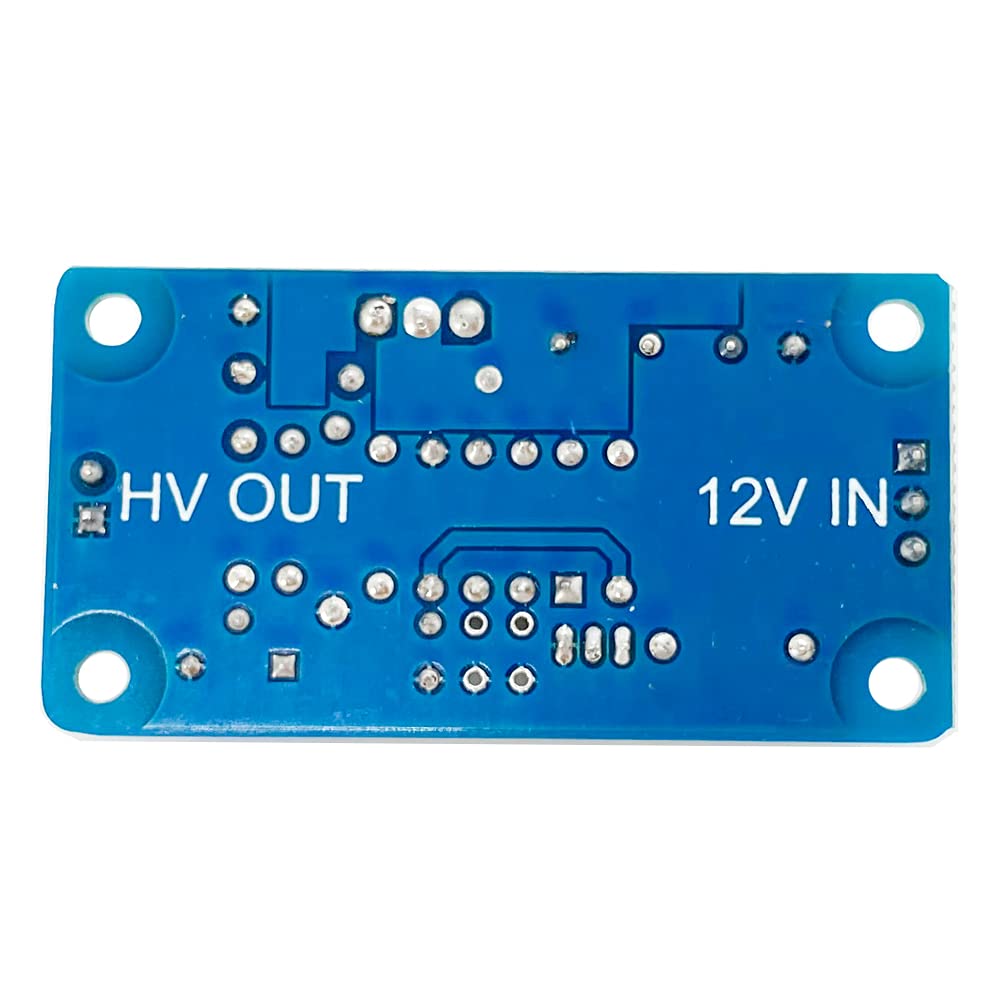

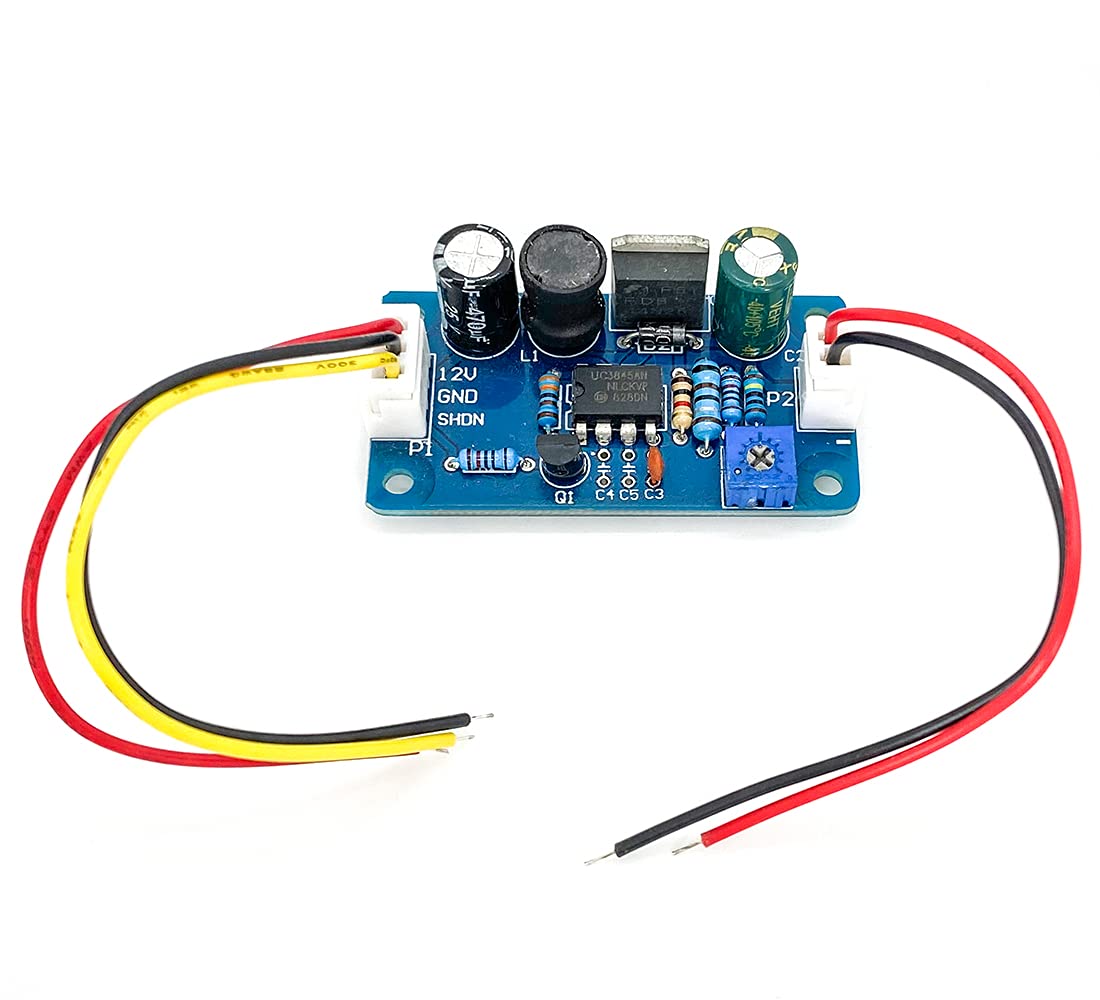

170V DC High Voltage Power Supply Module Boost Converter, Blue

170V DC High Voltage Power Supply Module Boost Converter, Blue

$19.99
$19.99 $27.99
Skip to product information
170V DC High Voltage Power Supply Module Boost Converter, Blue
  • 170V DC High Voltage Power Supply Module Boost Converter, Blue
  • 170V DC High Voltage Power Supply Module Boost Converter, Blue
  • 170V DC High Voltage Power Supply Module Boost Converter, Blue
  • 170V DC High Voltage Power Supply Module Boost Converter, Blue
  • 170V DC High Voltage Power Supply Module Boost Converter, Blue
  • 170V DC High Voltage Power Supply Module Boost Converter, Blue
170V DC High Voltage Power Supply Module Boost Converter, Blue

170V DC High Voltage Power Supply Module Boost Converter, Blue

$19.99
$19.99 $27.99
FREE shipping on orders $50+· add $30.01 moreShips from West Long Branch, NJ. Typically arrives in 3–7 business days.
30-day returnsChanged your mind? Send it back within 30 days. Return policy
Secure checkoutQuestions? Call 1-888-460-3822 · Mon–Fri 9–5 ET

Key features

  • DC-DC boost power supply module, 3845 scheme, widely used in Nixie tubes, Nixie tube clock, Vacuum tubes 6E2, 6E1, 6E5 audio level indication.
  • Input voltage 10-24V, output voltage 90V-250V adjustable. Easily drive more than 10pcs vacuum tubes. Low heat, no need to add heat sink.
  • The higher the output voltage, the lower the output power and the lower the efficiency. When the output voltage is 170V, the maximum output current is 25mA.
  • With the shutdown function, the SHUT pin through the MCU connected to the high level off the booster board, if not use, Vacant or connect to GND.
  • Module Size: 5.0x3.0x1.9cm/1.96x1.18x0.74inch.

Free shipping included. 30-day hassle-free returns.
