2-in-1 Mini Pneumatic Chamfer Tool, 45° Metal Beveling Machine

Key features

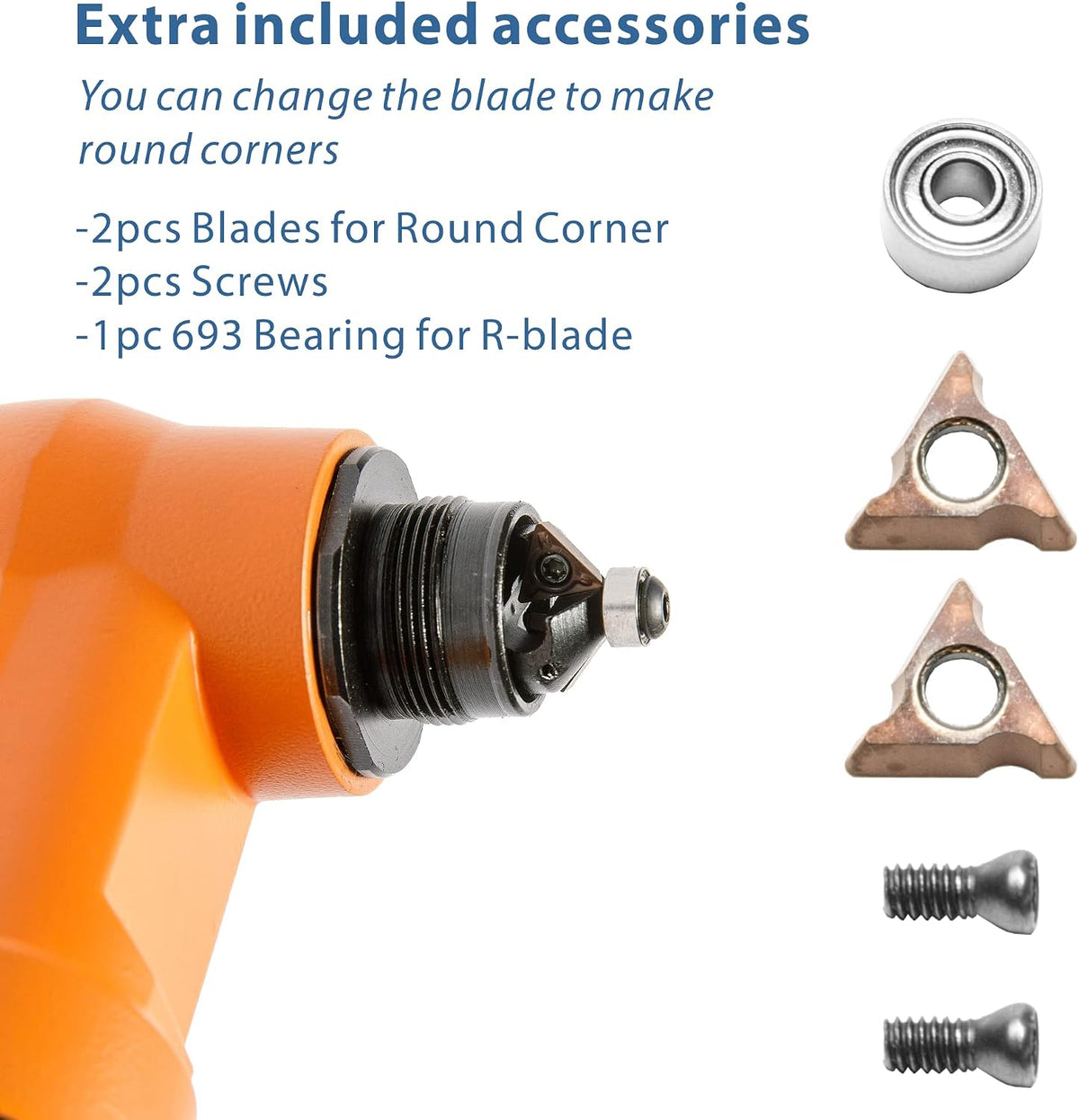

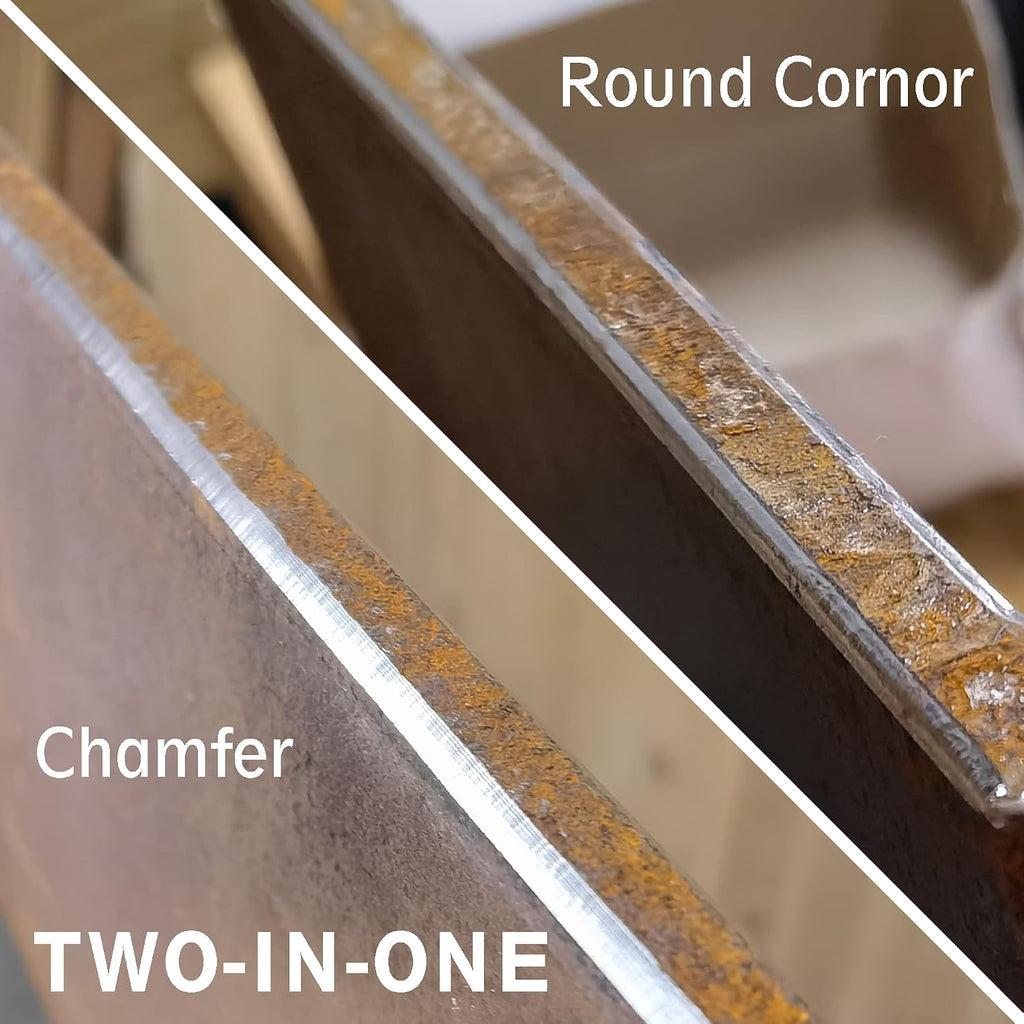

• 2-IN-1 EDGE FINISHING – Change between straight-edge chamfering and rounded-corner finishing by switching C-angle and R-angle inserts for metal beveling, trimming and deburring
• SMOOTH, LOW-VIBRATION CUTTING – The 20,000 RPM pneumatic motor delivers efficient and consistent cutting on compatible carbon-steel workpieces with reduced vibration
• ADJUSTABLE CHAMFER CAPACITY – Handles C0.1–C1.5 mm straight chamfers and R0.1–R1.5 mm rounded corners, with an adjustable cutting depth from 0.1 to 0.9 mm

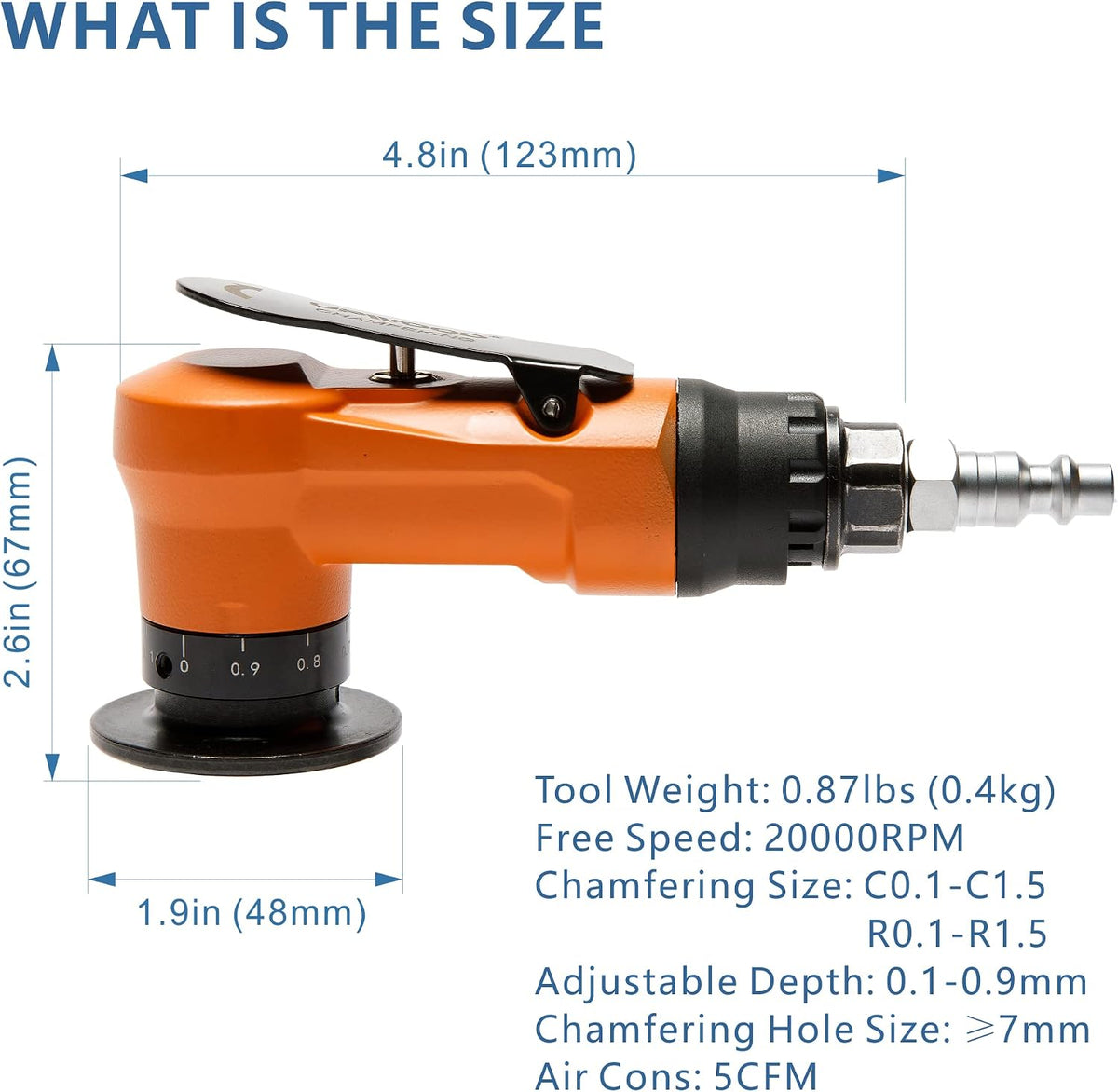

• COMPACT PNEUMATIC DESIGN – Weighs approximately 0.9 lb, operates at up to 20,000 RPM and requires 140 L/min airflow through a 1/4-inch PT air inlet. Air compressor required

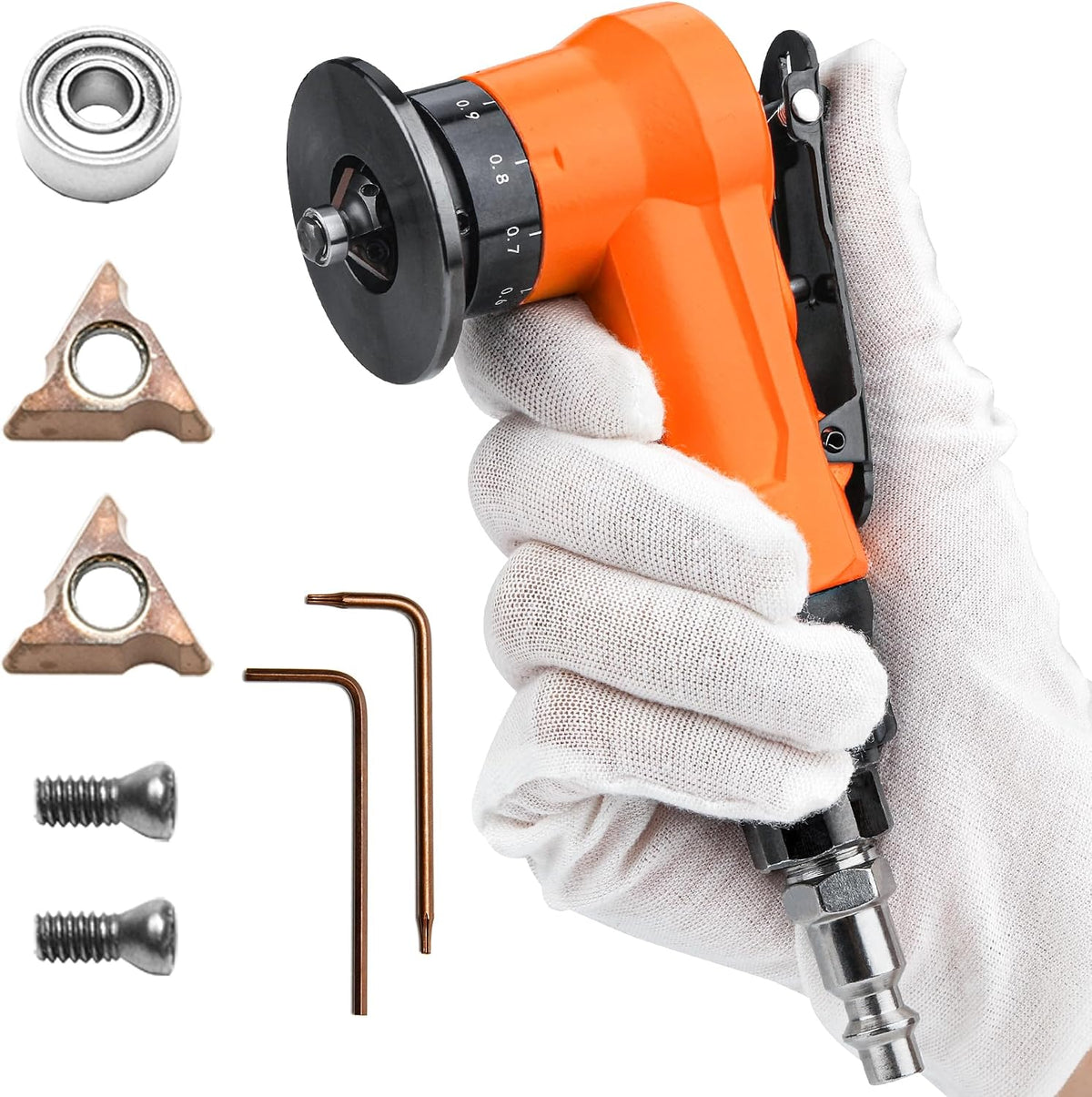

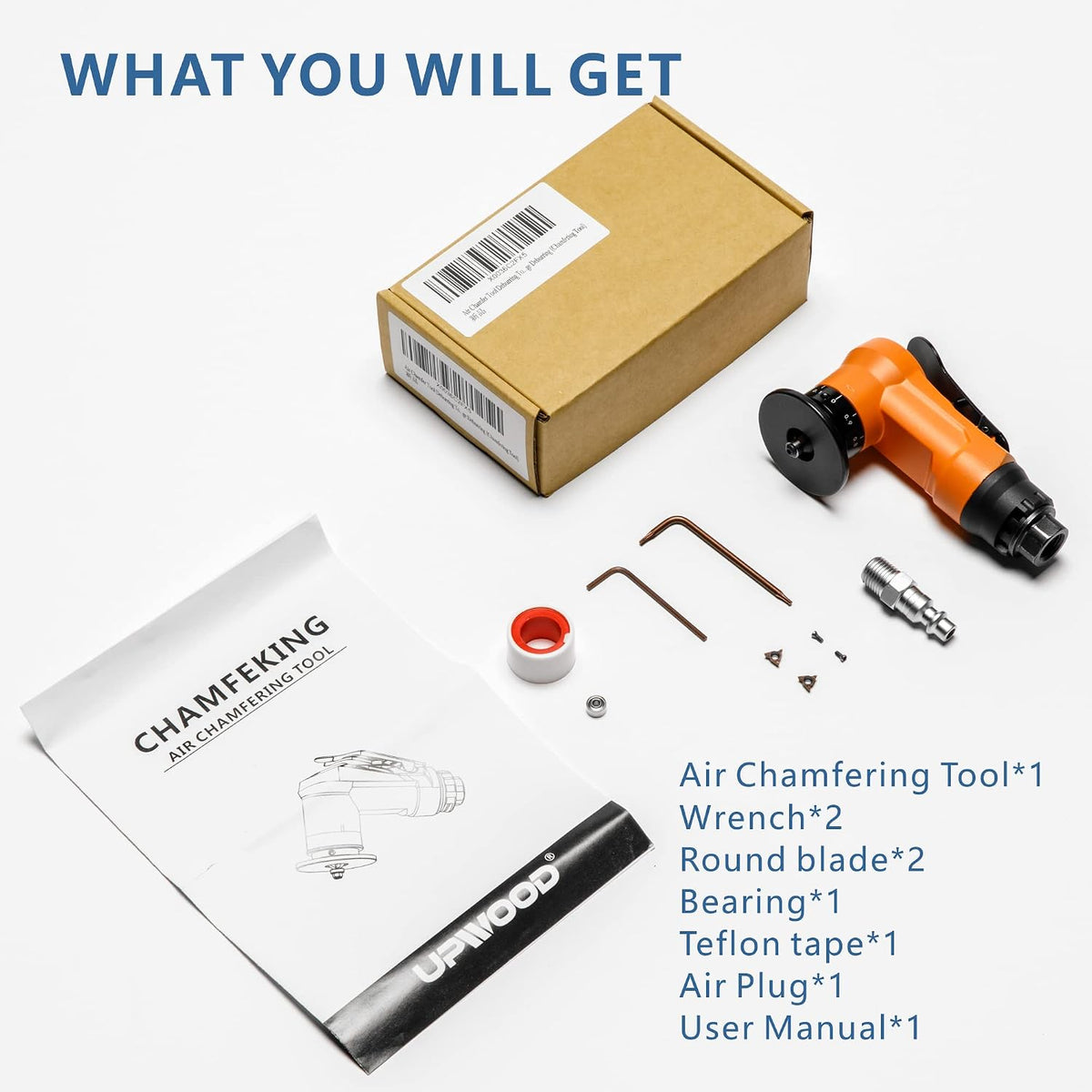

• PACKAGE CONTENTS – Includes one pneumatic chamfer tool, one guide bearing, two ARC insert blades, two wrenches and one air plug for setup and routine insert changes

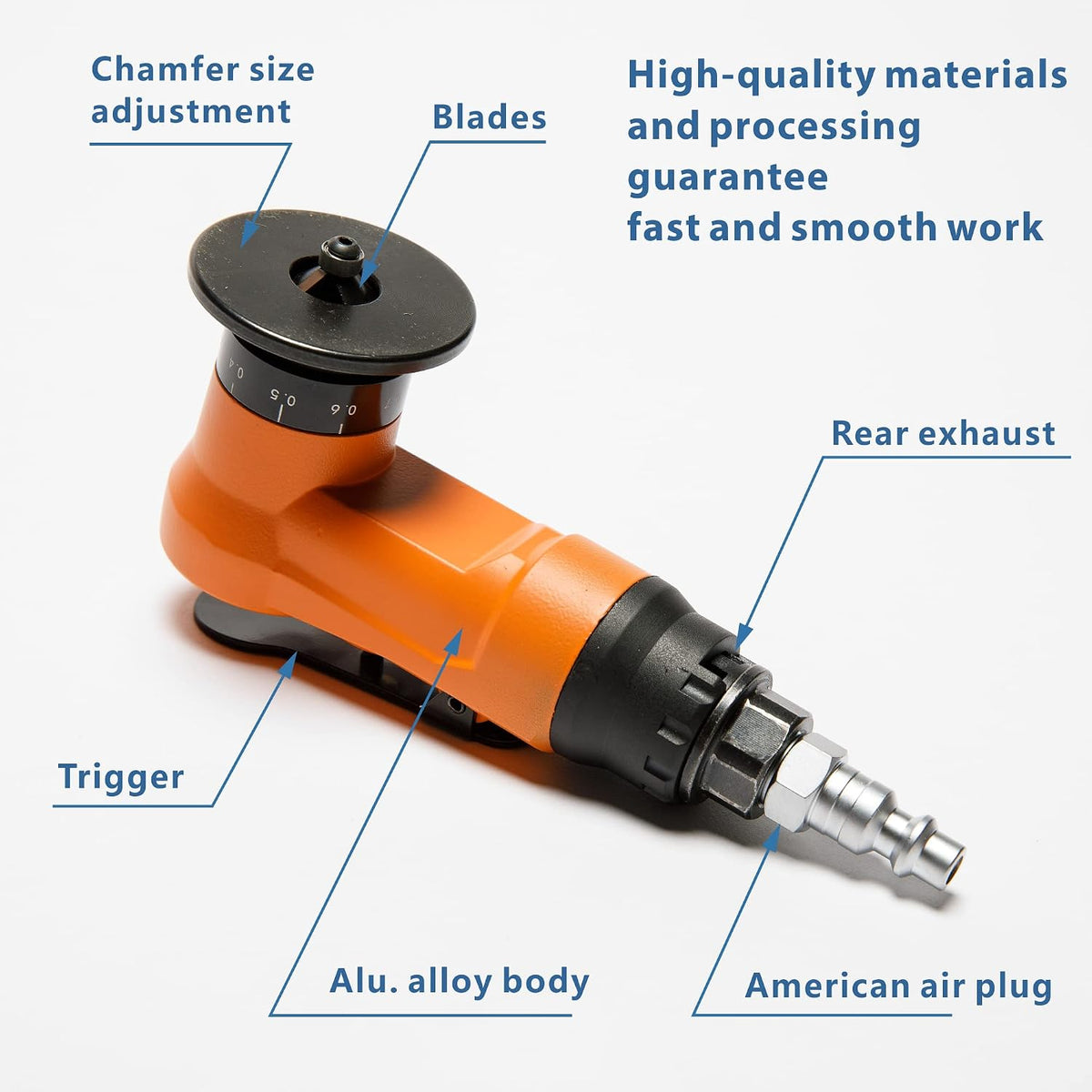

The UPWOOD 2-in-1 Mini Pneumatic Chamfer Tool is designed for straight-edge chamfering and rounded-corner finishing on compatible metal workpieces. By changing between C-angle and R-angle inserts, the tool can bevel sharp edges, create smooth rounded corners and assist with trimming and deburring during fabrication or repair work. Its 20,000 RPM pneumatic motor provides smooth cutting with low vibration, while the adjustable 0.1–0.9 mm cutting depth allows greater control over the finished edge. The tool supports C0.1–C1.5 mm chamfering and R0.1–R1.5 mm rounded-corner finishing. The compact 0.9 lb body is convenient for one-hand operation in workshops, fabrication environments and automotive applications. A compatible air compressor is required. The tool uses a 1/4-inch PT air inlet and requires approximately 140 L/min airflow. Package contents include the pneumatic chamfer tool, guide bearing, rounded-corner inserts, wrenches and air plug. Confirm that the selected insert and cutting range are suitable for the workpiece material before operation.
