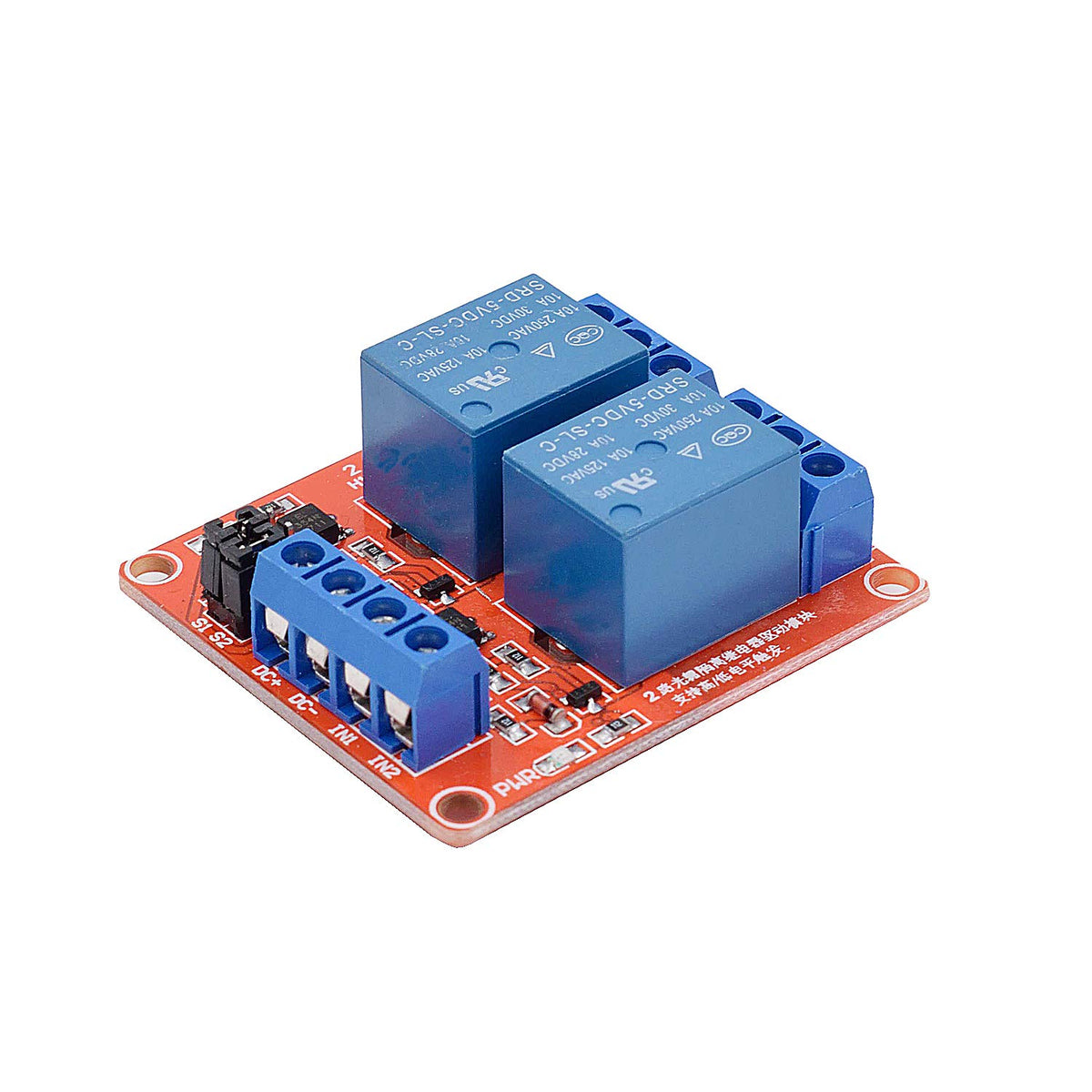

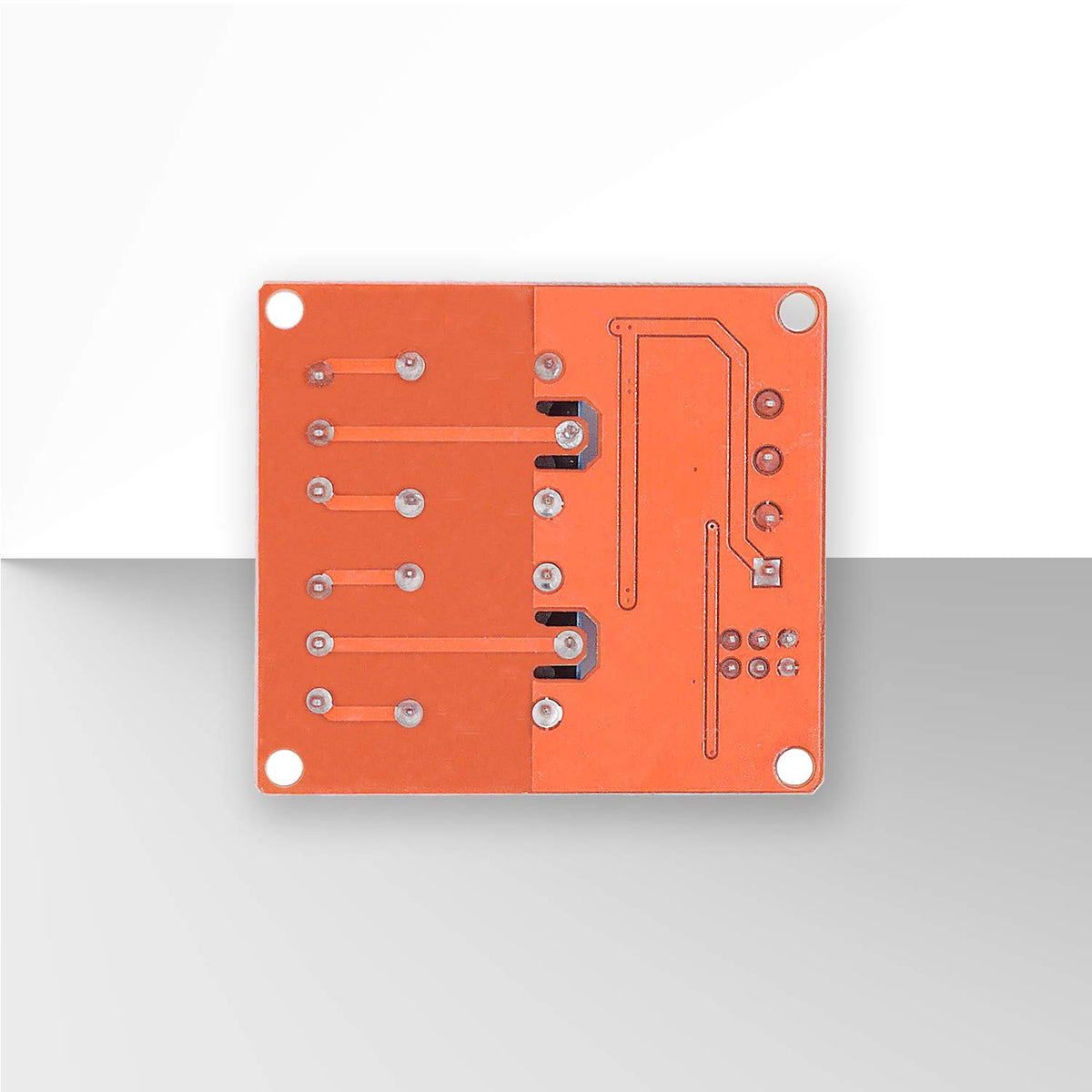

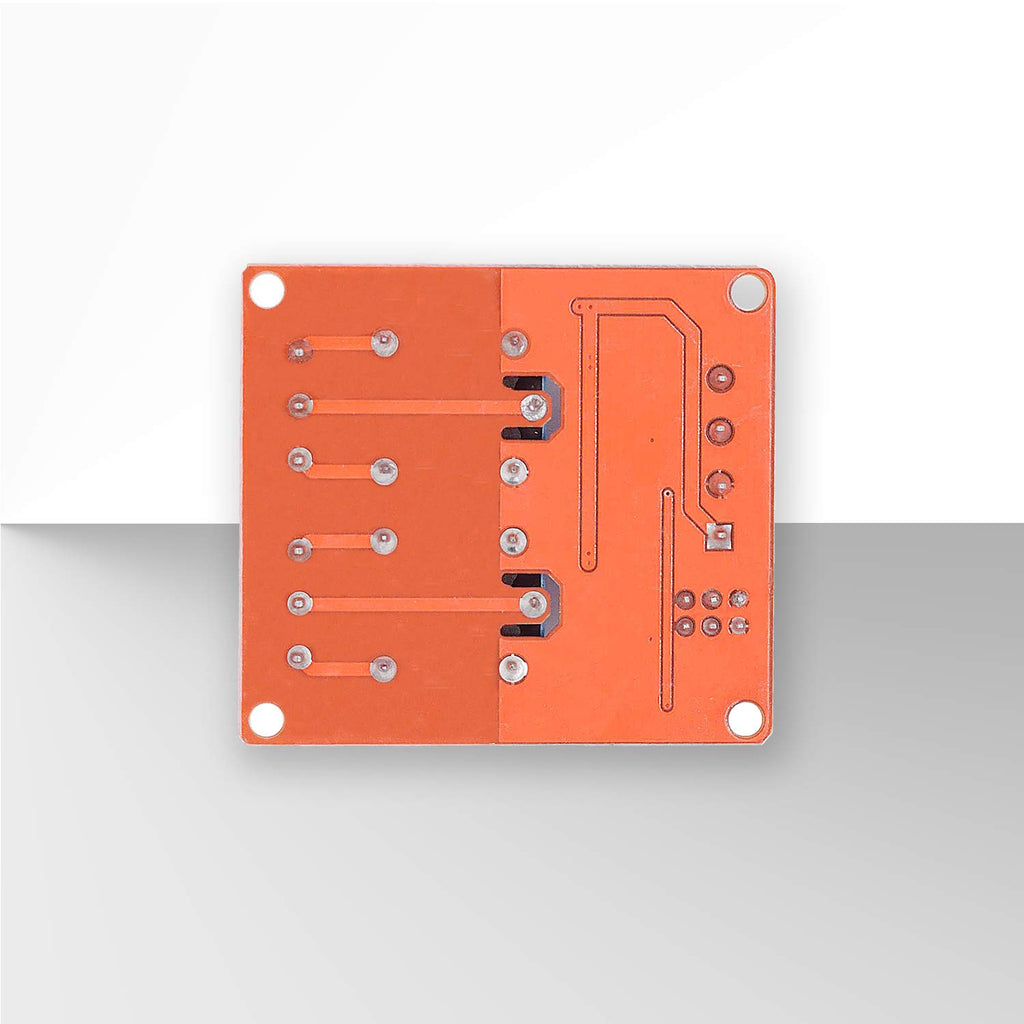

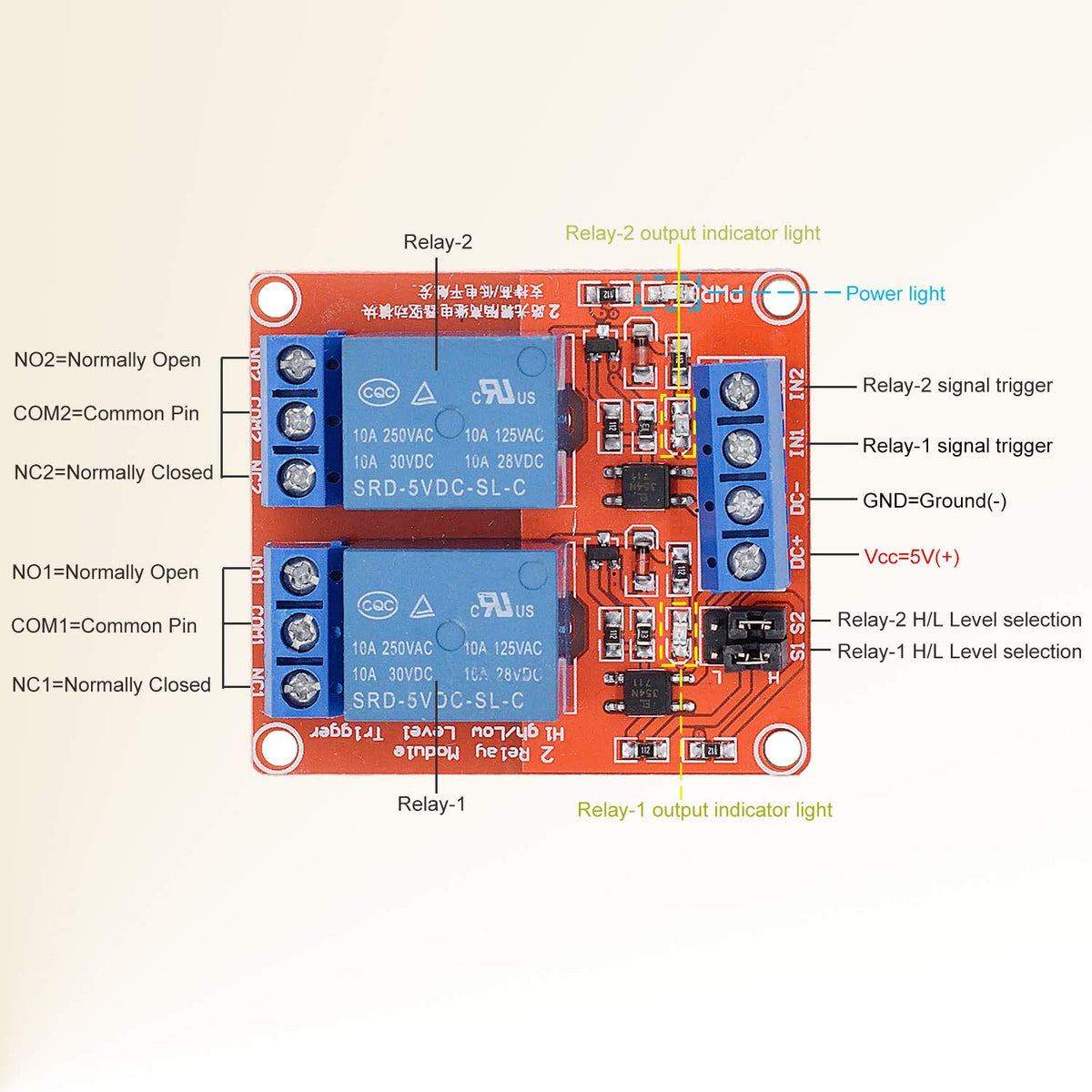

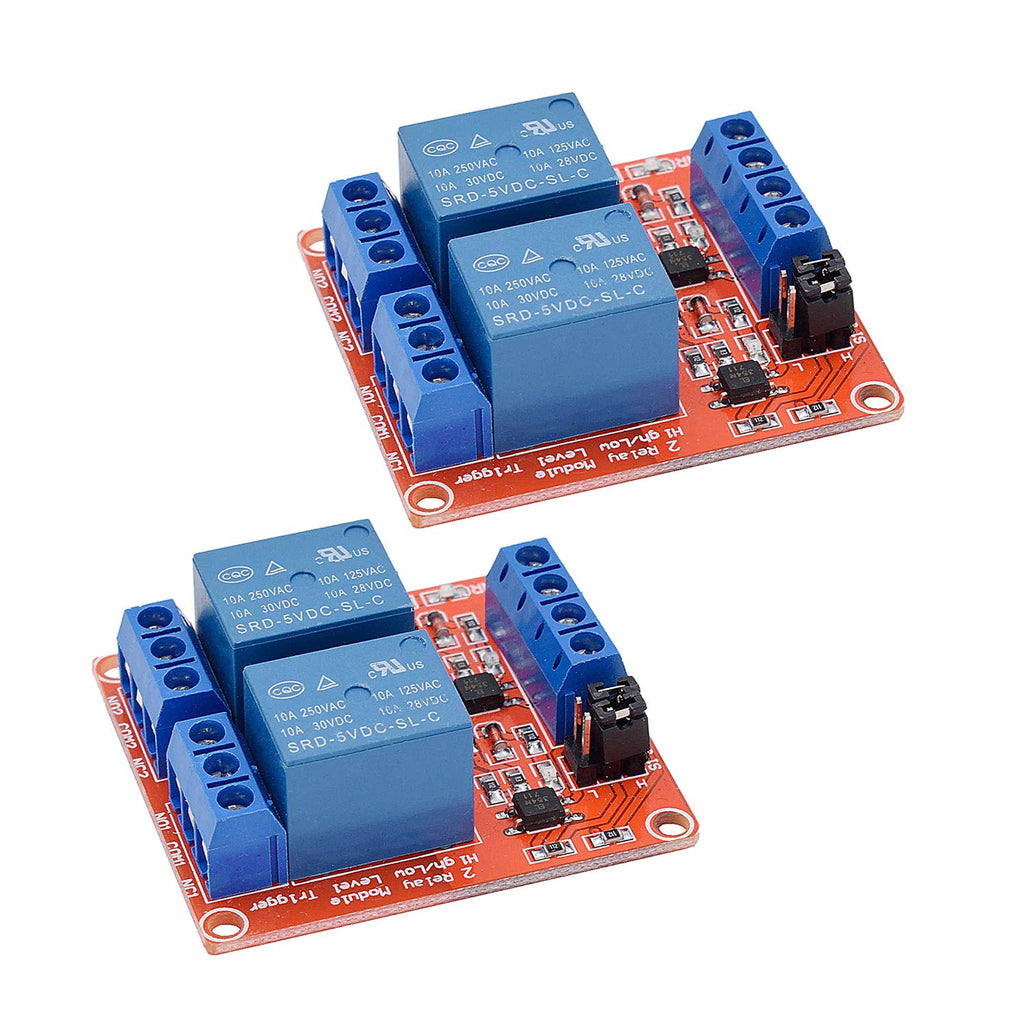

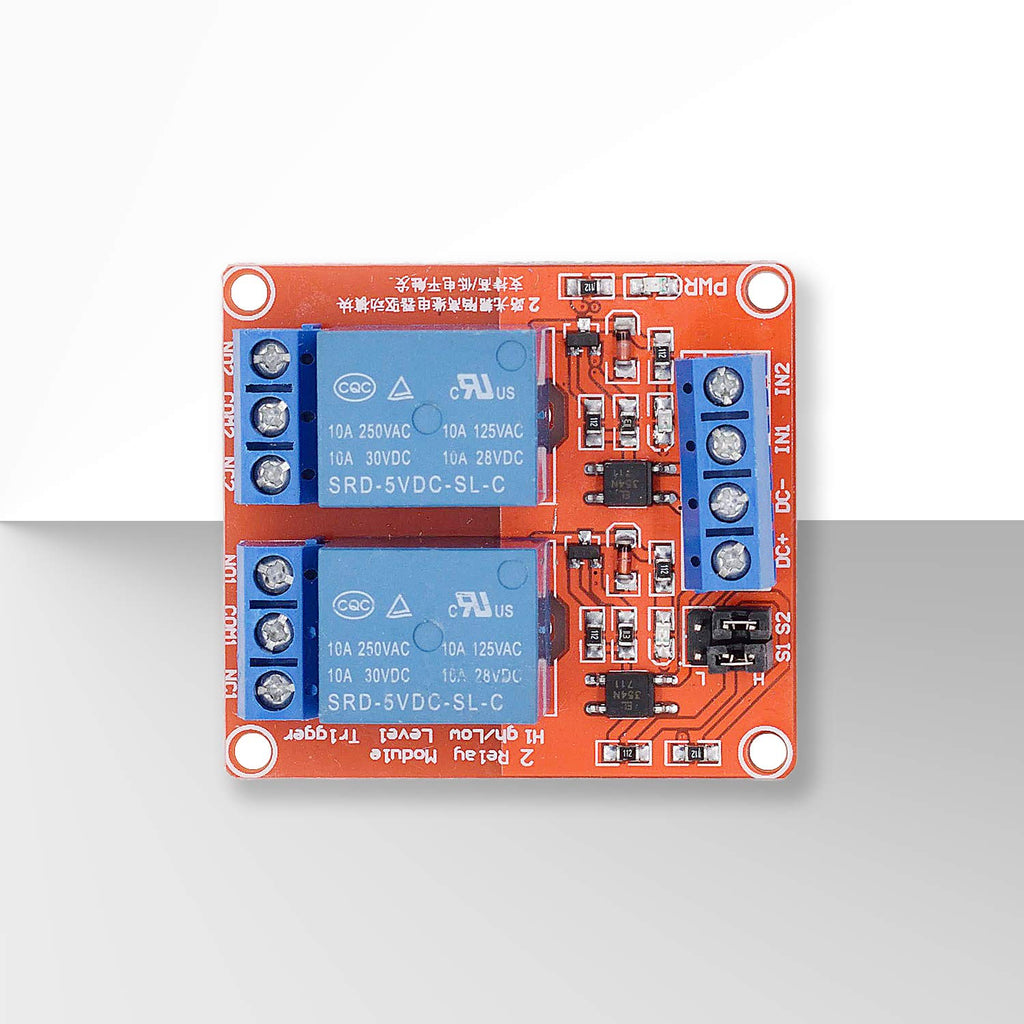

[2-Pack] DC 5V Relay Module 2-Channel Relay Switch with Optocoupler Isolation High/Low Level Trigger

[2-Pack] DC 5V Relay Module 2-Channel Relay Switch with Optocoupler Isolation High/Low Level Trigger

$16.99
$16.99 $22.99
Skip to product information
[2-Pack] DC 5V Relay Module 2-Channel Relay Switch with Optocoupler Isolation High/Low Level Trigger
  • [2-Pack] DC 5V Relay Module 2-Channel Relay Switch with Optocoupler Isolation High/Low Level Trigger
  • [2-Pack] DC 5V Relay Module 2-Channel Relay Switch with Optocoupler Isolation High/Low Level Trigger
  • [2-Pack] DC 5V Relay Module 2-Channel Relay Switch with Optocoupler Isolation High/Low Level Trigger
  • [2-Pack] DC 5V Relay Module 2-Channel Relay Switch with Optocoupler Isolation High/Low Level Trigger
  • [2-Pack] DC 5V Relay Module 2-Channel Relay Switch with Optocoupler Isolation High/Low Level Trigger
  • [2-Pack] DC 5V Relay Module 2-Channel Relay Switch with Optocoupler Isolation High/Low Level Trigger
[2-Pack] DC 5V Relay Module 2-Channel Relay Switch with Optocoupler Isolation High/Low Level Trigger

[2-Pack] DC 5V Relay Module 2-Channel Relay Switch with Optocoupler Isolation High/Low Level Trigger

$16.99
$16.99 $22.99
FREE shipping on orders $50+· add $33.01 moreShips from West Long Branch, NJ. Typically arrives in 3–7 business days.
30-day returnsChanged your mind? Send it back within 30 days. Return policy
Secure checkoutQuestions? Call 1-888-460-3822 · Mon–Fri 9–5 ET

Key features

  • Control DevicesThe 2-channel relay module uses genuine high quality DC5V relay and SMD opto-isolator supporting high/low level trigger, widely apply to control various AC/DC appliances, and other devices with large current.
  • Load RangeNO(Normally open) maximum load < AC 250V/10A, < DC 30V/10A. Trigger current of opto-isolator: 5mA.
  • Fault-tolerant DesignThe relay will not operate even if the control line is disconnected.

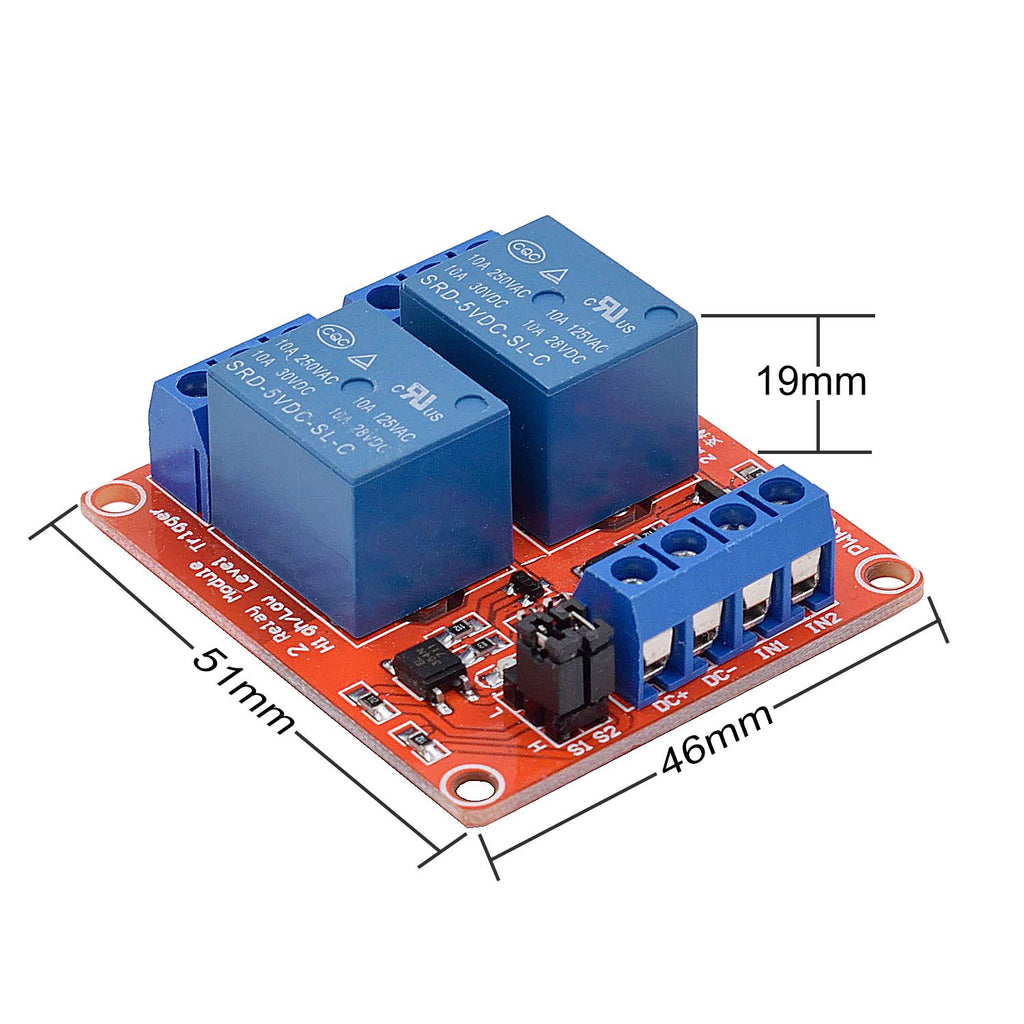

  • Universal InterfaceEquipped with screwed terminal plate and fixed bolt holes(diameter: 3.1 mm) on both sides for easy installation.
  • High CompatibilityThe relay module can be controlled directly by 5V logic signals from microcontroller(8051, AVR, PIC, DSP, ARM, Pi, MSP430, TTL logic etc).

Free shipping included. 30-day hassle-free returns.
