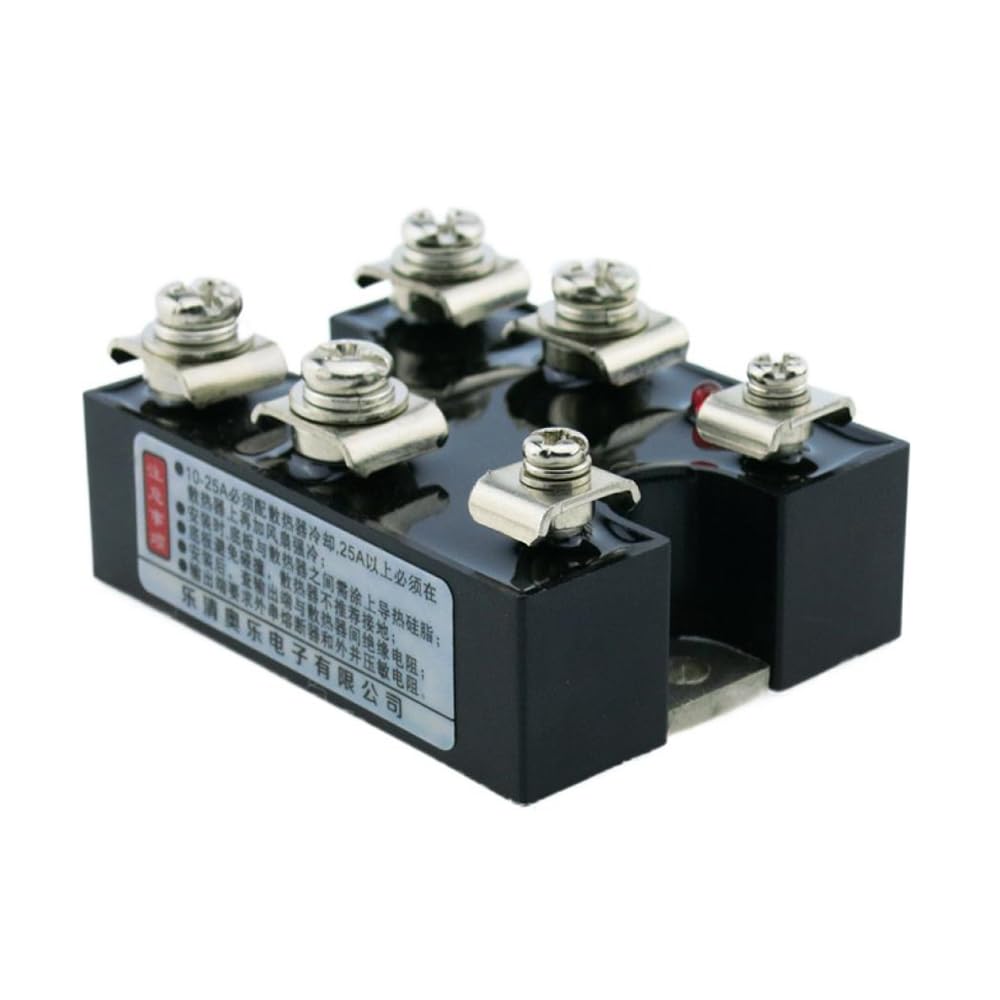

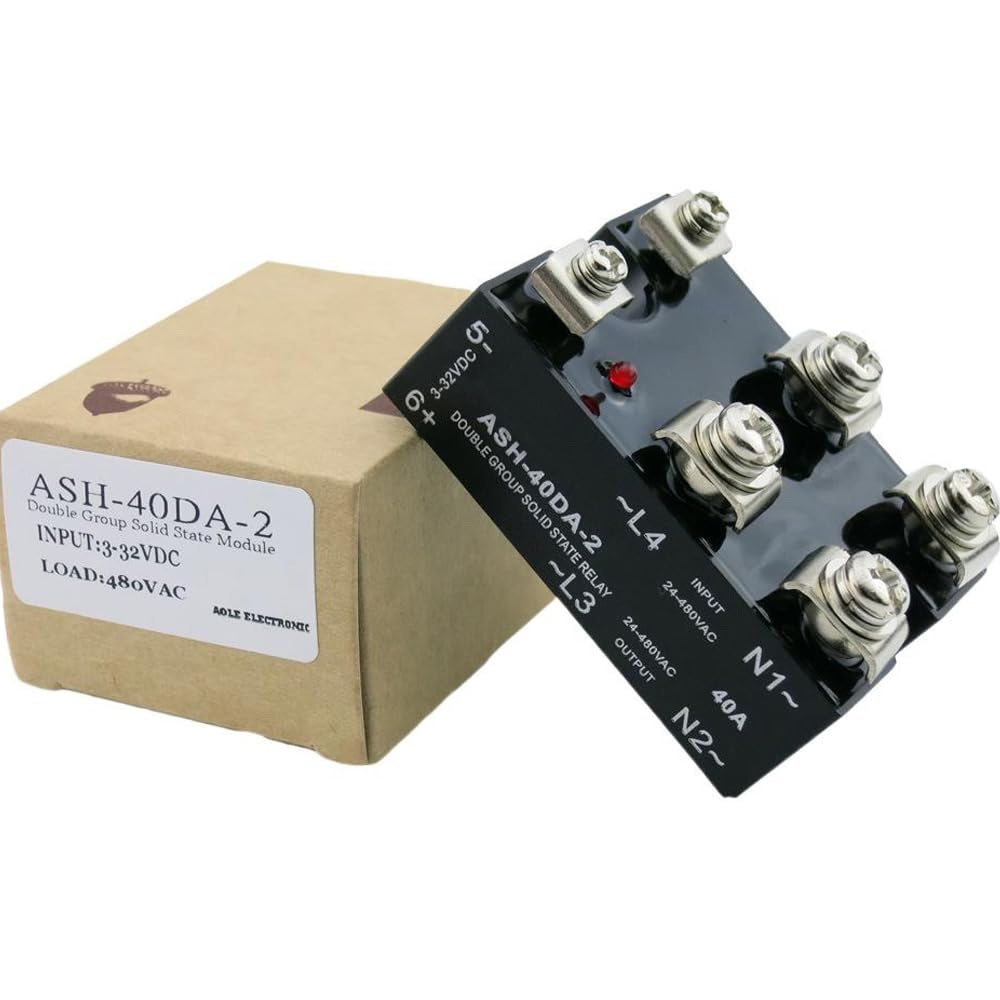

2-Phase Solid State Relay, ASH-40DA-2 Contactless Solid State Relay, DC Controls AC with Led Indicator Light
2-Phase Solid State Relay, ASH-40DA-2 Contactless Solid State Relay, DC Controls AC with Led Indicator Light
Key features
- Load Current: 40A Load Voltage: 24-480VAC
- Control Voltage: 3-32VDC Control Current: DC4-25mA
- On Voltage: ≤1.5V Off L eakage Current: ≤2mA On-off Time: ≤10ms
- Dielectric Strength: 2500VAC Insulation Resistance: 1000MΩ/500VDC
- The Work Instructions: LED Ambient Temperature: -30℃~+75℃
Product description Specifications: Load Current: 40A Load Voltage: 24-480VAC Control Voltage: 3-32VDC Control Current: DC4-25mA On Voltage: ≤1.5V Off L eakage Current: ≤2mA On-off Time: ≤10ms Dielectric Strength: 2500VAC Insulation Resistance: 1000MΩ/500VDC The Work Instructions: LED Ambient Temperature: -30℃~+75℃ Note: 1.Due to the light and screen difference, the item's color may be slightly different from the pictures. 2.Please allow 1mm-1cm differences due to manual measurement. Package Includes: 1x Solid State Relay Manufacturer Contact Information rfhtjn
Free shipping included. 30-day hassle-free returns.
