2 Set 10 Pin 3.81mm Pitch Pluggable Terminal Block with Screw Locking Flange, Male Plug and Female Socket Phoenix Type Connector - 8A, 300V, 16-28AWG

Key features

• Safe Wiring Connection: 10-pole screw terminal with Screw Locking Flange, rated 300V 8A. Provides stable and safe electrical connections for various devices.

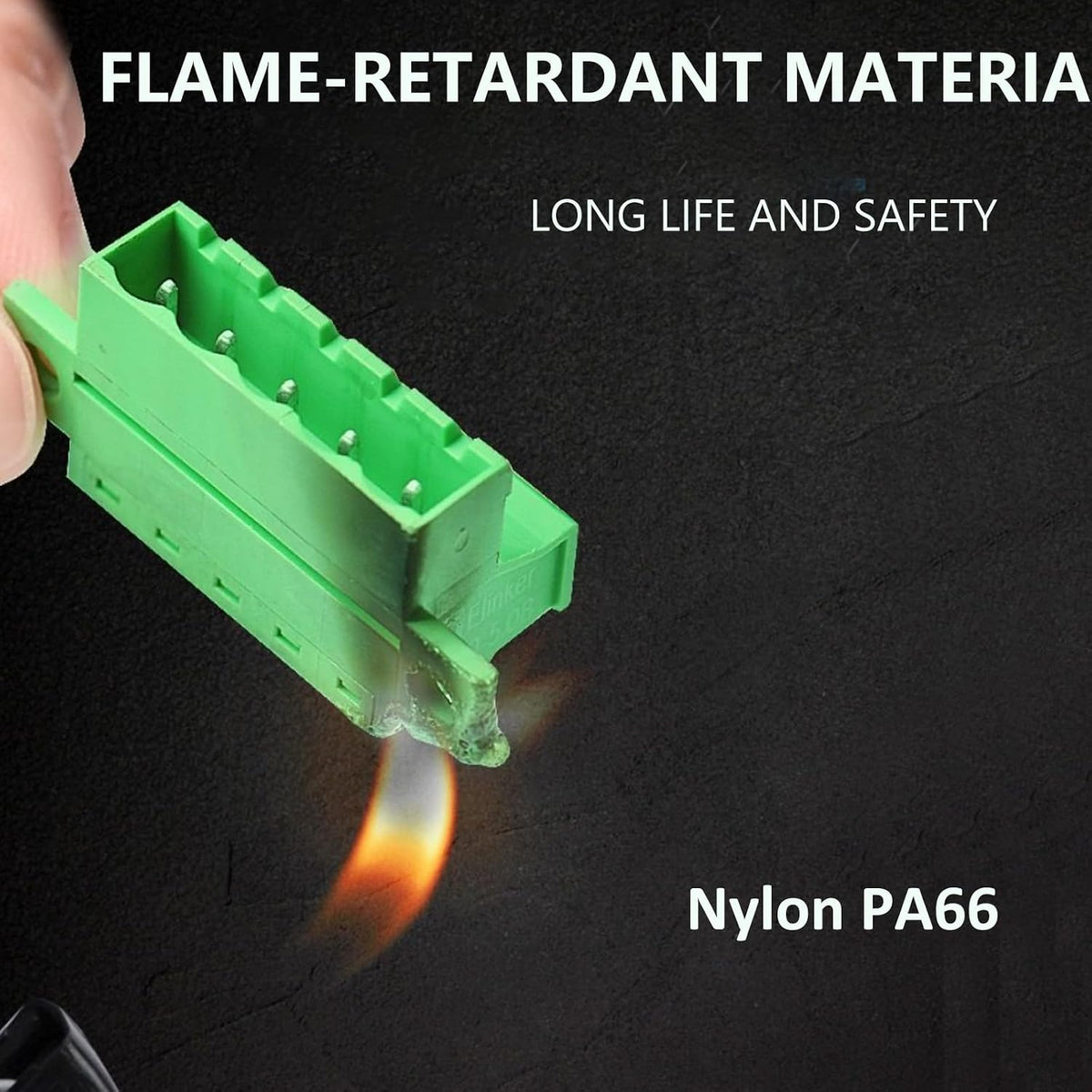

• Durable & Flame-Retardant: Made of PA66 high-temperature V0 flame-retardant material. No leakage, no short circuit, long service life.Anti-vibration structure with tin-plated brass and nickel-plated phosphor bronze contacts for reliable conductivity.
• Easy to Use: Loosen the screws, insert the wires, and tighten. Quick disconnect design makes device replacement fast and simple.
• Secure Screw Flanges: Rigid plug-header lock prevents vibration loosening. Ensures uninterrupted operation in harsh industrial environments.

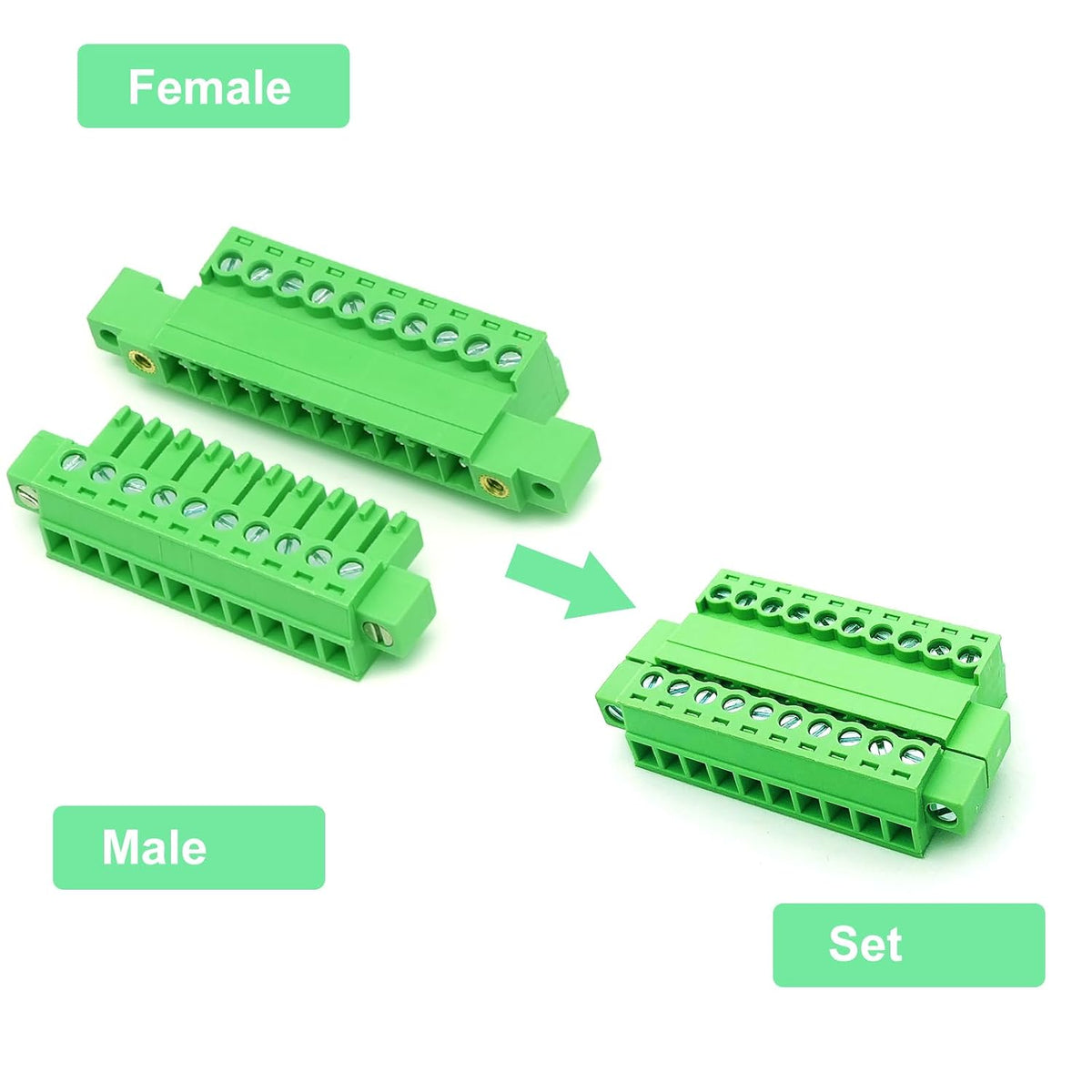

• Package: 2 Set 10 pin (Male Plug+ female socket) Pitch: 3.81mm. Wire: 28–16AWG. Strip length: 5–8mm.

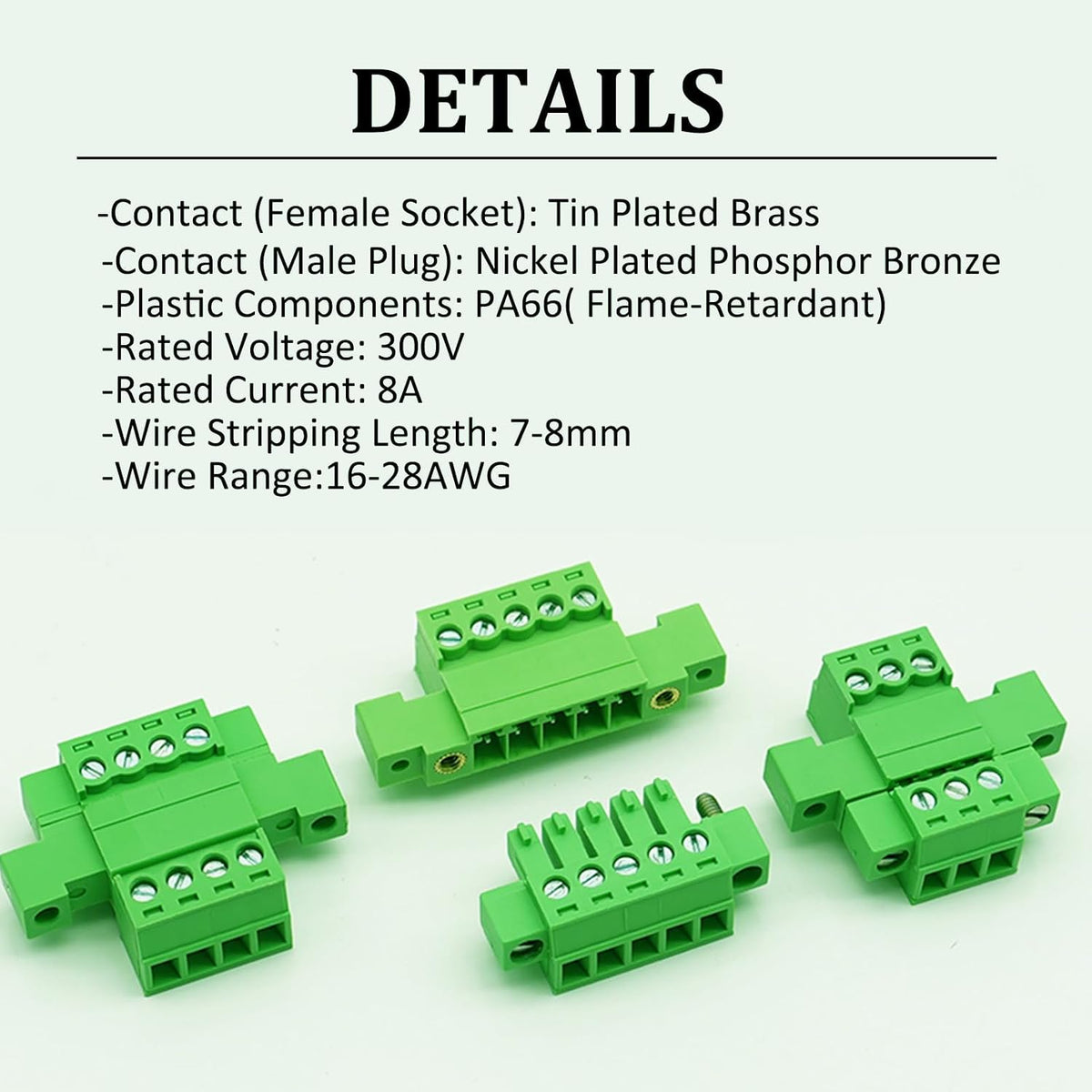

Feature-Type: Pluggable Terminal Block with Screw Locking Flange-Pin: 10 Pin-Pitch: 3.81mm-Gender: male & female-Contact (Female Socket): Tin Plated Brass-Contact (Male Plug): Nickel Plated Phosphor Bronze-Plastic Components: PA66, Flame-Retardant-Rated Value: 8A 300V-Wire Range:16-28AWG-Withstanding Voltage: AC1500V/1Min-Torque:0.4Nm (3.5lb-In)-Stripping length:7-8mm-Temperature range:-113°F ~ + 221°F-Screw and Push-in connection designPackage:-2set x 10 Pin 3.81mm Pitch male plug & female socket with Screw Locking FlangeNotice:It's crucial to select terminal blocks that match the specifications of your project to ensure reliable connections and proper functionality within the circuit.
