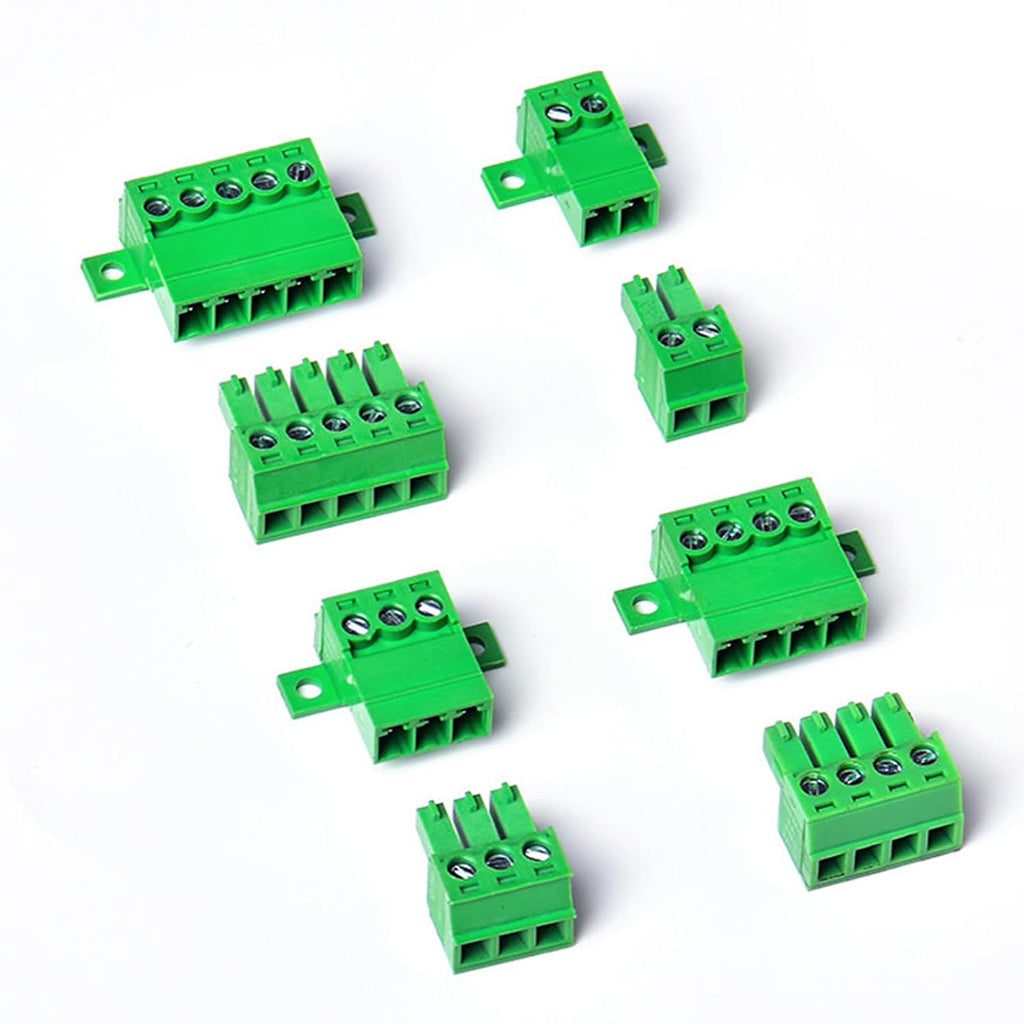

2 Set 8 Pin 3.81mm Pitch Panel Mount Screw Terminal Block Connector - Phoenix Type Connector - 8A, 300V, 16-28AWG

Key features

• Safe Wiring Connection: 8-pole panel Mount screw terminal, rated 300V 8A. Provides stable and safe electrical connections for various devices.

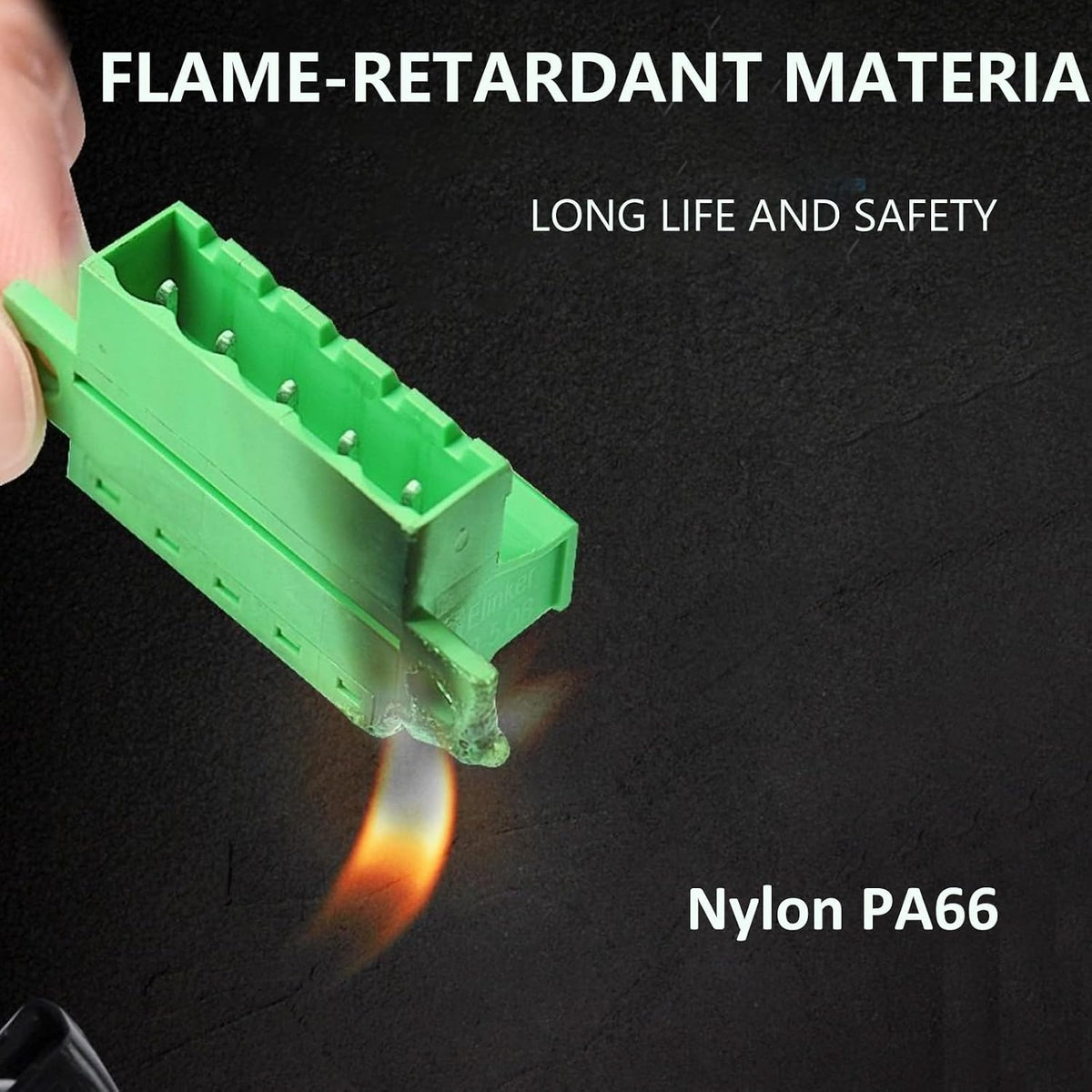

• Durable & Flame-Retardant: Made of PA66 high-temperature V0 flame-retardant material. No leakage, no short circuit, long service life.

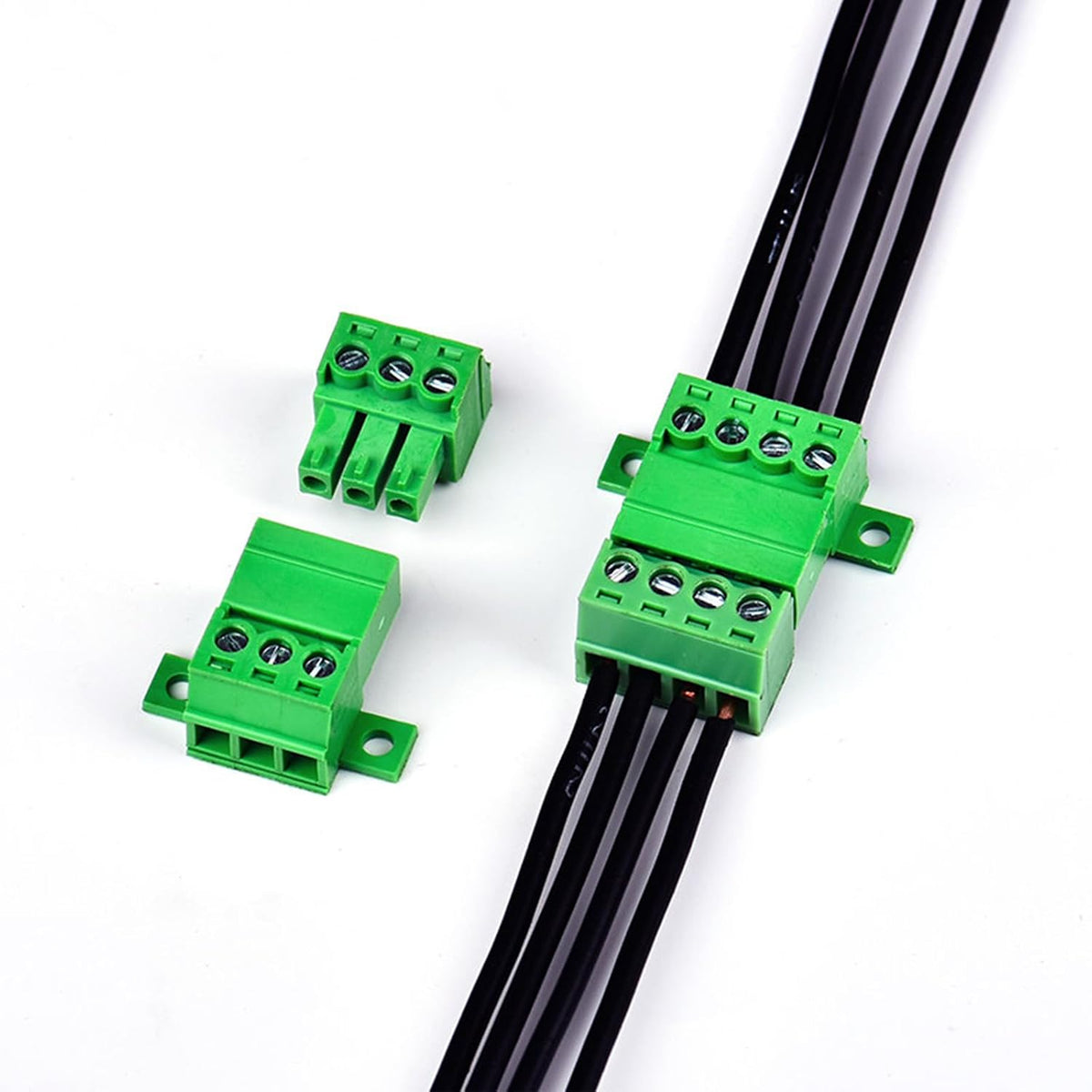

• Easy to Use: Loosen the screws, insert the wires, and tighten. Quick disconnect design makes device replacement fast and simple.
• Strong Contact Design: Anti-vibration structure with tin-plated brass and nickel-plated phosphor bronze contacts for reliable conductivity.

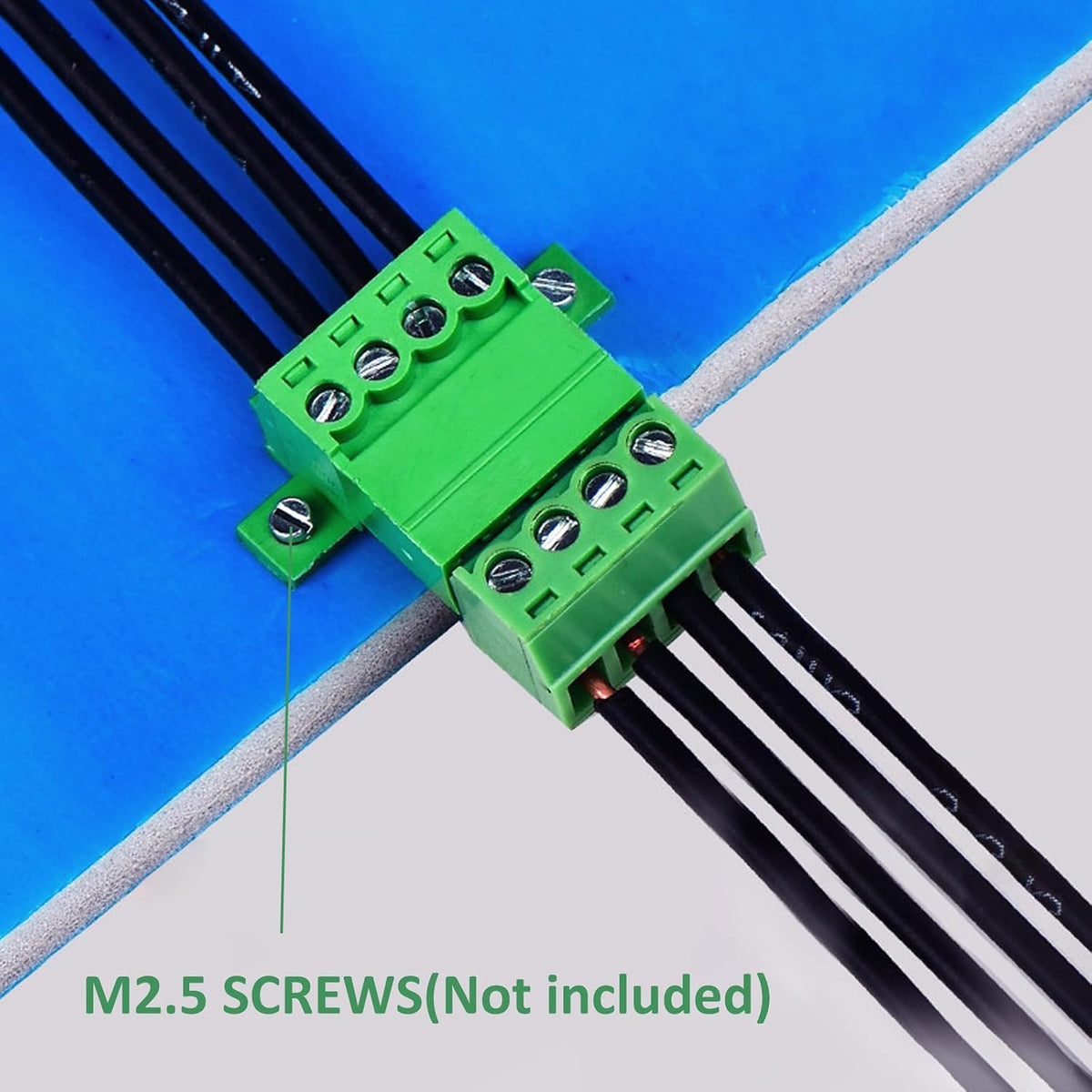

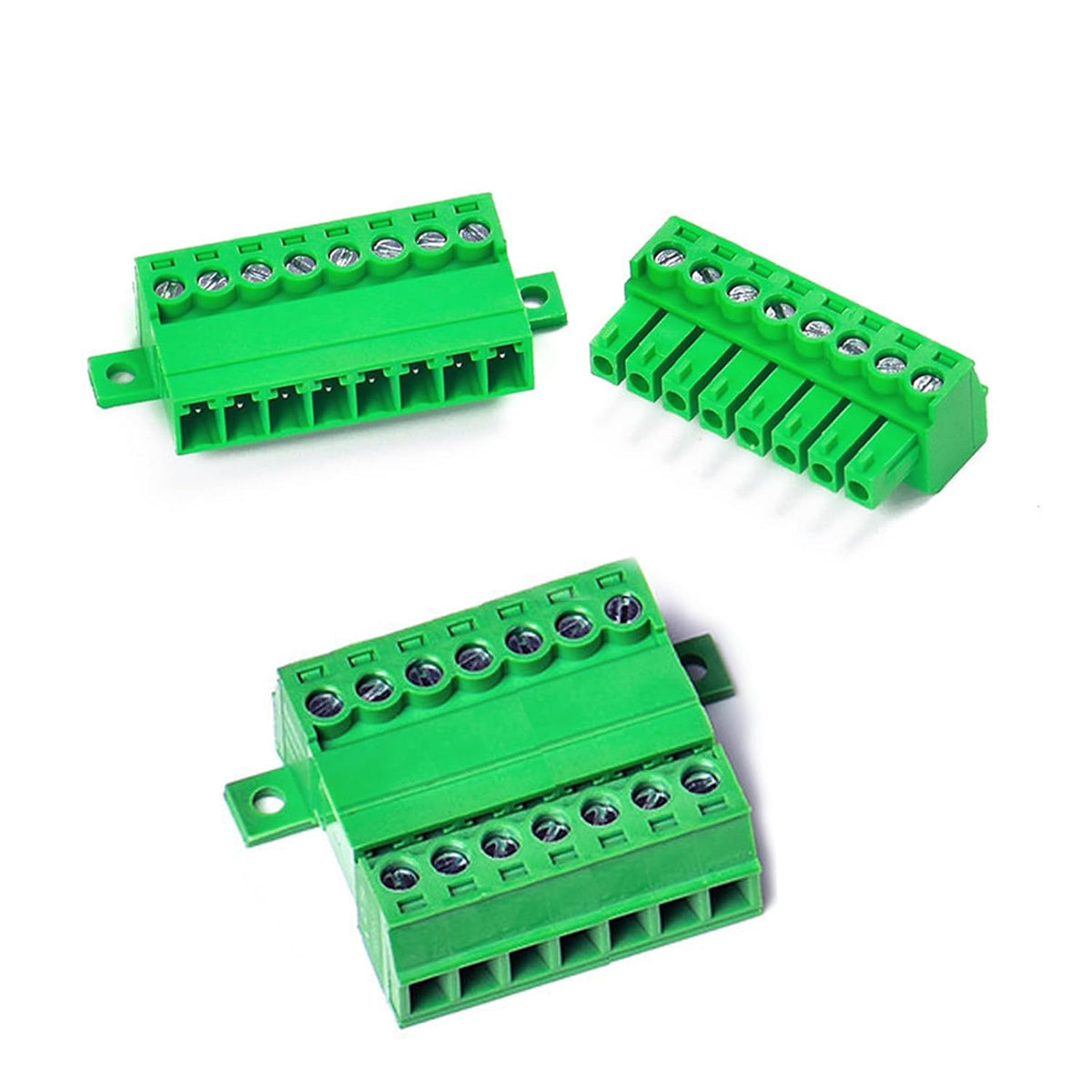

• Package: 2 Set 8 pin (Male Plug+ female socket); Pitch: 3.81mm. Wire: 16–28AWG. Wire Range: 0.1-1.5 mm³; Strip length: 7–8mm. Use M2.5 screws (not included).

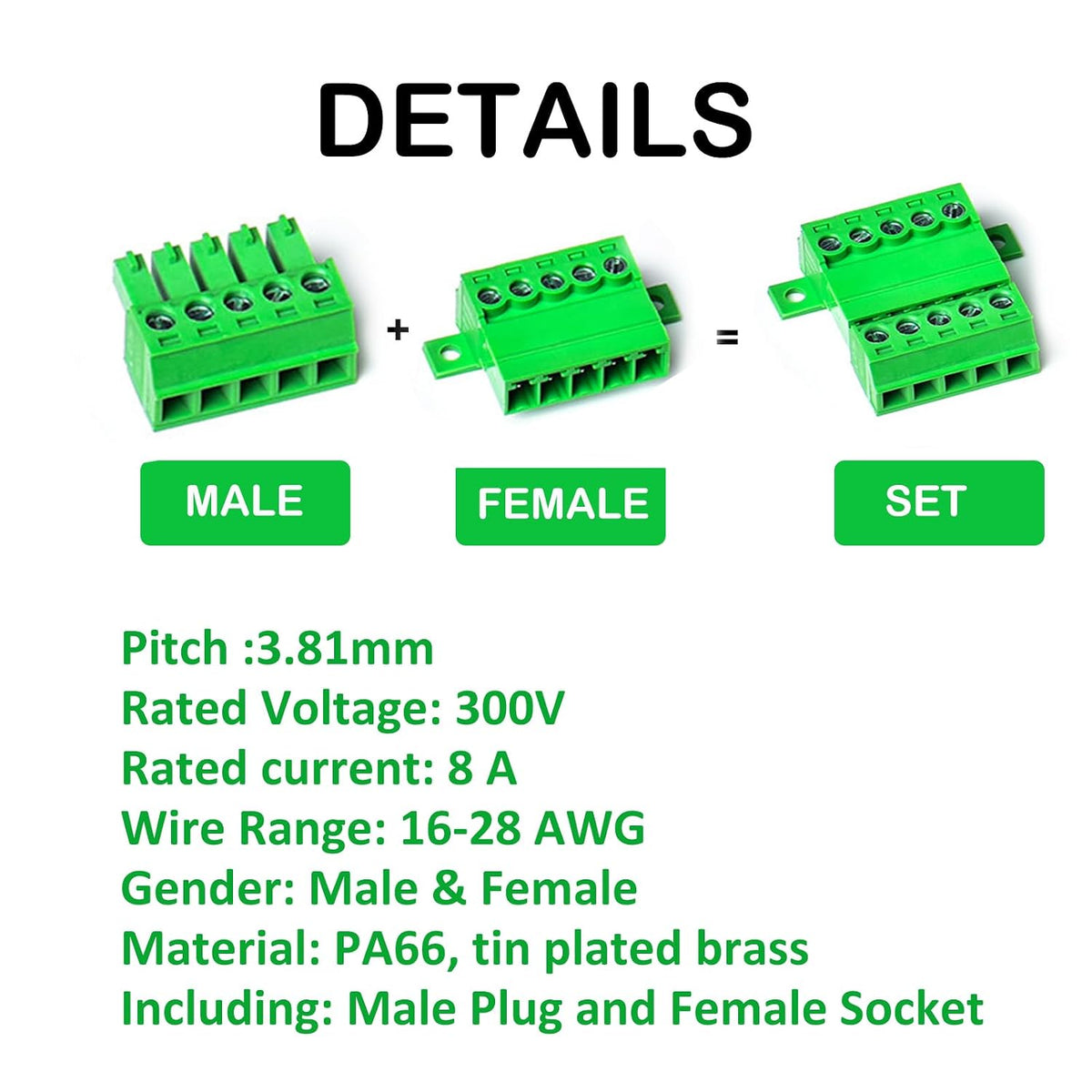

Feature-Type:Panel Mount Terminal Connectors-Pin: 8 Pin-Pitch: 3.81mm-Gender: male & female-Contact (Female Socket): Tin Plated Brass-Contact (Male Plug): Nickel Plated Phosphor Bronze-Plastic Components: PA66, Flame-Retardant-Rated Value: 8A 300V-Wire Range:16-28AWG-Withstanding Voltage: AC1500V/1Min-Torque:0.4Nm (3.5lb-In)-Stripping length:7-8mm-Temperature range:-113°F ~ + 221°F-Screw and Push-in connection designPackage:-2set x 8 Pin 3.81mm Pitch male plug & female socket panel Terminal Block ConnectorNotice:It's crucial to select terminal blocks that match the specifications of your project to ensure reliable connections and proper functionality within the circuit.
