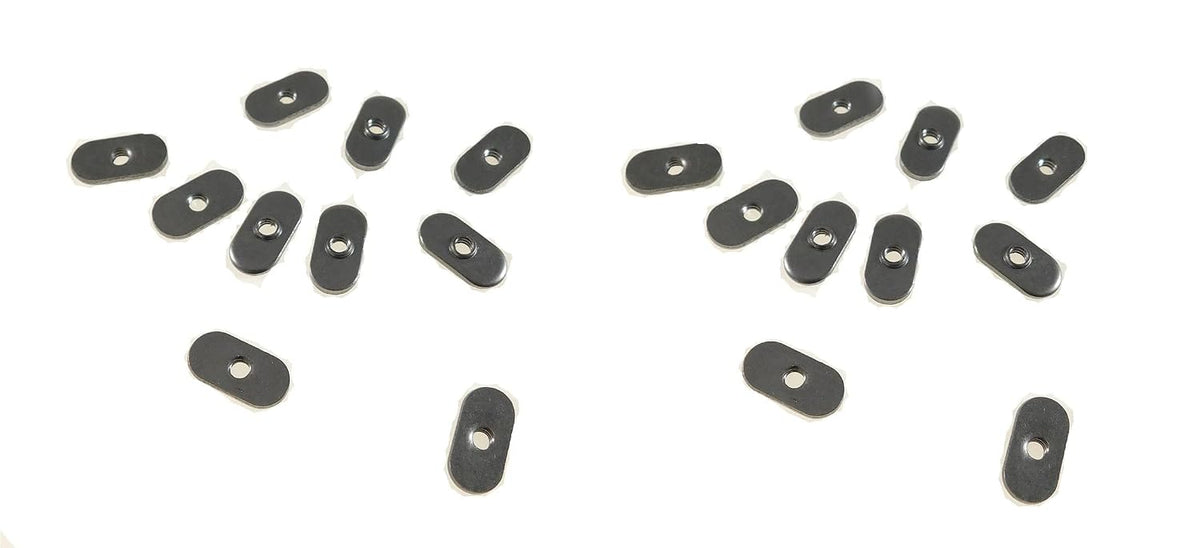

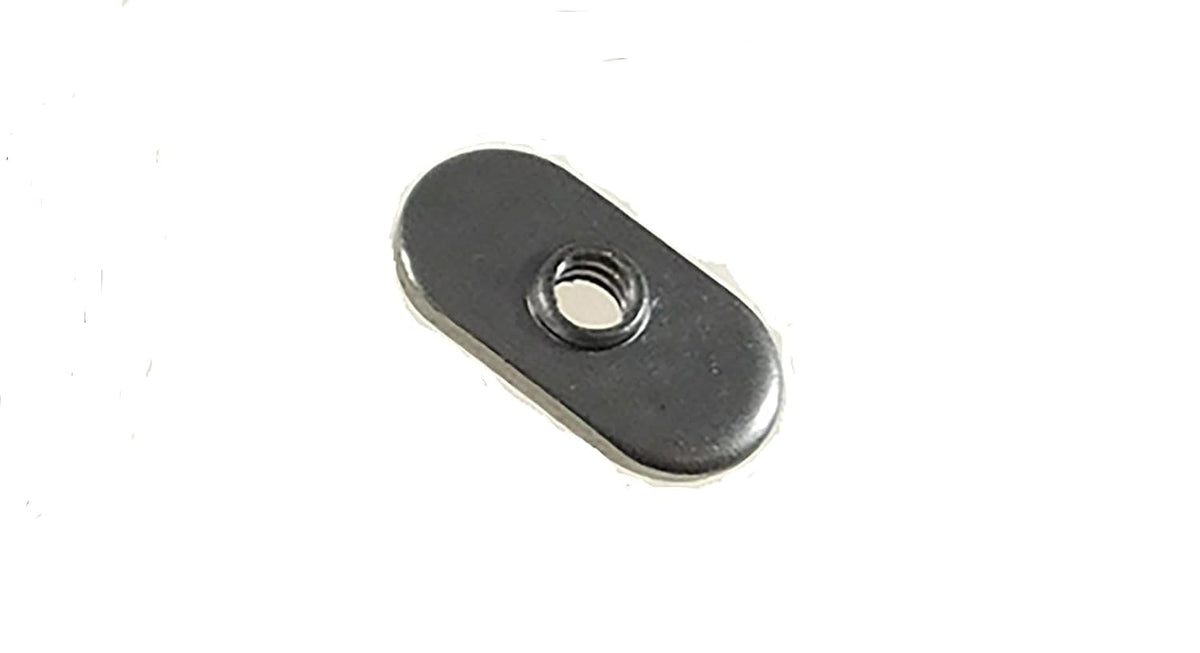

20 Pack 6-32 Spot Weld Nuts - Double Tab - ND 1114

Key features

• This listing is for twenty pieces. The ND weld nut is a dual-tab spot weld nut for applications requiring additional strength where tension is against the weld. Established as the standard slot fastener in the aluminum extrusion industry (economy t nut). The location of the twin-tabs enables the ND to be used in bridging corners and recessed areas. A precision pilot speeds location and provides a full thread engagement. The ND can use the same electrodes, equipment and settings used in production, thus eliminating setup and changeover time, thereby lowering in-place-fastener cost.
• Thread Size 6-32 Width (in) 7/16 Thickness (in) 3/32 Length (in)7/8 Hole In Sheet (in).203 Material C1010 High-Welding Quality, Low Carbon Steel Plain Finish Threads Unified Standard Class 2B ASME B 1.1-2003
• A 0.438" B 0.094" C 0.875" E 0.188" F 0.030"

This listing is for twenty pieces. The ND weld nut is a dual-tab spot weld nut for applications requiring additional strength where tension is against the weld. Established as the standard slot fastener in the aluminum extrusion industry (economy t nut). The location of the twin-tabs enables the ND to be used in bridging corners and recessed areas. A precision pilot speeds location and provides a full thread engagement. The ND can use the same electrodes, equipment and settings used in production, thus eliminating setup and changeover time, thereby lowering in-place-fastener cost. Thread Size 6-32 Width (in) 7/16 Thickness (in) 3/32 Length (in);7/8 Hole In Sheet (in) .203 Material C1010 High-Welding Quality, Low Carbon Steel Plain Finish Threads Unified Standard Class 2B ASME B 1.1-2003 A 0.438" B 0.094" C 0.875" E 0.188" F 0.030"
