22mm Control Station Box with Momentary Push Button Switches

Key features

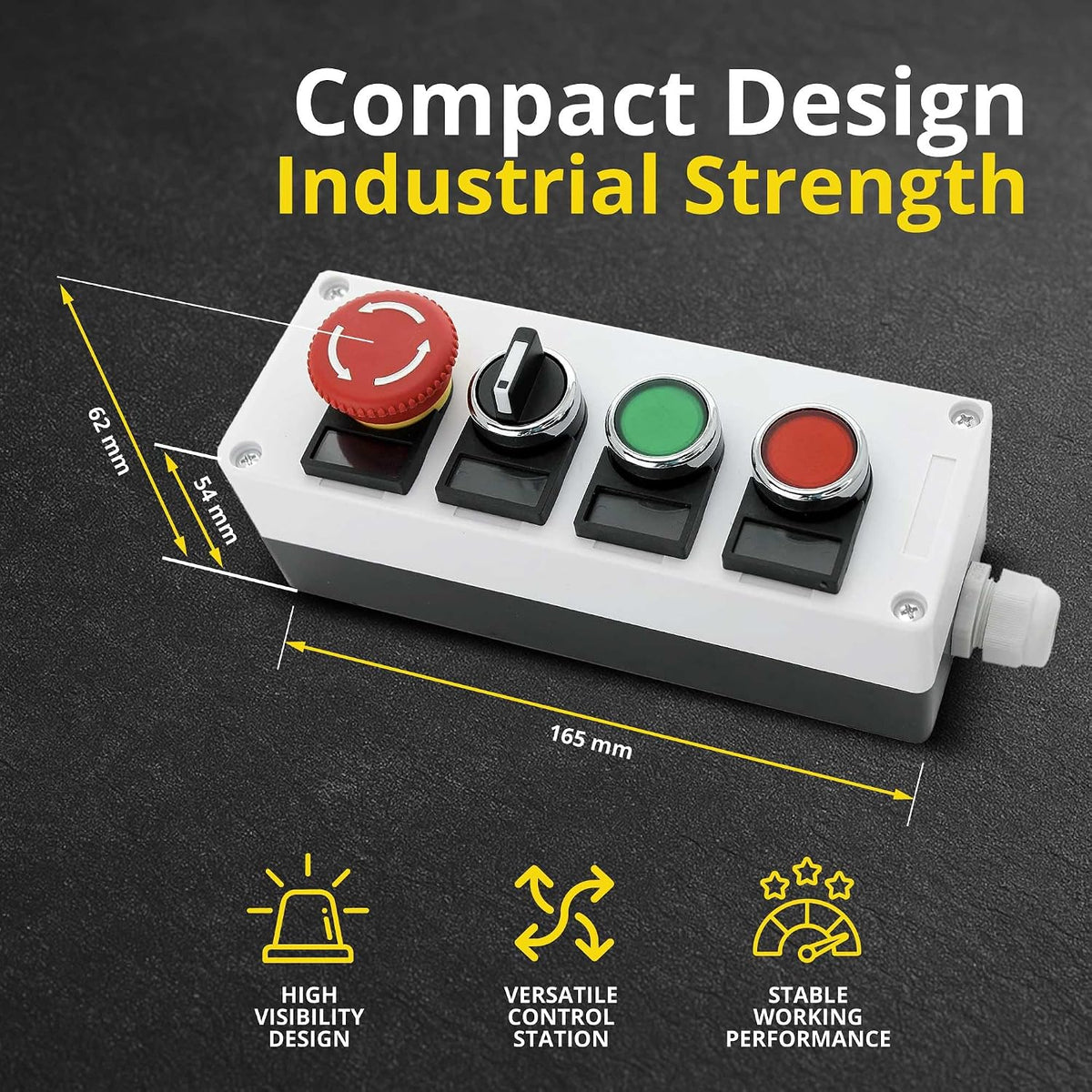

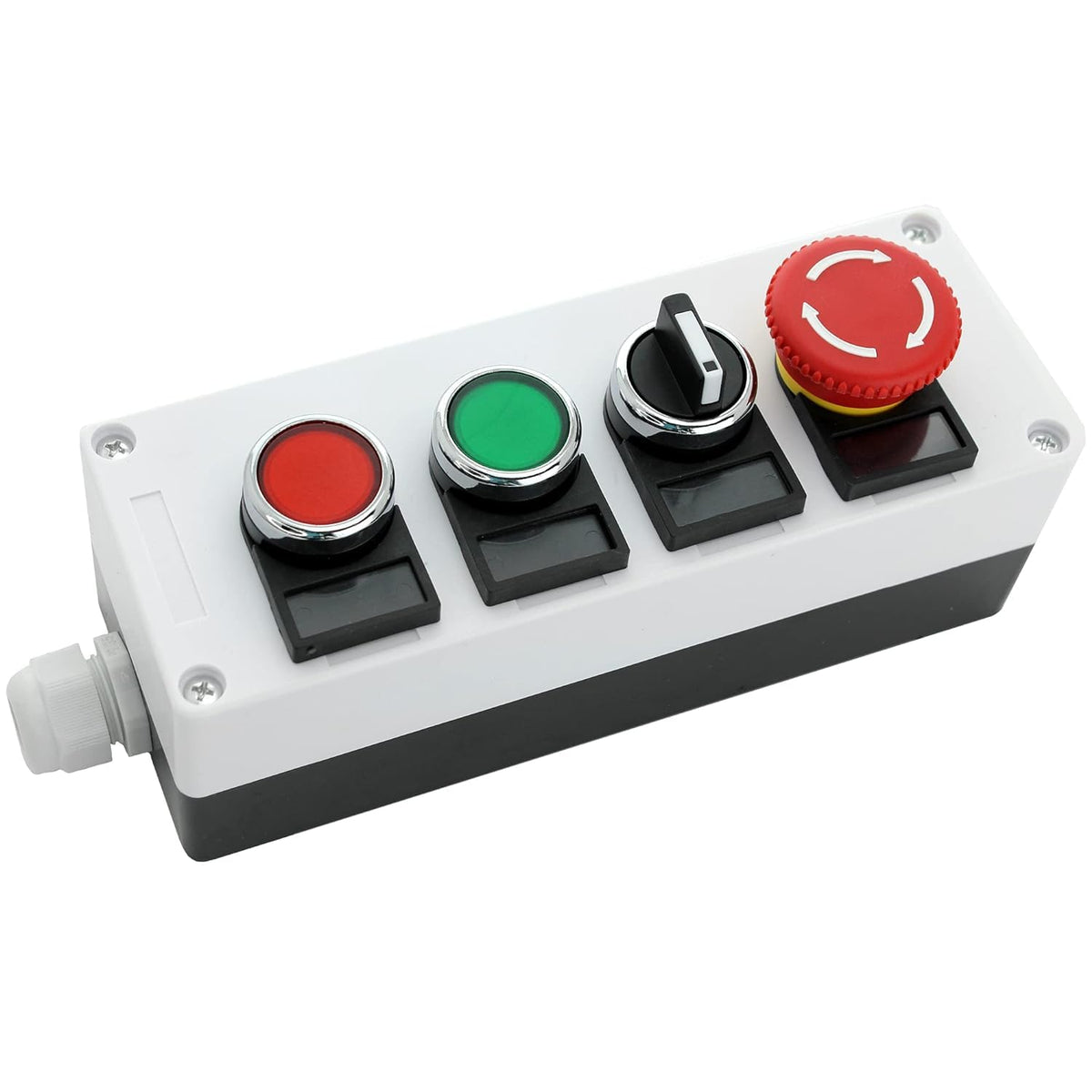

• Durable Control Switch Box for Industrial Use – This robust panel-mounted enclosure features 4 pre-drilled 22mm holes and includes: two (2) momentary flat head pushbuttons (red and green), one (1) 2-position maintained selector rotary switch, and one (1) stay-put mushroom head emergency pushbutton. Built with flame-retardant, impact-resistant, and water-resistant materials for long-lasting, safe use in industrial settings. Dimensions: 165 mm x 54 mm (approx.)

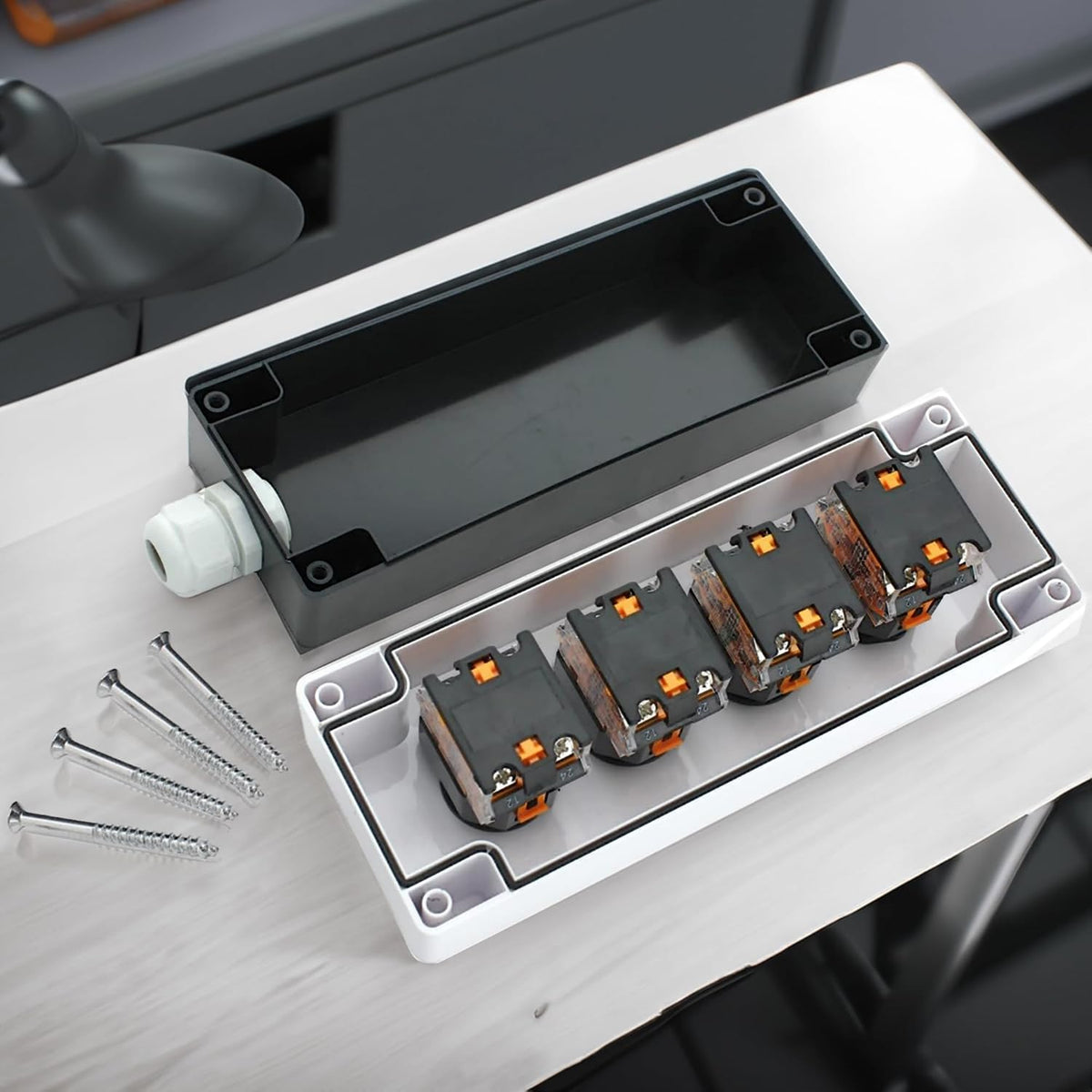

• Easy to Install and Wire – The included switches and push buttons feature clear NO/NC contact labeling and screw terminals for quick connection. Perfect for automation, machine control, and emergency systems in industrial, residential, and marine setups
• Momentary switch Specifications – Models XB2-BA31 (green) and XB2-BA42 (red). Spring return action, 22mm mounting, 50Hz-60Hz, AC 415V. Constructed with durable plastic housing for frequent use in control systems

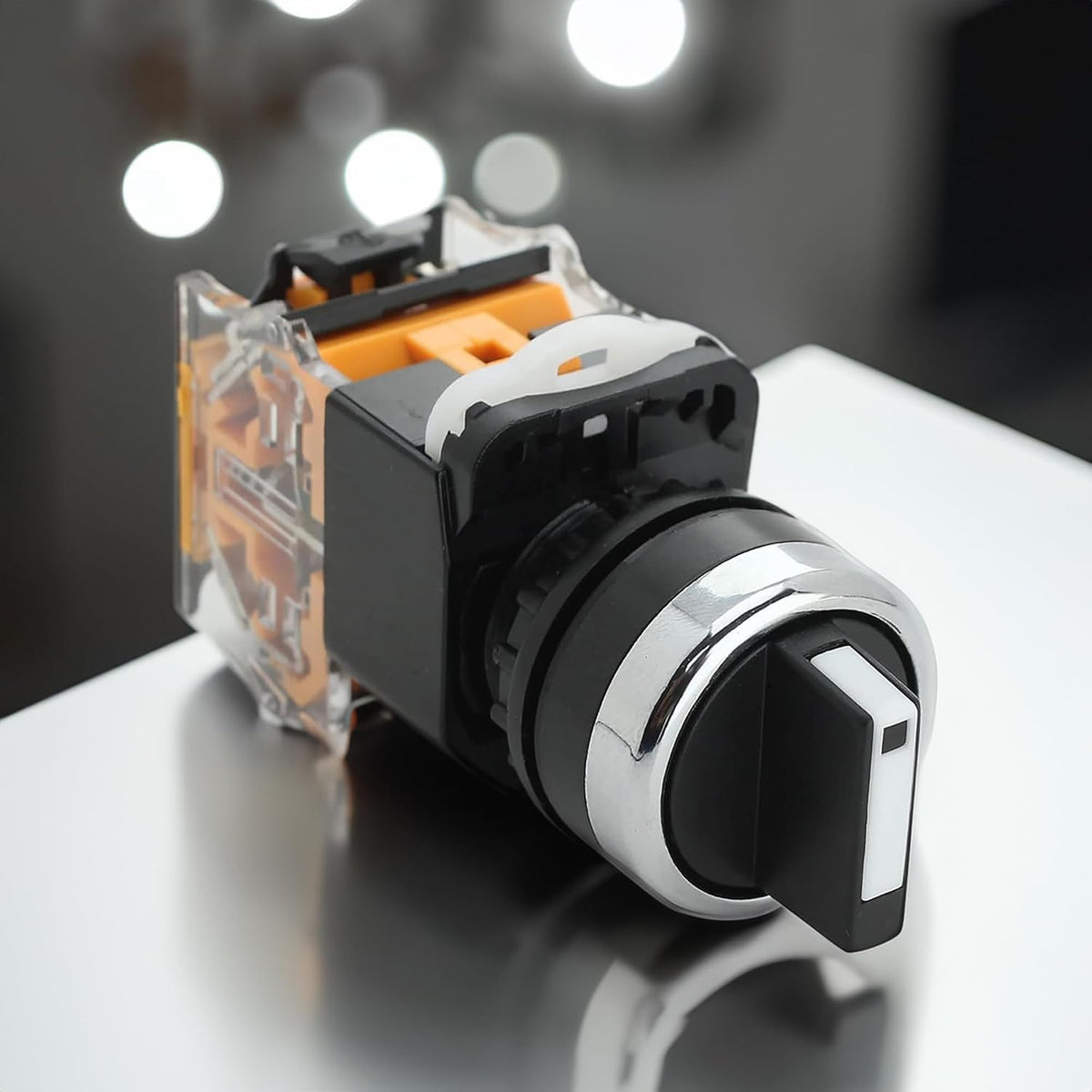

• Rotary Switch Specifications – Model XB2-BD25 (Electric NO NC Latching), 2-position maintained selector switch with NO/NC contacts. Rated at 220VAC and 10A. Panel-mount style with IP55 protection, CE/CCC certified. Designed for up to 50,000 operations in harsh industrial environments

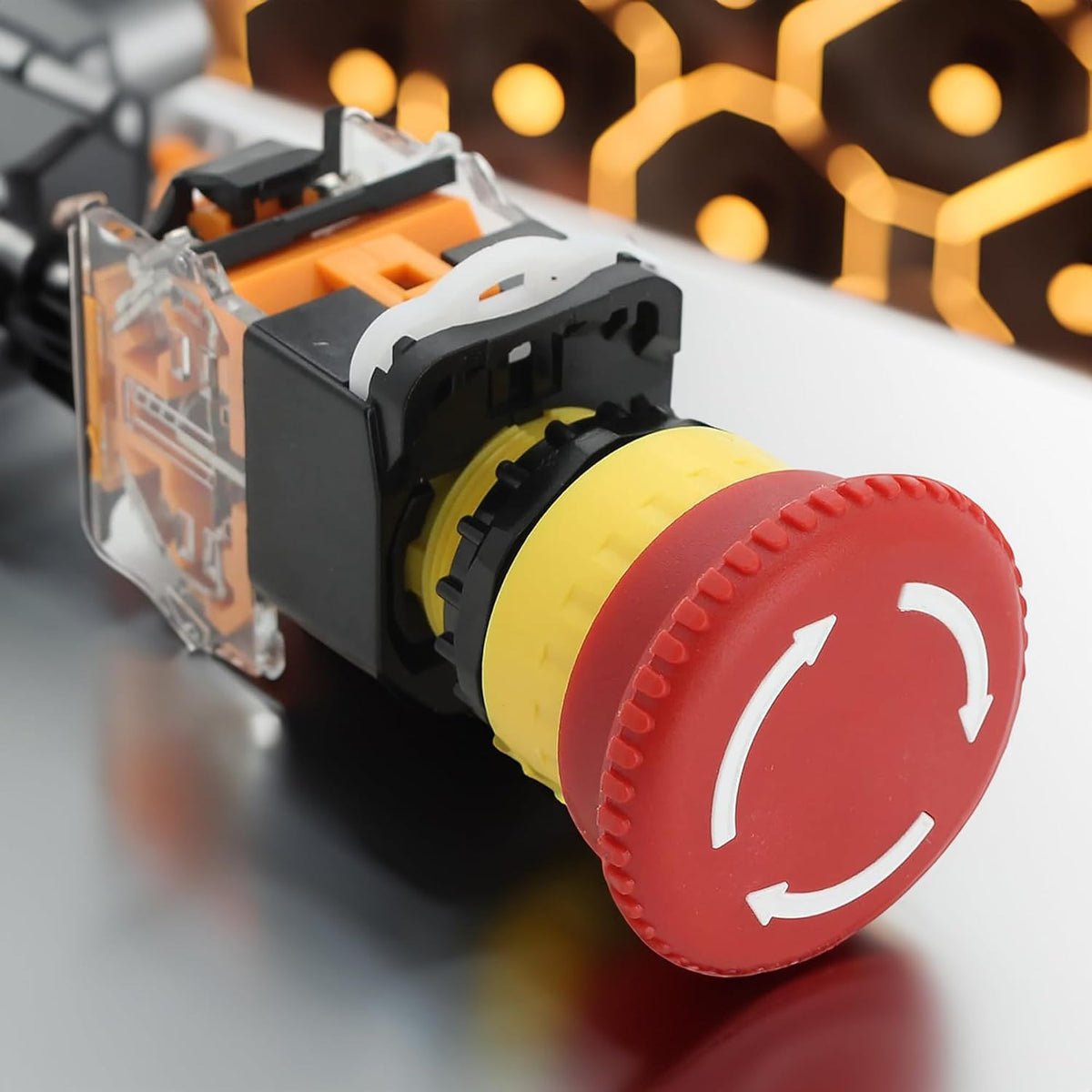

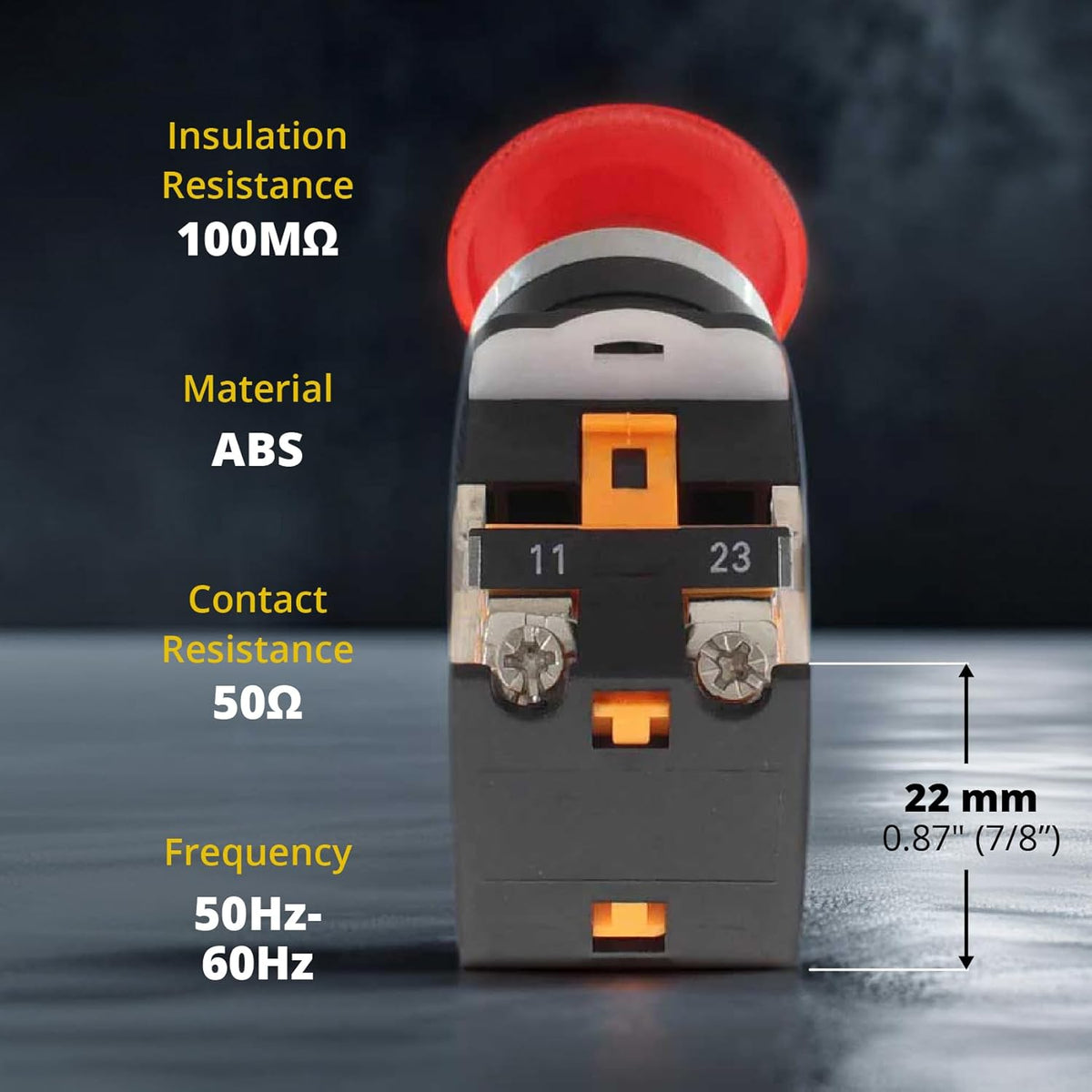

• Emergency Button Specifications – Model LA38-11ZS with latching stay-put mechanism. 22mm mount, 250VAC 3A SPDT NO/NC. Constructed with ABS housing, rated for AC 380V and DC 220V. High resistance to shock (200g) and vibration (15g)

Free shipping included. 30-day hassle-free returns.
