232306 & 232282 Thermostat Water Heater Limit Switch Kit 12V & 120V T-Stat

Key features

• Wide Compatibility: 232282 232306 RV Water Heater Thermostat Limit Switch Kit Compatible with Suburban RV Water Heaters SW Series, replaces 232306 233534, 525002, 525007, 232282 ，the replacement for Suburban SW6D water heater thermostat is compatible with SW6DE, SW6DEL, SW6DEM, SW6PE, SW6PER, SW10DE, SW10DEL, SW10DEM, SW10PE, SW10PER, SW12DE, SW12DEL, SW12DE, SW12DEL, SW12DEM, SW16DE, SW16DEL, SW16DEM, etc
• Functional Fix: 232306 232282 Thermostat Water Heater Limit Switch Resolves issues such as RV water heater thermostat failure, abnormal heating, and inability to regulate temperature. Quickly restores the water heater's temperature control and safety protection functions, ensuring stable hot water supply and precise temperature control for your RV

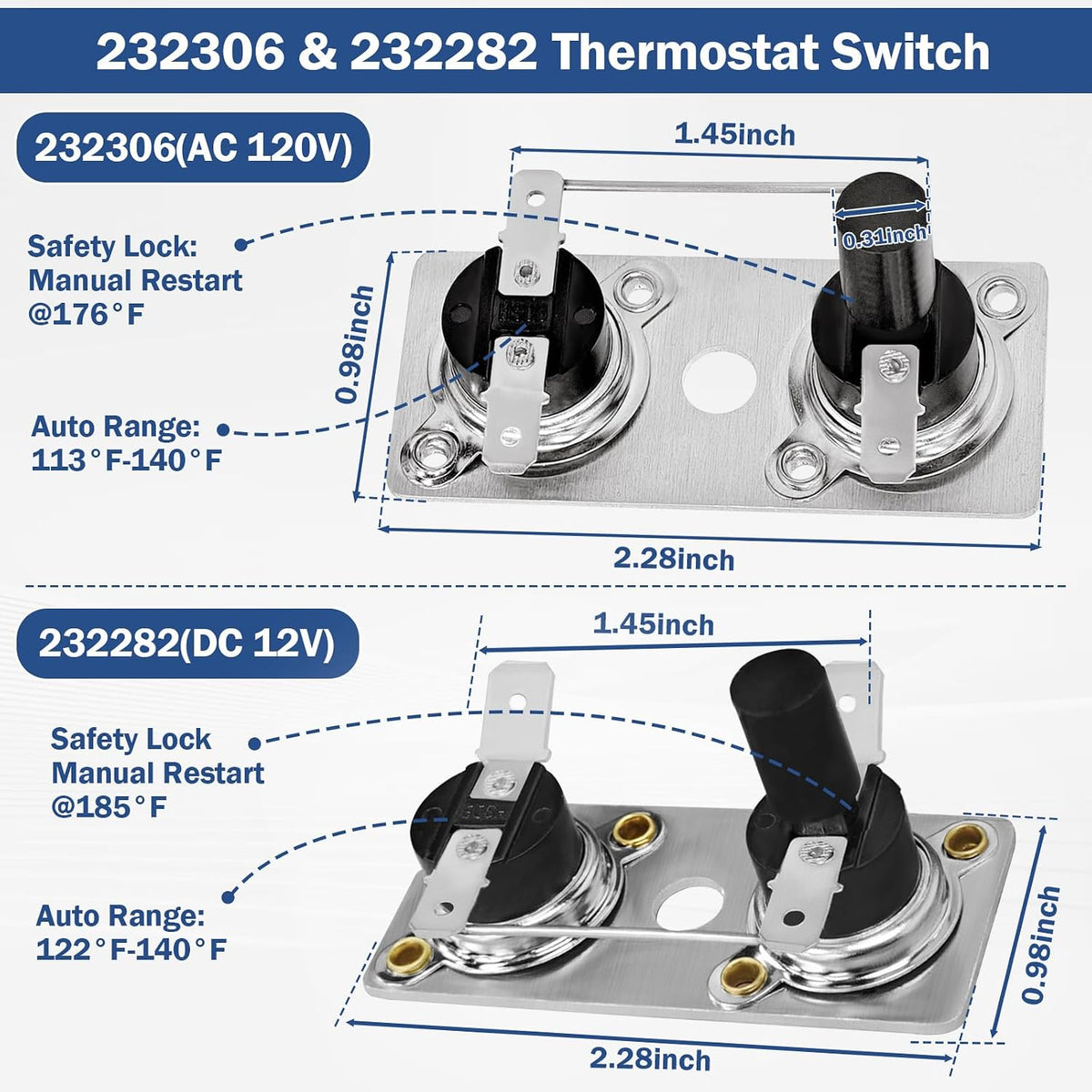

• Dual-Temperature Control Design: The 120VAC 232306 thermostat switch offers an automatic adjustment range of 113°F - 140°F, while the 12VDC 232282 thermostat switch provides an automatic adjustment range of 122°F - 140°F. This design precisely regulates water temperature and automatically cuts off the circuit during overheating. It effectively prevents hazards such as water heater overheating and dry burning

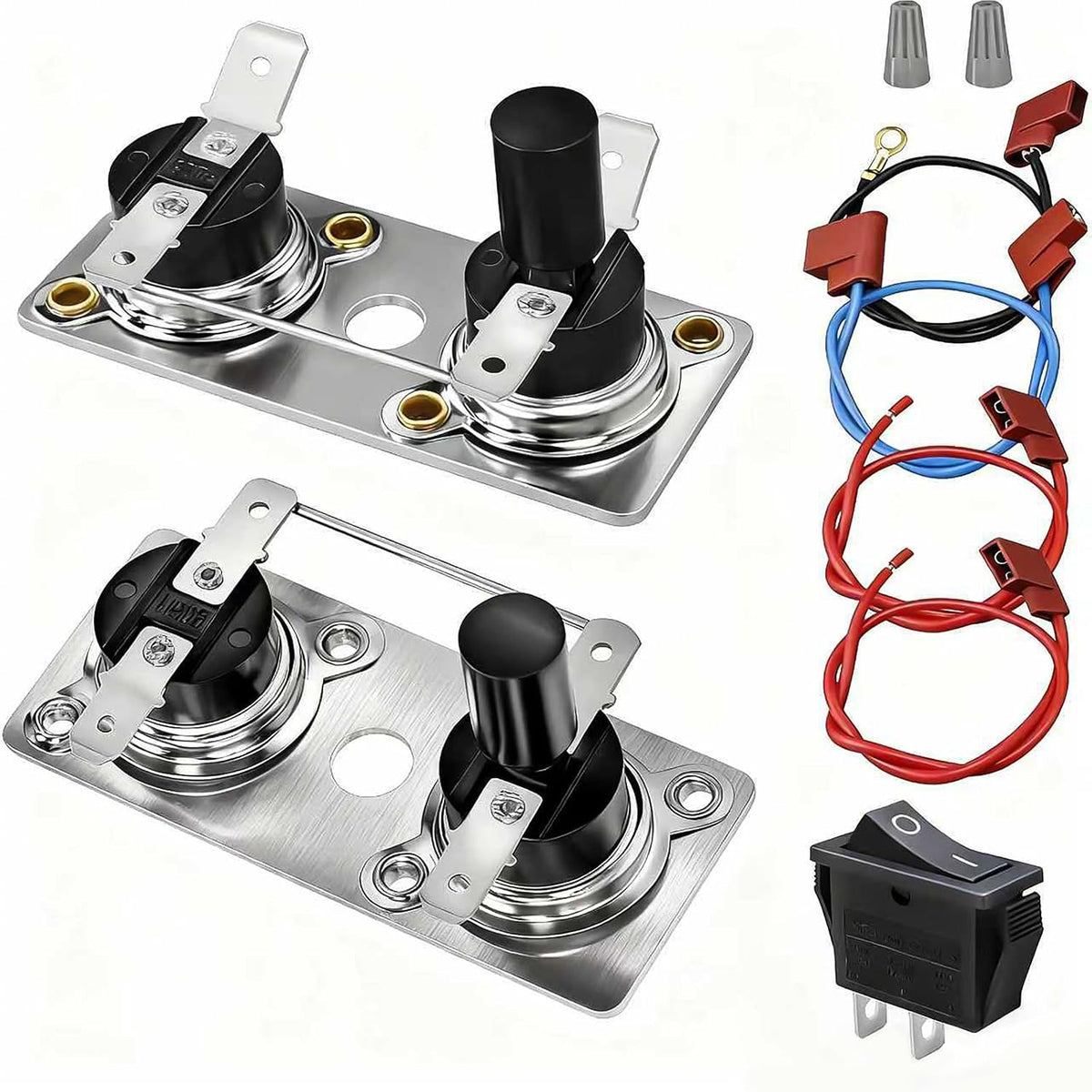

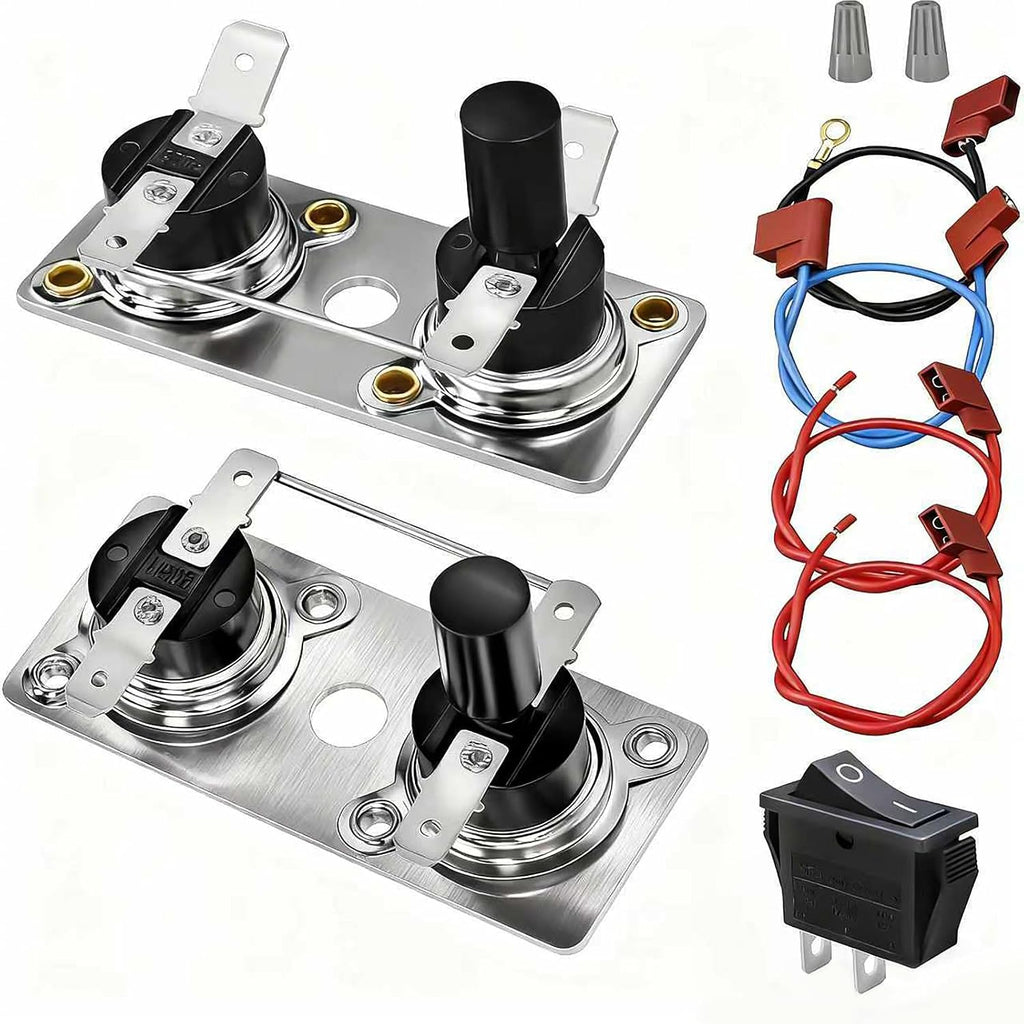

• 232306 & 232282 RV Water Heater Thermostat Kit: Package includes 1 x 232306 water heater limit switch, 1 x 232282 water heater limit switch, 1 x power control switch, 2 x wire nuts, and 4 x terminal wires. One kit provides everything needed for repairs and upgrades
• Premium Material Construction: The water heater thermostat limit switch kit is made of sturdy high-temperature resistant plastic and metal materials, with excellent conductivity and high temperature resistance. It can withstand the vibration and humidity of RV water heaters, and is easy to cope with high temperature environments, ensuring long-term stable operation
• Simple Installation: ① Disconnect the water heater's power supply and remove the old thermostat assembly. ② Connect the new 232306 & 232282 kit wires to the water heater's circuitry. ③ Secure the thermostat module and 232306 & 232282 RV thermostat limit switch, then install the knob and power switch. ④ Power on to test whether the thermostat and limit switch functions operate normally
