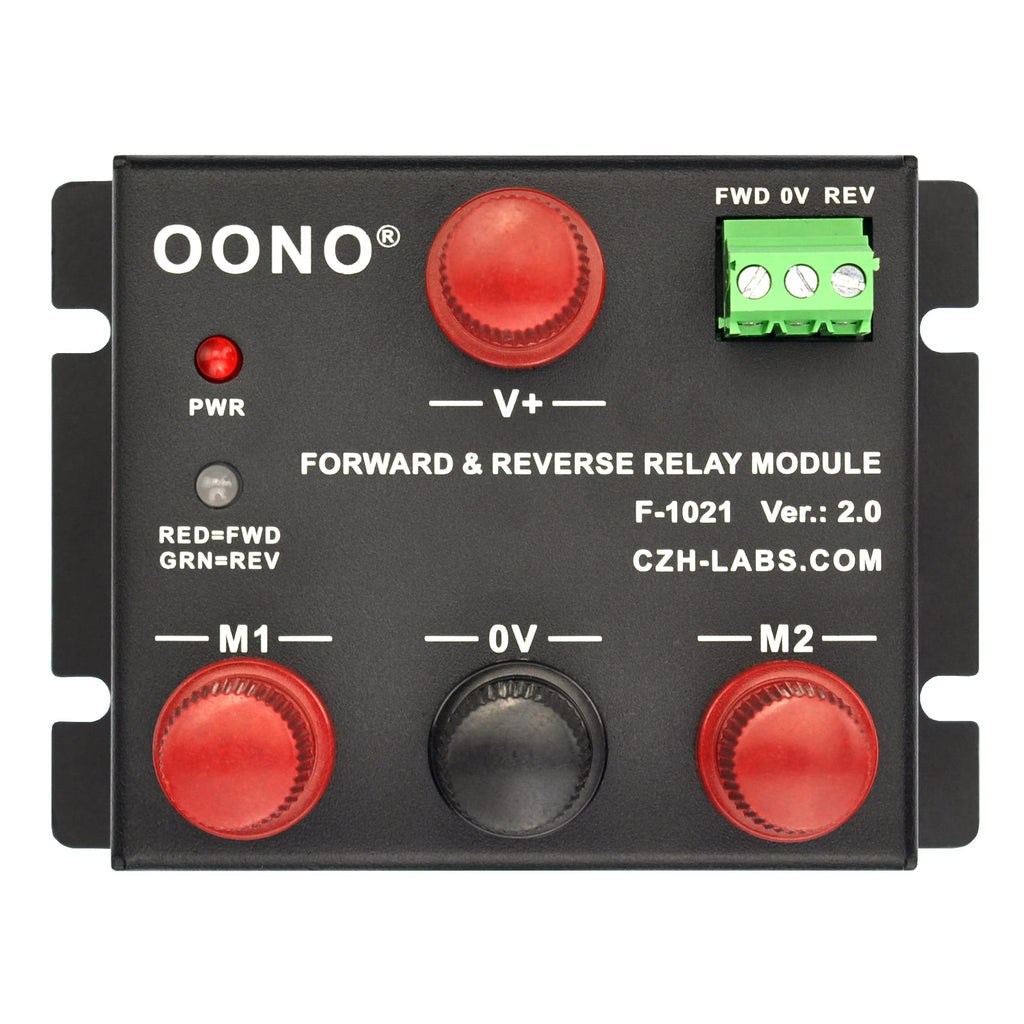

24V 50Amp Forward and Reverse Relay Module for Motor/Linear Actuator, Reversing Relay Module
24V 50Amp Forward and Reverse Relay Module for Motor/Linear Actuator, Reversing Relay Module
Key features
- Reversing relay module. Powers any reversing motor equipment, can be used for any application that requires the ability to reverse motion.
- Support Momentary-action(Self-resetting) switch and Alternate-action (Self-holding) switch. For Self-resetting switch, when the switch is pressed the motor operates, and when the switch is released the motor stops.

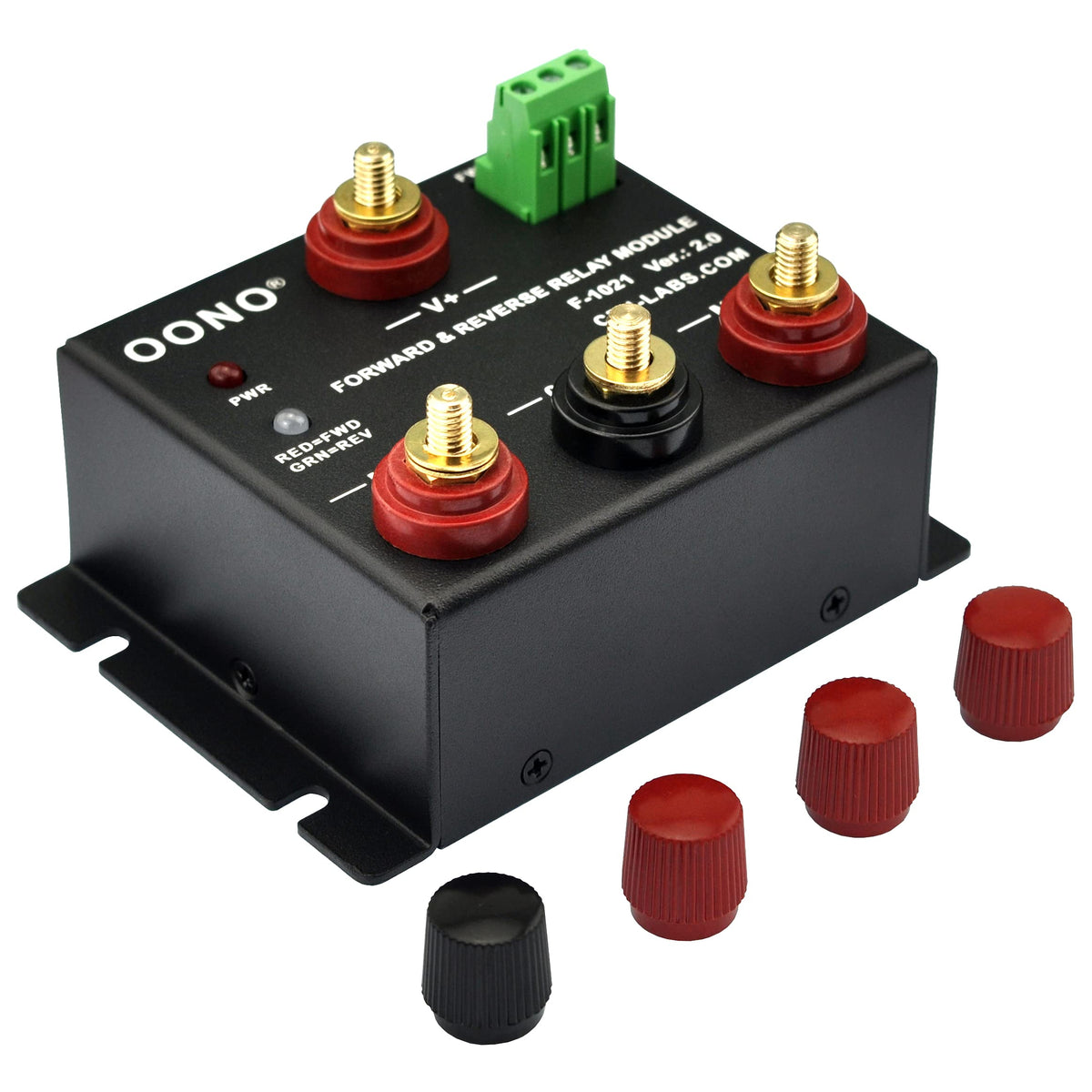

- High quality aluminum enclosure, thickness 1.5mm/0.06". Diameter M6 / 6mm threaded copper terminals for power supply and load. Connect switch terminal block: pitch 5.0mm/0.197", wire size 26~12 AWG / 2.5mm square, stripping length 7mm/0.28", Metric M2.5 slotted screw.
- Operating Voltage: 20 ~ 30V DC, Rated current 50 Amp. Power on indicating red LED. Forward and Reverse status indicating LED, forward status lighting red, reverse lighting green.
Reversing relay module. Powers any reversing motor equipment, can be used for any application that requires the ability to reverse motion. Operating Voltage: 20 ~ 30V DC, Rated current 50 Amp. Power on indicating red LED. Forward and Reverse status indicating LED, forward status lighting red, reverse lighting green. Support Momentary-action(Self-resetting) switch and Alternate-action (Self-holding) switch. For Self-resetting switch, when the switch is pressed the motor operates, and when the switch is released the motor stops. High quality aluminum enclosure, thickness 1.5mm/0.06". Diameter M6 / 6mm threaded copper terminals for power supply and load. Connect switch terminal block: pitch 5.0mm/0.197", wire size 26~12 AWG / 2.5mm square, stripping length 7mm/0.28", Metric M2.5 slotted screw.
