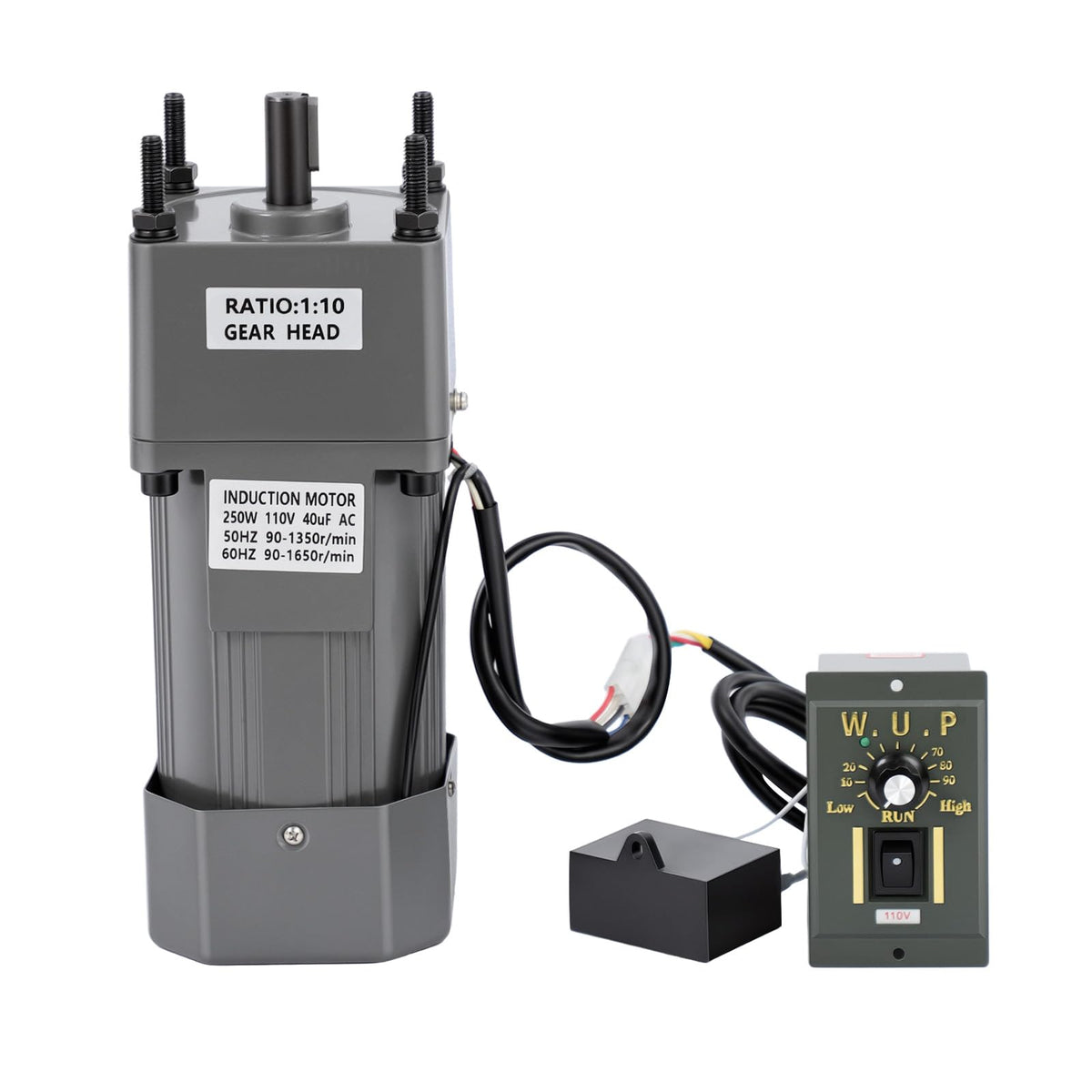

250W AC Variable Speed Motor with Speed Controller, Gear Reducer Motor 110V
250W AC Variable Speed Motor with Speed Controller, Gear Reducer Motor 110V
Key features

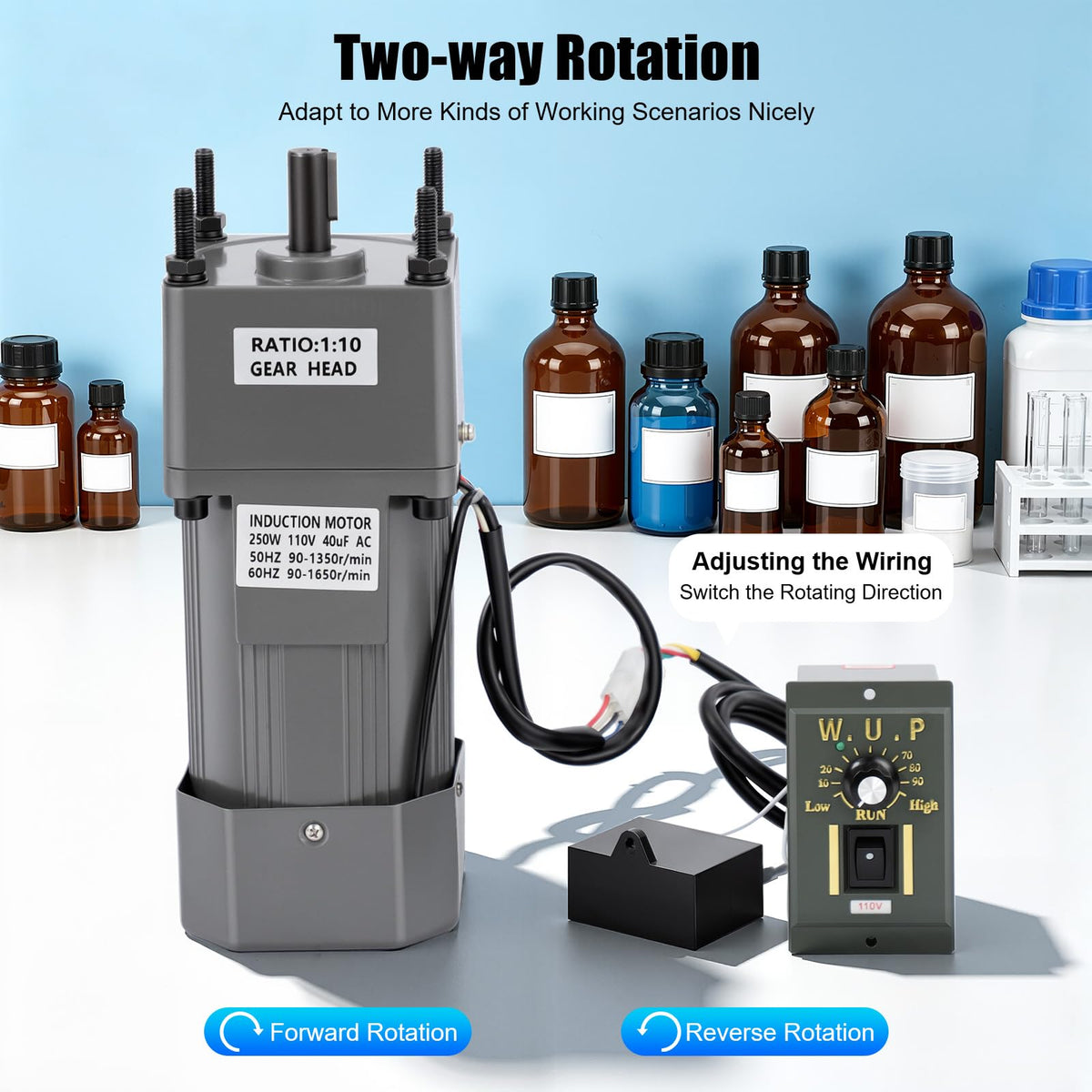

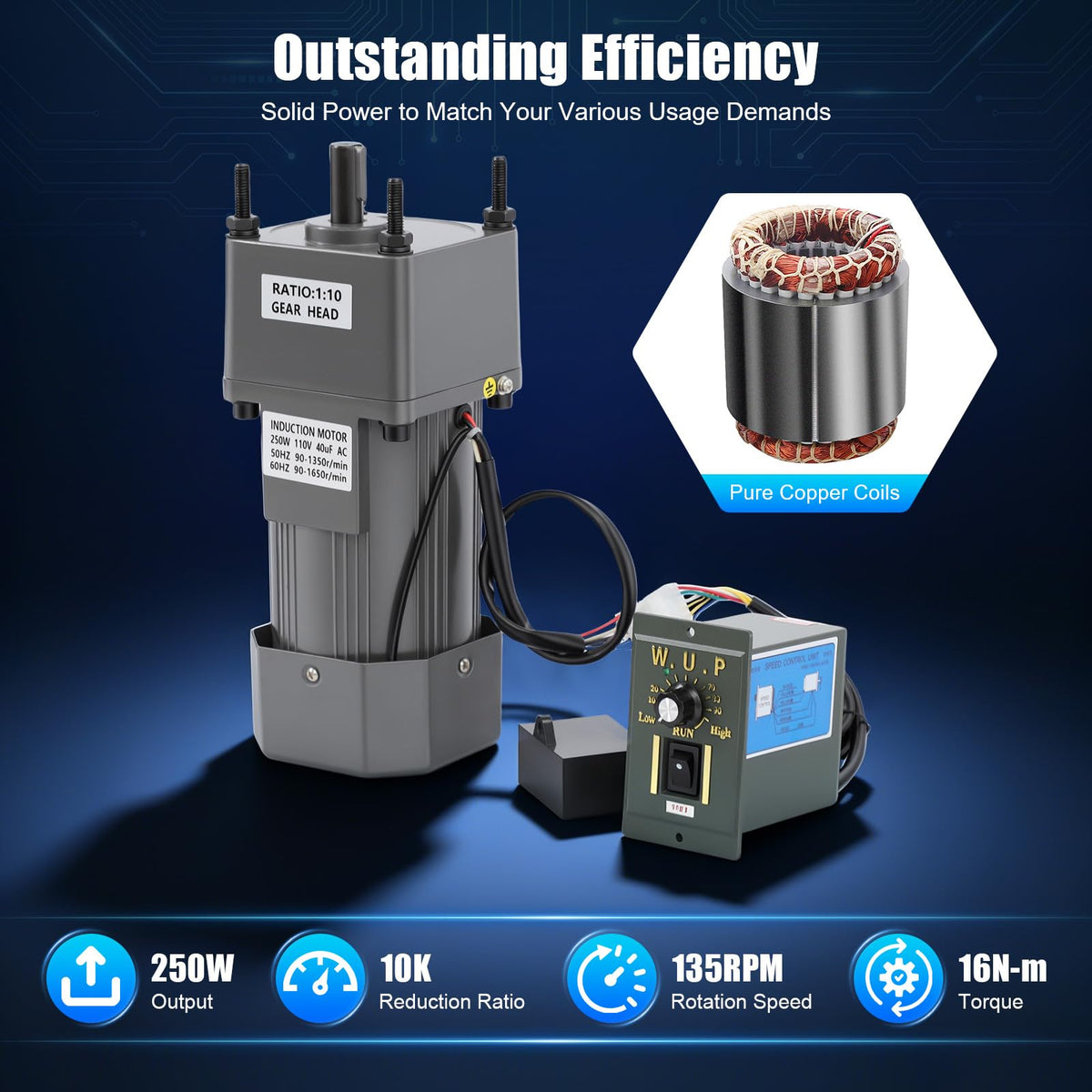

- Stable High-Torque Output: This gear motor delivers 250W power with a 1:10 reduction ratio and 135RPM rated output. It generates 16N・m torque with reversible rotation, ensuring smooth startup and stable transmission under continuous working loads

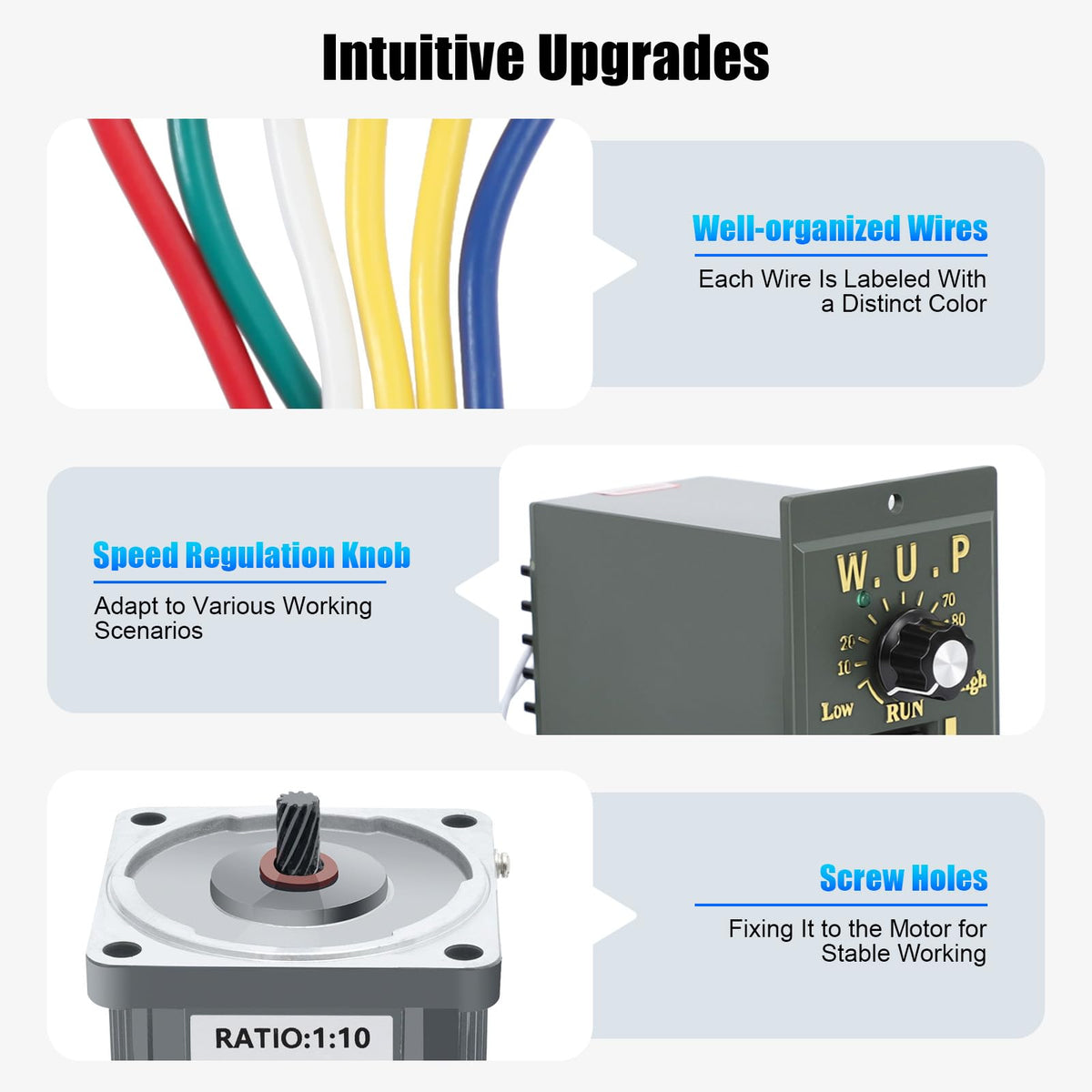

- Precision Speed Control Unit: This ac motor speed controller features a precision rotary knob for seamless speed adjustment. Color-coded clearly labeled wires simplify correct connection, reducing installation time for straightforward setup and operation
- Efficient Cooling Design: This high torque motor integrates bottom cooling vents and a built-in fan heat sink for efficient heat dissipation. Low-friction ball bearings lower operating temperature and extend the unit’s overall service life
- Rugged Alloy Build: Crafted from pure copper coils and alloy housing with die-cast heat treatment, this variable speed motor resists wear, corrosion and high heat, delivering steady long-lasting performance for heavy-duty industrial and commercial mechanical applications

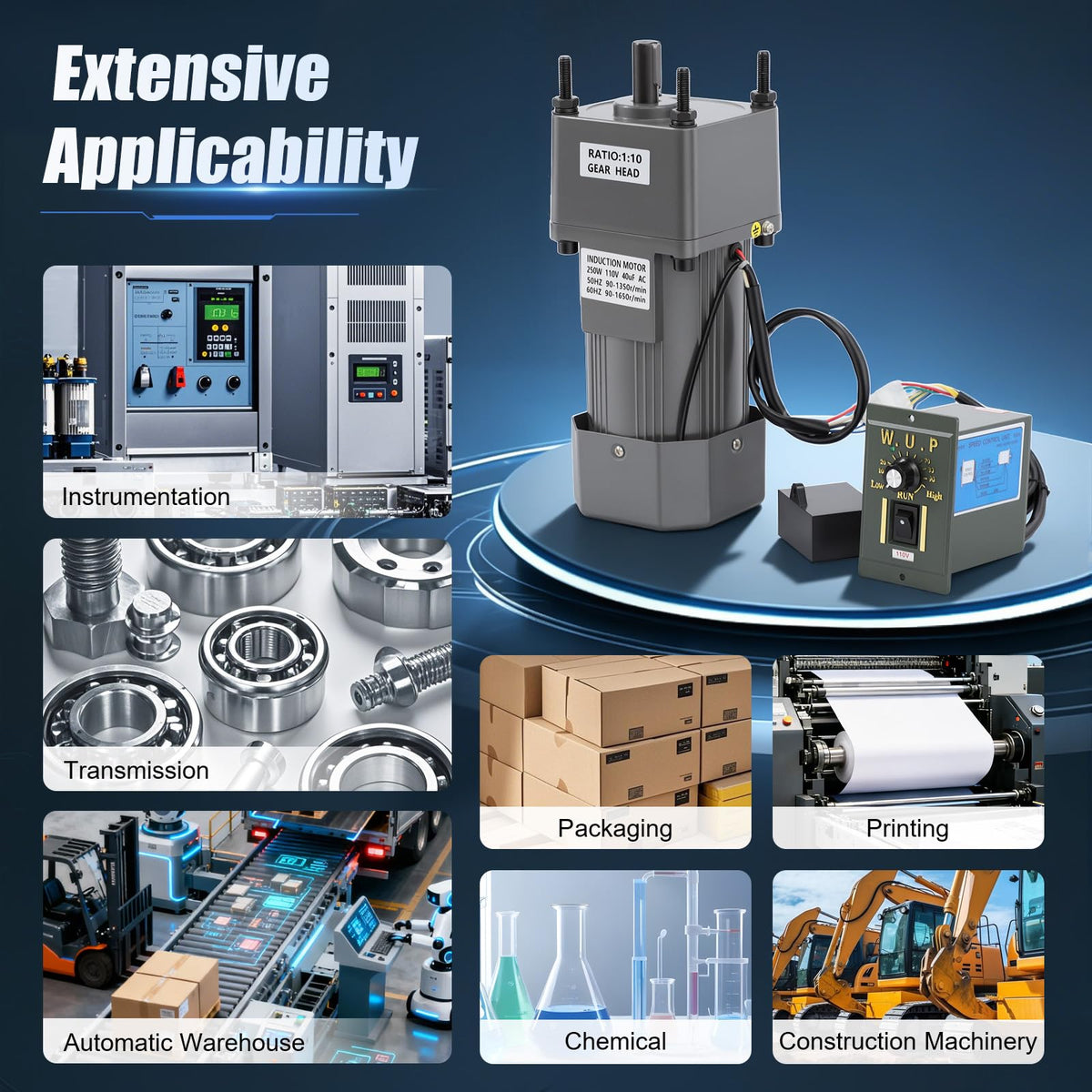

- Wide Industrial Compatibility: This gear reduction motor suits packaging, printing, textile, food processing and conveyor systems. It also works for automatic doors, warehouse equipment and various industrial machinery requiring controlled rotational power
This 250W 110V AC gear motor delivers 135 RPM output with 10K reduction ratio and 16N·m torque. Includes speed controller for precise adjustment. Reversible operation. Efficient cooling system. Ideal for conveyors, mixers, and rotary tables. ★Details Speed Regulation Knob – Turn the controller knob to adjust motor speed for different working scenarios. Hob-Shaving Process – Precision gear processing ensures low friction and quiet operation (~50dB). ★Specification Color: Grey Material: Copper, Alloy Surface Treatment: Die-casting Process, Heat Treatment Process, Hob-shaving Process, Spray Paint Voltage: 110V, 60Hz Horsepower: 250W Type of Motor: Single-phase Special Features: Forward and Reverse Rotation Reduction Ratio: 10K Rotational Speed: 135RPM Rated Torque: 16N-m Operating Noise: About 50dB Screws Hole Distance: 9cm/3.54inch Screw Hole Diameter: 9mm/0.35inch Crankshaft Diameter: 1.5cm/0.59inch Crankshaft Length: 3.5cm/1.37inch Gross Weight: 8.15kg/17.96lbs Net Weight: 7.05kg/15.54lbs Gear Motor Size: 10*10*29cm/3.9*3.9*11.4inch Speed Controller Size: 6*10*10cm/2.3*3.9*3.9inch Package Size: 32.5*29*20cm/12.7*11.4*7.8inch ★Package Included 1*Gear Motor 1*Speed Controller 1*En
Free shipping included. 30-day hassle-free returns.
