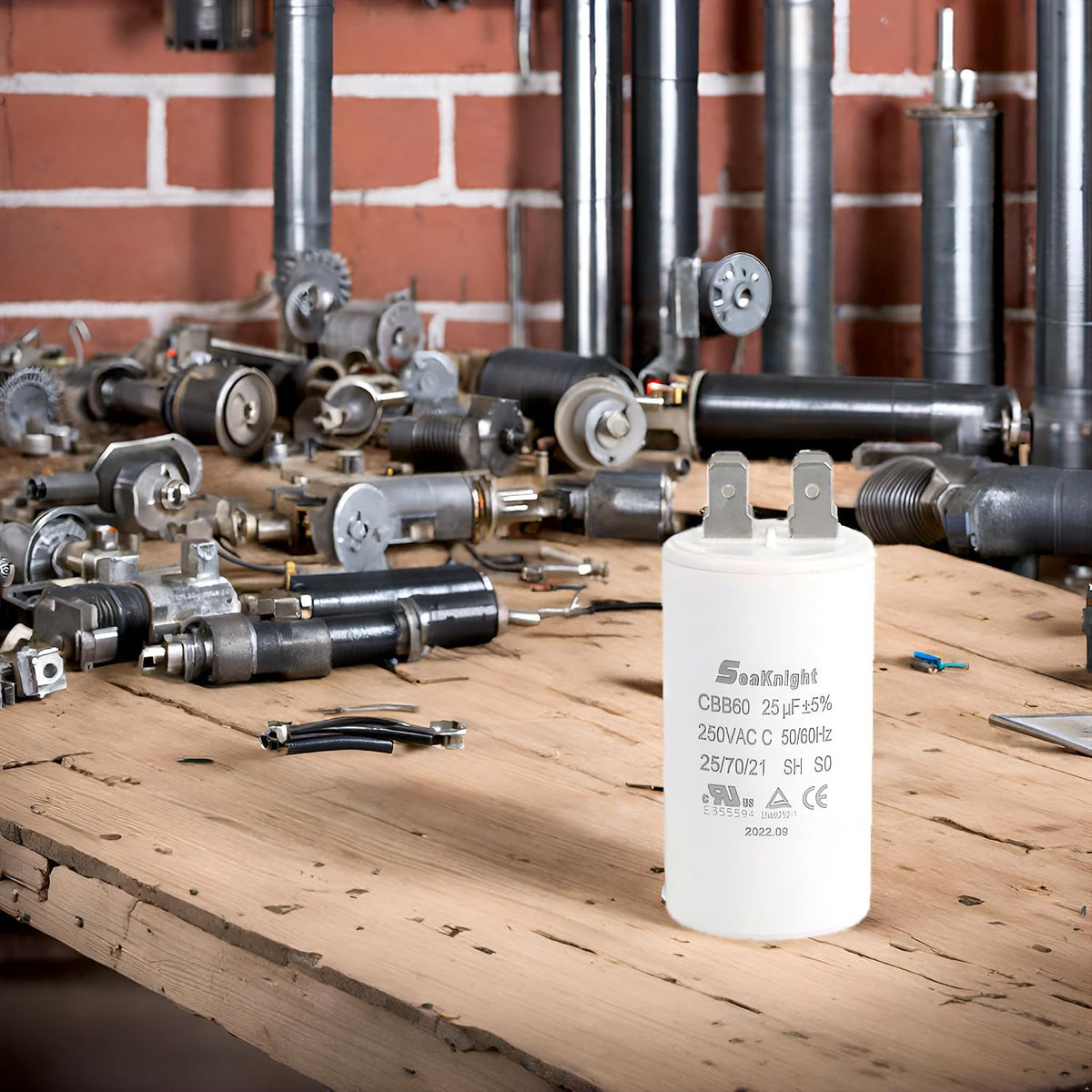

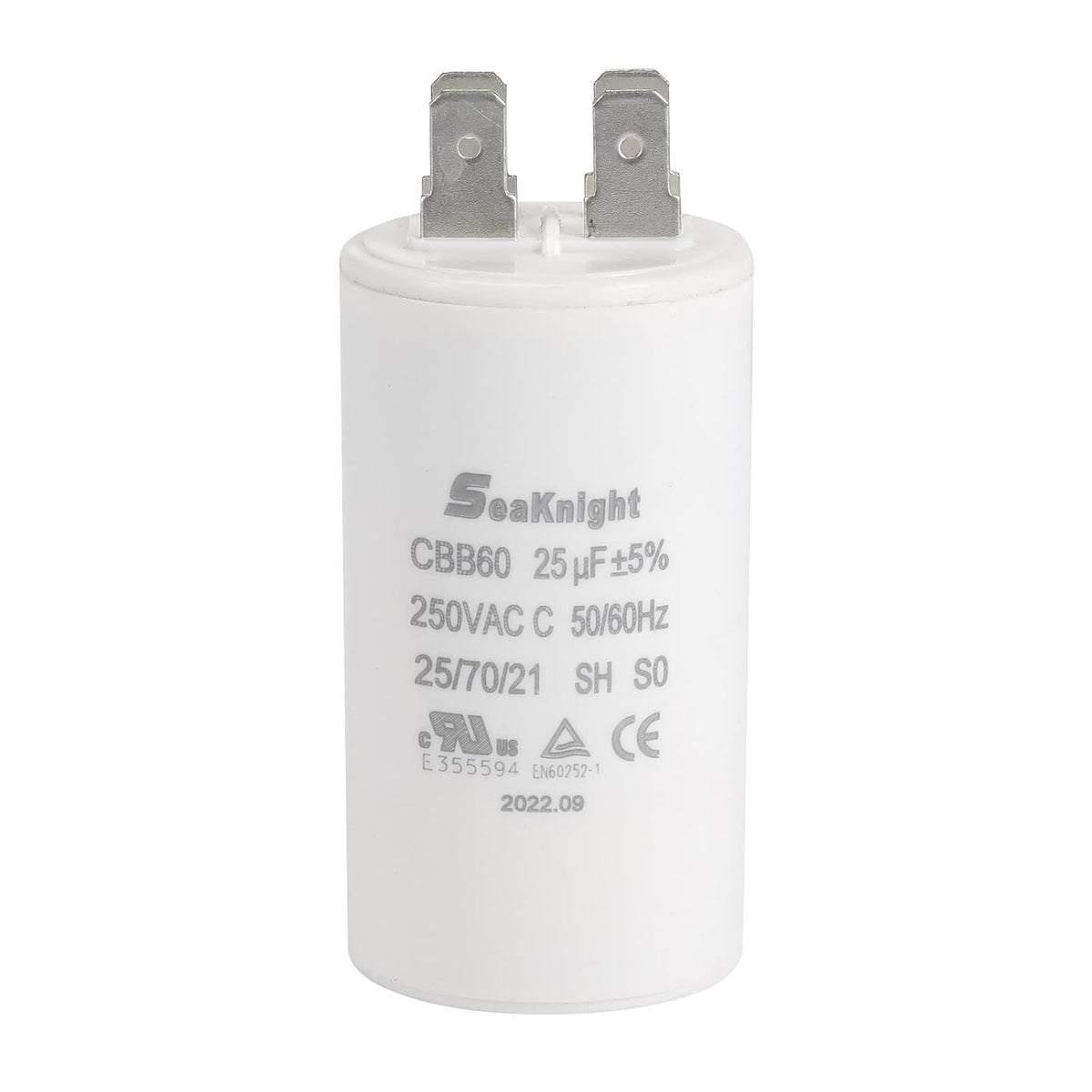

25uF MFD CBB60 Run Capacitor for Compressor Water Pump Motor

Key features

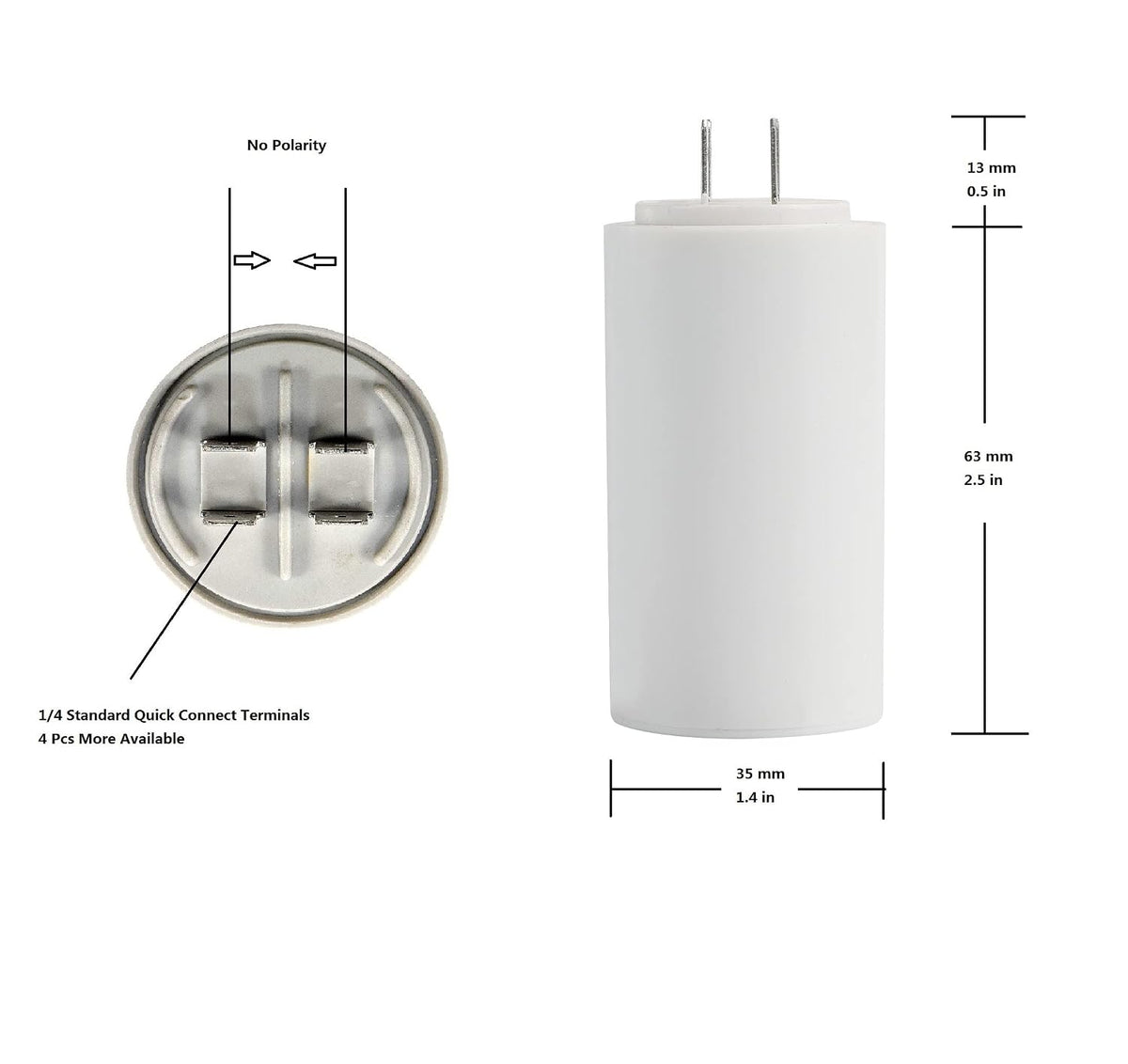

• Main Parameters-Rated Capacity Volume: 25uF MFD; Model: CBB60;Tolerance: ±5%; Withstand Voltage: 250V AC; Overview Body Size: 76x35mm / 3.0x1.4inch(L*D); Rated Frequency: 50/60Hz;Work Temperature Degree: 25/70/21
• Compare to CBB65,capcitor, CBB60 run capacitor has characteristics of small volume,small body size, more insulation ressitance on shell,light weight, low loss, anti-overvoltage shock, excellent electrical performance and long service life
• CBB60 capacitor is used for starting and working of a single-phase motor in a 50Hz/60Hz AC electric power system
• CBB60 capacitor is widely used for air compressors, water pumps, pressure washers, air conditioners, washing machines, motors, generators,fans, drills, splitters, saws, grinders, etc

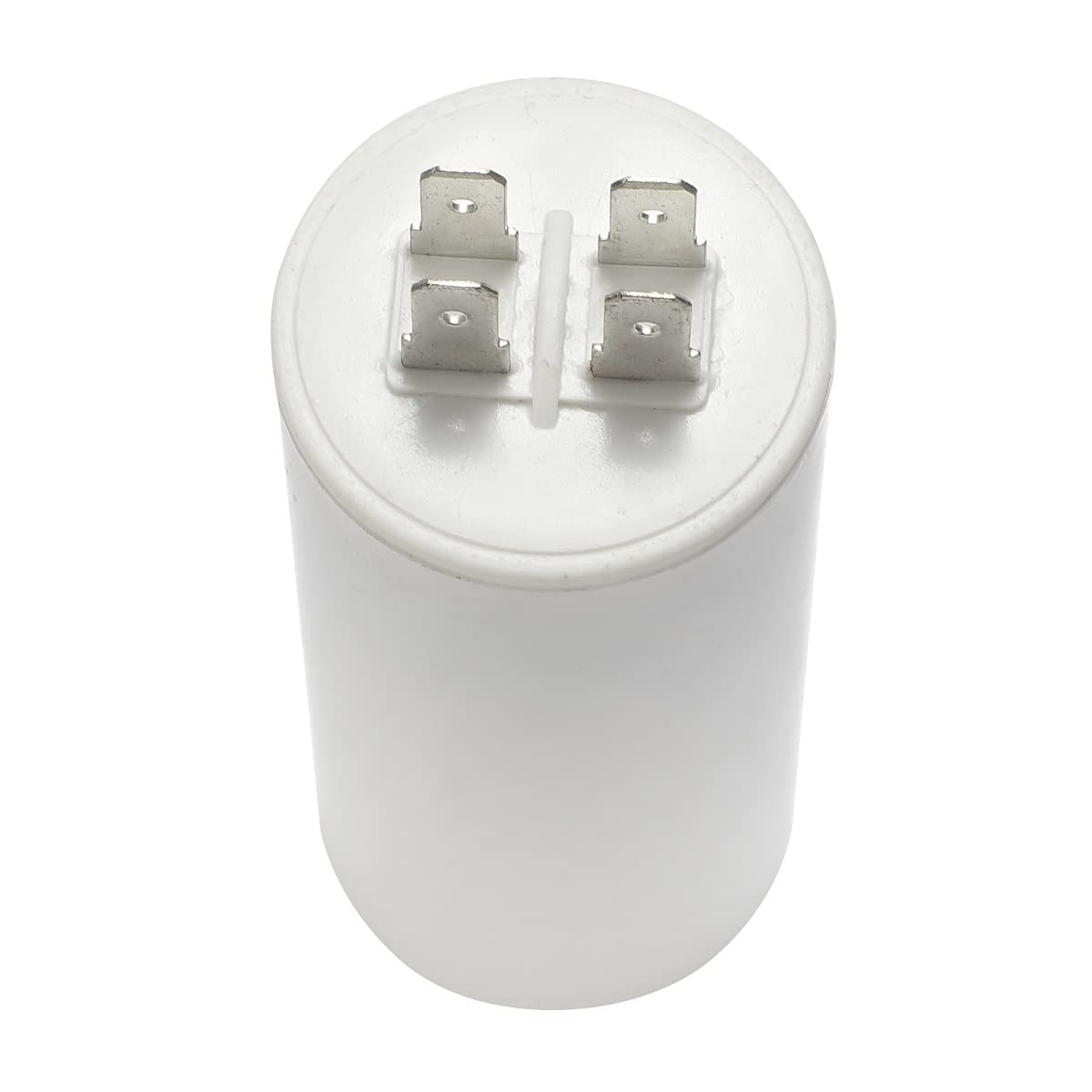

• Current with good impact resistance, strong overload ability, with quick conntect terminals it save your repair time and energy

CBB60 Capacitor 25 uF MFD Shell material: Plastic Volume: 25uF MFD Withstand Voltage: 250V AC Color:White Package Include: 1 x Run Capacitor Remark: 1.This capacitor has no positive and negative poles 2.The ordinary phenominions on this capacitor fail, motor can not start or run 3.Please conform capacitor's power already released before replacement 4.Please know that capacitor has several type of withstand voltage, 450, 440, 330, 250, 165V AC, this type is 250V AC 5.Capacitor withstand voltage more higher, the housing diameter is more bigger, so that just select the relative withstand type 6.This type capacitor use slim and small body housing, please pay attention to it
