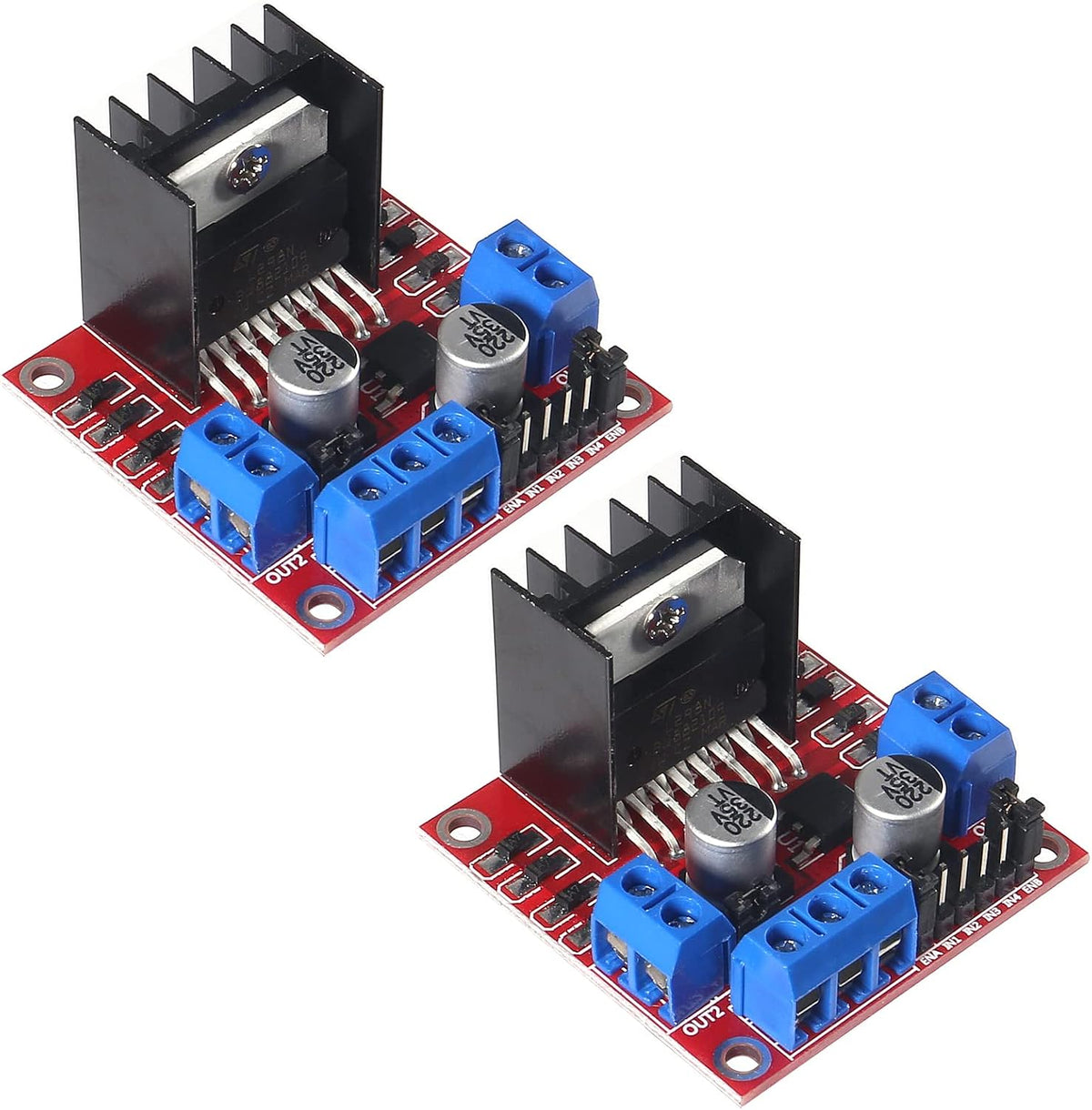

2PCS L298N Motor Drive Controller Board Dual H Bridge DC Stepper Robot Stepper Motor Control and Drives Module

Key features

• L298N motor voltage 5 V-35 V, drive current 2 A (maximum), external dimensions 43 x 43 x 27 mm/1.69 * 1.49 * 1.06in.
• The main driver chip L298N has strong driving ability, strong anti-interference ability, low heat generation, over-current diode protection, stable and reliable.
• Dual-channel H-bridge drive working mode, which can drive 2-phase stepper motors, 4-phase stepper motors or two DC motors, with high efficiency.
• When the driving voltage is greater than 12V, please use an external 5V logic power supply.
• No assembly required. This L298N board is ready to use.

Specification: Chip: ST L298N dual H-bridge driver chip Logic voltage: 5V Logic current: 0mA-36mA Storage Temperature: -20 ¡æ to +135 ¡æ Operating mode: H-bridge driver (dual) Drive voltage: 5V-35V Drive current: 2A (MAX single bridge) Maximum power: 25W Package Included: 2 X L298N motor driver controller board moduleNotes: When your driver is 7V-12V, you can enable the on-board 5V logic supply. When using the on-board 5V power supply, the + 5V power supply in the interface does not input voltage, but it can draw 5V voltage for external use. Unconventional application of high-voltage drive: When the driving voltage is higher than 12V, less than or equal to 24V, for example, to drive a motor with rated voltage of 18V, the jumper cap with 5V output enabled on-board voltage must be pulled out and then outside the 5V output port Connect 5V voltage to L298N internal logic voltage supply.
