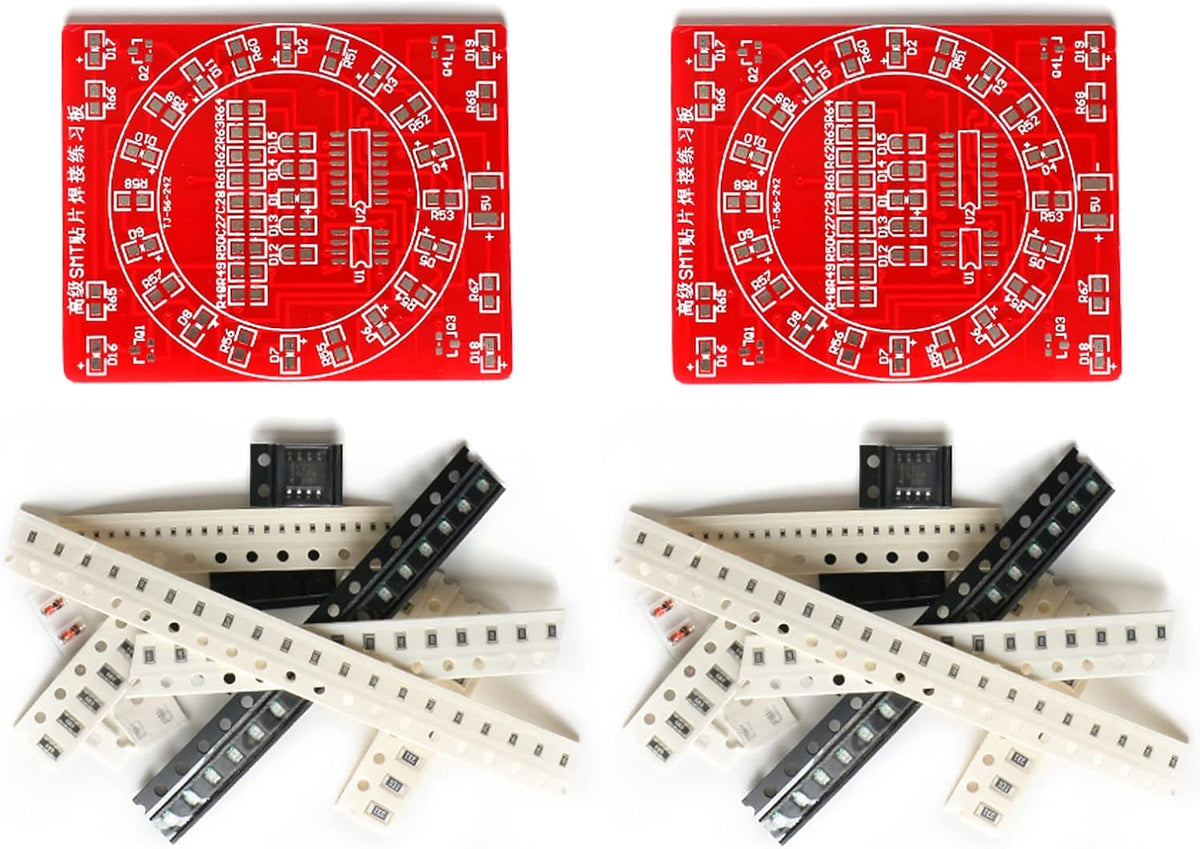

2Pcs SMT SMD Component Welding Practice Board Rectifiers CD4017 NE555 Soldering Skill Training Board Flowing Water Light Kit DIY Electronic Kit Mini Practice Board Easy SMD

Key features

• The product is a loose part with a circuit board: the PCB circuit board is equipped with all components, and you need to assemble and debug it yourself
• The welding practice board for SMD components adopts double-sided components, and the double-sided SMD practice has a high board occupancy rate and good cost performance
• The circular circuit in the middle is a water lamp circuit, composed of CD4017, NE555, and light-emitting diodes. It can work after being powered on after welding without any errors
• The PCB circuit design is reasonable, without burrs, and is small in size, which can be packed in a pocket
• Three columns of components on the left and right are used for welding practice, and each column has test points

Product Name: CD4017+NE555 Simple SMD Flowing Water Lamp Kit Parameters: Product size: 59mm * 48mm Plate thickness: 1.6mm Working voltage: DC3-12V Plate material: RF-4 plate, all solder pads are tin plated, high-strength fireproof and fall resistant material, and can be repeatedly disassembled The front side of the PCB board is a functional area for welding, and the back side is a practice welding area The circuit design is reasonable, and conventional chip mounting components are used After all components on the front are welded, power on to test the welding effect Number of elements: 102 Number of solder joints: 264 Solder dosage: about 35cm
