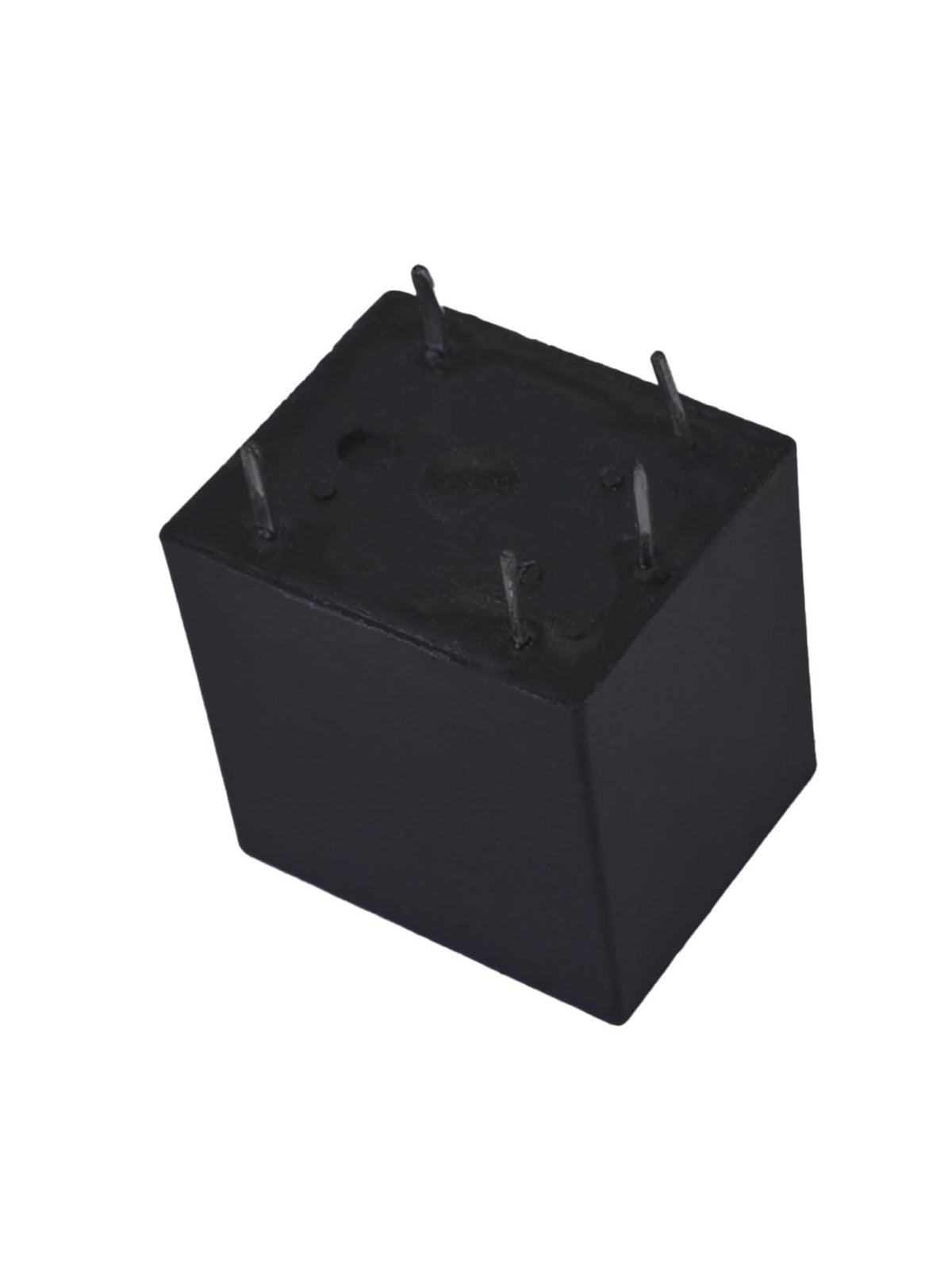

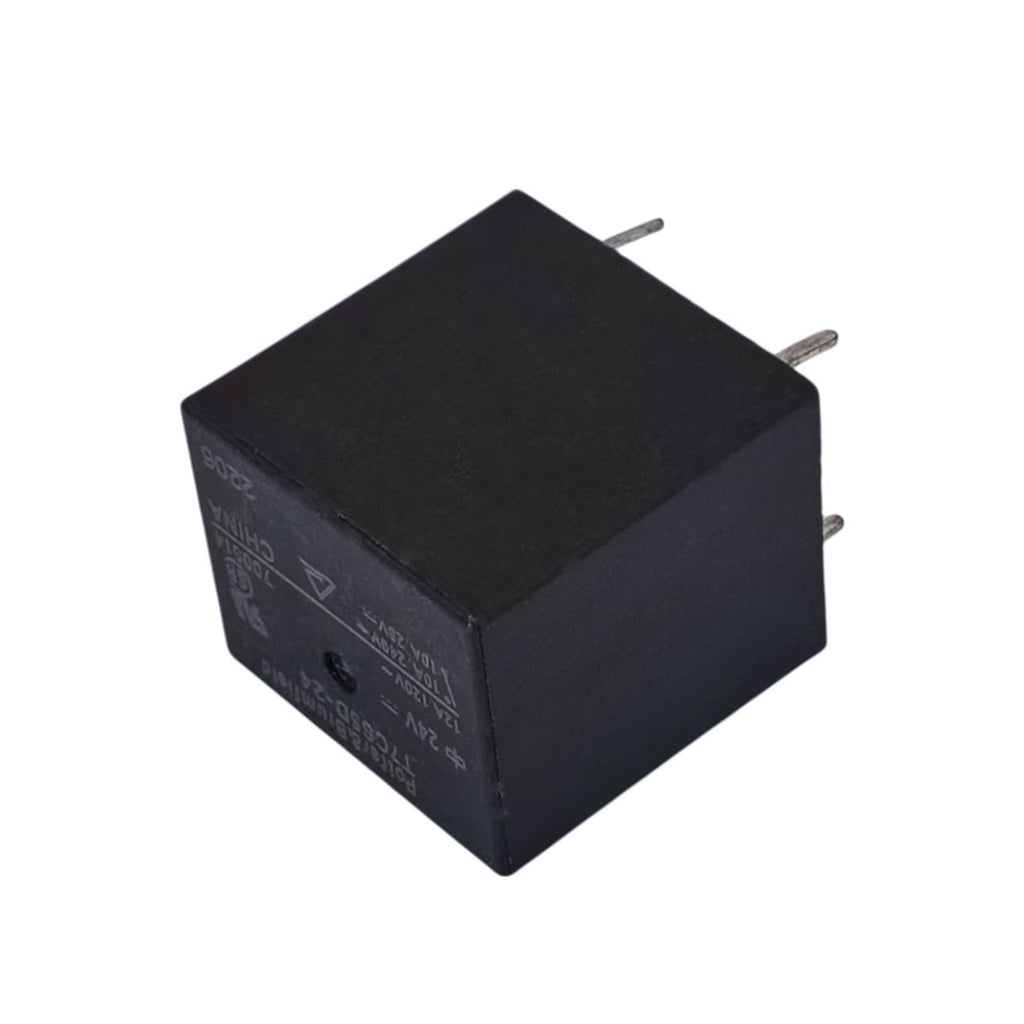

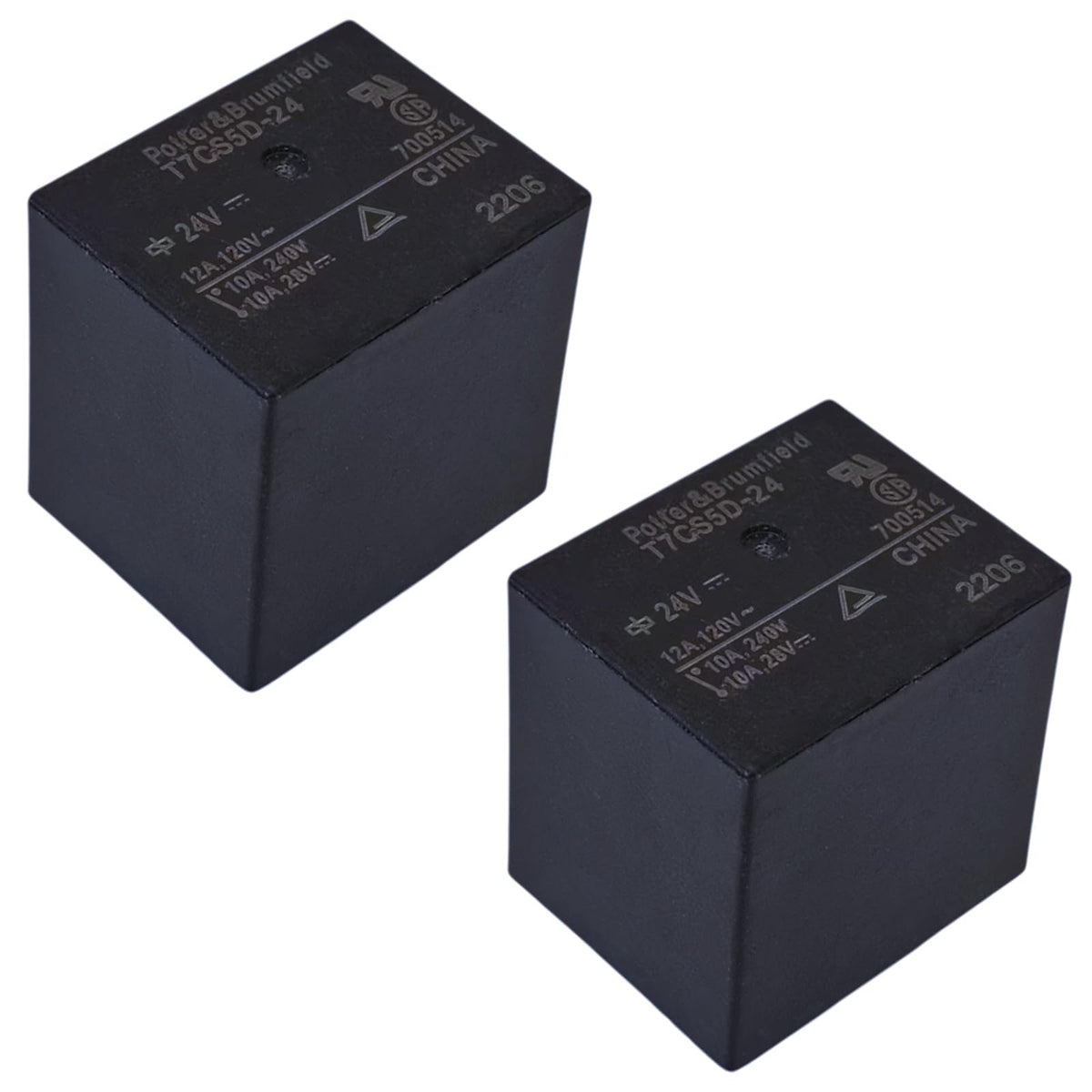

2PCS T7CS5D-24 24VDC Power Relay Same as JZC-22FFC15D24VDC

Key features

• Power Relay T7CS5D-24 24VDC: The T7CS5D-24 24VDC power relay is designed for various applications and offers reliable performance. It is a 5-pin relay capable of handling a maximum current of 12A at 24VDC
• Normally Open Contact: The relay features a normally open (NO) contact configuration, providing a seamless switch for controlling electrical circuits. This configuration ensures efficient and accurate power control
• Versatile contact type: It features a Single Pole Double Throw (SPDT) contact type, providing flexibility in power control and switching applications
• 24VDC, 12A Rating: This power relay operates at a voltage of 24VDC and has a maximum current rating of 12A. Compatible with TE Connectivity/ Potter & Brumfield Multi Purpose Relay
• 5-Pin Configuration: The T7CS5D-24 24VDC power relay features a 5-pin configuration, allowing for secure and convenient electrical connections. The pins are labeled for easy installation and ensure reliable signal transmission

Specification: Connector Type: Quick Connect Mounting Type: Plug In Mount Easy to install, plug and plays Contact type: SPDT Coil Voltage: 24VDC Contact Form: SPDT (1 Form C) Contact Rating (Current): 12 A Switching Voltage: 240VAC, 24VDC - Max Load - Max Switching: 2880VA, 288W Coil Current: 15 mA Coil Type: Non Latching Seal Rating: Sealed - Fully Coil Insulation: Class F Application: Automotive Applications: Automotive Circuit Control: The T7CS5D-24 relay is widely used in vehicle systems to switch high-current circuits such as headlights, fans, horns, air conditioning systems, and power windows. Electric Vehicle (EV) Systems: In electric vehicles, the relay can be used for battery management and power distribution, switching between different power sources like solar, grid, or battery power. Industrial Control: Motor and Pump Control: The T7CS5D-24 relay is commonly used in motor control applications, especially for switching DC motors, AC motors, or pumps in manufacturing, agriculture, and industrial settings. Industrial Automation: It is suitable for use in industrial automation systems where high-power loads need to be controlled by low-voltage control circuits (e.g., throu
