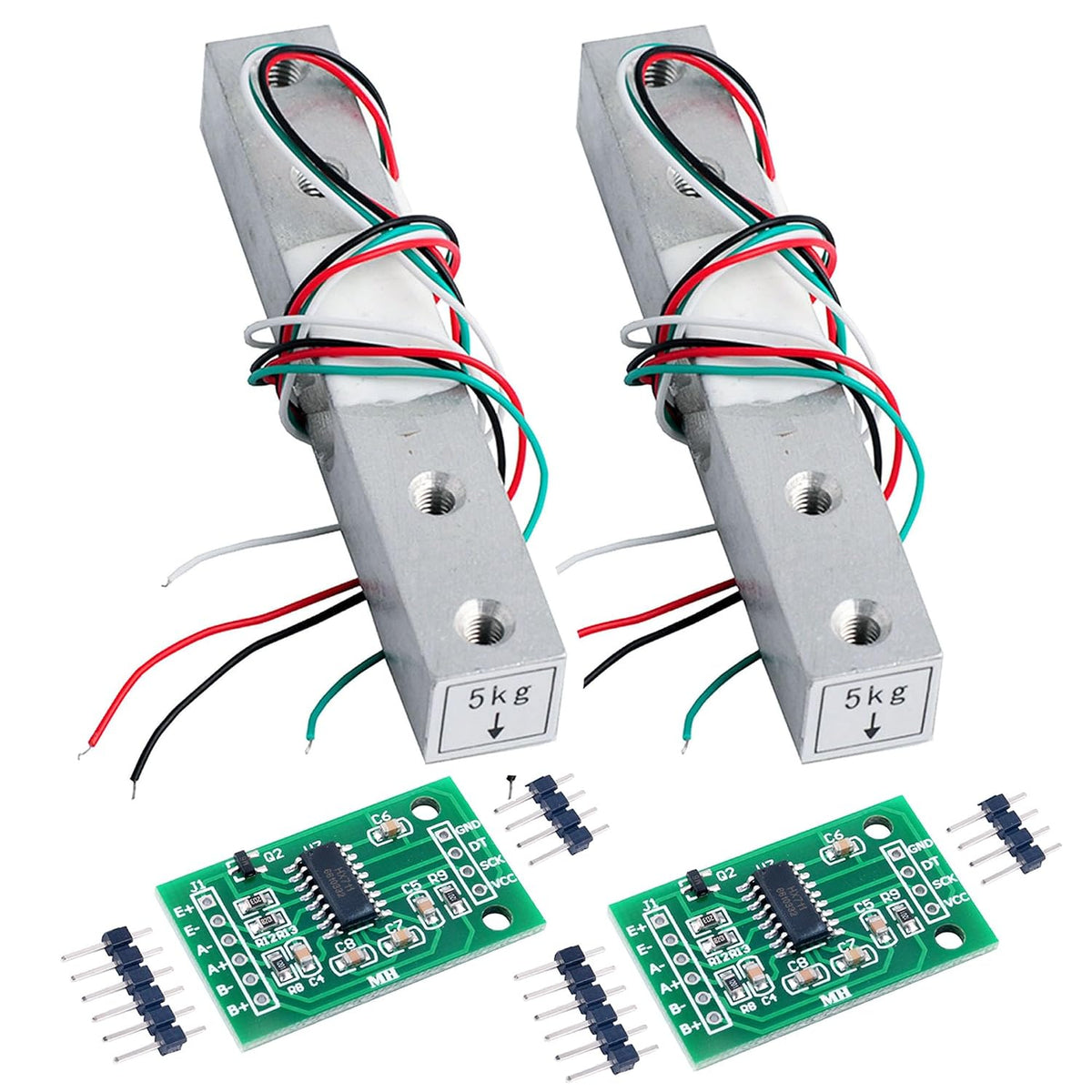

2sets 5kg Load Cell Weight Sensor + HX711 Load Cell Amplifier Module Weighing Sensor Dual-Channel 24 Bit Precision A/D Module

Key features

• Weight options: 1kg 5kg 10kg 20kg

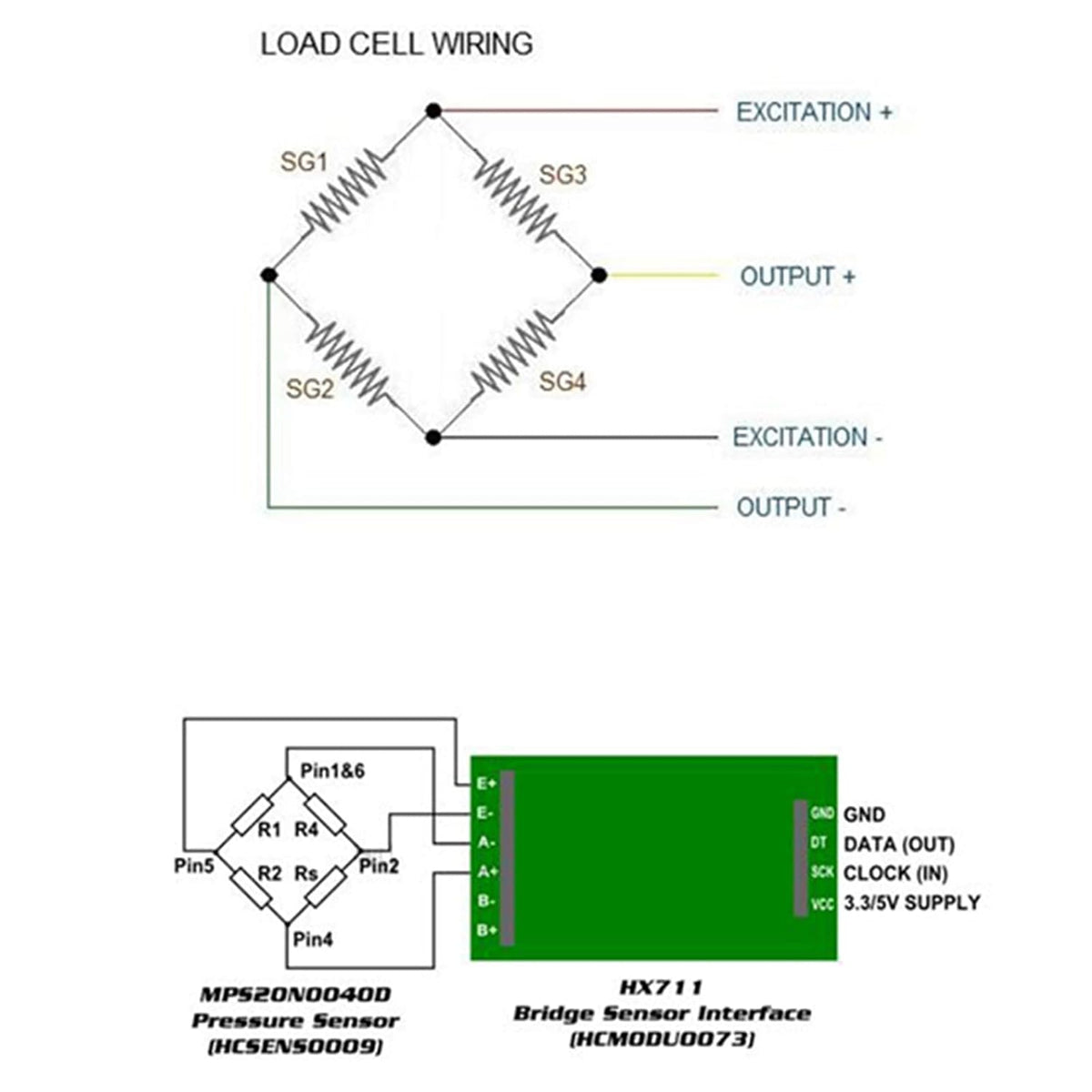

• Connection：Red to E+ / Black to E- / Green to A+ / White to A-
• Four leads, easy to use,5-10V drive voltage applied, the force is directly output as a voltage change signal
• Made of high quality aluminium alloy, parallel beam structure, suitable for electronic kitchen scales, small appliances force measurement, pet feeders and other intelligent weighing equipment
• Please feel free to ask any questions you may have and will respond within 24 hours

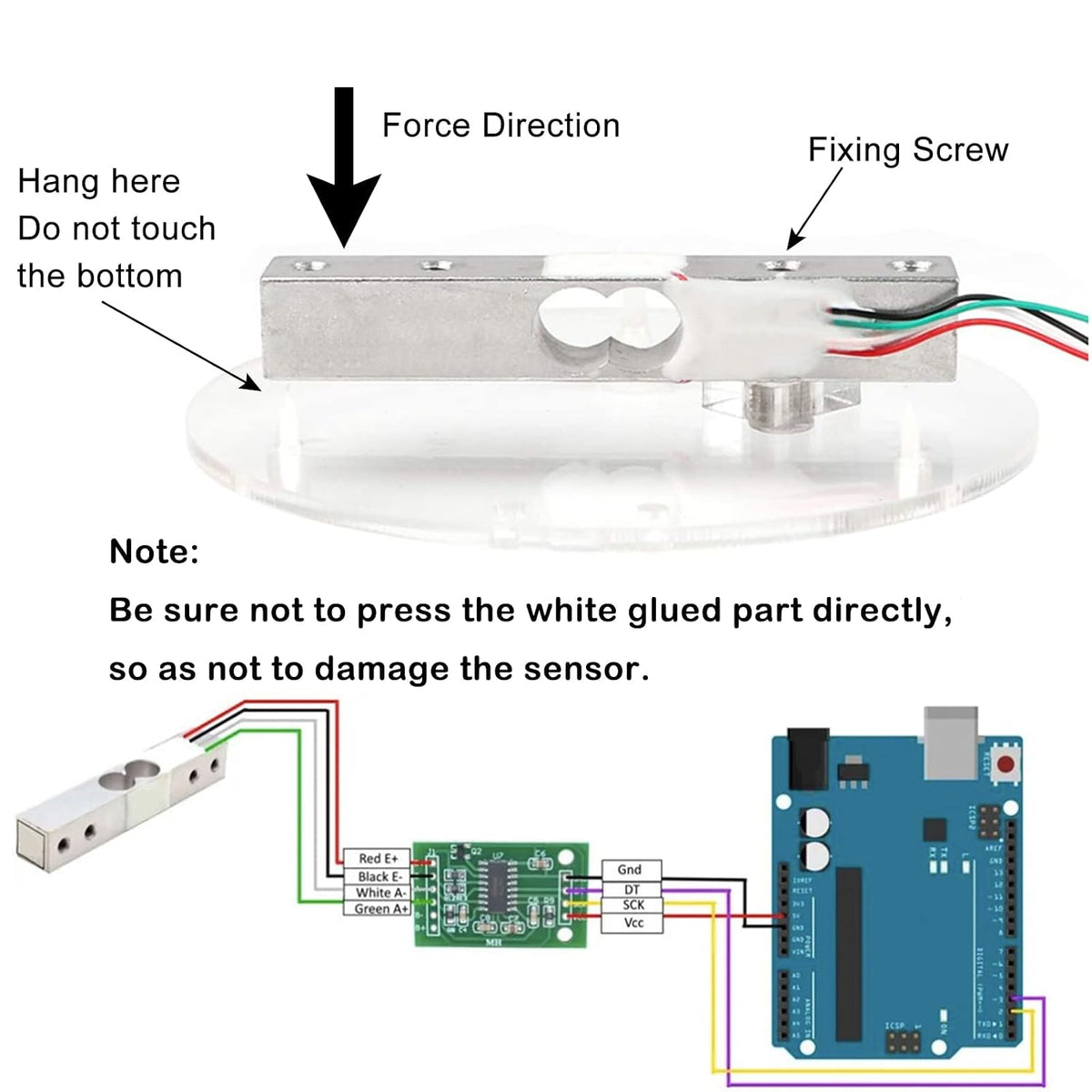

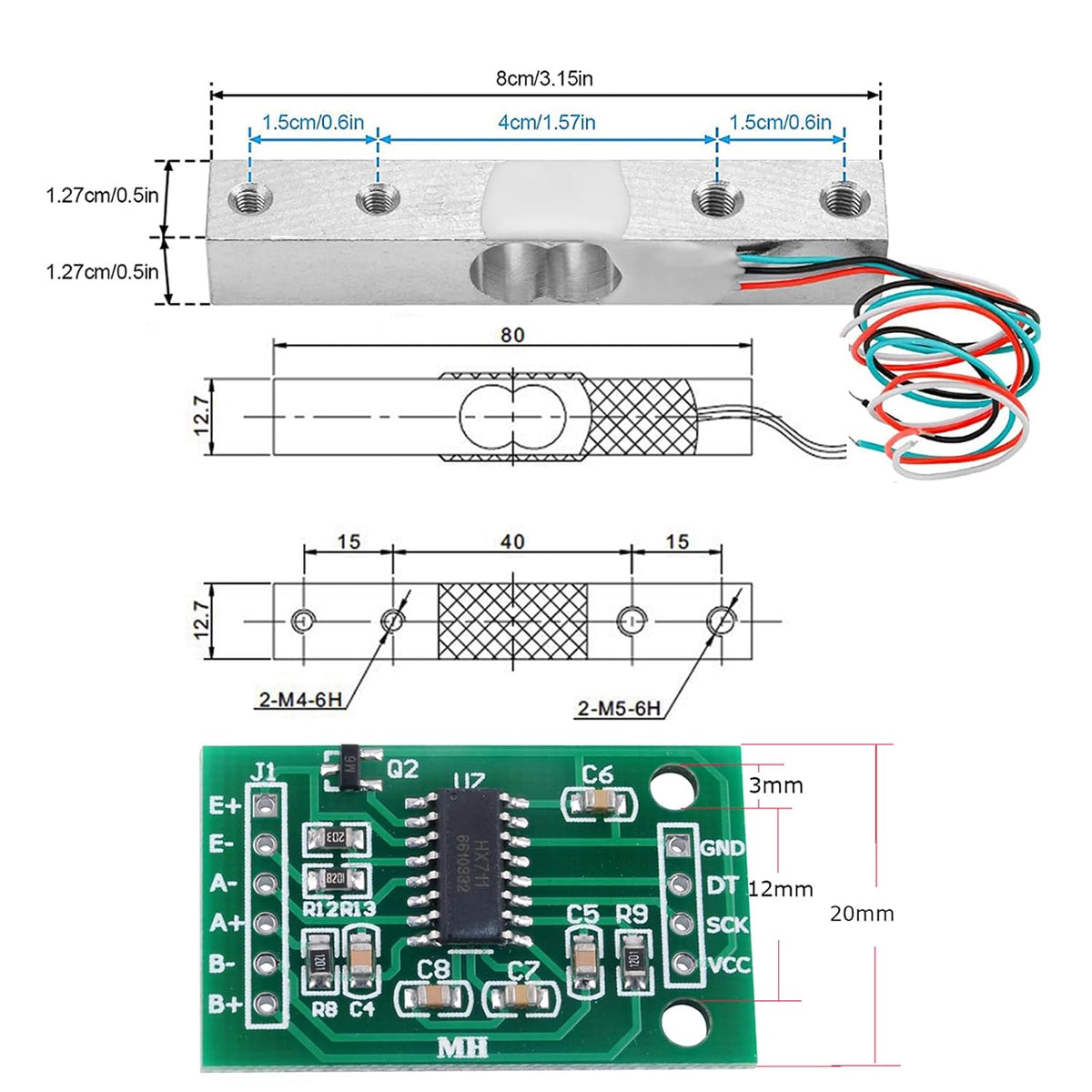

Description Four leads, easy to use,5-10V drive voltage applied, the force is directly output as a voltage change signal. Dimensions: 12.7mm * 12.7mm * 80mm Sensor through the screw hole at one end fixed and the other end to keep floating state, applying gravity following the direction indicated by label. Particular attention must not directly push the white plastic cover part, so as not to damage the sensor. Application: Kitchen scale Module: YZC-133 Capacity: 1、5、10、20 Rated Output: 1.0±0.15mV/V Nolinearity: 0.0005 Repeatability: 0.0003 Hysteresis: 0.0003 Creep(5Min): 0.001 Temperature Effect On Sensitivity: 0.003%RO/°C Temperature Effect On Zero: 0.02%RO/°C Zero Balance: ±0.1%RO Input Resistance: 1066±20Ω Output Resistance: 1000±20Ω Insulation Resistance: 2000MΩ(50V) Recommended Excitation Voltage: 5V Compensated Temperature Voltage: -10~+50°C Operating Temperature Range: -20~+65°C Safe Overload: 120%RO Ultimate Overload: 150%RO Load Cell Material: Aluminium Connecting Cable: φ0.8X180mm HX711 Ad Module Load Cell Amplifier Green PCB for Arduino Description: ●Two selectable differential input channels ●On-chip active low noise PGA with selectable gain of 3264 and 128 ●On-chip powe
