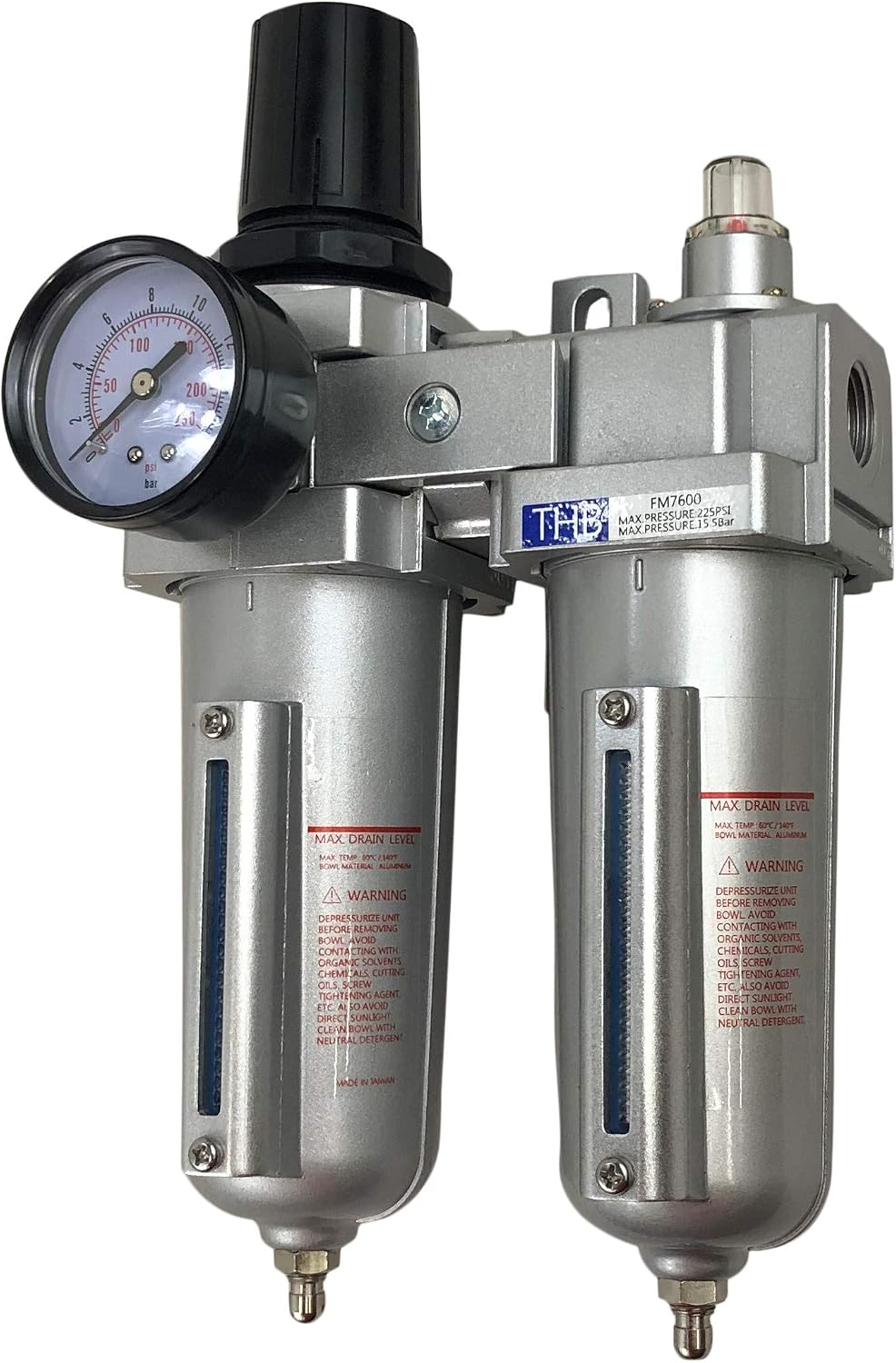

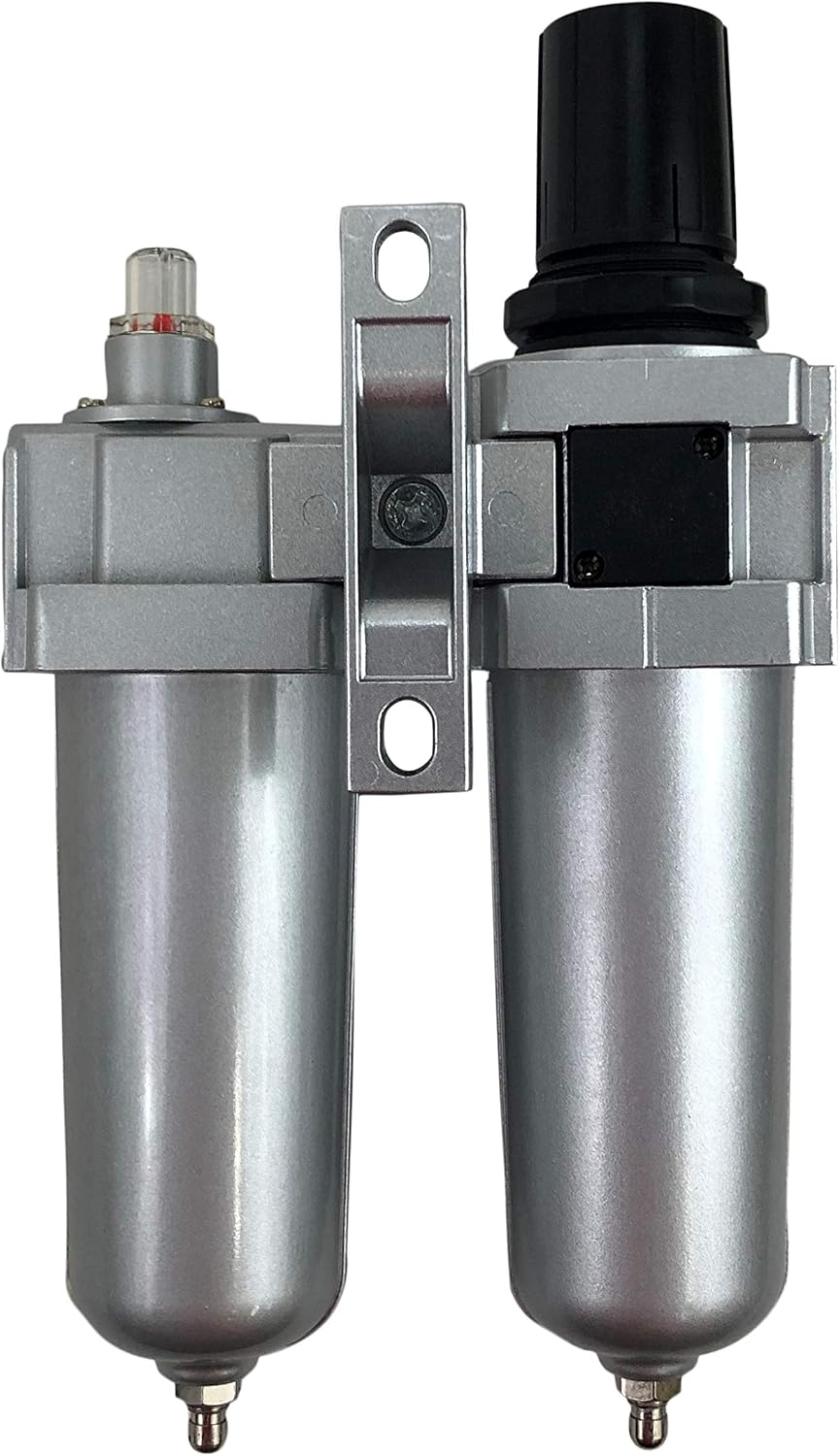

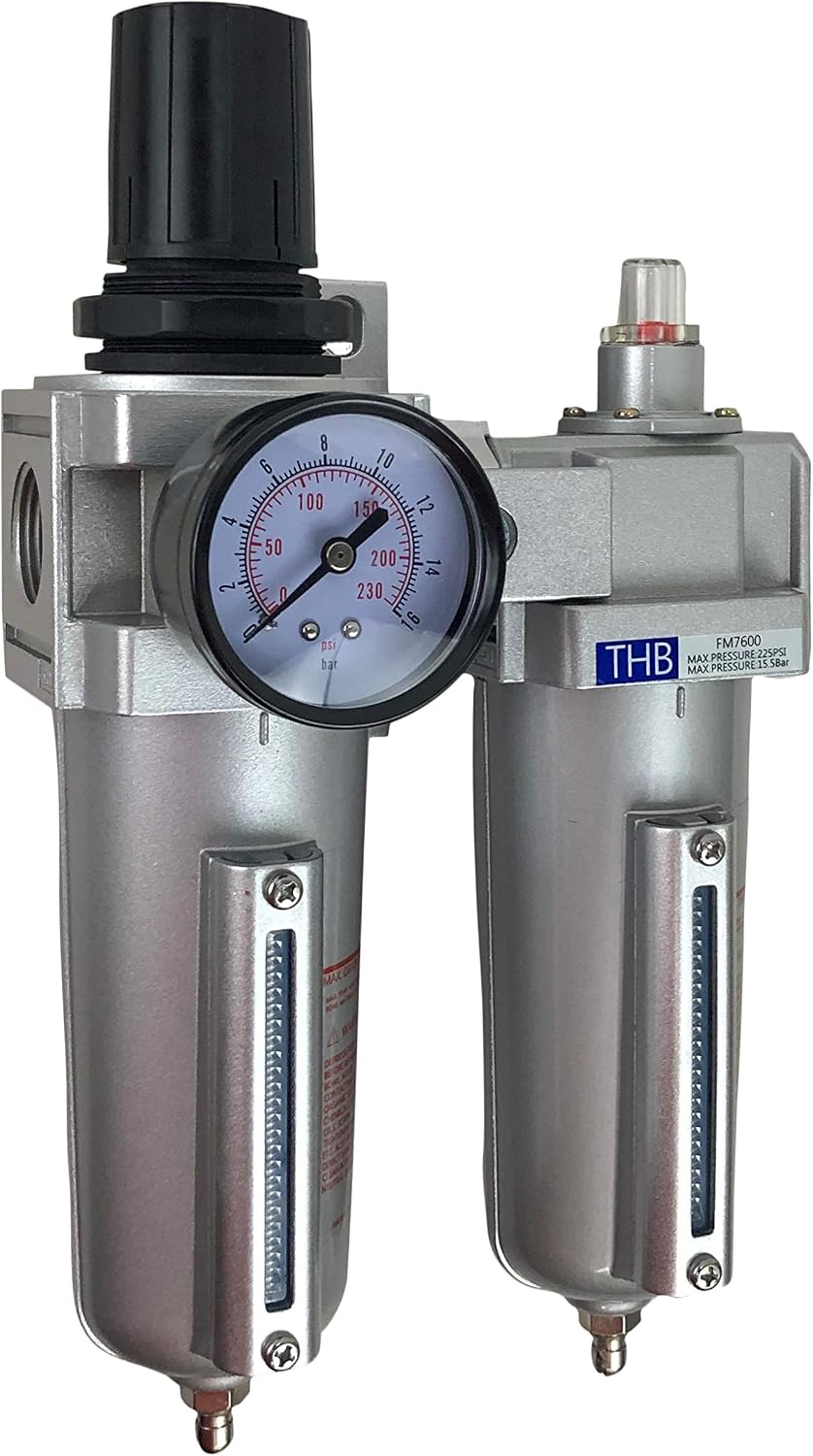

3/4" HEAVY DUTY COMBO PARTICULATE & COALESCING FILTER REGULATOR COMPRESSED AIR

Key features

• 3/4" HEAVY DUTY HIGH FLOW COMBINATION FILTER / REGULATOR & COALESCING FILTER W/ GAUGE
• 3/4" FEMALE NPT INLET X 3/4" FEMALE NPT OUTLET
• 250 PSI MAX INPUT PRESSURE 215 PSI MAX OUTPUT PRESSURE
• WILL REGULATE AIR PRESSURE BETWEEN 7 - 225 PSI
• METAL BOWL AND VISIBLE SIGHT GLASS

3/4" HEAVY DUTY HIGH FLOW COMBINATION FILTER / REGULATOR & COALESCING FILTER W/ GAUGE. 215 PSI MAX OUTPUT 3/4" FEMALE NPT INLET X 3/4" FEMALE NPT OUTLET EQUIPPED WITH WALL MOUNTING BRACKET DESIGNED FOR BOTH 1 STAGE AND 2 STAGE APPLICATIONS 250 PSI MAX INPUT PRESSURE 215 PSI MAX OUTPUT PRESSURE PARTICULATE FILTER REMOVES 95% OF MOISTURE, OIL AND DEBRIS REGULATOR WILL REGULATE AIR PRESSURE BETWEEN 7 - 225 PSI COALESCING FILTER WILL REMOVE 99.98% OF THE REMAINING DEBRIS THE PARTICULATE LEAVES BEHIND. BY IMPLEMENTING A PARTICULATE FILTER BEFORE YOUR COALESCING FILTER, YOU WILL BE EXTENDING THE LIFE OF YOUR COALESCING FILTER ELEMENT 5 FOLD WHILE PROVIDING CLEAN AIR LINES TO YOUR COMPRESSED LINE SYSTEM. FILTER / REGULATOR SPECS: 3/4" ( TOP AND BOTTOM PIGGY BACK TYPE) 215 PSI MAX OUTPUT 5 MICRON FILTER INCLUDED REMOVES 95% OF CONTAMINANTS MANUAL PUSH DRAIN LOCATED BOTTOM OF METAL BOWL. PUSH TO RELEASE MOISTURE 2.7oz BOWL CAPACITY ( METAL BOWL) WITH VISIBLE SIGHT GLASS 120 CFM FLOW RATE EQUIPPED WITH CENTER BACK MOUNT PRESSURE GAUGE 7 - 225 ADJUSTMENT PRESSURE COALESCING FILTER SPECS: 3/4" MAX PRESSURE: 215 PSI OUTPUT INLET OUTLET: 3/4" INLINE 0.01 MICRON FILTER REMOVES 99.98% OF THE DEBRI
