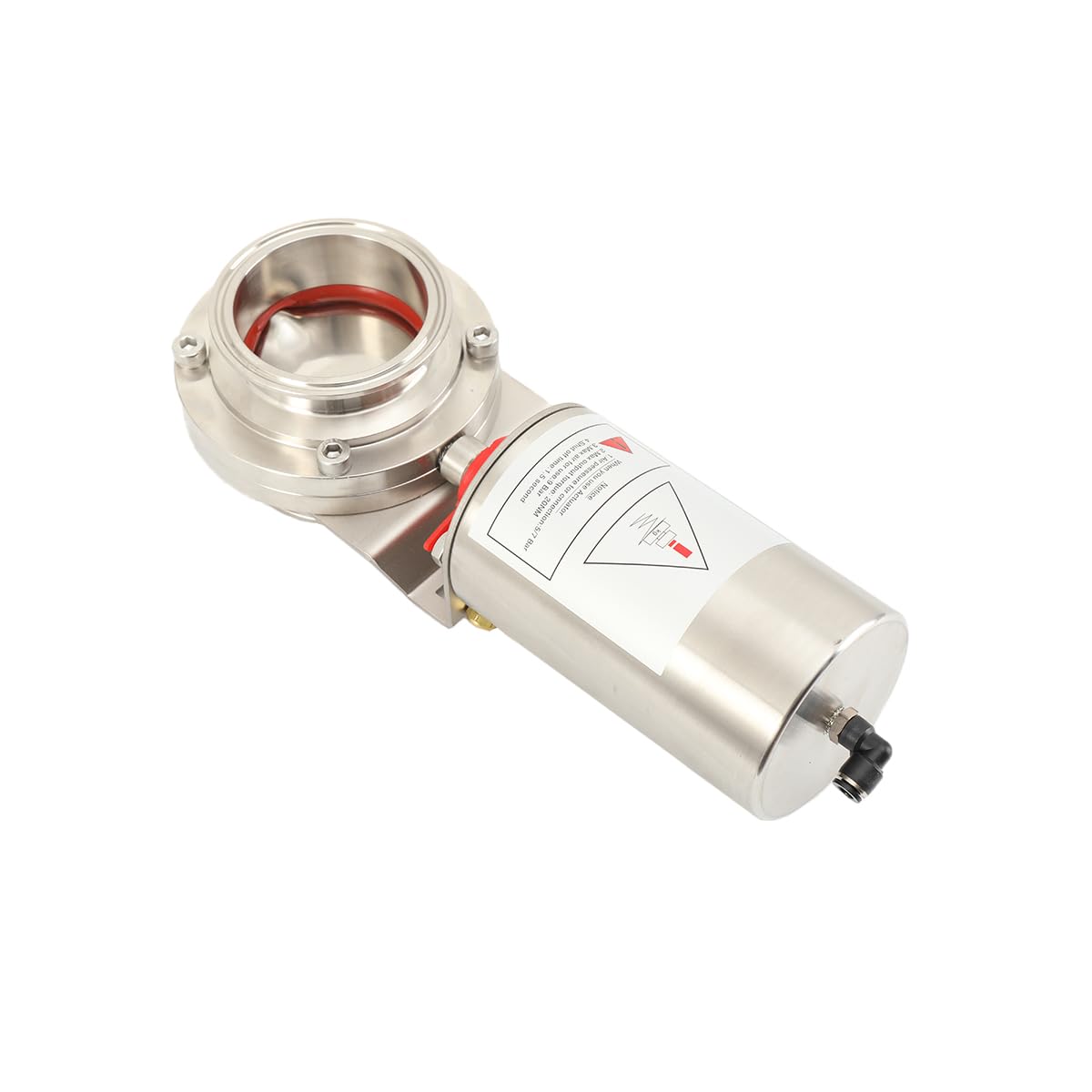

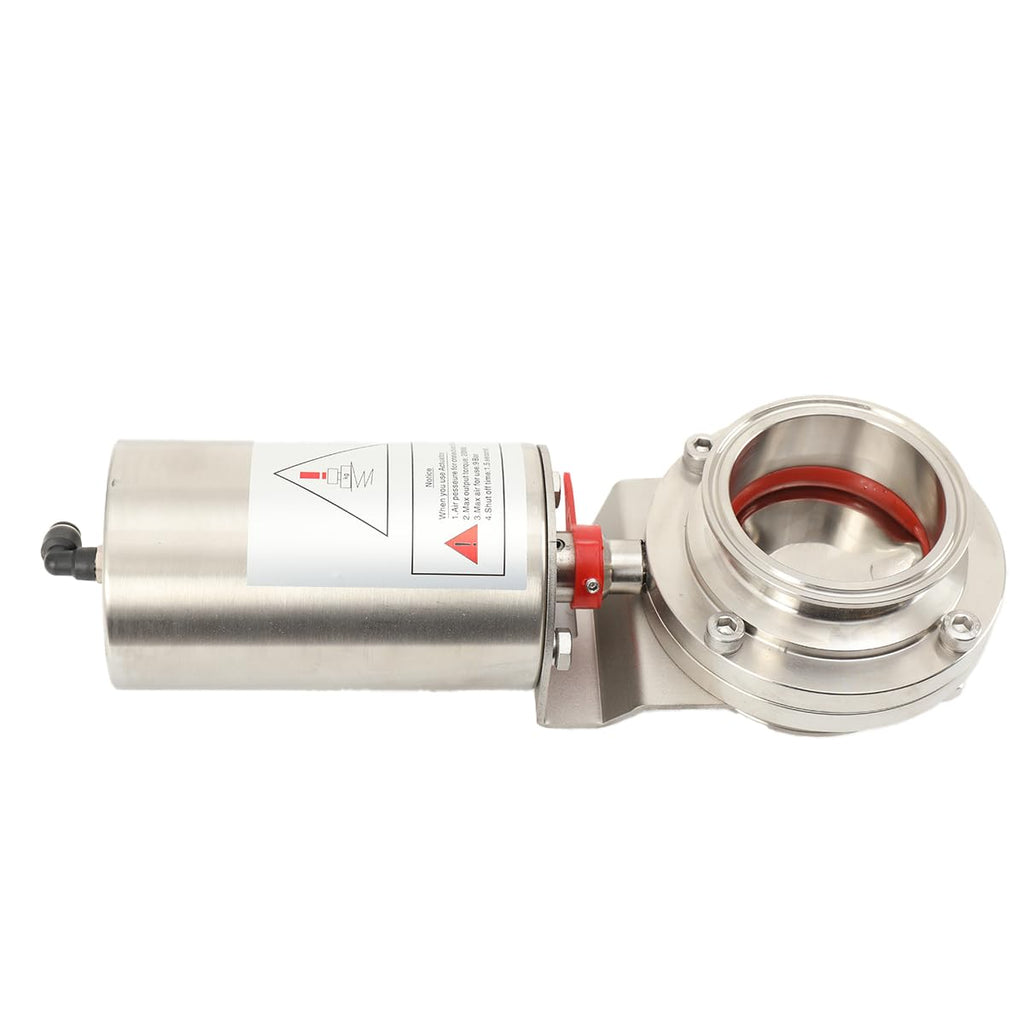

3 Inch Tri Clamp Sanitary Butterfly Valve
3 Inch Tri Clamp Sanitary Butterfly Valve
Key features
- Operation: Pneumatic; Control Method: Single acting, Automatic Return Position; Operating range: 0-90°
- Valve material: 304 Stainless Steel; Connection: Clamp; Port thread size: 3"(Φ76)
- Work Pressure: 0-1.6MPa / 232psi
- Applicable Temperture: ≤212℉
- Applicable Medium: Water, Oil, Air; Widely used in food, pharmaceutical, beer, beverage, bioengineering, water treatment, daily chemical, mechanical equipment, automation equipment and other fields.
The stainless steel pneumatic quick-install butterfly valve integrates a stainless steel valve body with a pneumatic actuator and is equipped with a clamp-type quick-connect structure. It features corrosion resistance, automated control capability, and rapid installation/removal. By rotating the valve disc, it enables on/off control or flow regulation in pipelines, with its core function being to meet the need for remote liquid control in industrial processes. It is primarily applicable in the food and beverage industry, such as fluid control in production lines for juice, dairy products, beer, etc. Product Parameters: Operation: Pneumatic Connection Method: Clamp Connection Valve body material: 304 Stainless Steel Sealing material: EPDM Applicable temperature ≤100 degrees Celsius Ambient temperature -20℃ ～60℃ Maximum working pressure 1.6MPa Air source pressure: 5-7bar Maximum air source pressure-9bar Maximum torque 20NM Working angle range 0-90° Opening and closing time≤ 1.5s Surface treatment polishing Package Including 1 x pneumatic quick-install butterfly valve
Free shipping on orders $50+. 30-day hassle-free returns.
