3 Pcs Miniature 5 Volt DC Relay HF41F/5-ZS 5 Pin 1NO 1NC 6A SPDT with LED Indicator, Socket Base and DIN Rail Module

3 Pcs Miniature 5 Volt DC Relay HF41F/5-ZS 5 Pin 1NO 1NC 6A SPDT with LED Indicator, Socket Base and DIN Rail Module

$46.99
$46.99 $65.99
Skip to product information
3 Pcs Miniature 5 Volt DC Relay HF41F/5-ZS 5 Pin 1NO 1NC 6A SPDT with LED Indicator, Socket Base and DIN Rail Module
  • 3 Pcs Miniature 5 Volt DC Relay HF41F/5-ZS 5 Pin 1NO 1NC 6A SPDT with LED Indicator, Socket Base and DIN Rail Module
  • 3 Pcs Miniature 5 Volt DC Relay HF41F/5-ZS 5 Pin 1NO 1NC 6A SPDT with LED Indicator, Socket Base and DIN Rail Module
  • 3 Pcs Miniature 5 Volt DC Relay HF41F/5-ZS 5 Pin 1NO 1NC 6A SPDT with LED Indicator, Socket Base and DIN Rail Module
  • 3 Pcs Miniature 5 Volt DC Relay HF41F/5-ZS 5 Pin 1NO 1NC 6A SPDT with LED Indicator, Socket Base and DIN Rail Module
  • 3 Pcs Miniature 5 Volt DC Relay HF41F/5-ZS 5 Pin 1NO 1NC 6A SPDT with LED Indicator, Socket Base and DIN Rail Module
  • 3 Pcs Miniature 5 Volt DC Relay HF41F/5-ZS 5 Pin 1NO 1NC 6A SPDT with LED Indicator, Socket Base and DIN Rail Module
  • 3 Pcs Miniature 5 Volt DC Relay HF41F/5-ZS 5 Pin 1NO 1NC 6A SPDT with LED Indicator, Socket Base and DIN Rail Module
  • 3 Pcs Miniature 5 Volt DC Relay HF41F/5-ZS 5 Pin 1NO 1NC 6A SPDT with LED Indicator, Socket Base and DIN Rail Module
  • 3 Pcs Miniature 5 Volt DC Relay HF41F/5-ZS 5 Pin 1NO 1NC 6A SPDT with LED Indicator, Socket Base and DIN Rail Module
  • 3 Pcs Miniature 5 Volt DC Relay HF41F/5-ZS 5 Pin 1NO 1NC 6A SPDT with LED Indicator, Socket Base and DIN Rail Module
  • 3 Pcs Miniature 5 Volt DC Relay HF41F/5-ZS 5 Pin 1NO 1NC 6A SPDT with LED Indicator, Socket Base and DIN Rail Module
  • 3 Pcs Miniature 5 Volt DC Relay HF41F/5-ZS 5 Pin 1NO 1NC 6A SPDT with LED Indicator, Socket Base and DIN Rail Module
3 Pcs Miniature 5 Volt DC Relay HF41F/5-ZS 5 Pin 1NO 1NC 6A SPDT with LED Indicator, Socket Base and DIN Rail Module

3 Pcs Miniature 5 Volt DC Relay HF41F/5-ZS 5 Pin 1NO 1NC 6A SPDT with LED Indicator, Socket Base and DIN Rail Module

$46.99
$46.99 $65.99
FREE shipping on this itemShips from West Long Branch, NJ. Typically arrives in 3–7 business days.
30-day returnsChanged your mind? Send it back within 30 days. Return policy
Secure checkoutQuestions? Call 1-888-460-3822 · Mon–Fri 9–5 ET

Key features

  • UL Listed Power Relay through UL and VDE certification, Socket through UL / CSA and CE certification.Product Name:Subminiature Power Relay，The thickness is only 0.24 "/6.2mm.
  • Electromechanical RelaysRelay Coil Voltage: 5V DC, Contact : SPDT 1 Normally Closed + 1 Normally Open. Terminals : 5 Pin; Contact Rating: 6Amp 250VAC / 30VDC, Construction: Plastic seaied. Mechanical life: 10,000,000 Cycles; Electrical life: 300,000 Cycles.

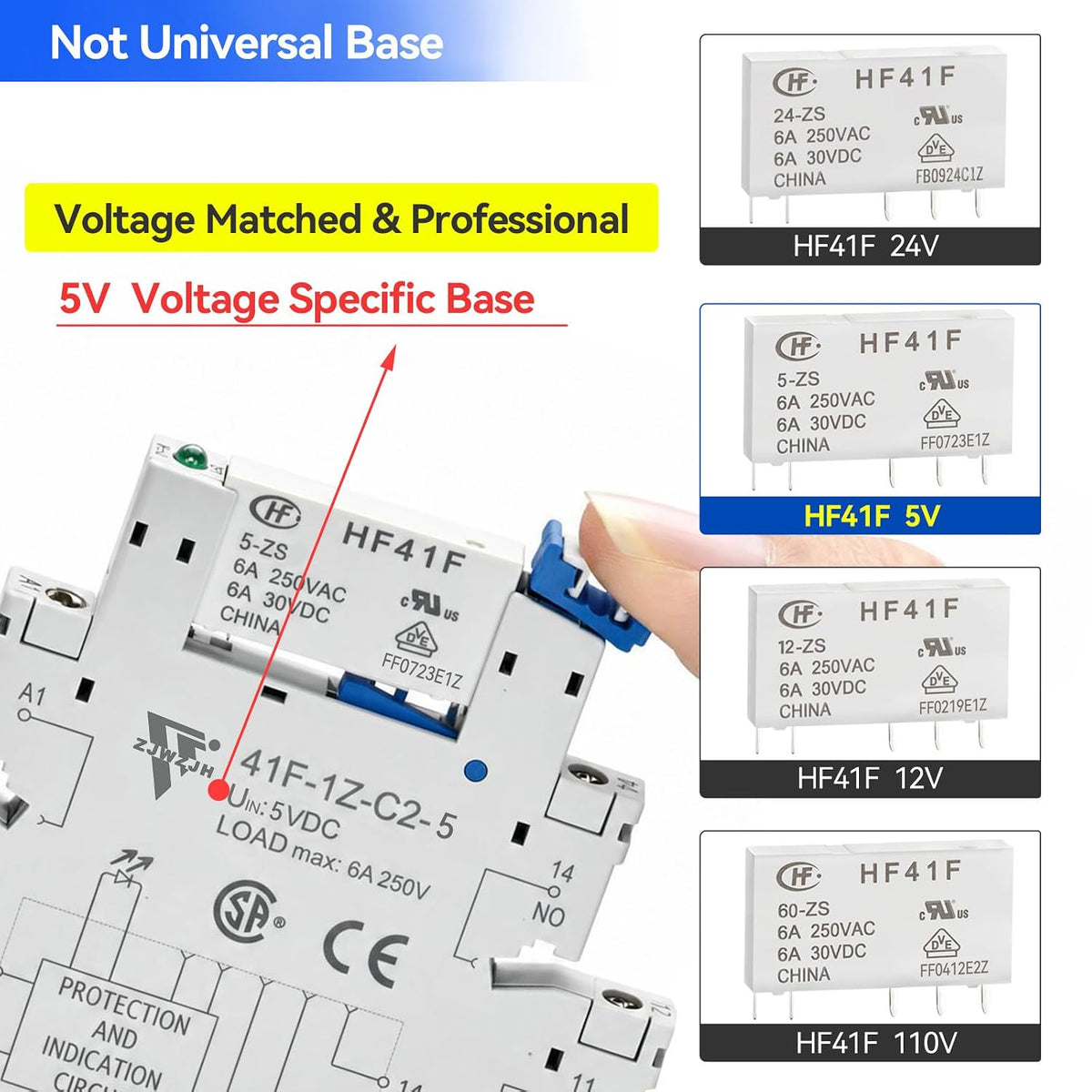

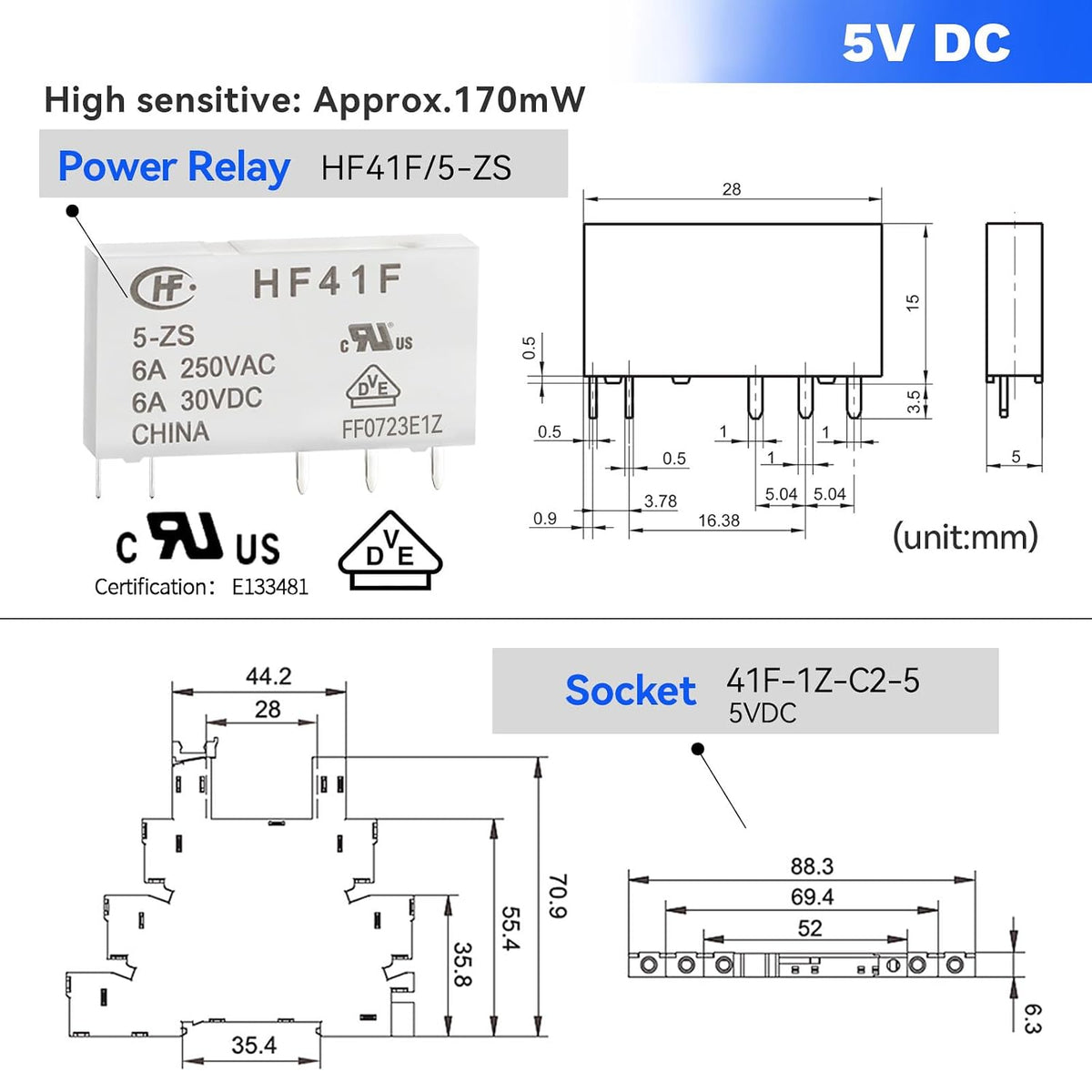

  • Relay Model:HF41F/5-ZS , Relay Slim size (width 5mm), Outline size:28×5×15mm; Socket Model: 41F-1Z-C2, Size : 70.9 x 88.3 x 6.3mm / 2.798"x3.48"x 0.25"(H*L*W)
  • Mount Rail Type : 35mm (1.38") DIN Rail; DIN Rail length :78mm (3.07").
  • PackagePackage Content : 3× Power Relay , 3× Socket Base, 1x 35mm DIN Rail Slotted Aluminum , 2×Screw.Ambient temperature: -40℃ ~ 70℃.

Free shipping included. 30-day hassle-free returns.
