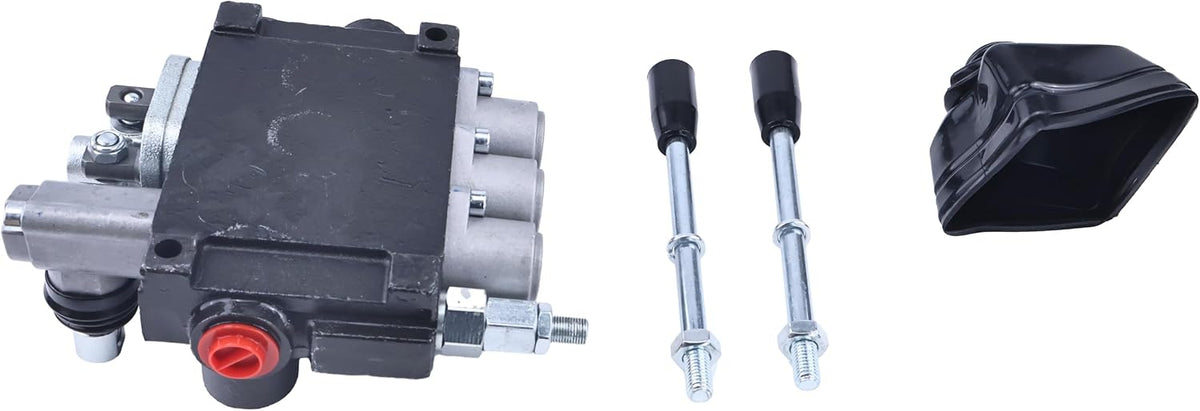

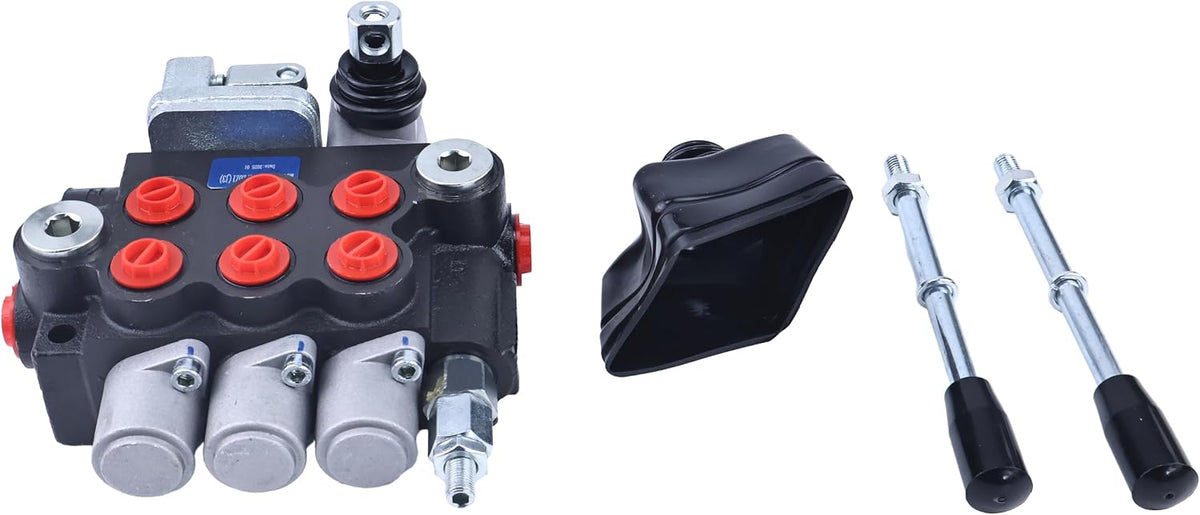

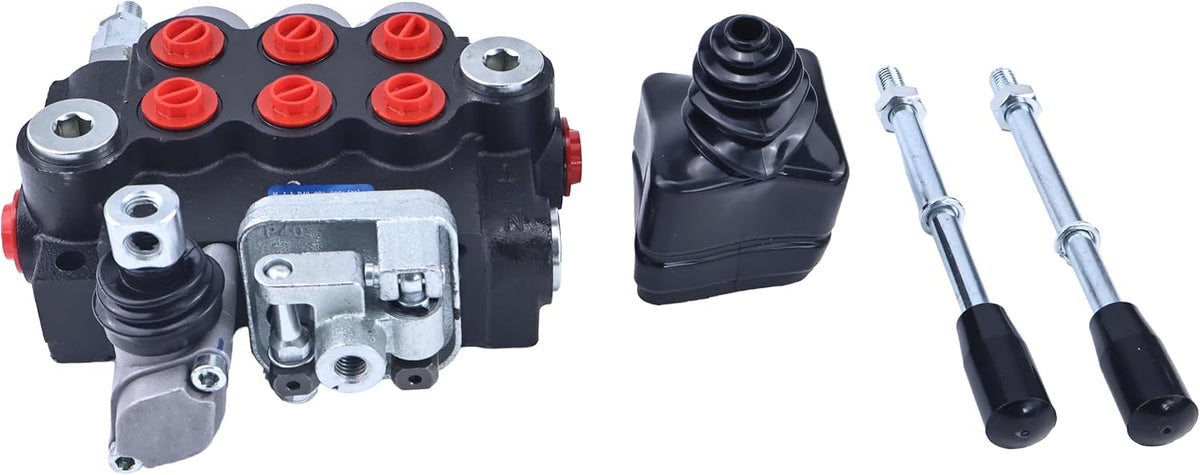

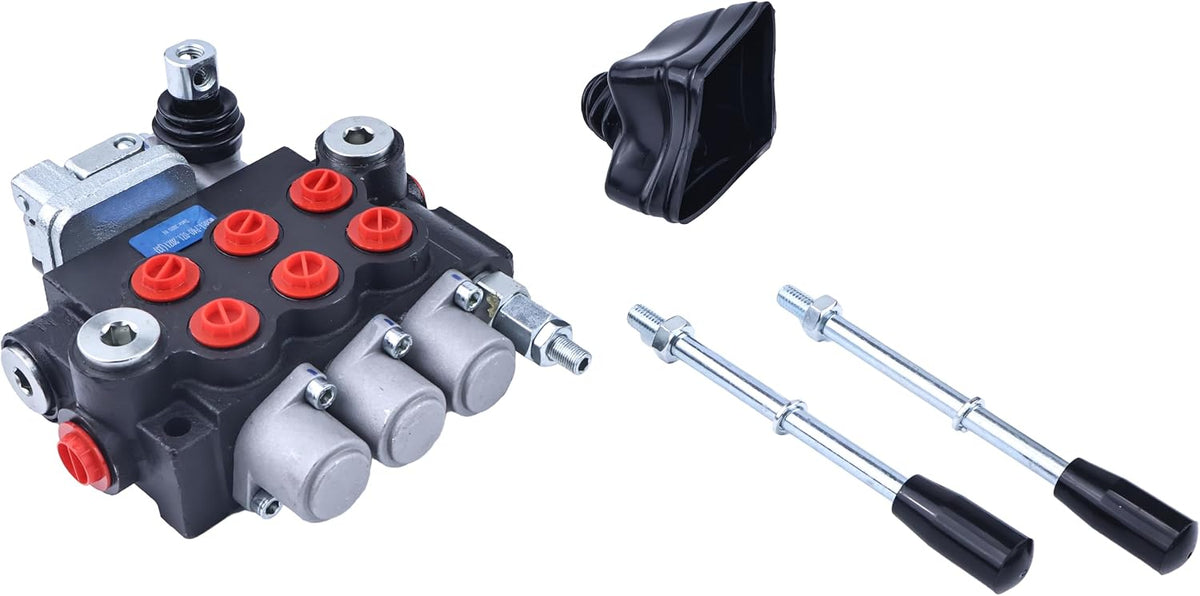

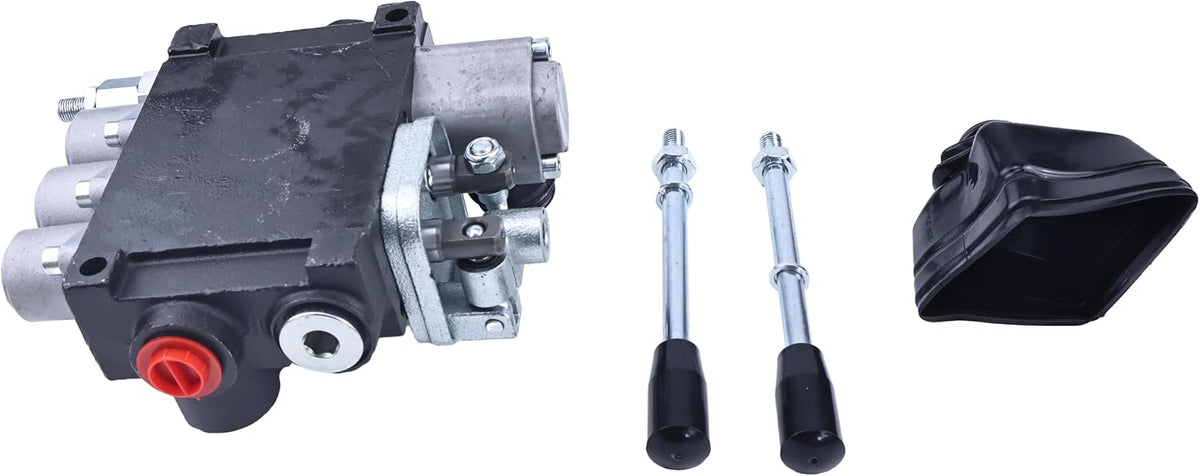

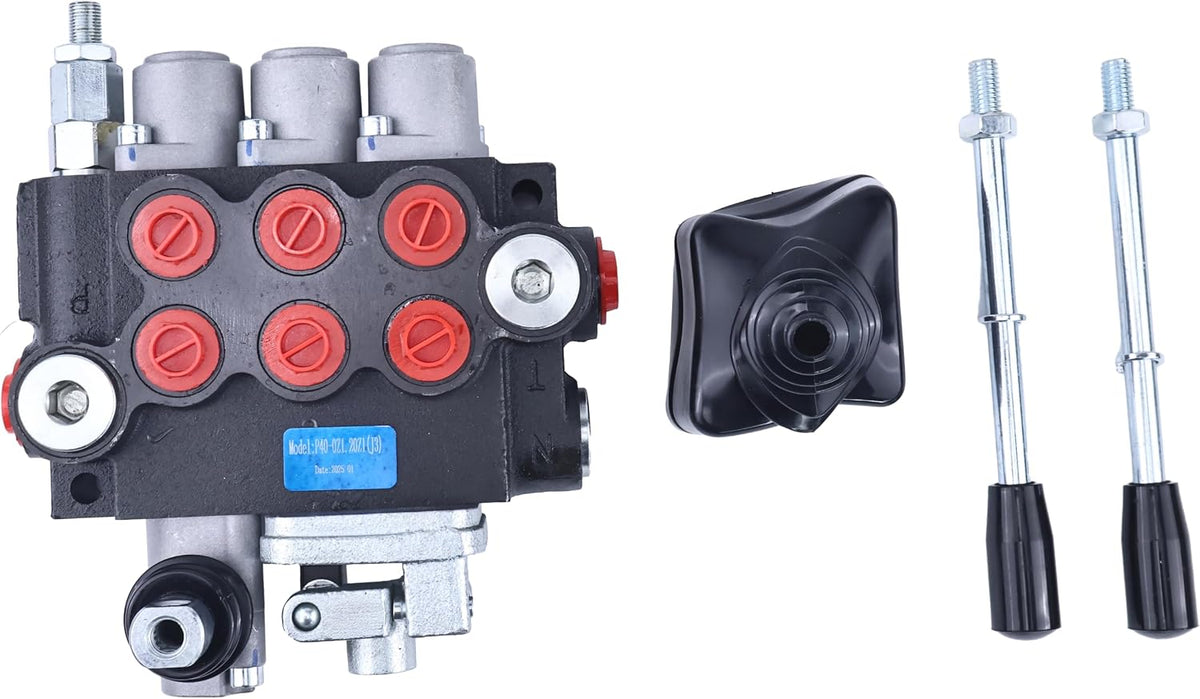

3 Spool Hydraulic Directional Control Valve With Joystick 11gpm 40L 3x Double Acting Q40/3 JOY KPL

Key features

• Product Name: 3 Spool Hydraulic Directional Control Valve With Joystick
• Symbol: 03P40 A1A1A1 + JOY
• Recommended oil flow: 0 - 40 l / min.
• Example control: two 2-way drives.
• Joystick with five positions (1 - 2 - 0 - 3 - 4) on the spring, i.e. it returns to the vertical: Position 0 neutral (joystick positioned vertically) piston rods of both drives are stationary - oil overflows. Working position 1 (joystick lever tilted forward) The piston rod of the first actuator extends. Working position 2 (joystick lever in an inclined position) The piston rod of the first drive is retracted. Working position 3 (joystick lever inclined to the left) The piston rod of the other drive extends. Working position 4 (joystick lever inclined to the right) The piston rod of the other drive is retracted.
• Connection: Pump supply (P1, P2): BSP 1/2 "internal thread Back to the tank (T1, T2): BSP 1/2 "internal thread Sections (A1, A2; B1, B2): BSP 3/8 "internal thread Serial connection (N): BSP 1/2 internal thread
• Pressure range: Maximum pressure on the supply: 250bar Maximum return pressure: 50 bar Maximum pressure on the sections: 300 bar The overflow valve is factory-set to 175 bar Possibility of self-regulation, full turnover change by 30bar
• Package Includes: 1X 3 Spool Hydraulic Directional Control Valve With Joystick

Product Name: 3 Spool Hydraulic Directional Control Valve With Joystick Symbol: 03P40 A1A1A1 + JOY Recommended oil flow: 0 - 40 l / min. Example control: two 2-way drives. Joystick with five positions (1 - 2 - 0 - 3 - 4) on the spring, i.e. it returns to the vertical: Position 0 neutral (joystick positioned vertically) piston rods of both drives are stationary - oil overflows. Working position 1 (joystick lever tilted forward) The piston rod of the first actuator extends. Working position 2 (joystick lever in an inclined position) The piston rod of the first drive is retracted. Working position 3 (joystick lever inclined to the left) The piston rod of the other drive extends. Working position 4 (joystick lever inclined to the right) The piston rod of the other drive is retracted. Connection: Pump supply (P1, P2): BSP 1/2 "internal thread Back to the tank (T1, T2): BSP 1/2 "internal thread Sections (A1, A2; B1, B2): BSP 3/8 "internal thread Serial connection (N): BSP 1/2 internal thread Pressure range: Maximum pressure on the supply: 250bar Maximum return pressure: 50 bar Maximum pressure on the sections: 300 bar The overflow valve is factory-set to 175 bar Possibility of self-regul
