30Amp 300V 2x12 Position Terminal Block Distribution Module. OONO D-1659GP

30Amp 300V 2x12 Position Terminal Block Distribution Module. OONO D-1659GP

$25.99
$25.99 $41.99
Skip to product information
30Amp 300V 2x12 Position Terminal Block Distribution Module. OONO D-1659GP
  • 30Amp 300V 2x12 Position Terminal Block Distribution Module. OONO D-1659GP
  • 30Amp 300V 2x12 Position Terminal Block Distribution Module. OONO D-1659GP
  • 30Amp 300V 2x12 Position Terminal Block Distribution Module. OONO D-1659GP
  • 30Amp 300V 2x12 Position Terminal Block Distribution Module. OONO D-1659GP
  • 30Amp 300V 2x12 Position Terminal Block Distribution Module. OONO D-1659GP
  • 30Amp 300V 2x12 Position Terminal Block Distribution Module. OONO D-1659GP
  • 30Amp 300V 2x12 Position Terminal Block Distribution Module. OONO D-1659GP
  • 30Amp 300V 2x12 Position Terminal Block Distribution Module. OONO D-1659GP
  • 30Amp 300V 2x12 Position Terminal Block Distribution Module. OONO D-1659GP
  • 30Amp 300V 2x12 Position Terminal Block Distribution Module. OONO D-1659GP
  • 30Amp 300V 2x12 Position Terminal Block Distribution Module. OONO D-1659GP
  • 30Amp 300V 2x12 Position Terminal Block Distribution Module. OONO D-1659GP
30Amp 300V 2x12 Position Terminal Block Distribution Module. OONO D-1659GP

30Amp 300V 2x12 Position Terminal Block Distribution Module. OONO D-1659GP

$25.99
$25.99 $41.99
FREE shipping on this itemShips from West Long Branch, NJ. Typically arrives in 3–7 business days.
30-day returnsChanged your mind? Send it back within 30 days. Return policy
Secure checkoutQuestions? Call 1-888-460-3822 · Mon–Fri 9–5 ET

Key features

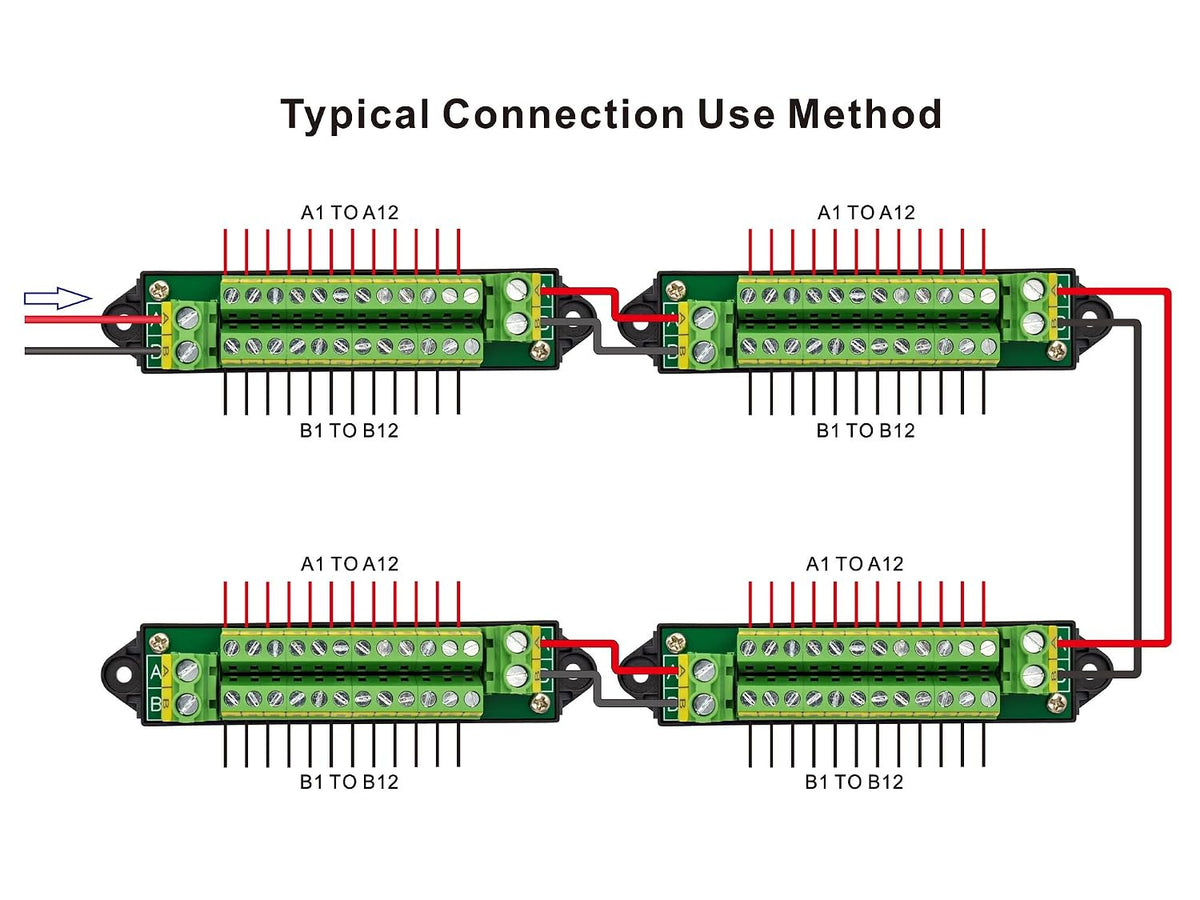

  • 30 Amp 300V 2x12 position screw terminal block distribution module. Support for multiple module extension connections.
  • Rated current 30 Amp(total input or output), Maximum voltage 300V.

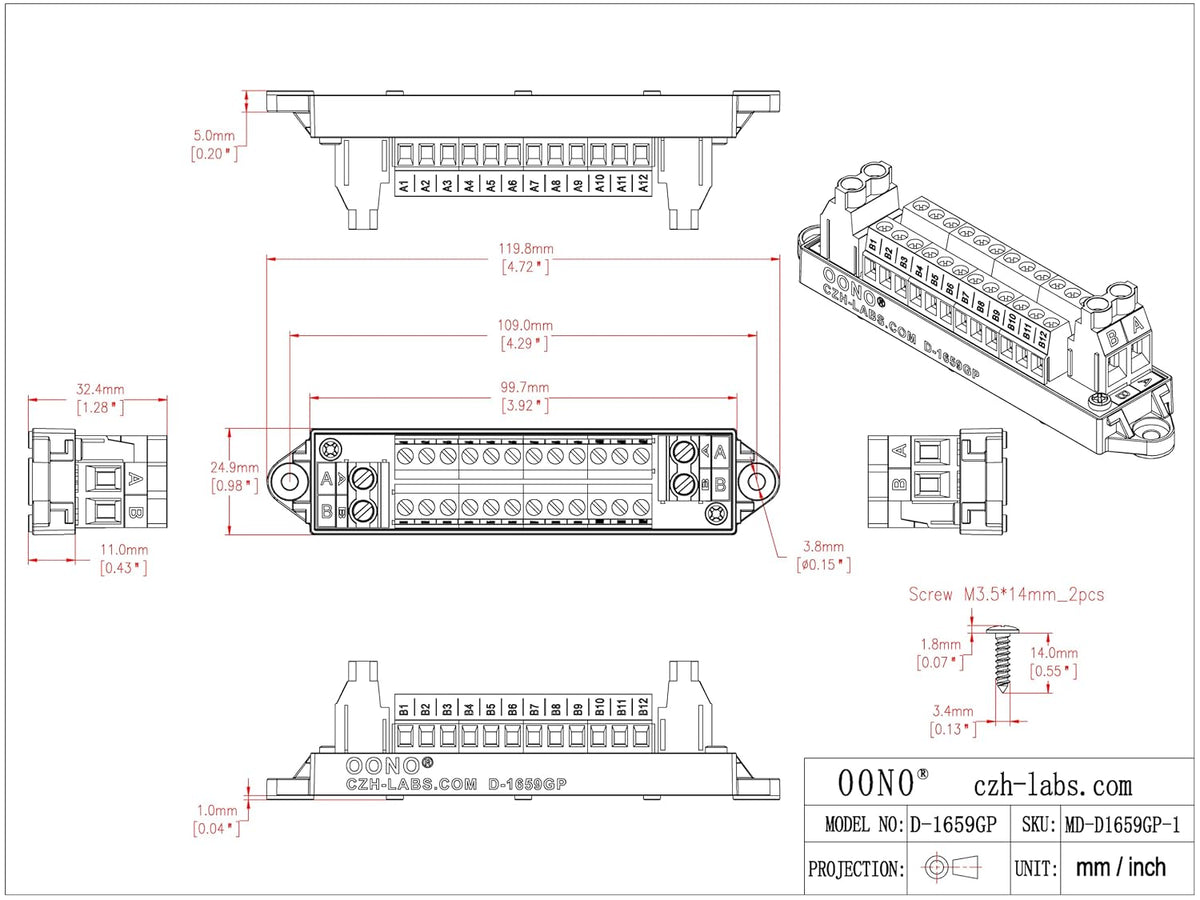

  • A / B terminal blocks, Pitch 7.62mm/0.3", Wire range 26AWG ~ 10AWG / 4mm square. Rated current 30 Amp. Strip length 8mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.
  • A1~A12 / B1~B12 terminal blocks, Pitch 5.0mm/0.197", Wire range 26AWG ~ 12AWG / 2.5mm square. Rated current 16 Amp. Strip length 7mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.
  • UL CE CQC certified terminal blocks, FR-4 glass fiber PCB. Mounting base: PC (Polycarbonate plastic). Screw: 304 stainless steel.

Free shipping included. 30-day hassle-free returns.
