3164606 Liner Press Kit & 6434 Gauge Compatible with Cummins ISX X15
3164606 Liner Press Kit & 6434 Gauge Compatible with Cummins ISX X15
Key features

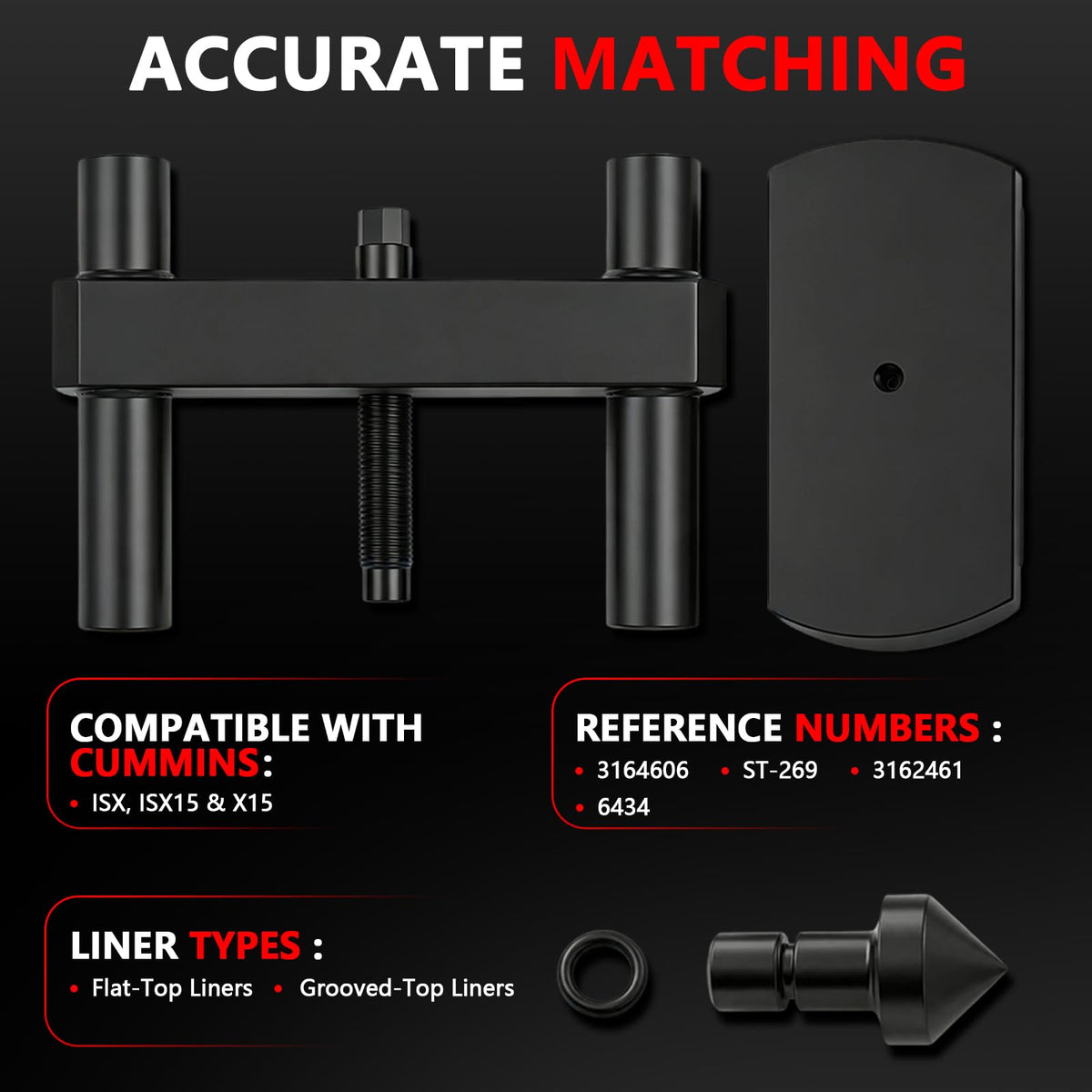

- ENGINE COMPATIBILITY 3164606 cylinder liner press is compatible with Cummins ISX, ISX15, X15 engines, including applicable CM570, CM870, CM871, CM2250 and CM2350 variants. Verify the ESN before ordering.
- CONTROLLED LINER INSTALLATION Plate, fixture and drive screw apply steady pressure to seat flat-top and grooved-top liners. Supports anti-polishing ring installation with required service parts and procedures.

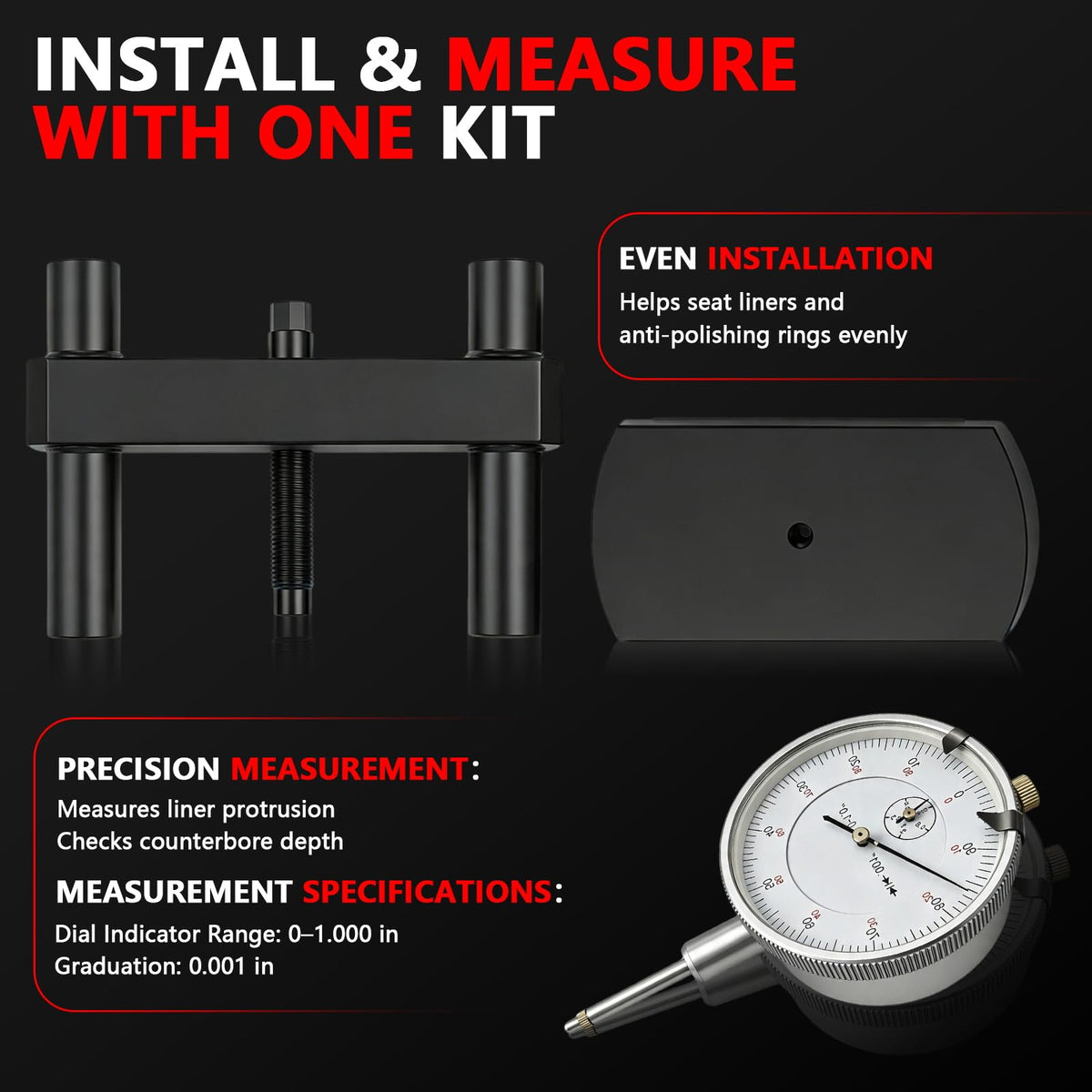

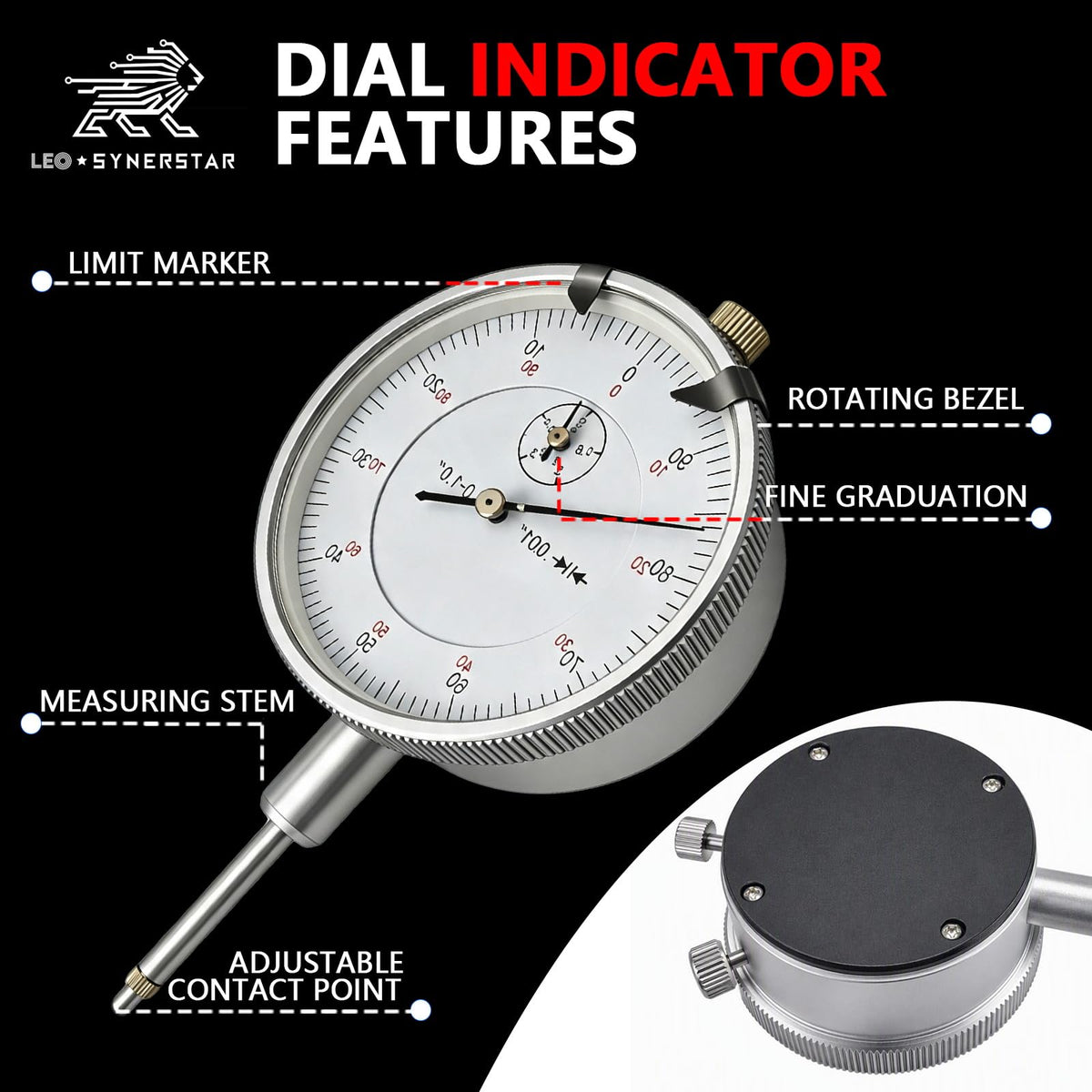

- MEASURE HEIGHT AND DEPTH The 6434 sleeve height and counterbore gauge uses a pointed contact for liner protrusion and a flat contact for counterbore depth. Range: 0-1 in; graduations: 0.001 in for easy reading.

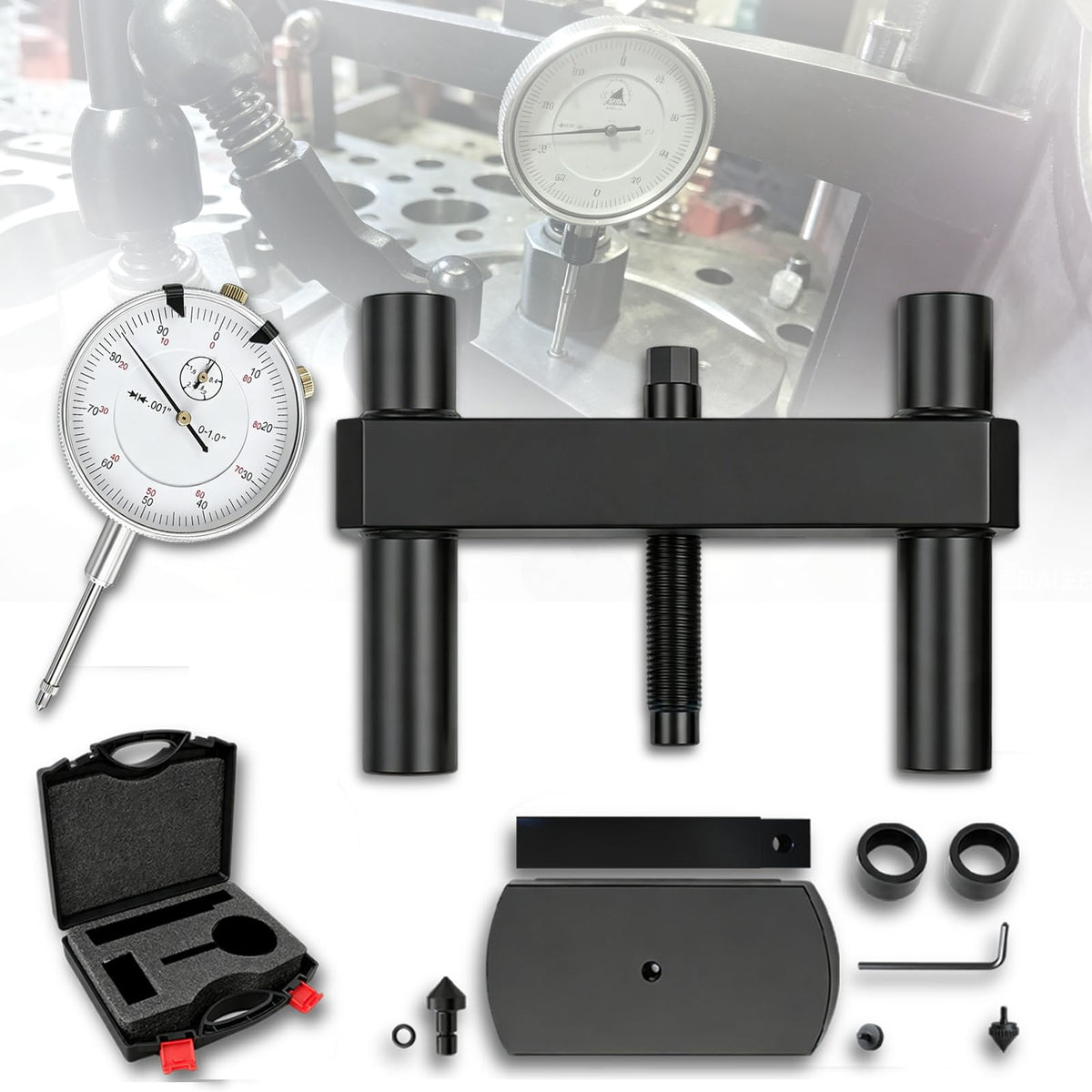

- COMPLETE TWO-TOOL KIT Includes the heavy-duty liner press assembly, 6434 gauge, flat and pointed contacts, carrying case for storage, hex key and 2 spacers. Cross-reference numbers: 3164606, ST-269 and 3162461.
- PROFESSIONAL REBUILD TOOL For diesel shops, rebuilders and fleet service. Supports in-frame overhaul and liner installation. This installer and measuring kit does not remove liners or fit ISB 5.9L/6.7L engines.

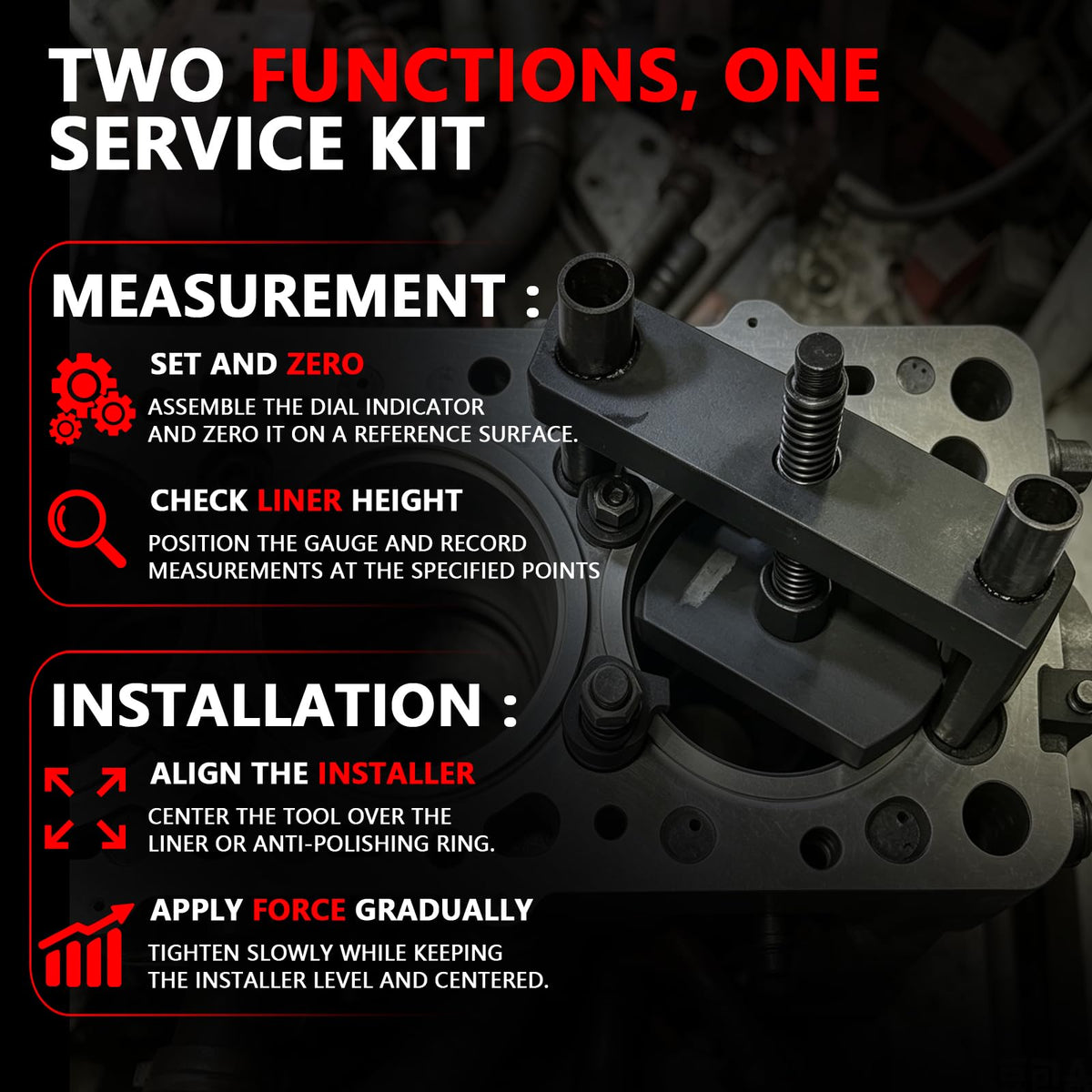

FROM LINER INSTALLATION TO FINAL CHECK A liner installation should be followed by dimensional verification before final assembly. This two-tool set pairs the 3164606 cylinder liner press with the 6434 sleeve height and counterbore gauge, keeping both steps together in one organized engine-rebuild workflow. Use the press plate, fixture and drive screw to apply steady mechanical force when seating a flat-top or grooved-top liner. After installation, place the 6434 bridge-style base across the engine block deck. Use the pointed contact to check sleeve height or liner protrusion, then switch to the flat contact to measure counterbore depth. MEASUREMENT SNAPSHOT Measuring range: 0-1 in Graduations: 0.001 in Pointed contact: Sleeve height and liner protrusion Flat contact: Counterbore depth Compatible with select Cummins ISX, ISX15, QSX15 and X15 engines, including applicable CM570, CM870, CM871, CM2250 and CM2350 variants. The press works with flat-top and grooved-top liners and can support anti-polishing ring installation when used with the required service parts and specified repair procedure. WHAT'S INCLUDED 3164606 liner press assembly 6434 dial gauge and bridge-style base Pointed a
Free shipping included. 30-day hassle-free returns.
